Density: 6.05g/cm3
Thermal conductivity:2.5W/mk
PRODUCT DETAILS
Product Description

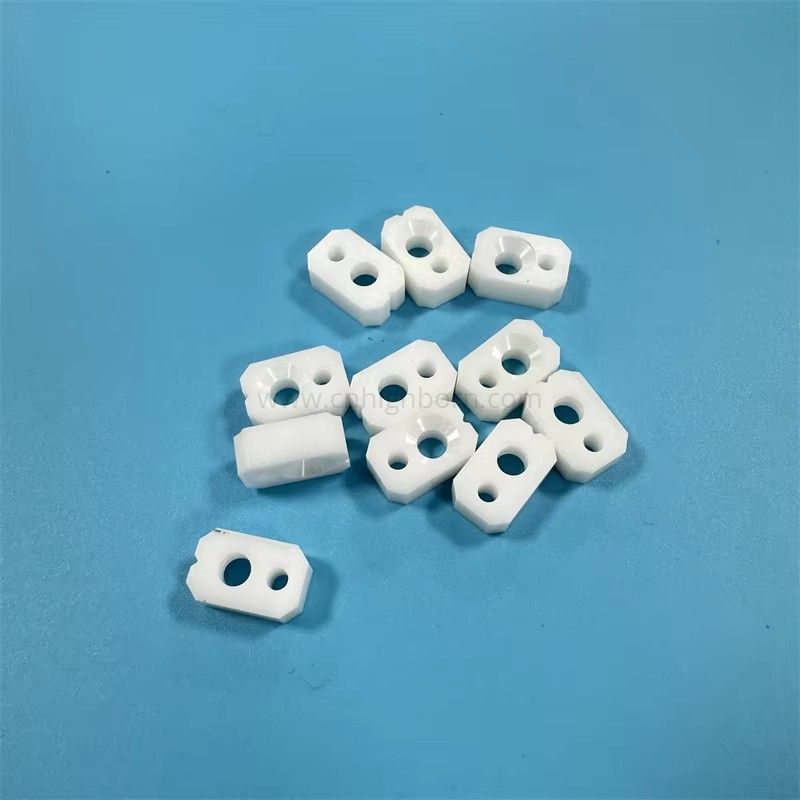

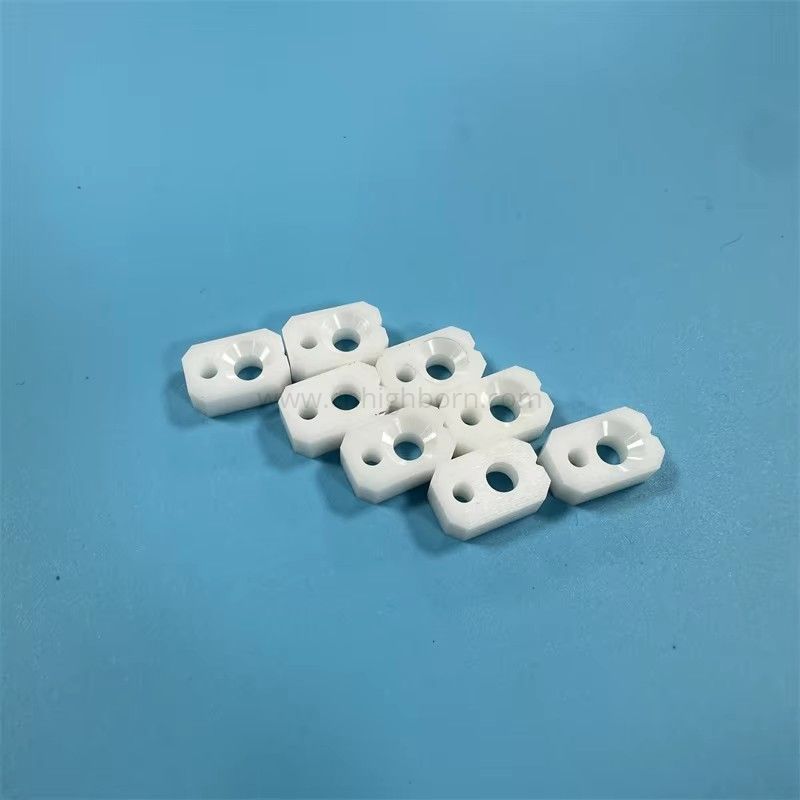

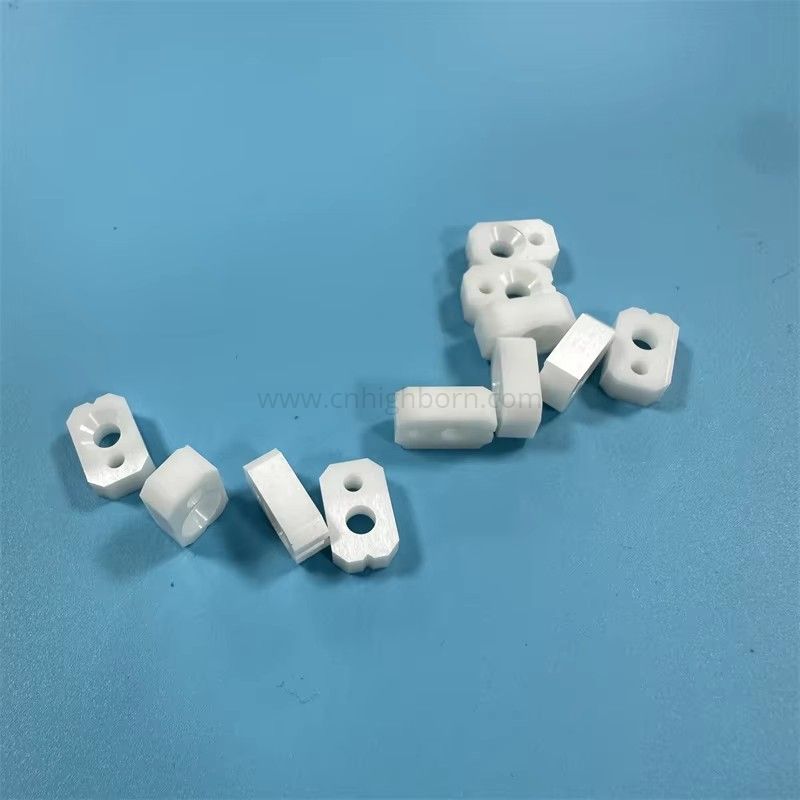

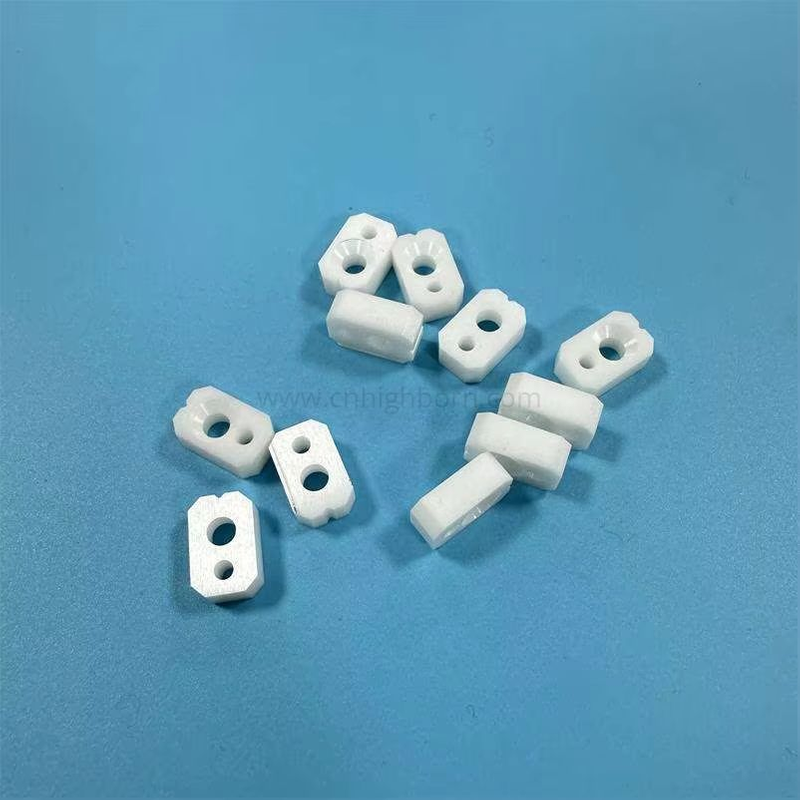

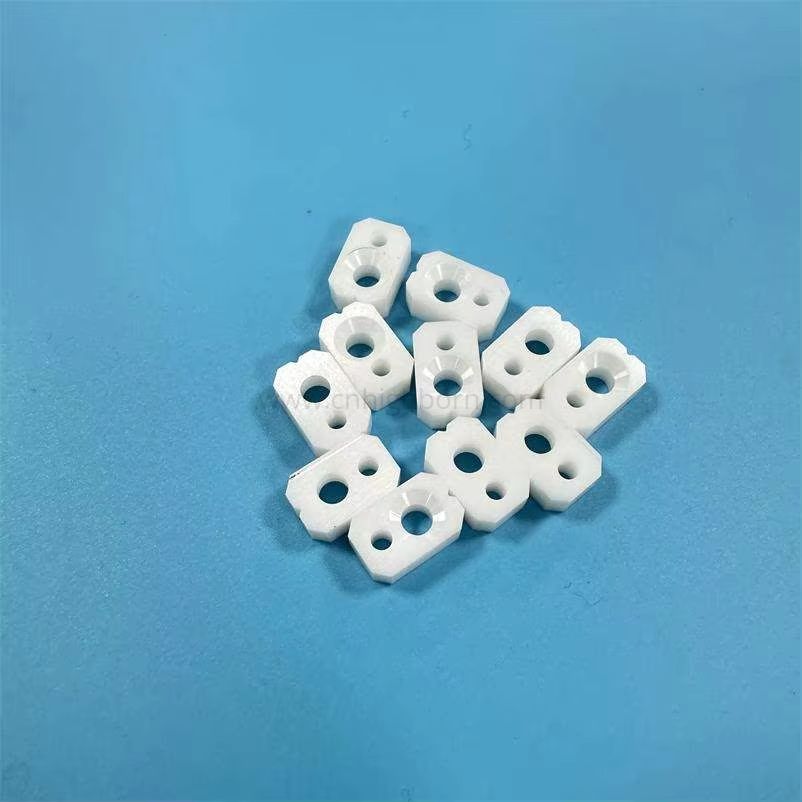

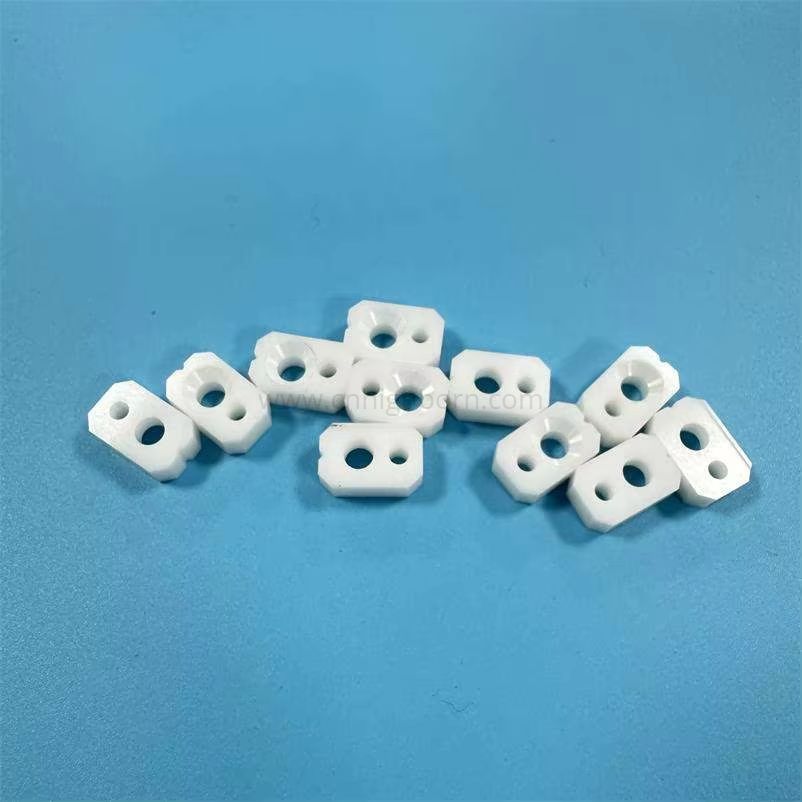

Yttria Stabilized Zirconia Part:
This component is precision CNC machined from zirconia ceramic material. Zirconia ceramic features high density and outstanding mechanical properties compared with many other ceramic materials.
Features of Zirconium Oxide Block:
Precision CNC machining creates accurate mounting holes and special step profiles. Standard machining tolerance can reach plus minus 0.1 mm, ensuring perfect fitting with customer equipment.
Zro2 Ceramic Part::
This zirconia ceramic block is widely used as insulation and structural parts in electronic devices mechanical equipment and automation instruments. It serves for positioning supporting and isolation in many industrial assemblies.
Customization:
Full customization of dimensions, tolerances and surface finishes is available based on customer drawings. Each ring undergoes precision machining and strict dimensional verification to ensure consistent quality and precise assembly compatibility.
项目
Item
单位
Unit
氧化锆
Zirconia (ZrO2)
体积密度
Bulk density
g/cm3
6.05
吸水率
Water absorption
%
0
抗折强度
Flexural strength
MPa
1000
硬度
Hardness vickers
GPa
89
模量
Elastic modulus
GPa
200
线性膨胀系数
Linear expansion coefficient
(20-500℃) 10-6/℃
10
导热系数
Thermal conductivity
W/(m·K)
2.5
介电常数
Dielectric constant (1MHZ)
-
N.A.
介电强度
Dielectric strength
*106V/m
N.A.
