Product Description

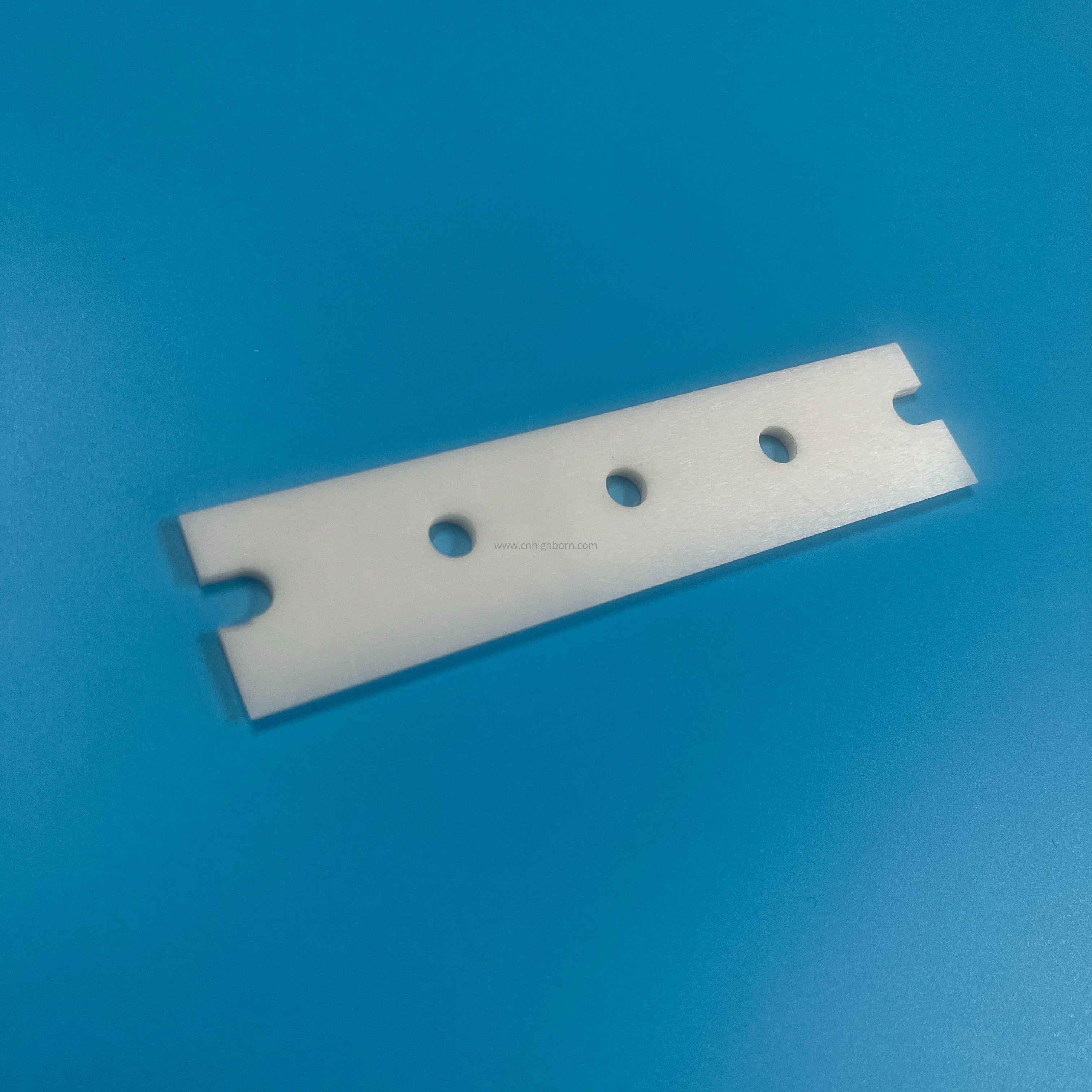

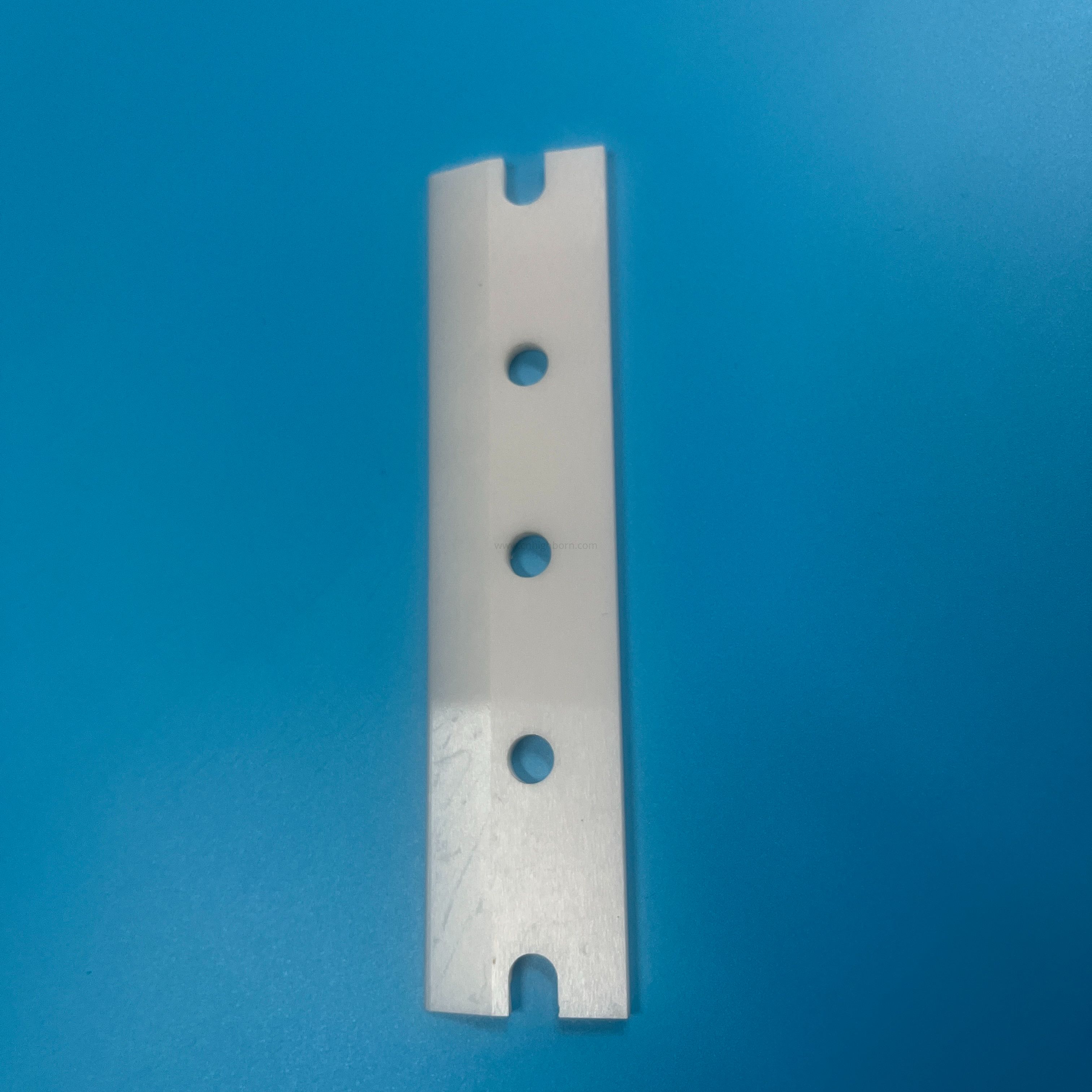

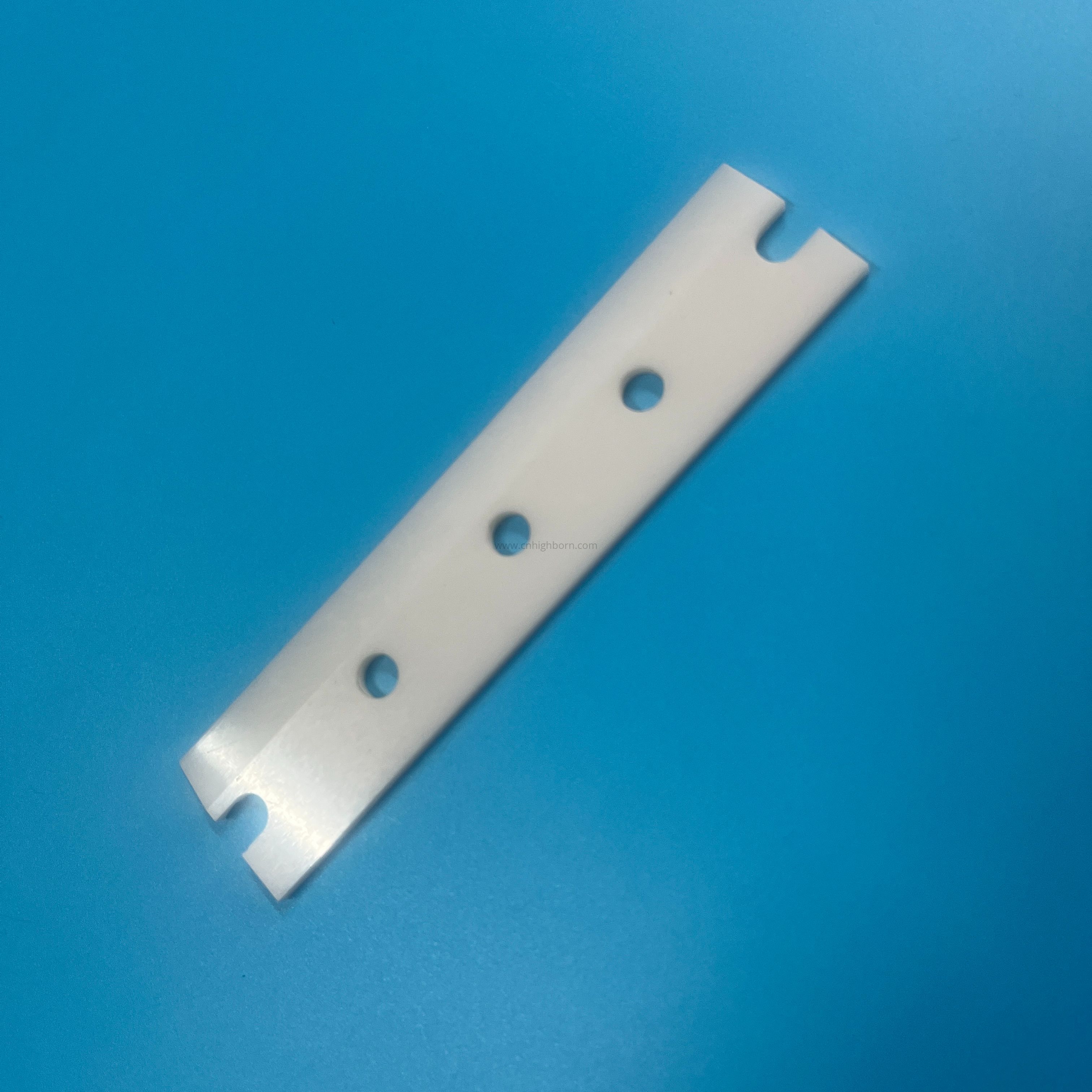

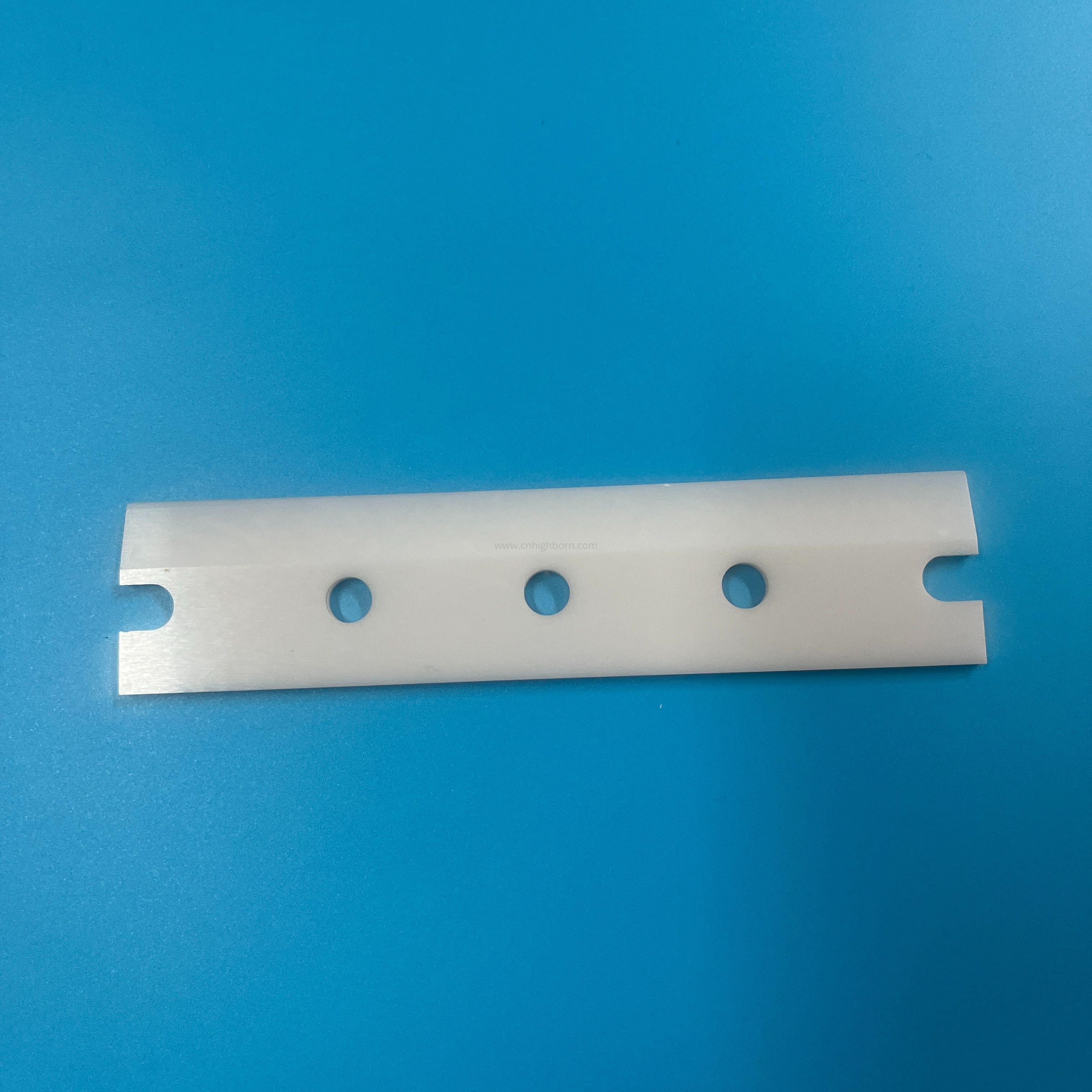

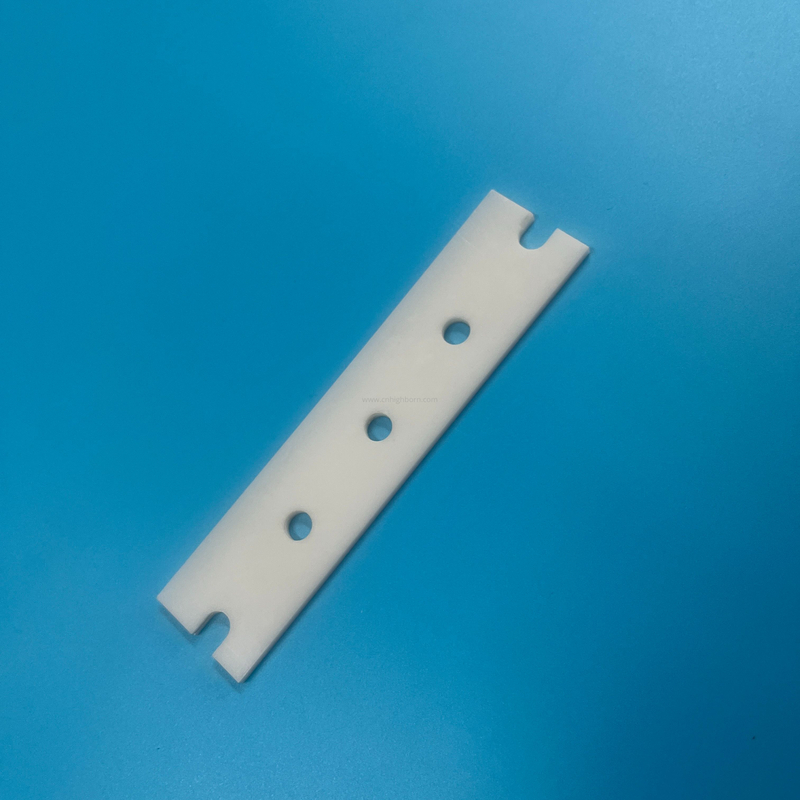

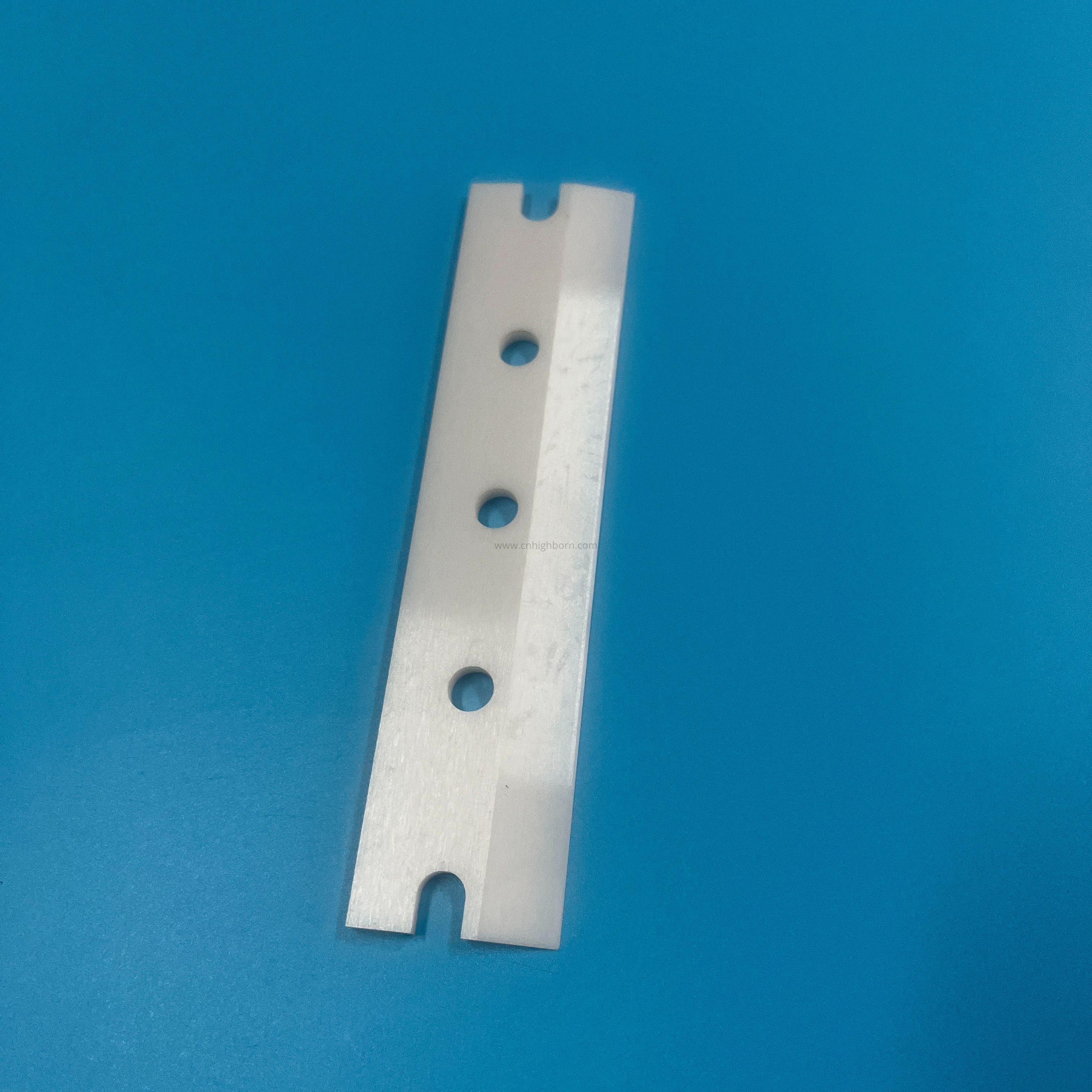

 | Zirconia ceramic plate features: 1.High toughness & wear resistance, long service life 2.Electrical insulation, non-magnetic, anti-corrosion 3.Precision CNC machining, tight tolerance 4.Custom size, holes & notches available |
Zirconia Sheet Application Zirconia sheet ,applied in lithium battery slitting machine, textile spinning, semiconductor carrier tape conveying, film & foil slitting automation equipment, as wear-resistant, insulating, non-magnetic guide and positioning components. |  |
 | Zirconia Ceramic part Introduction： Zirconia is a very strong technical ceramic with excellent properties in hardness and corrosion resistance, all without the typical property of ceramics – brittleness. |
Zirconia material parameter： Zirconia ceramic has a series of good properties,such as high strength,good fracture toughness,high density,good abrasion resistance,high hardness and so on. |  |
项目 Item | 单位 Unit | 氧化锆 Zirconia (ZrO2) |
体积密度 Bulk density | g/cm3 | 6.05 |
吸水率 Water absorption | % | 0 |
抗折强度 Flexural strength | MPa | 1000 |
硬度 Hardness vickers | GPa | 89 |
模量 Elastic modulus | GPa | 200 |
线性膨胀系数 Linear expansion coefficient | (20-500℃) 10-6/℃ | 10 |
导热系数 Thermal conductivity | W/(m·K) | 2.5 |
介电常数 Dielectric constant (1MHZ) | - | N.A. |
介电强度 Dielectric strength | *106V/m | N.A. |
