20 years export experience 8 Trademarks、40 Patents Design & Research Cooperated with Global 500 enterprises Certificates:ISO、ROHS、CE etc.
Density: 6.05g/cm³
Water absorption: 0%
PRODUCT DETAILS
Product Description

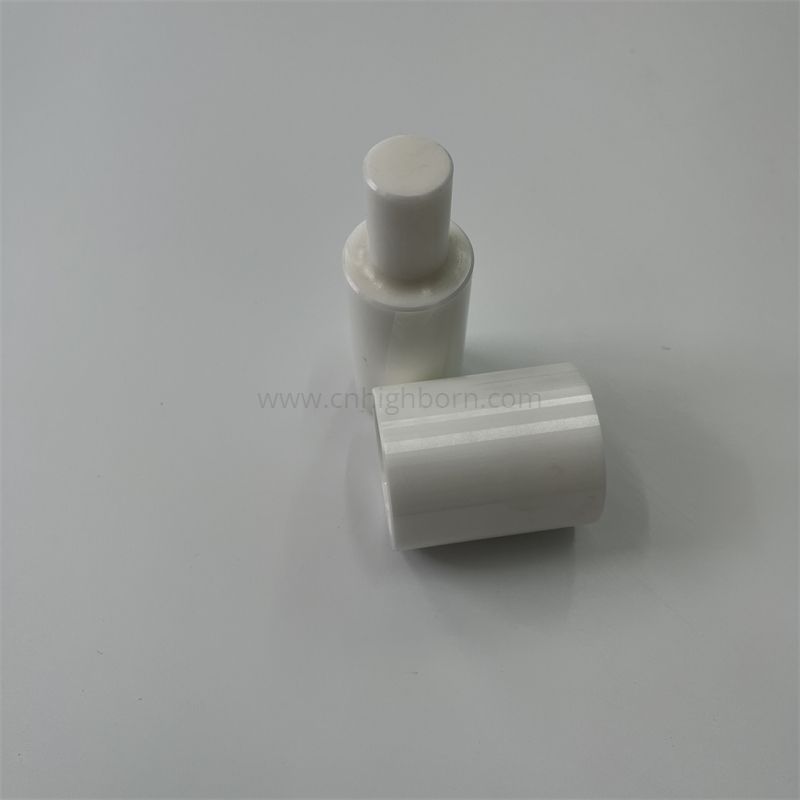

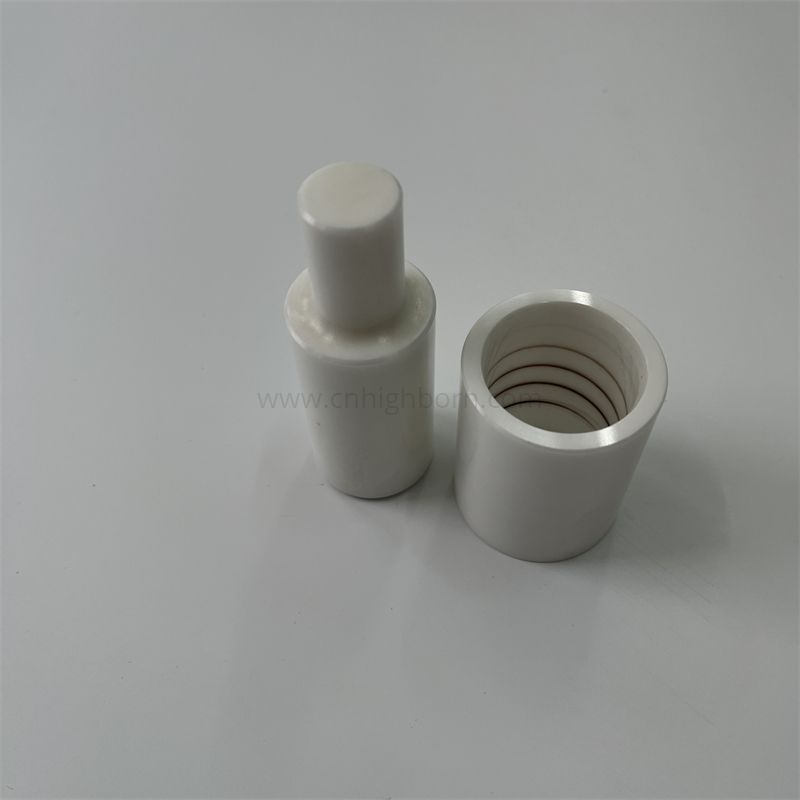

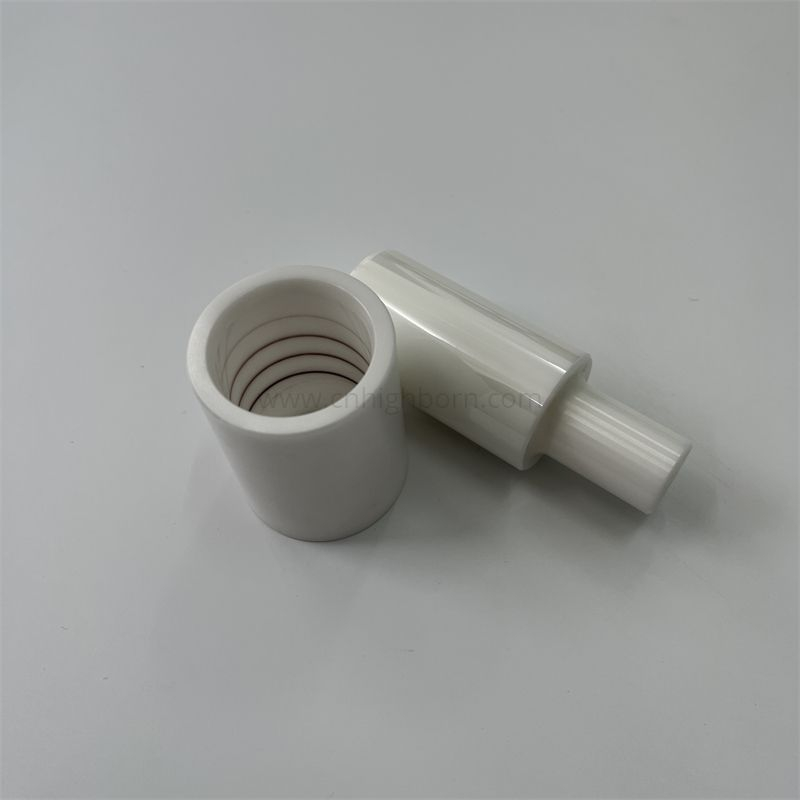

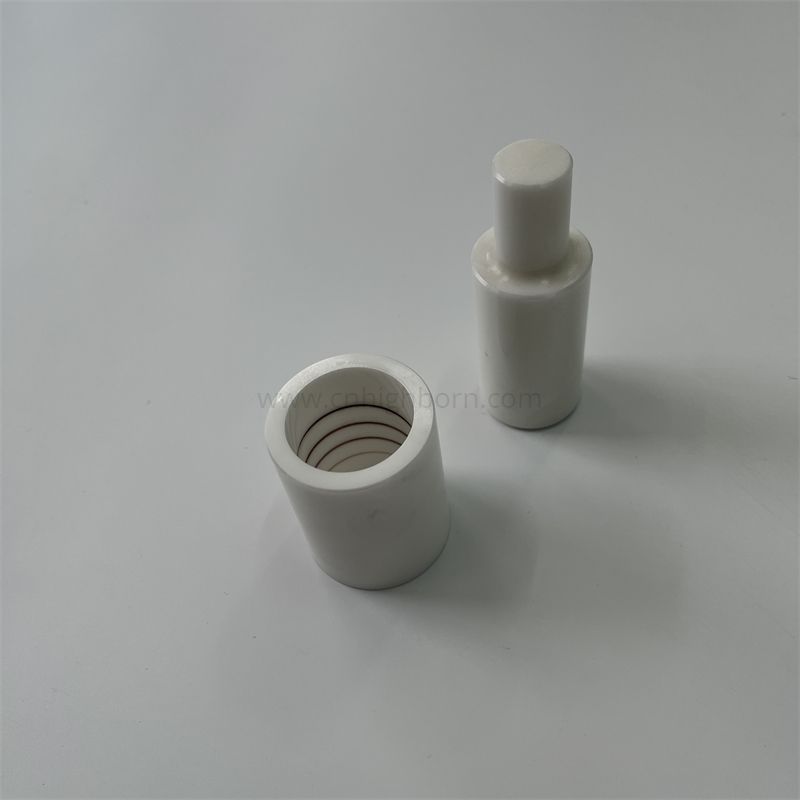

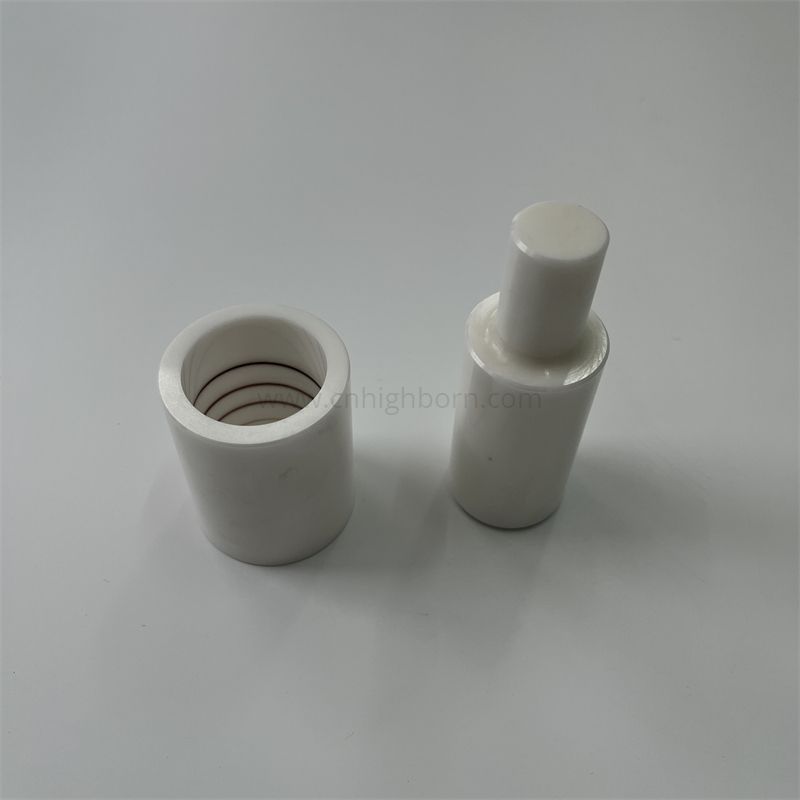

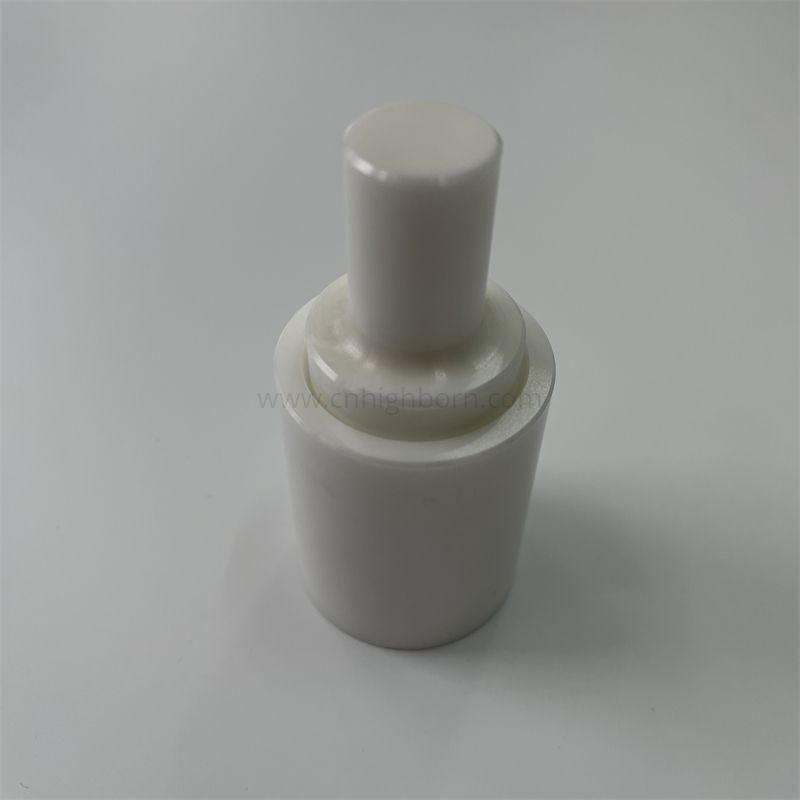

Ceramic Piston Introduction：
Manufactured from high purity zirconia raw material followed by precise grinding process.Tight tolerance control ensures good fitting performance between plunger and sleeve set.
Zirconia Ceramic piston Application:
This zirconia plunger and sleeve assembly is widely used for metering pump filling machine pharmaceutical equipment food processing and other precision fluid delivery devices.
Zirconia Ceramic piston plunger
*High surface hardness
*Good chemical inertness
*Smooth fine ground surface lowers friction coefficient during pump running
Zirconia Ceramic Advantages:
Zirconia ceramic material keeps stable performance under continuous working condition. It avoids metal contamination when conveying sensitive fluid medium.
项目
Item
单位
Unit
氧化锆
Zirconia (ZrO2)
体积密度
Bulk density
g/cm3
6.05
吸水率
Water absorption
%
0
抗折强度
Flexural strength
MPa
1000
硬度
Hardness vickers
GPa
89
模量
Elastic modulus
GPa
200
线性膨胀系数
Linear expansion coefficient
(20-500℃) 10-6/℃
10
导热系数
Thermal conductivity
W/(m·K)
2.5
介电常数
Dielectric constant (1MHZ)
-
N.A.
介电强度
Dielectric strength
*106V/m
N.A.
Company Profile
Packaging & Shipping
Packing Details
We will packing by professional export packing,safety against breakage, finally into the wooden cases/ carton/pallet or customized package. We have ERPauthentication.
Delivery Details
We can deliver by SEA,air,rail transportation,the China-Europe Railway Express etc.
We are mainly supplying quartz glass, cuvette, precise ceramics, porous ceramics, thick film resistor, ozone generator, metal fiber felt and we have been offering our products and services to our clients from more than 107 countries or regions.
