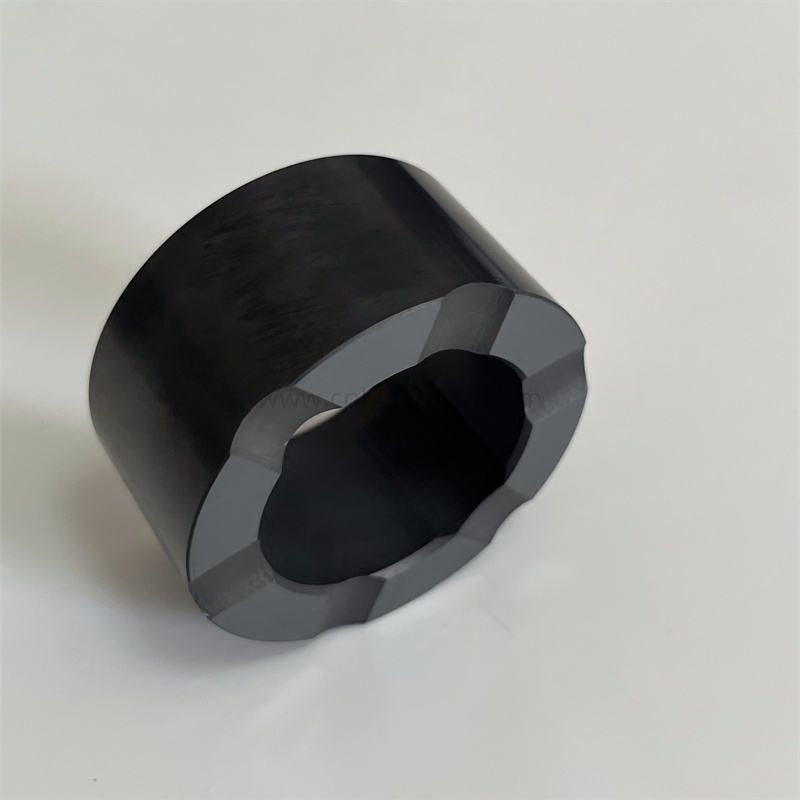

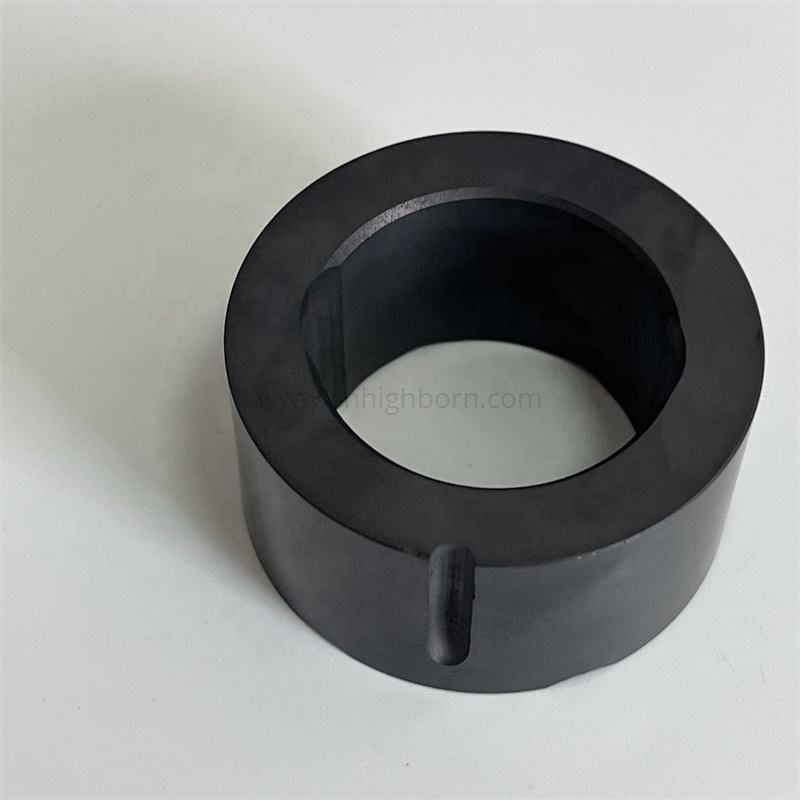

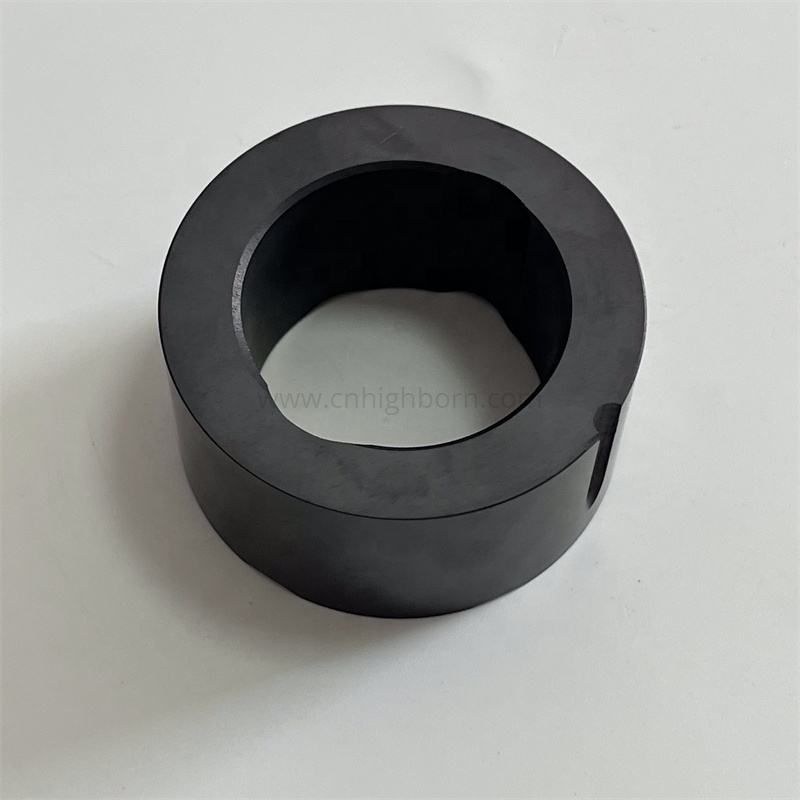

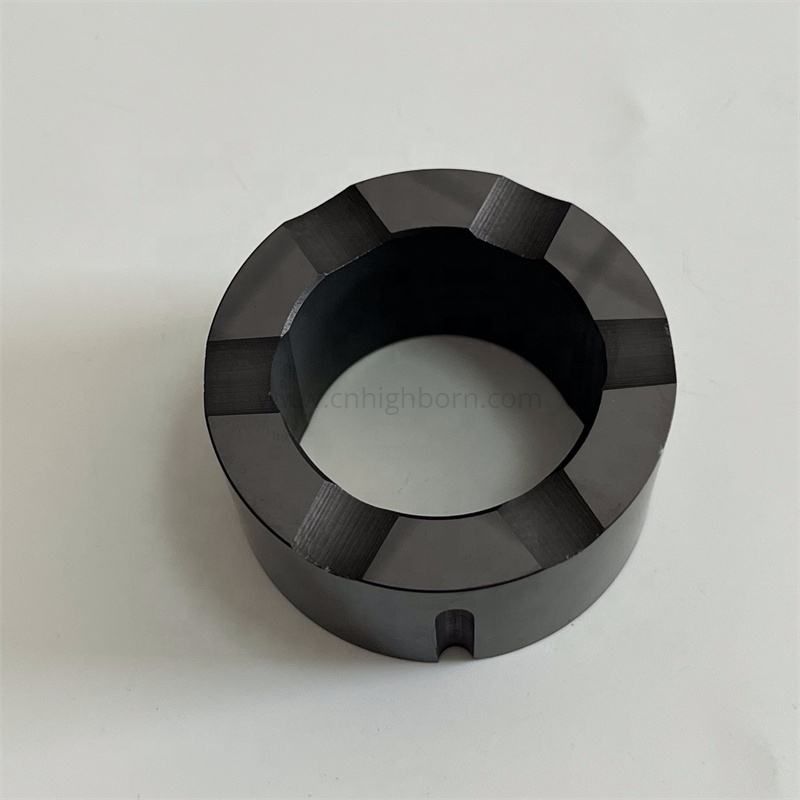

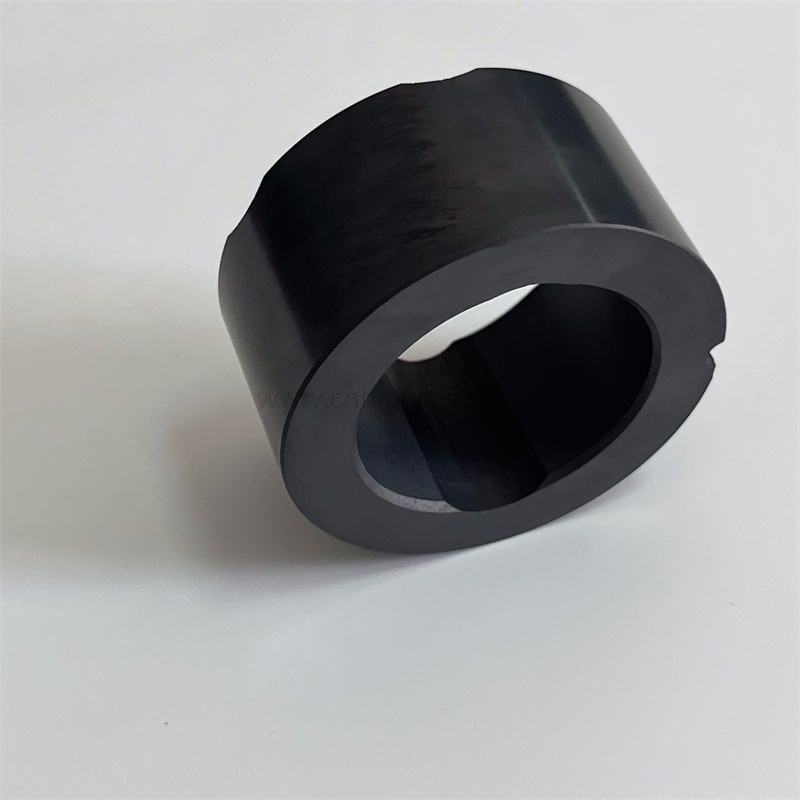

Customized SiC Ceramic Wear Resistant Seal Ring Pump


Availability:

Quantity:

Inquire Add to Basket

20 years export experience
8 Trademarks、40 Patents
Cooperated with Global 500 enterprises
Certificates:ISO、ROHS、CE etc.
Volume density(g/cm3):>3.25
Breaking tenacity(Mpa m1/2):6-8
Elasticity modulus(GPa):300-320

PRODUCT DETAILS

Product Description

	Silicon Nitride Ceramic ring: Silicon carbide ceramics are widely used in petroleum, chemical industry, microelectronics, automotive, aerospace, aviation, paper, laser, mining and atomic energy, bearings, bulletproof plates and other fields.
Silicon carbide ceramics Hot pressing sintering, non-pressing sintering, hot isostatic pressing sintering materials, its high temperature strength can be maintained to 1600℃, is the best high temperature strength of ceramic materials.
	Silicon carbide Ceramic application: Silicon carbide ceramics have been widely used in petroleum, chemical, microelectronics, automobile, aerospace, aviation, papermaking, laser, mining and atomic energy industries.
SiC ceramic crucibles Features: 1.High strength graphite strength increases 2.High temperature resistance 3.Good heat shock resistance 4.Anti-oxidation 5.Strong corrosion resistance to acid and alkali liquid

项目 Item	单位	常压烧结碳化硅 SSIC	反应烧结碳化硅 RBSIC/SISIC	重结晶烧结碳化硅 RSIC
	UNIT	DATA	DATA	DATA
最高使用温度 Max temperature of Application	℃	1600	1380	1650
密度 Density	g/cm³	>3.1	>3.02	>2.6
气孔性 Open Porosity	%	<0.1	<0.1	15%
抗弯强度 Bending Strength	MPa	>400	250(20℃)	90-100(20℃)
	MPa		280(1200℃)	100-120(1100℃）
弹性模量 Modulus of Elasticity	GPa	420	330(20℃)	240
	GPa		300(1200℃)
热传导系数 Thermal Conductivity	W/(m·K)	74	45(1200℃)	24
热膨胀系数 Coefficient of Thermal Expansion	K^-1x10^-6	4.1	4.5	4.8
维式硬度 Vickers Hardness HV	GPa	22	20
耐酸碱度 Acid Alkaline-proof		优（excellent）	优（excellent）	优（excellent）
