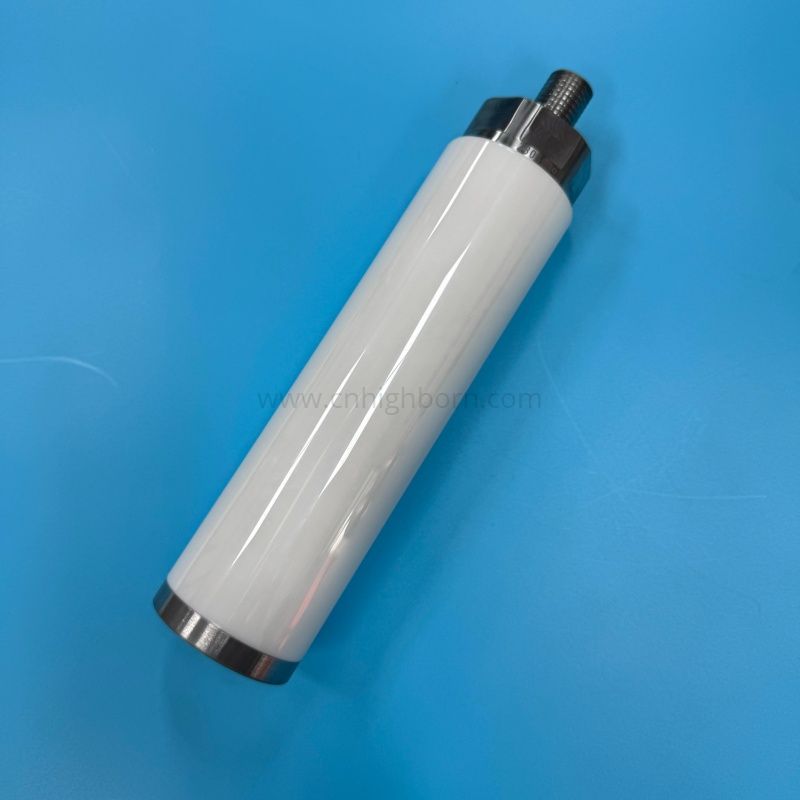

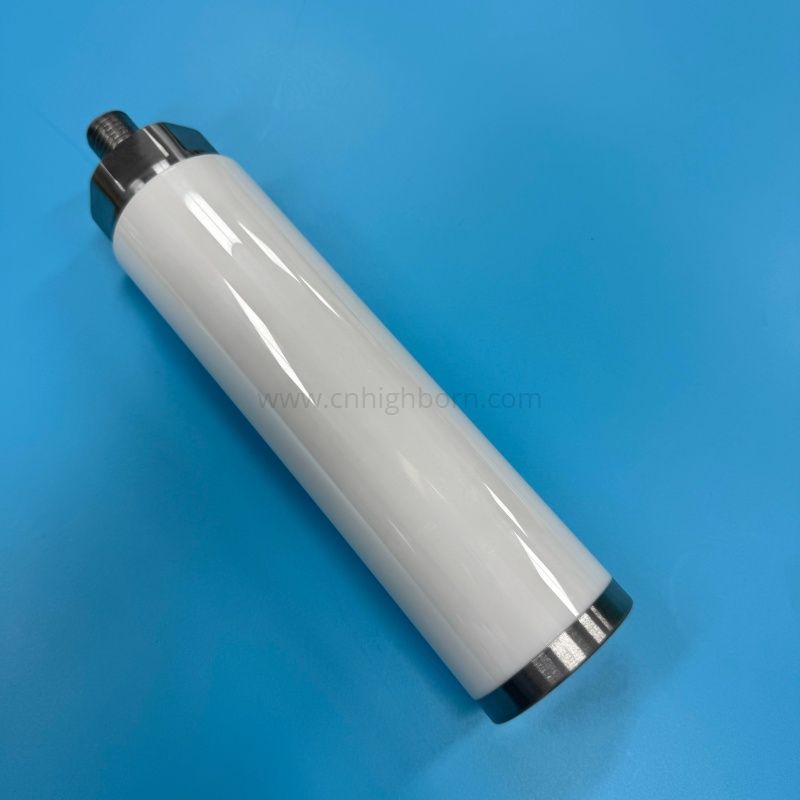

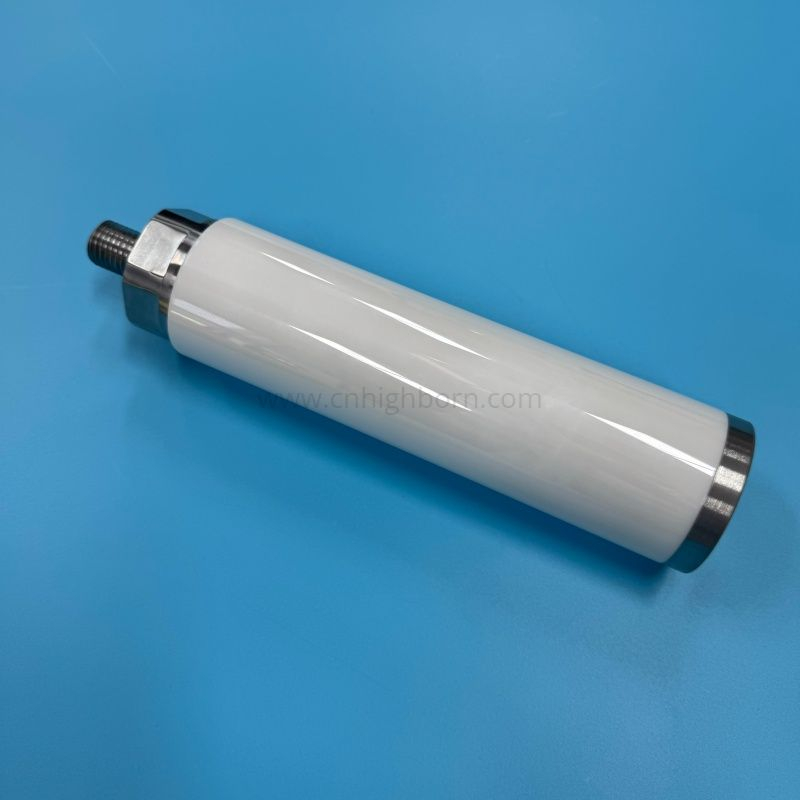

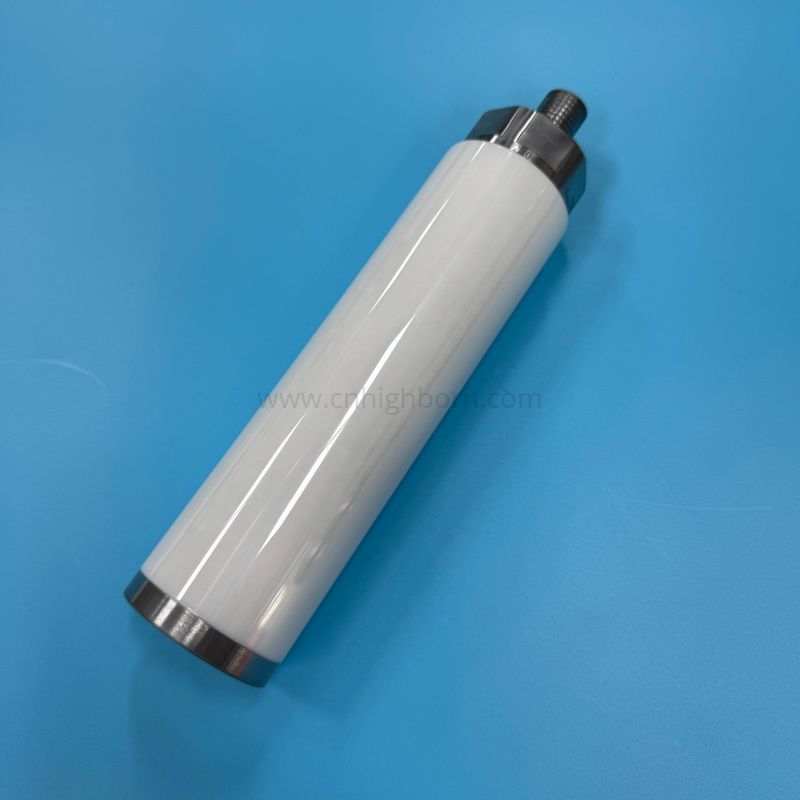

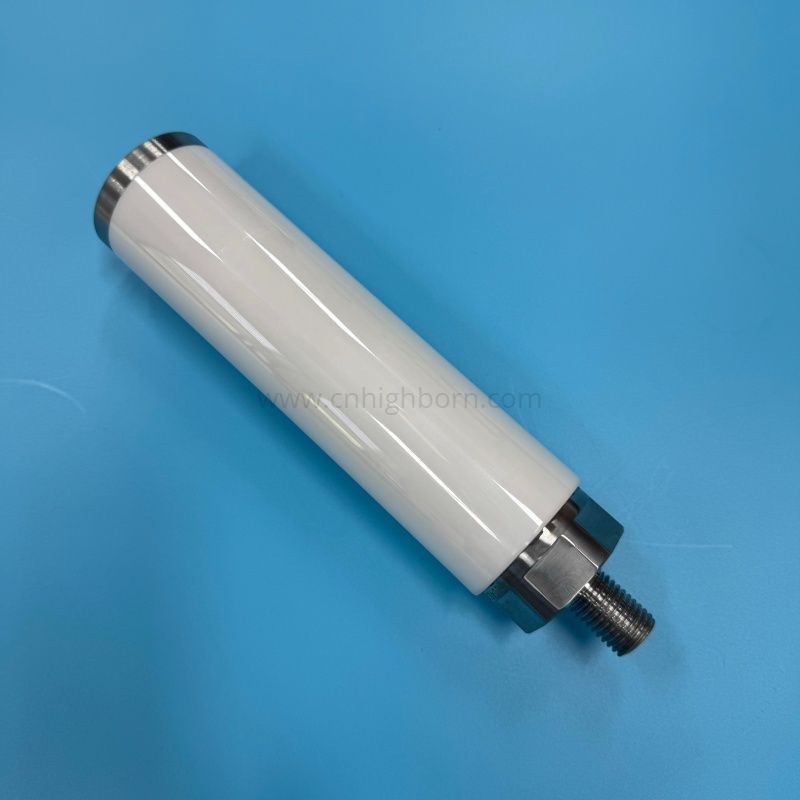

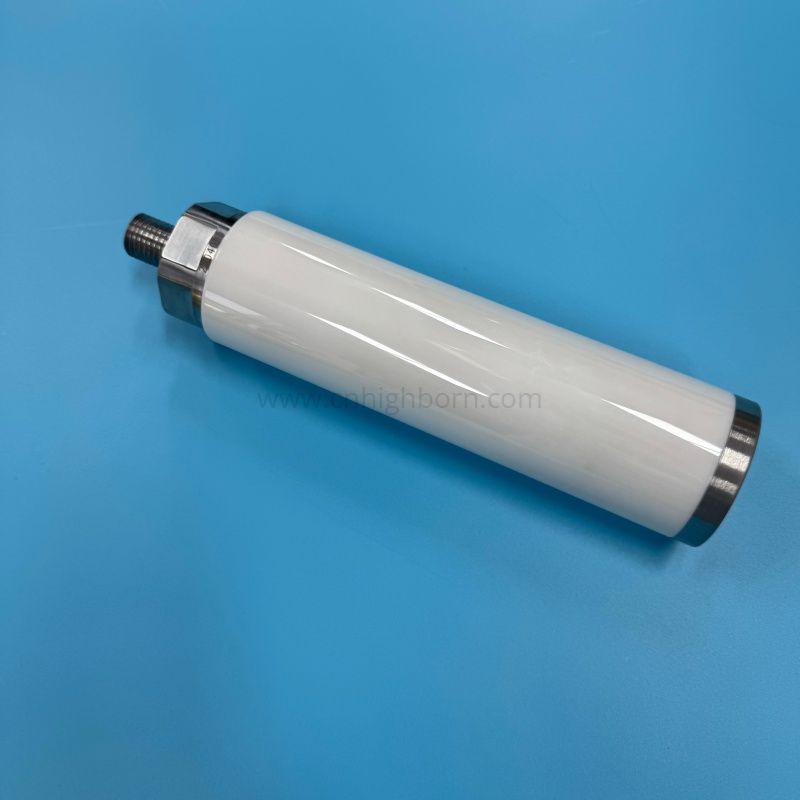

Customized Zirconia Ceramic Pistons Rod Pump Plunger

Zirconia Ceramic Plunger:

Zirconia plungers are precision-ground solid or cored rods made from yttria-stabilized zirconia (YSZ), designed for high-pressure reciprocating pumps. Their ultra-smooth surface and extreme hardness minimize seal wear while resisting abrasive slurries and corrosive fluids.

Zirconia ceramic plunger advantages:

Zirconia plungers deliver outstanding fracture toughness—far exceeding alumina—combined with excellent chemical inertness and zero electrical conductivity. They operate reliably under extreme pressure cycling without cracking or galling.

Ceramic Plunger application:

These plungers are widely used in high-pressure waterjet cutting pumps, reverse osmosis (RO) and seawater desalination systems, and aggressive chemical dosing pumps. They also serve in oil & gas well-stimulation pumps, pharmaceutical metering, and food processing equipment.

体积密度

Bulk density

g/cm³

6.05

吸水率

Water absorption

%

0

抗折强度

Flexural strength

MPa

1000

硬度

Hardness vickers

GPa

89

模量

Elastic modulus

GPa

200

线性膨胀系数

Linear expansion coefficient

(20-500℃) 10^-6/℃

10

导热系数

Thermal conductivity

W/(m·K)

2.5

介电常数

Dielectric constant (1MHZ)

-

N.A.

介电强度

Dielectric strength

*10⁶V/m

N.A.
