Raw material: 95% ZrO2
Density:6.05g/cm3
Advantage:High Toughness
PRODUCT DETAILS
Product Description

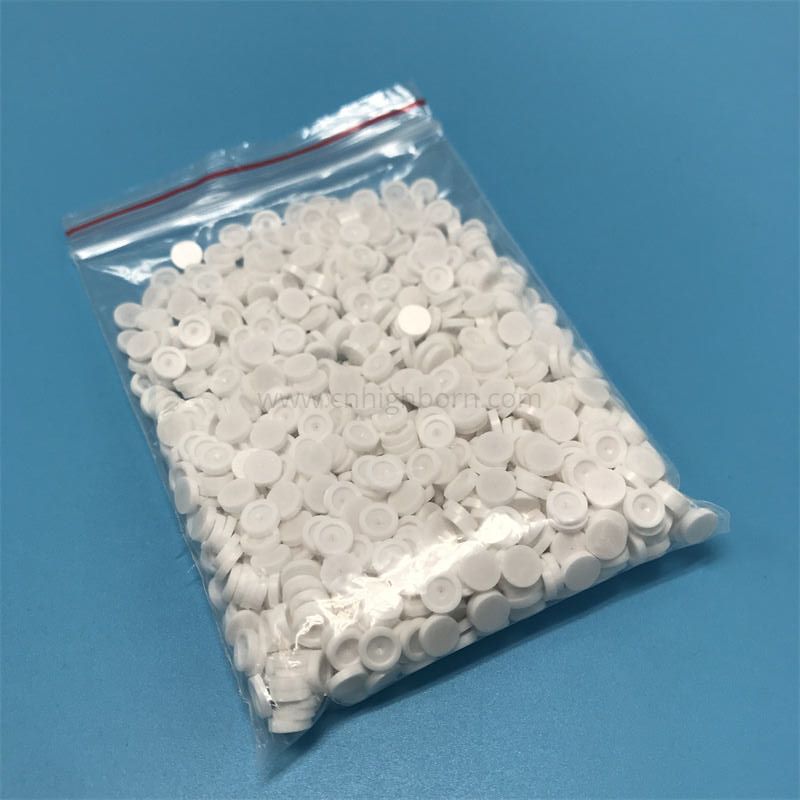

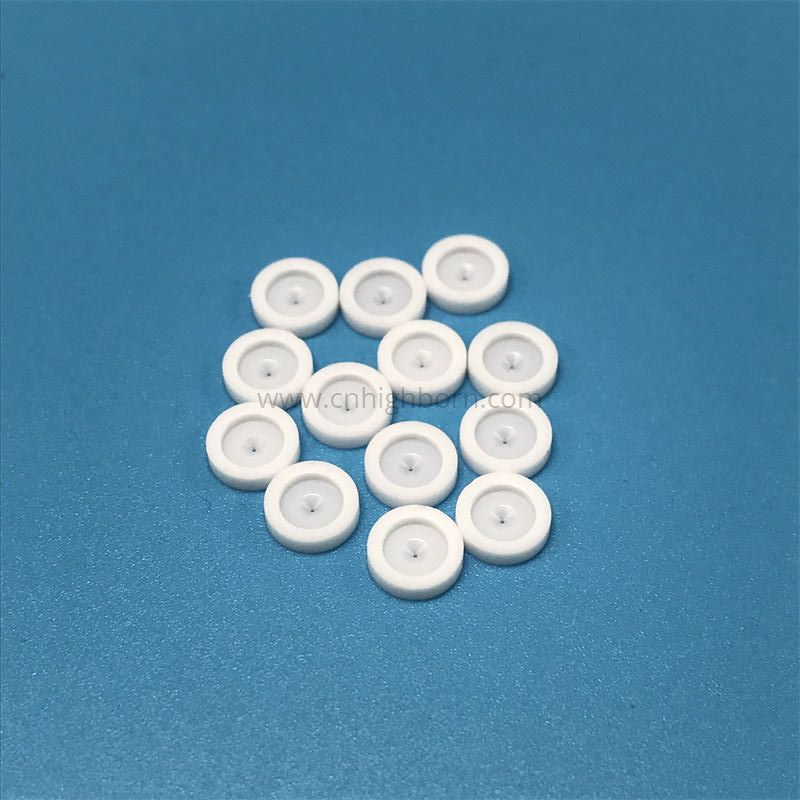

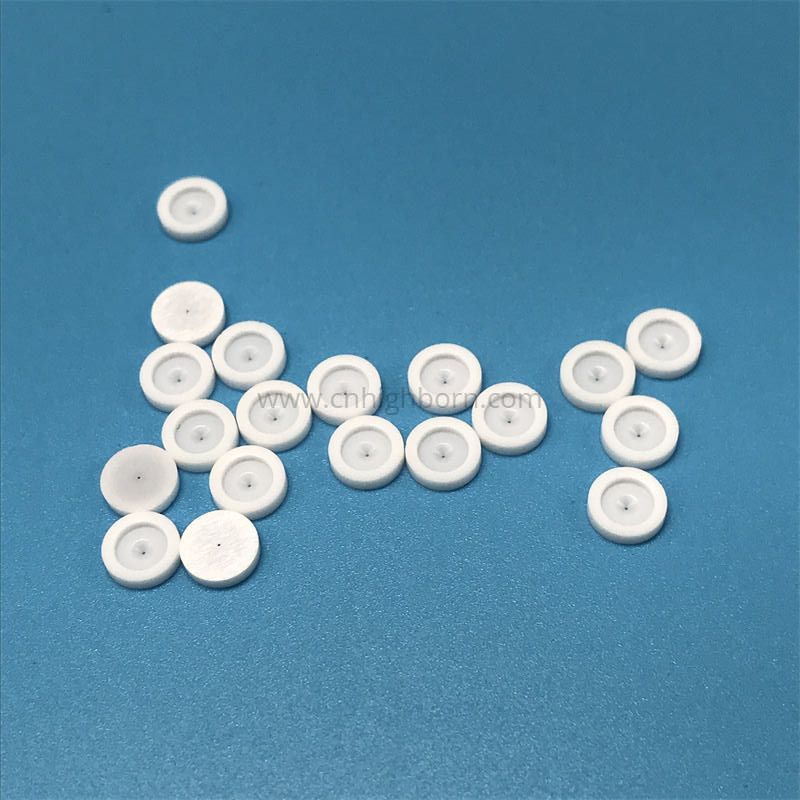

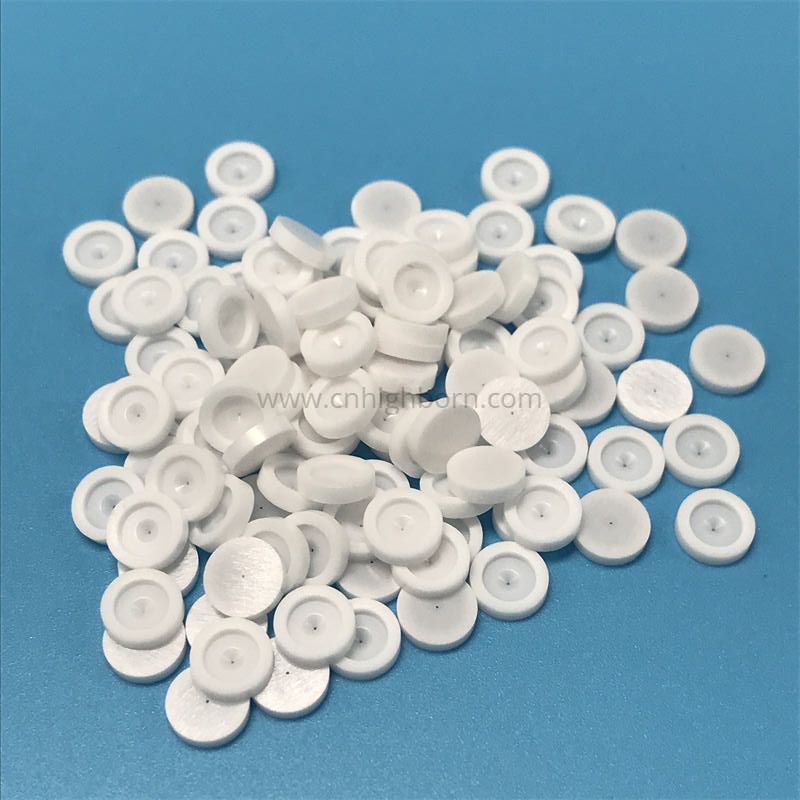

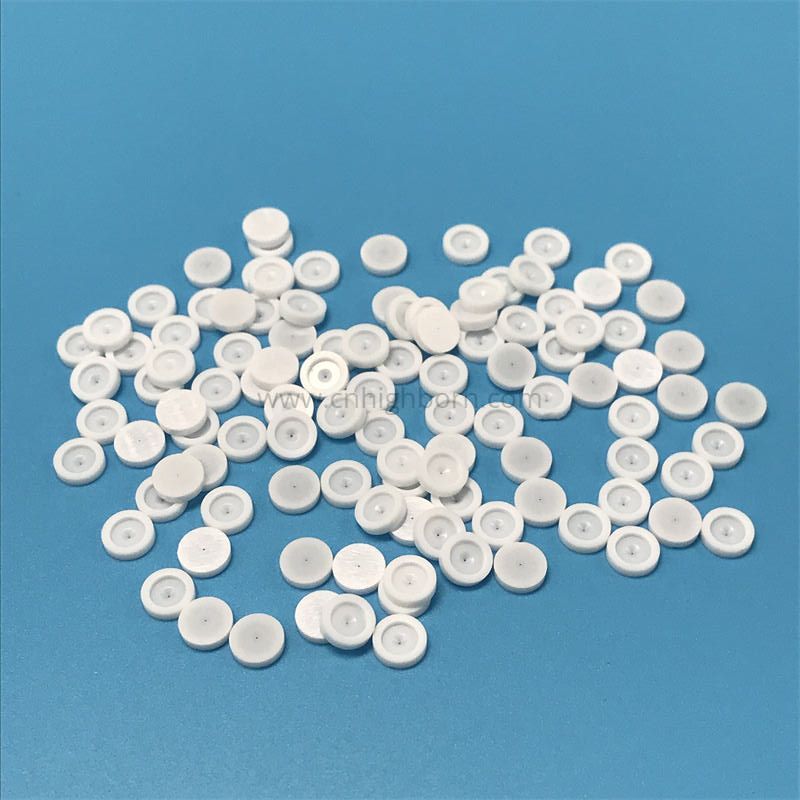

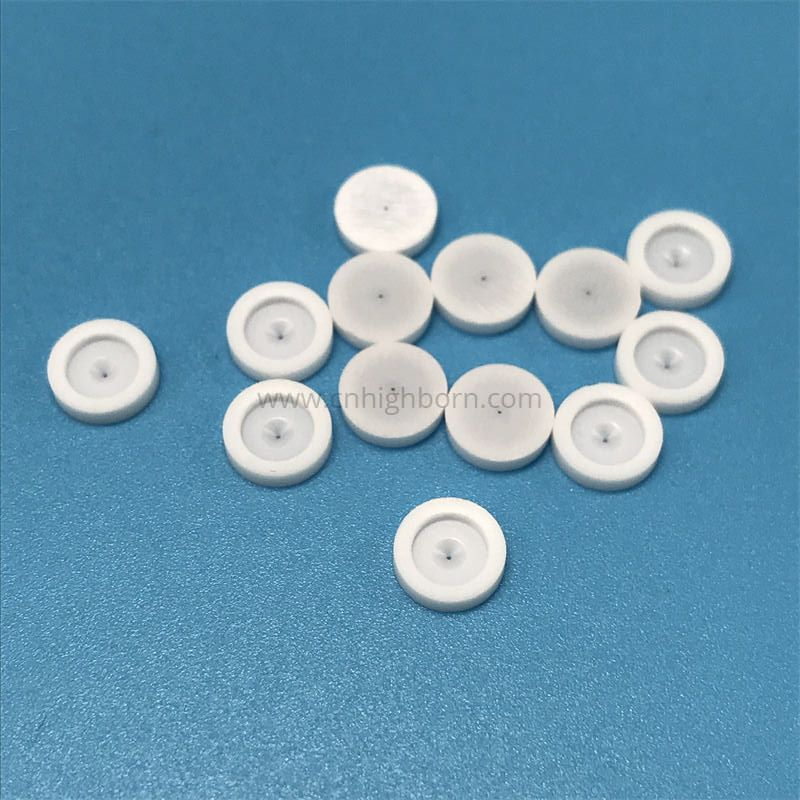

Zirconia ceramic disc:
This ceramic misting plate is manufactured from yttria stabilized zirconia (ZrO2) ceramic. It has a bulk density of 6.05 g/cm3 and zero water absorption rate, delivering fully dense, impermeable structure. Its Vickers hardness reaches 1300 HV, while flexural strength is up to 1000 MPa, with elastic modulus of 205 GPa.
Zro2 ceramic nozzle:
High mechanical toughness and outstanding wear resistance greatly lower abrasion related failure risk during long time cyclic operation. Low thermal conductivity provides good heat insulating performance, reducing heat loss for surrounding assemblies.
Advantages of zirconia spray sheets:
We are committed to providing reliable, cost effective ceramic solutions tailored to your needs. Whether you need standard sizes or custom specifications, our experienced engineering team can work with you to develop the perfect product for your application.
Applications:
Our zirconia ceramic spray sheets are widely used for humidifier mist parts, industrial fine spray equipment, liquid atomizing devices and precision jet systems. Custom-sized micro-holes and outer dimensions are available according to customer drawings.
项目
Item
单位
Unit
氧化锆
Zirconia (ZrO2)
体积密度
Bulk density
g/cm3
6.05
吸水率
Water absorption
%
0
抗折强度
Flexural strength
MPa
1000
硬度
Hardness vickers
GPa
89
模量
Elastic modulus
GPa
200
线性膨胀系数
Linear expansion coefficient
(20-500℃) 10-6/℃
10
导热系数
Thermal conductivity
W/(m·K)
2.5
介电常数
Dielectric constant (1MHZ)
-
N.A.
介电强度
Dielectric strength
*106V/m
N.A.
