Yttria Stabilized High Strength Blue Zirconia ZrO2 Ceramic Plate


Availability:

Quantity:

Inquire Add to Basket

Mohs hardness: 9

20 years export experience
8 Trademarks、40 Patents
Design & Research
Cooperated with Global 500 enterprises
Certificates:ISO、ROHS、CE etc.

PRODUCT DETAILS

Product Description

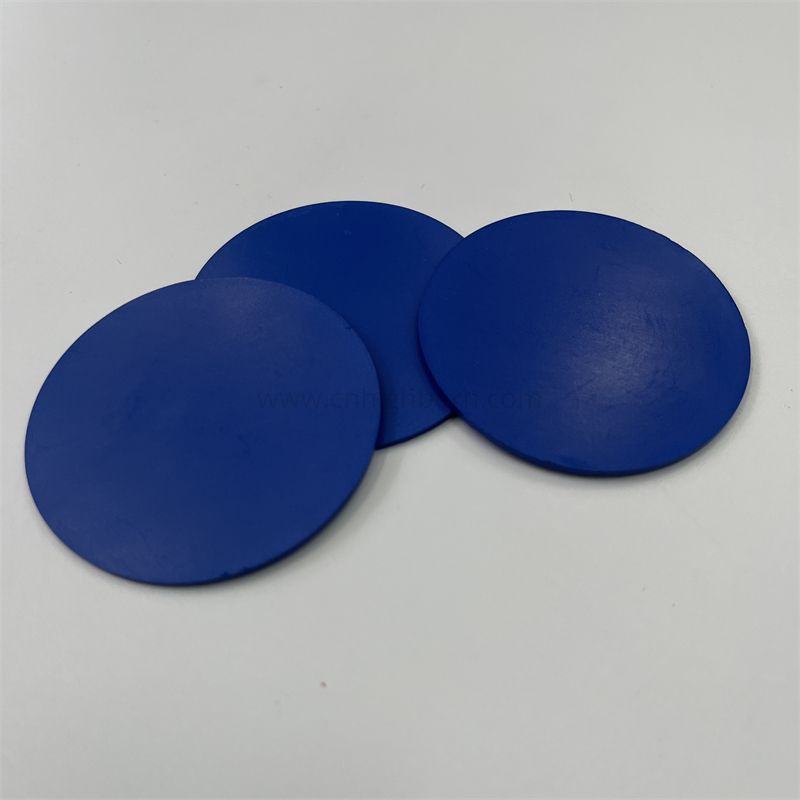

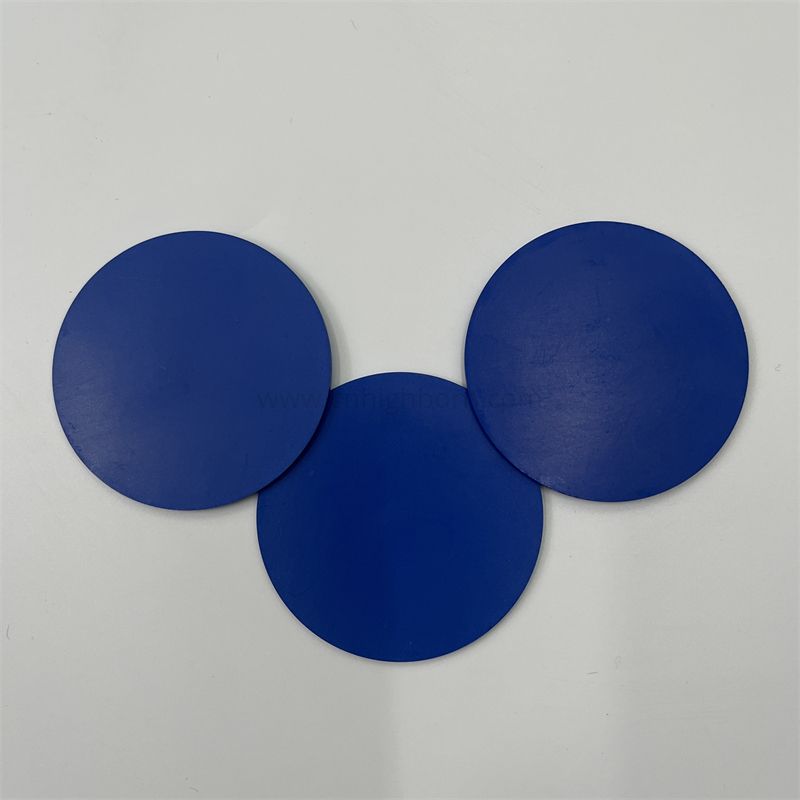

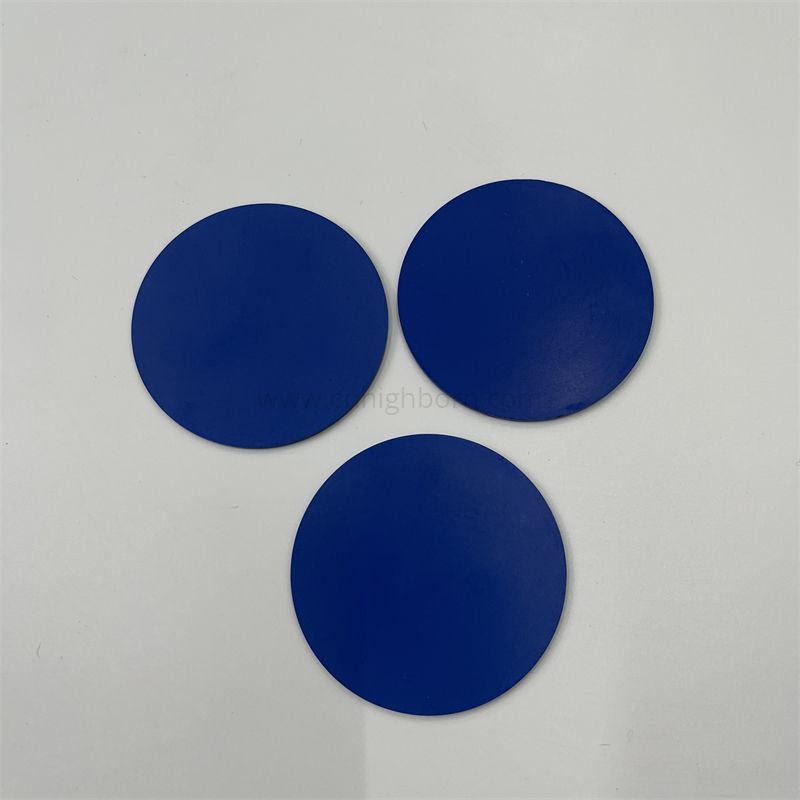

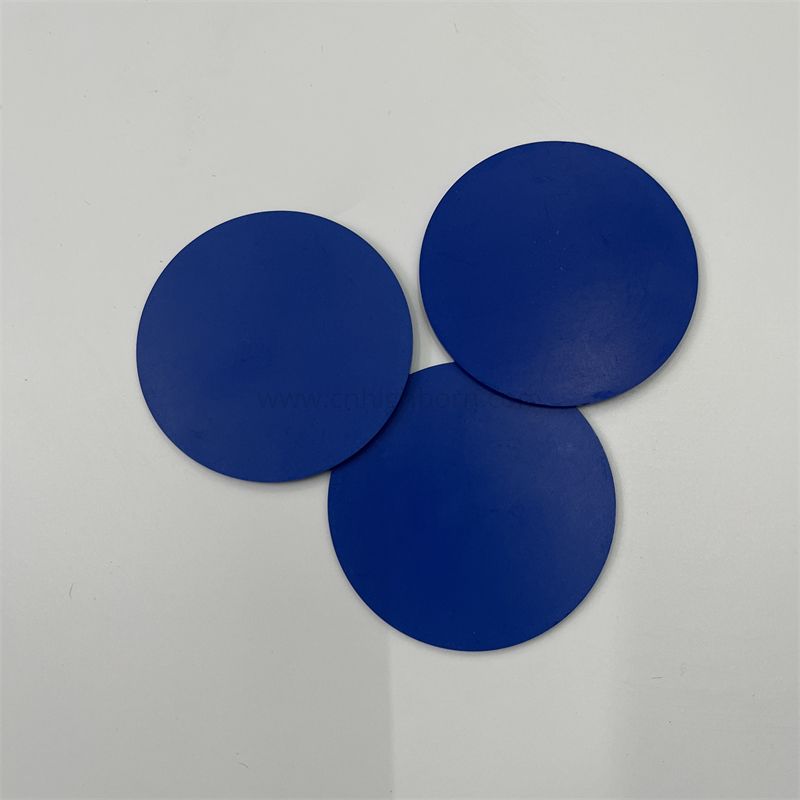

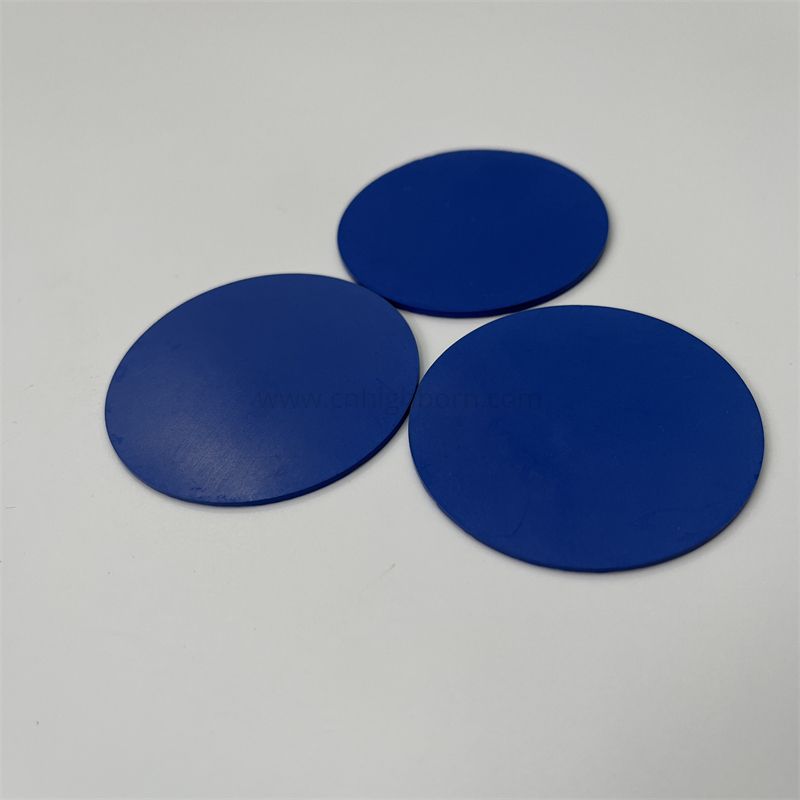

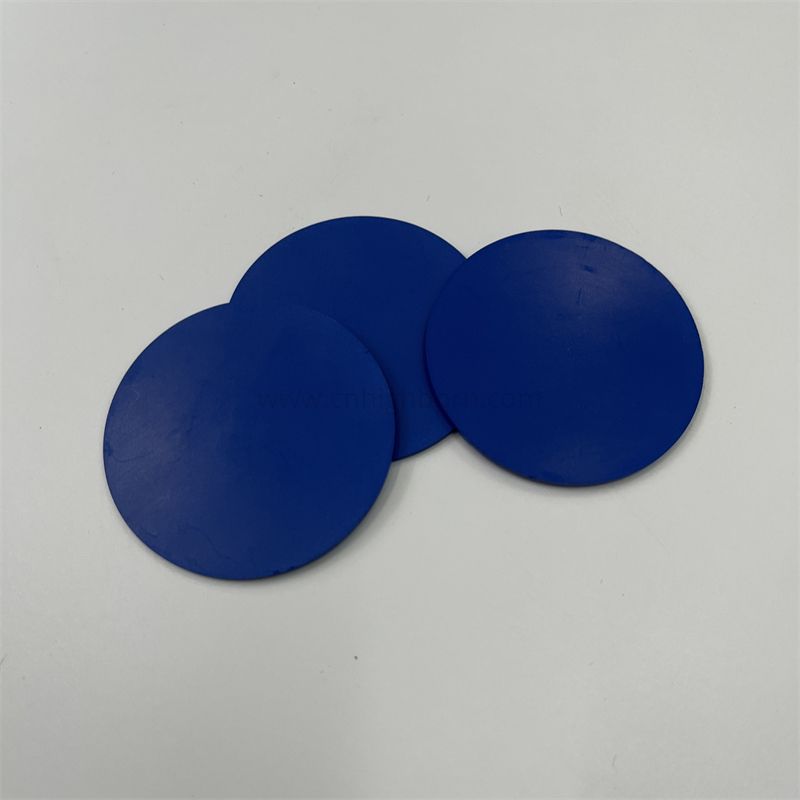

	Zirconia ceramic: This blue zirconia ceramic disc is sintered with yttria stabilized zirconia raw material, added with stable colorant to form uniform blue appearance.
Zirconia ceramic plate: It supports CNC cutting, drilling, chamfering and other deep processing, widely used in precision mechanical fixtures, medical accessories, electronic insulating substrates and lab wear-resistant test carriers. OEM size customization is available.
	Zirconia ceramic sheet: Zirconia mass fraction: ≥94 wt% Yttria stabilizer content: 3 mol% Appearance color: uniform matte blue Optional thickness range: 0.3 ~ 10 mm Custom diameter range: 5 ~ 300 mm
Application of zirconia ceramics: Precision machinery: Wear-resistant positioning fixture, insulating backing plate, miniature wear-resistant spacer Medical industry: Disposable instrument matching ceramic parts, dental auxiliary fitting blank

项目 Item	单位 Unit	氧化锆 Zirconia (ZrO2)
体积密度 Bulk density	g/cm³	6.05
吸水率 Water absorption	%	0
抗折强度 Flexural strength	Mpa	1000
硬度 Hardness vickers	Gpa	89
模量 Elastic modulus	Gpa	200
线性膨胀系数 Linear expansion coefficient	(20-500℃) 10^-6/℃	10
导热系数 Thermal conductivity	w/(m.k)	2.5
介电常数 Dielectric constant (1MHZ)	-	N.A.
介电强度 Dielectric strength	*10⁶V/m	N.A.

备注：以上数据仅供参考。

Note: The above data is only for your reference.
