Product Description

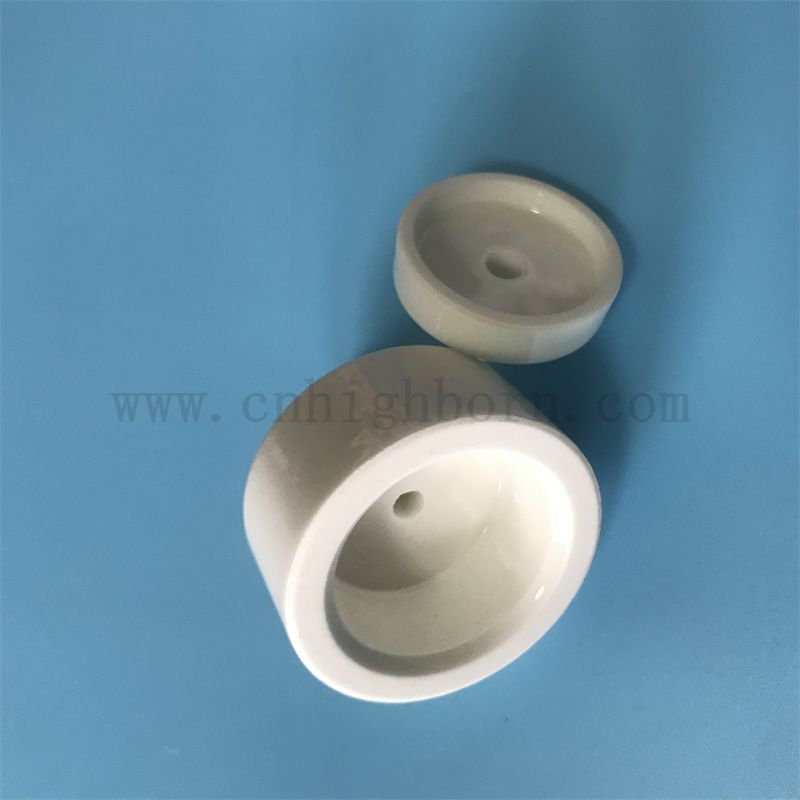

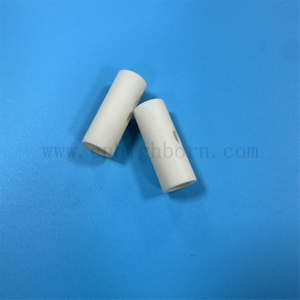

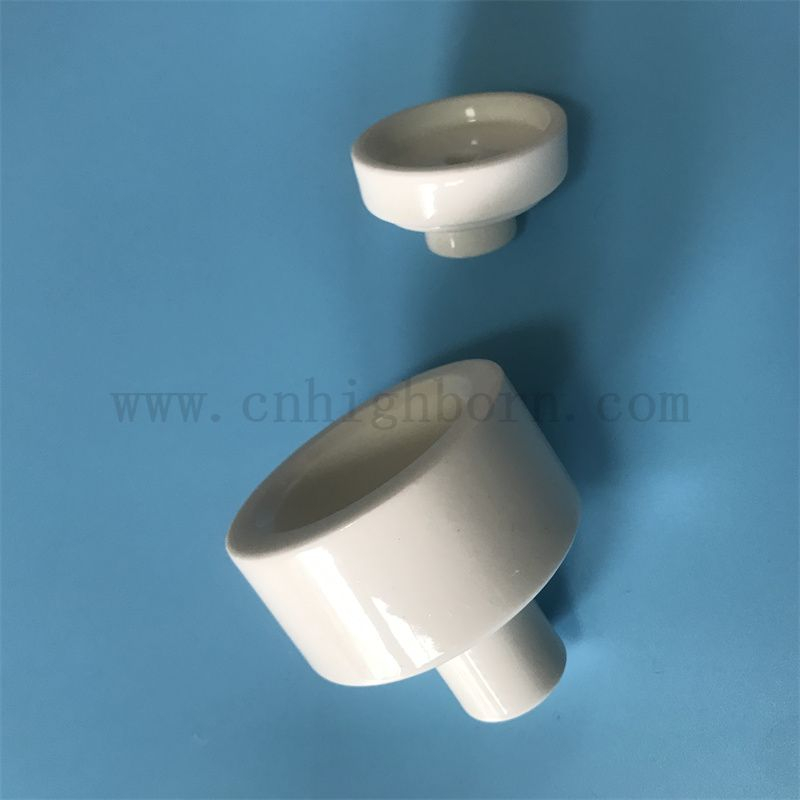

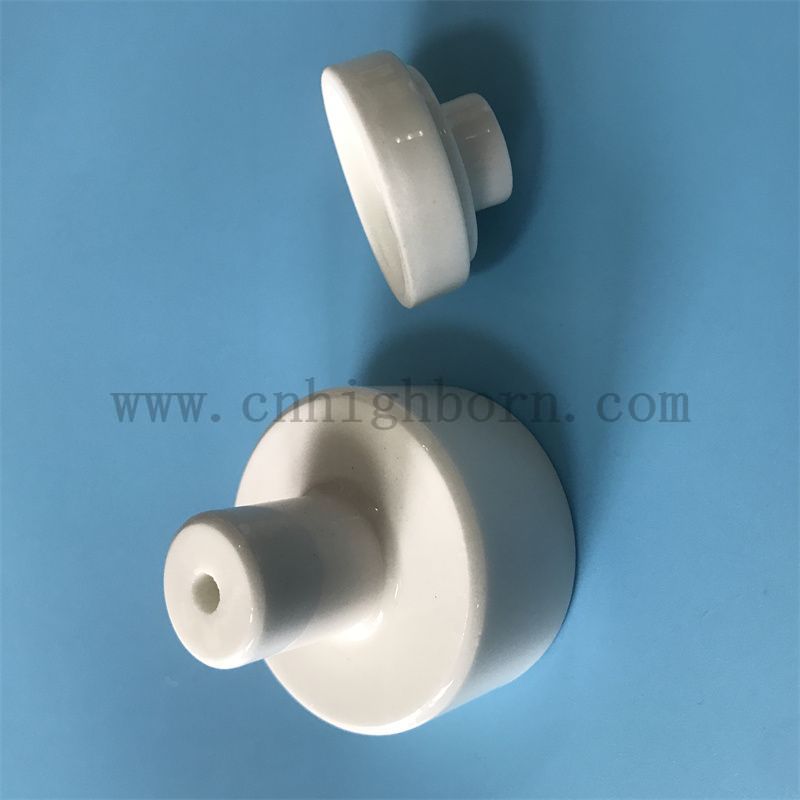

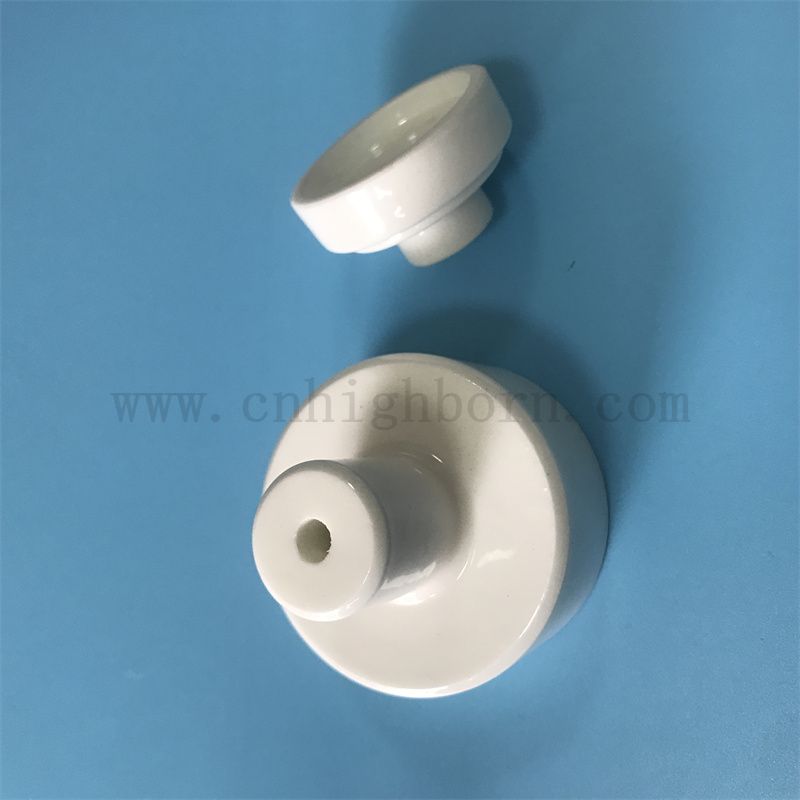

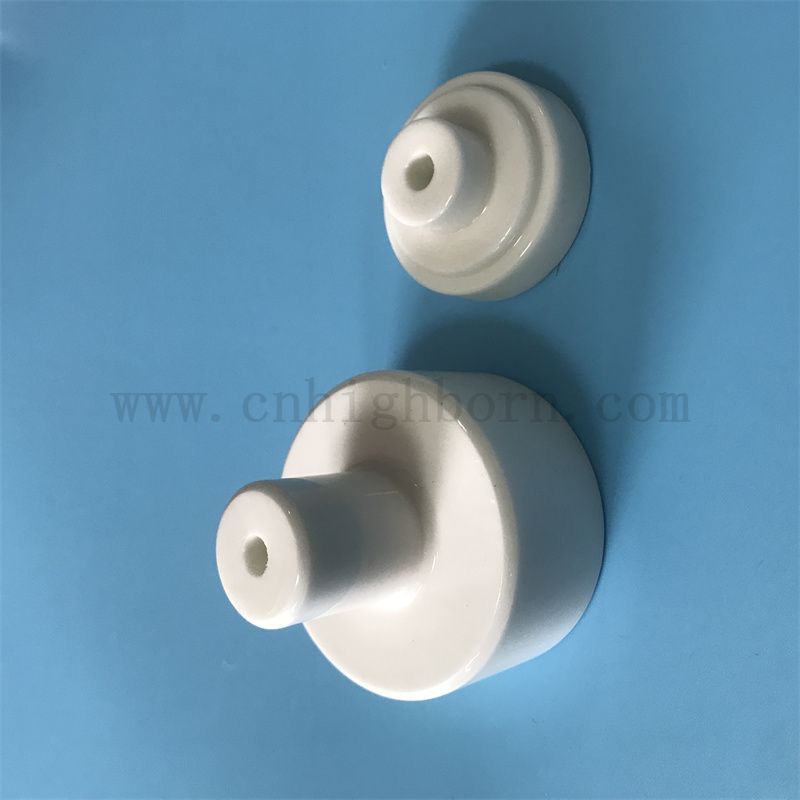

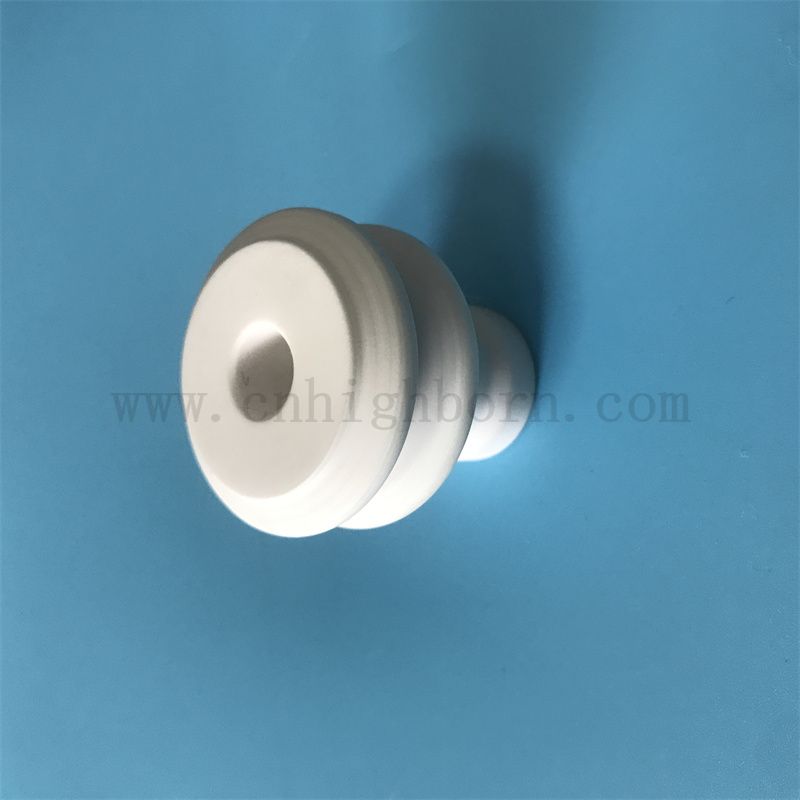

 | Alumina Ceramic Part: Al2O3 ceramics with a purity of 95% to 99% are the most commonly used kind of technical ceramics. Highborn offers a variety of alumina ceramic shaping methods. |
Advantages of alumina ceramic:
High Temperature Resistance: Operates efficiently even under extreme heat conditions. High Hardness: Provides durability and longevity for heavy-duty textile machinery. |  |
 | Alumina Ceramic: Alumina is used in a wide spectrum of purity concentrations, ranging from ultrapure to added-substance grades. Although the purity of Al2O3 in finished products usually ranges between 90 and 99.8% |
Alumina Ceramic Molding Method: A variety of alumina ceramic shaping methods, including molded injection, die pressing, slip casting, extrusion, and cold isostatistically pressing. |  |
氧化铝
Alumina
Alumina Purity | 92% | 95% | 96% | 99% | 99.6% |
颜色 Color | White | White | White | Ivory White | White |
体积密度 Volume density(g/cm3) | 3.45 | 3.5 | 3.7 | 3.75 | 3.9 |
吸水率 Water Absorption | 0 | 0 | 0 | 0 | 0 |
抗弯强度 Flexural Strength | 300Mpa | 300Mpa | 320Mpa | 330Mpa | 330Mpa |
维氏硬度 Vickers hardness | 1300 | 1400 | 1400 | 1800 | 1800 |
介电常数 Dielectric Constant (at 1MHZ 25℃) | 10 | 10 | 10 | 10 | 10 |
弹性模量 Modulus of elasticity | 350Gpa | 350Gpa | 350Gpa | 370Gpa | 370Gpa |
热导率 thermal conductivity (30℃) | 18W/M.K | 24W/M.K | 24W/M.K | 25W/M.K | 28W/M.K |
体积电阻率 Volume resistivity | 10^14Ω•cm | 10^14Ω•cm | 10^14Ω•cm | 10^14Ω•cm | 10^15Ω•cm |
介电强度 Dielectric strength | 20KV/mm | 20KV/mm | 20KV/mm | 20KV/mm | 30KV/mm |
备注：以上数据仅供参考。
Note: The above data is only for your reference.
