Product Description

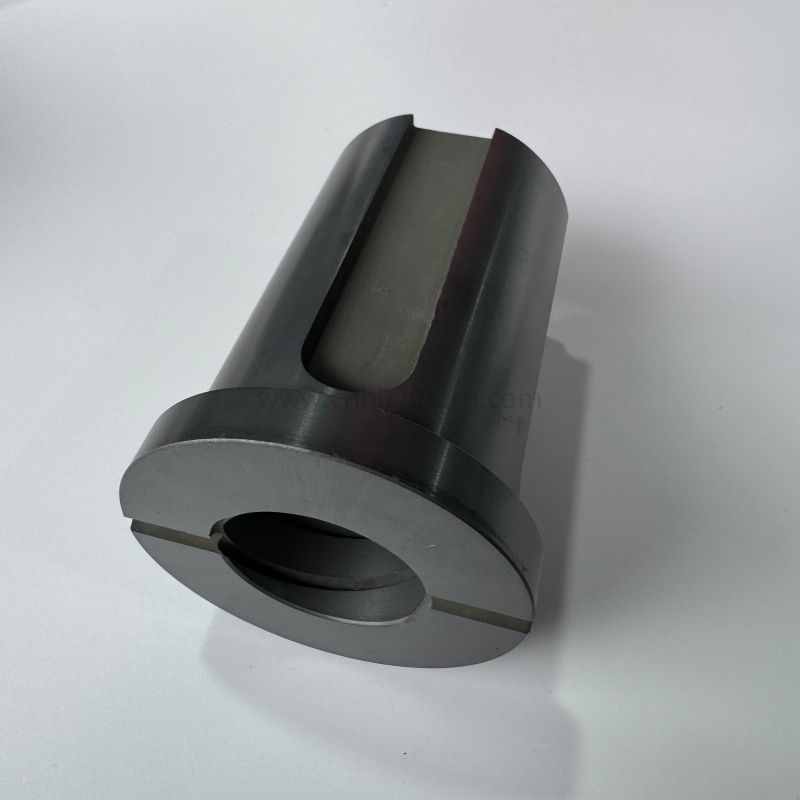

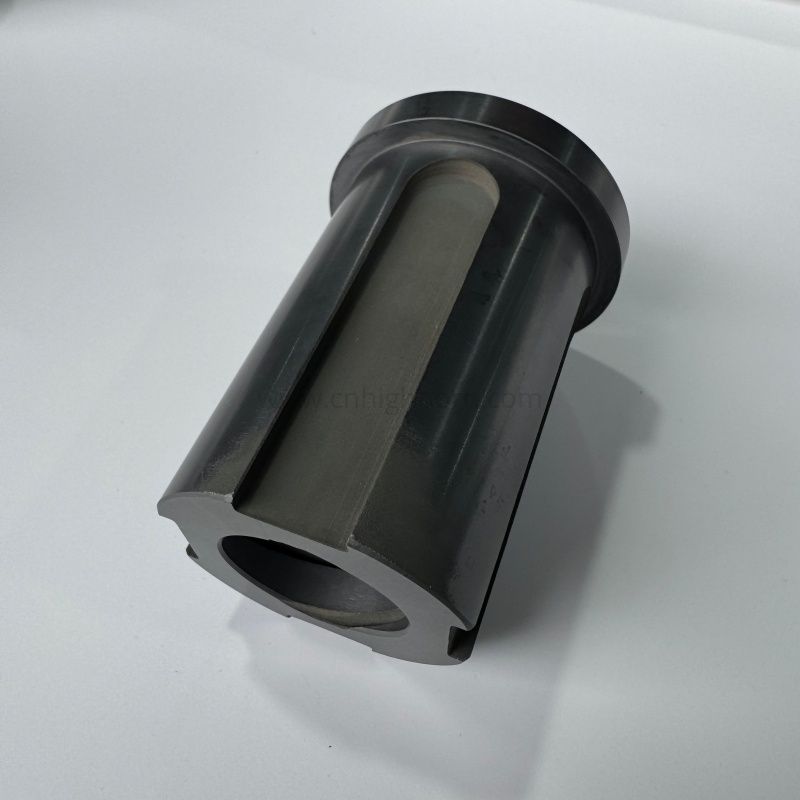

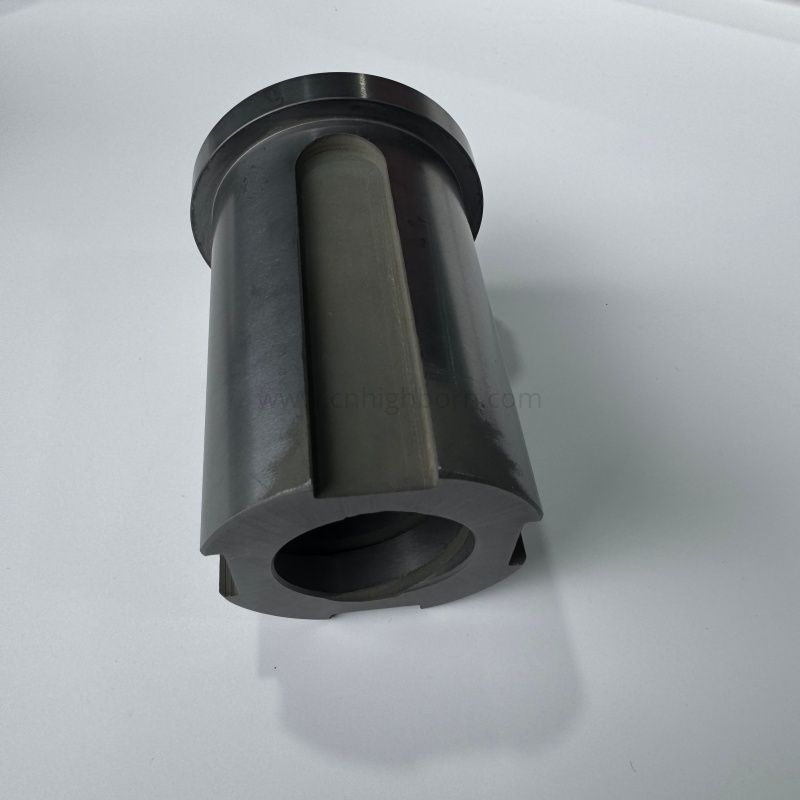

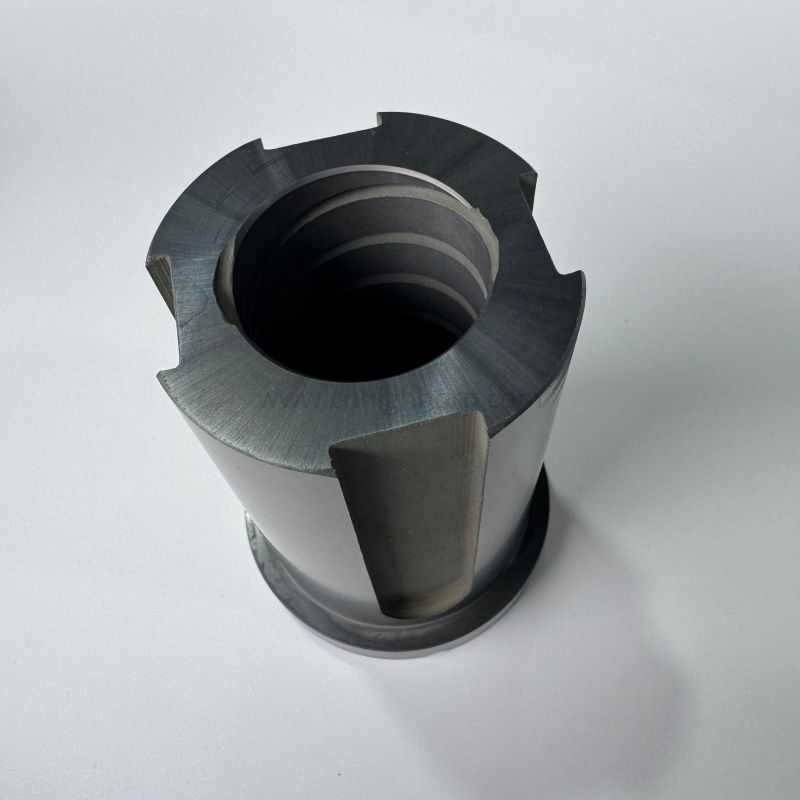

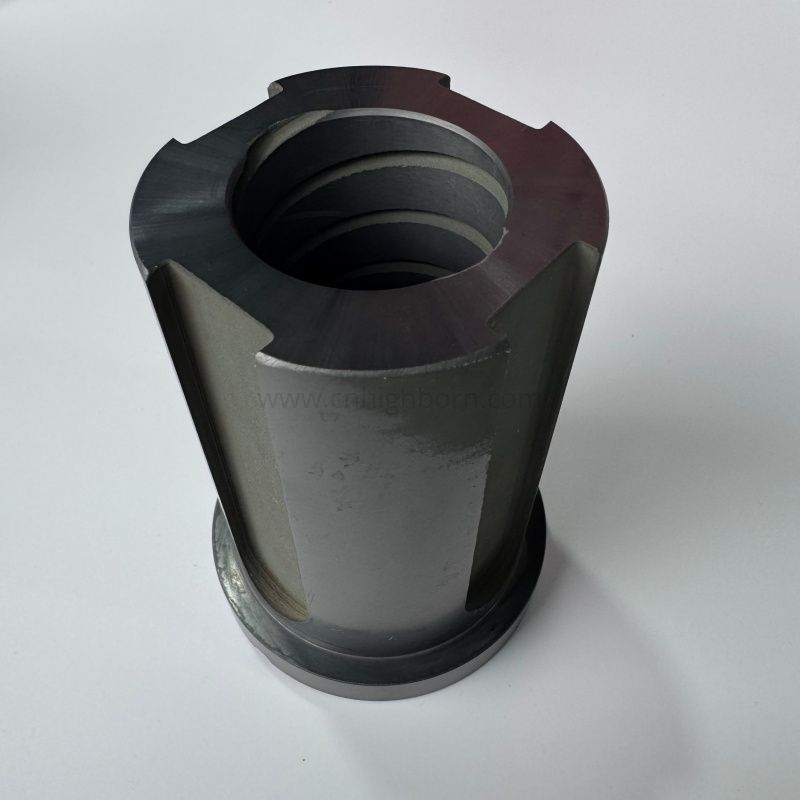

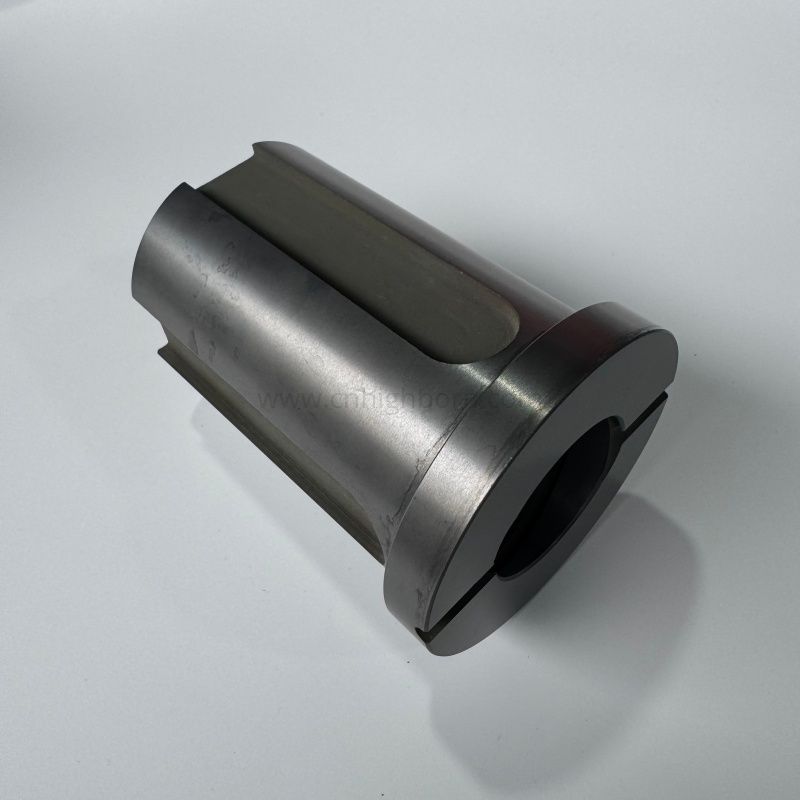

 | SiC Slotted Ceramic Liner Introduction: Main material is reaction bonded silicon carbide (SiSiC), sintered integrally at high temperature with SiC powder and silicon additive, fully dense without pores. |
Notched Silicon Carbide Liner Application: Wear bushing for high temp chemical pumps & magnetic pumps, durable in corrosive fluid; Position liner for metallurgical high-temperature molds, end notches for clamping positioning; |  |
 | Advantages of SiC Slotted Ceramic Liner 1. Low density 2. high mechanical strength, good rigidity 3. high temperature resistance, small thermal expansion coefficient |
Silicon carbide material characteristics 1. High hardness 2. High wear resistance 3. Corrosion resistance 4. Good thermal shock resistance |  |
Technical Data of Silicon Carbide (SIC)
项目 Item | 单位 | 常压烧结碳化硅 SSIC | 反应烧结碳化硅 RBSIC/SISIC | 重结晶烧结碳化硅 RSIC |
UNIT | DATA | DATA | DATA | |
最高使用温度 Max temperature of Application | ℃ | 1600 | 1380 | 1650 |
密度 Density | g/cm3 | >3.1 | >3.02 | >2.6 |
气孔性 Open Porosity | % | <0.1 | <0.1 | 15% |
抗弯强度 Bending Strength | Mpa | >400 | 250(20℃) | 90-100(20℃) |
Mpa | 280(1200℃) | 100-120(1100℃） | ||
弹性模量 Modulus of Elasticity | Gpa | 420 | 330(20℃) | 240 |
Gpa | 300(1200℃) | |||
热传导系数 Thermal Conductivity | W/m.k | 74 | 45(1200℃) | 24 |
热膨胀系数 Coefficient of Thermal Expansion | K-1x10-6 | 4.1 | 4.5 | 4.8 |
维式硬度 Vickers Hardness HV | Gpa | 22 | 20 | |
耐酸碱度 Acid Alkaline-proof | 优（excellent） | 优（excellent） | 优（excellent） |
备注：以上数据仅供参考。
Note:The above data is only for your reference.
