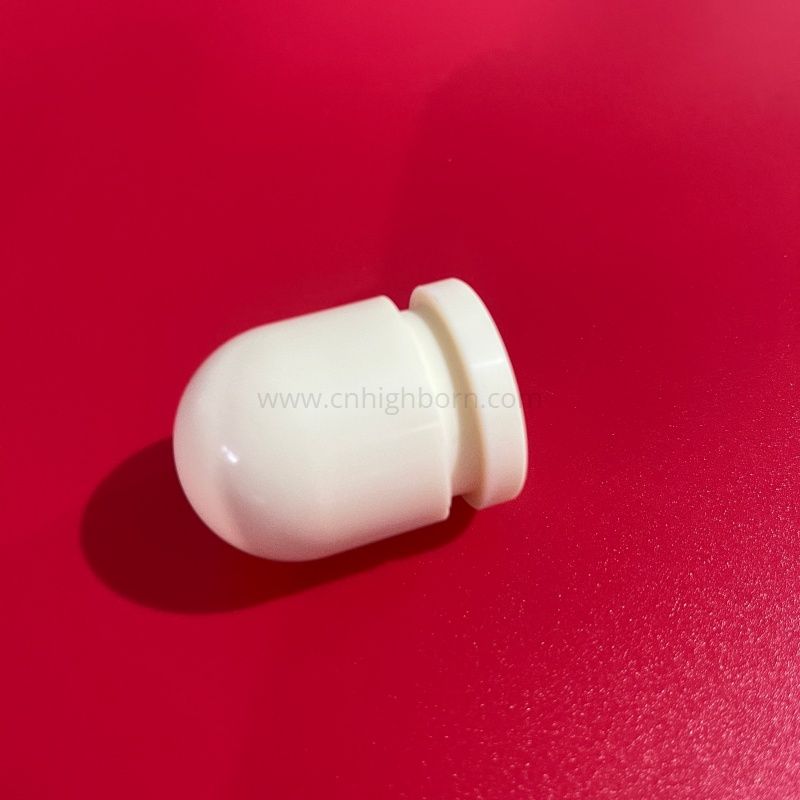

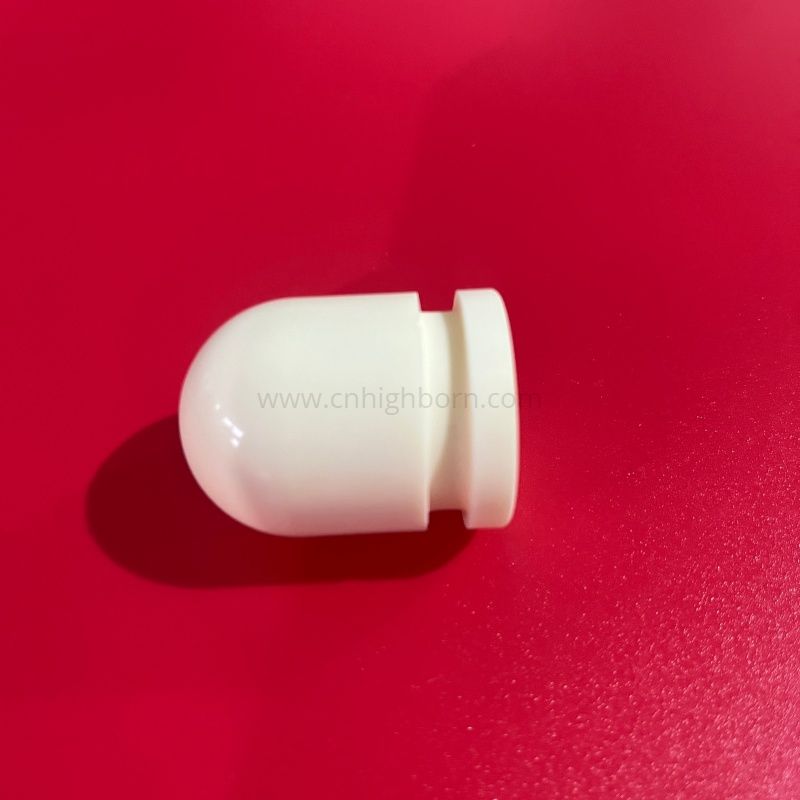

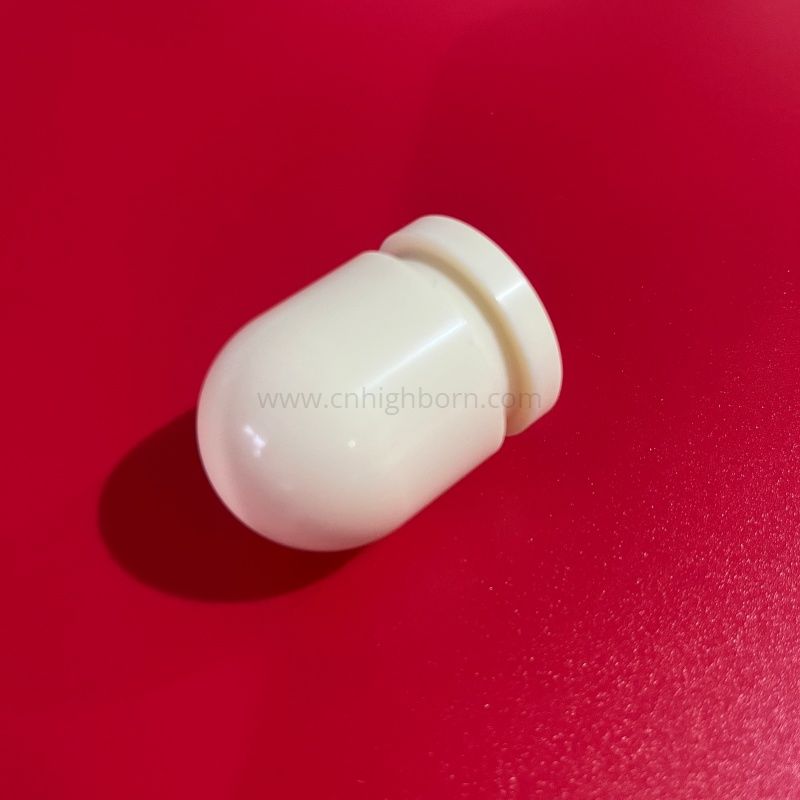

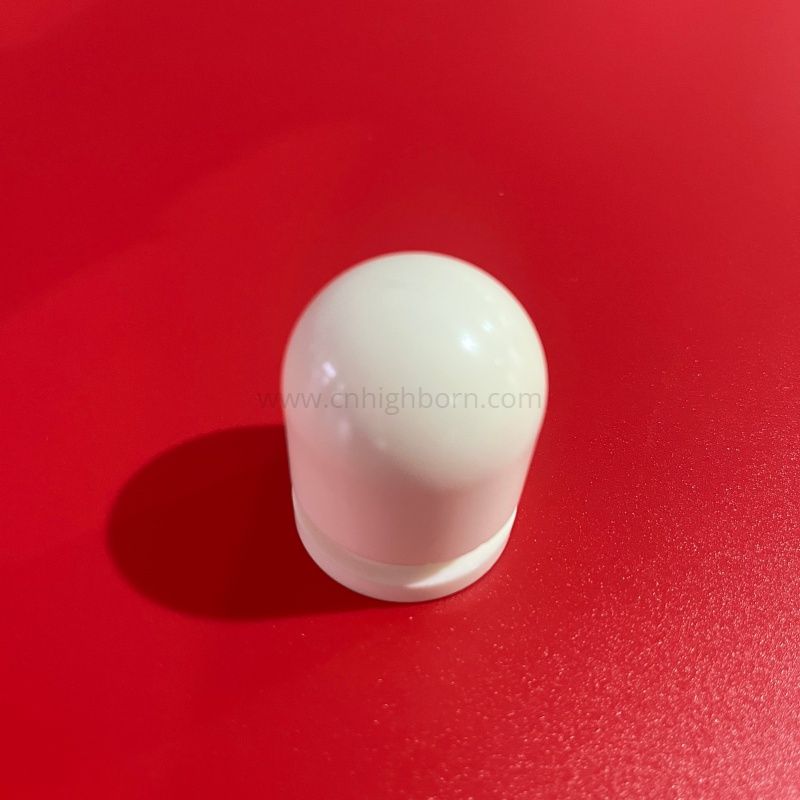

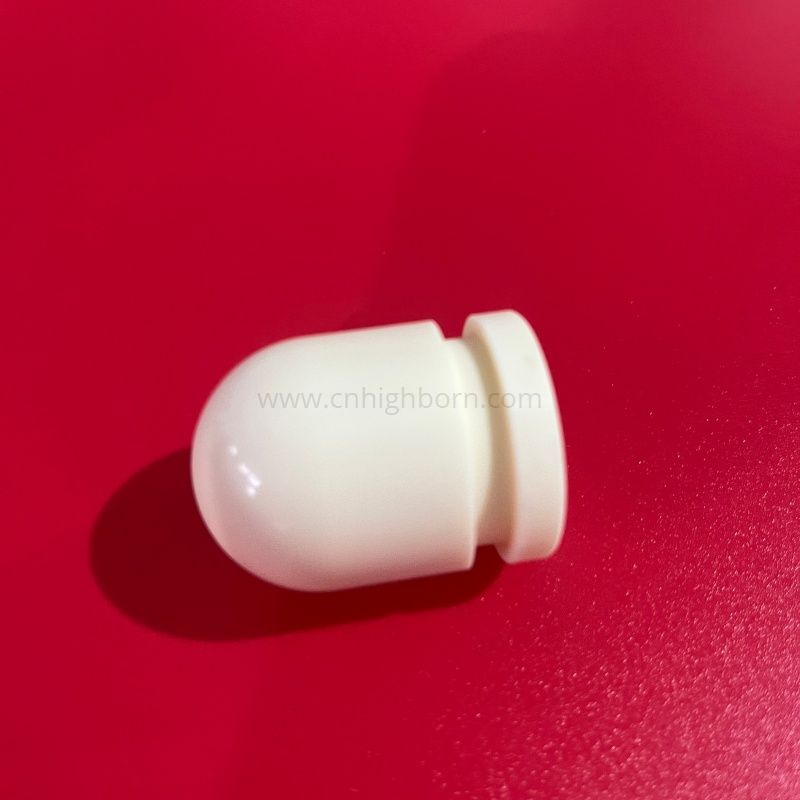

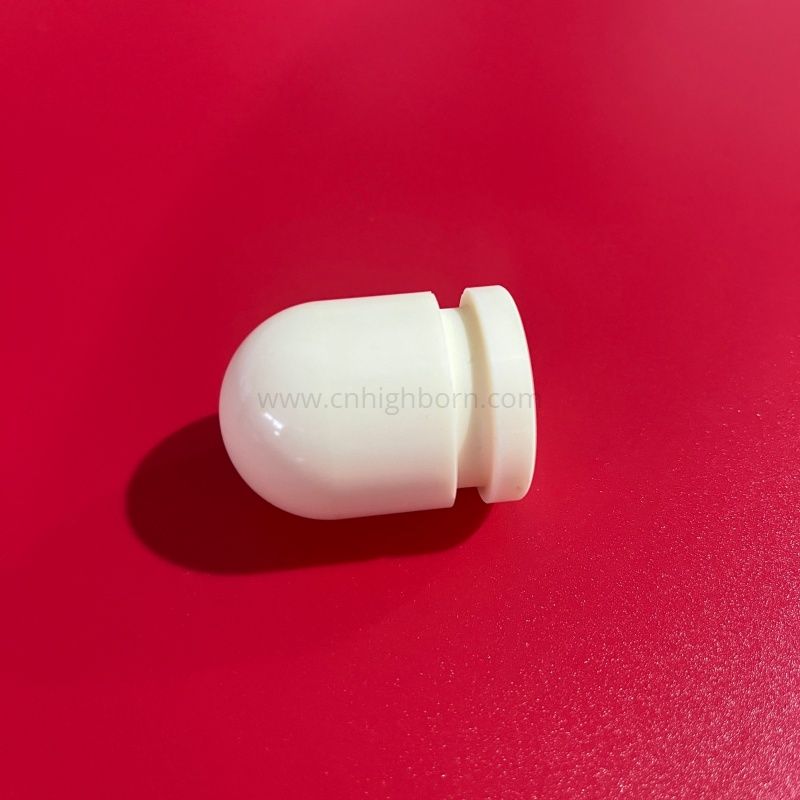

Zirconia Ceramic Rounded Head Locating Pin Ceramic Pressure Head


Availability:

Quantity:

Inquire Add to Basket

20 years export experience
8 Trademarks、40 Patents
Design & Research
Cooperated with Global 500 enterprises
Certificates:ISO、ROHS、CE etc.

Porosity (%): 0

Thermal Expansion (10^-6/ k): 8.5

Volume Resistivity (ohm.cm): ≥10¹³

PRODUCT DETAILS

Product Description

	Zirconia Irregular Part: Zirconia is a very strong technical ceramic with excellent properties in hardness and corrosion resistance, all without the typical property of ceramics – brittleness.
Yttria stabilized zirconia ceramic The material delivers good fracture toughness, favorable wear performance, high hardness, acid and alkali resistance, electrical insulation and non-magnetic characteristics.
	Ceramic stopper: This machined zirconia ceramic bullet head plunger features precision ground and polished spherical surface. Custom dimensions, step structures and tolerances can be offered based on customer drawings.
Rounded dome ceramic tip: ISuitable for positioning components of automation fixtures, contact tips for welding tooling, valve sealing parts, plunger tips for metering pumps, fixture components for new energy equipment.

Item	Zirconia (ZrO2)
Bulk density	6.05g/cm³
Water absorption	0
Flexural strength	1000Mpa
Hardness vickers	1300HV
Elastic modulus	200Gpa
Linear expansion coefficient	10(20-500℃) 10^-6/℃
Thermal conductivity	2.5w/(m.k)
Dielectric constant (1MHZ)	N.A.
Dielectric strength	N.A.*10⁶V/m
Note: The above data is only for your reference.
