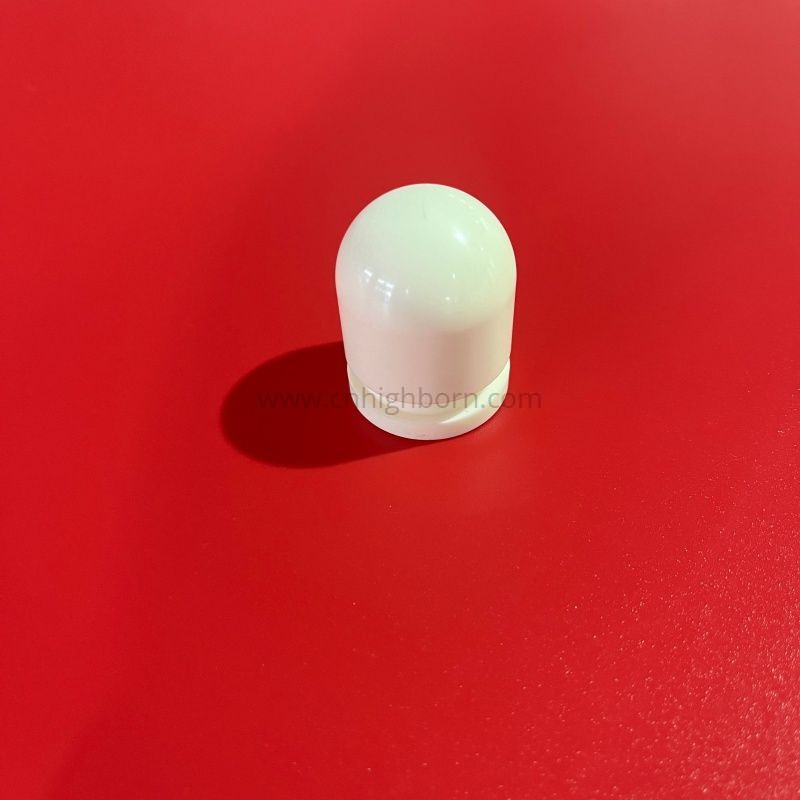

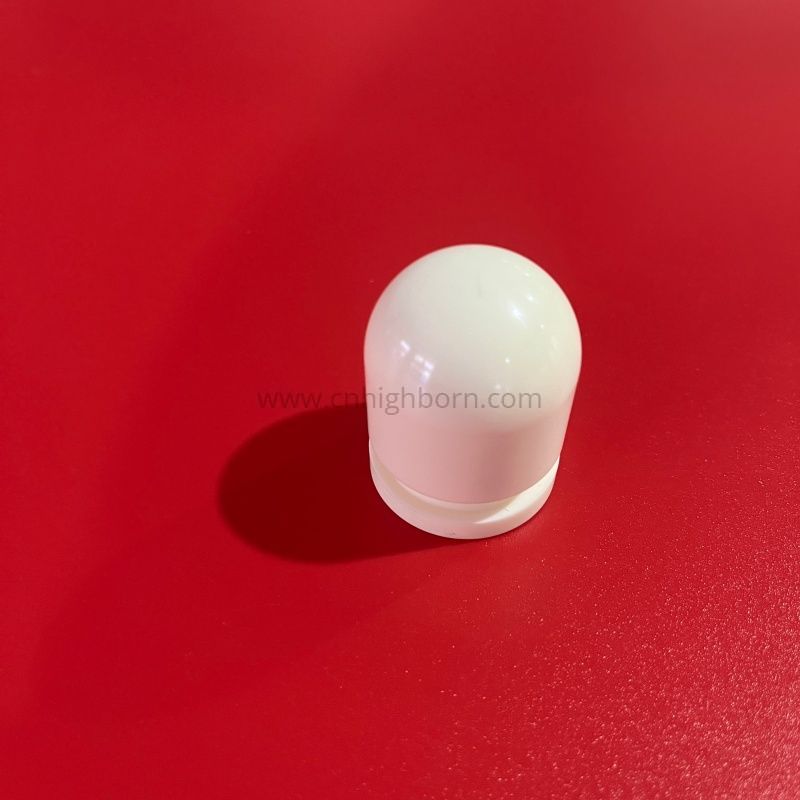

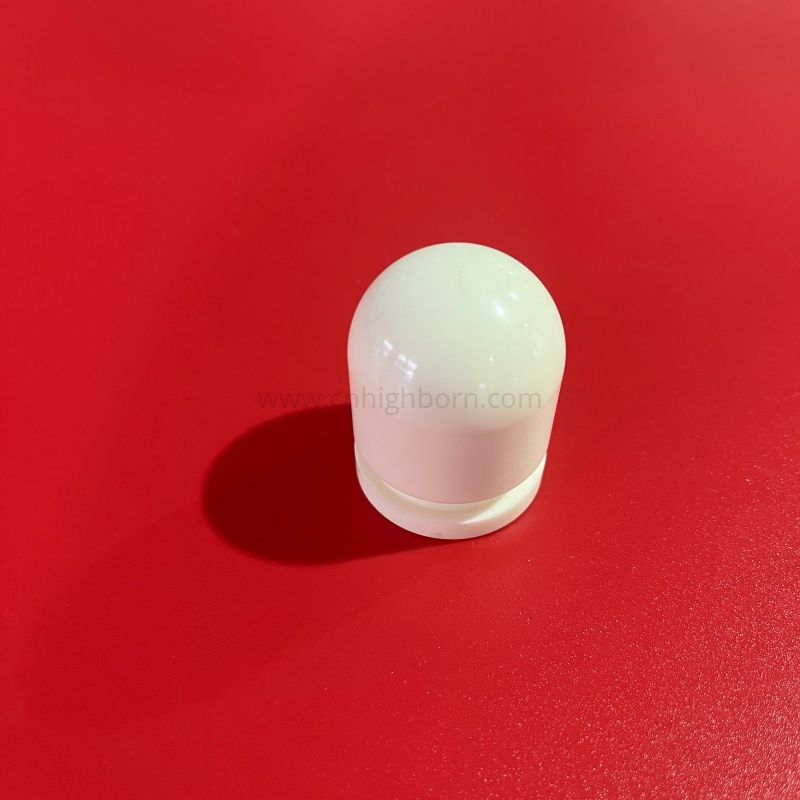

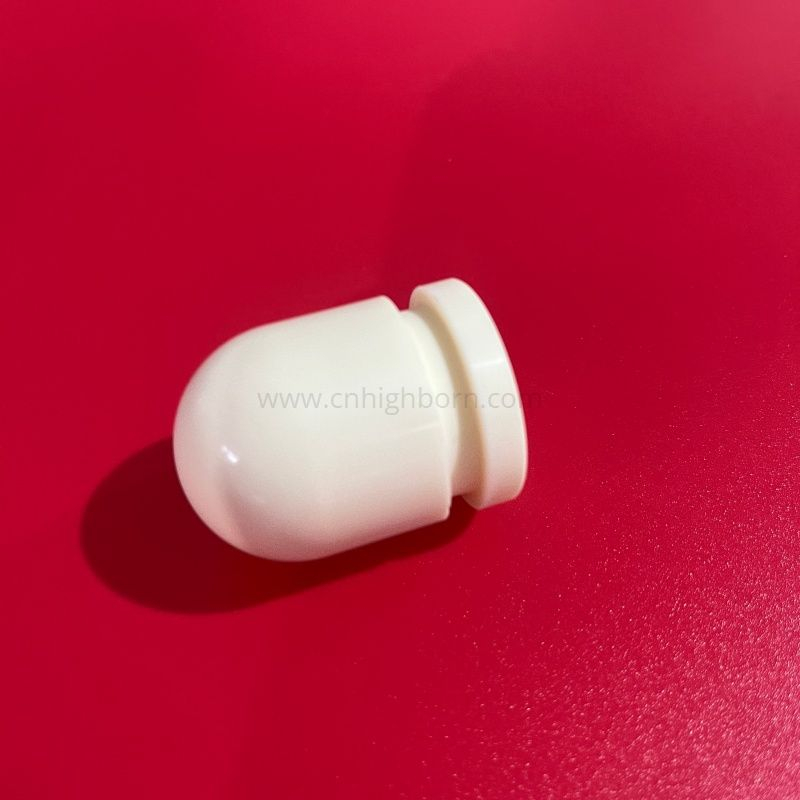

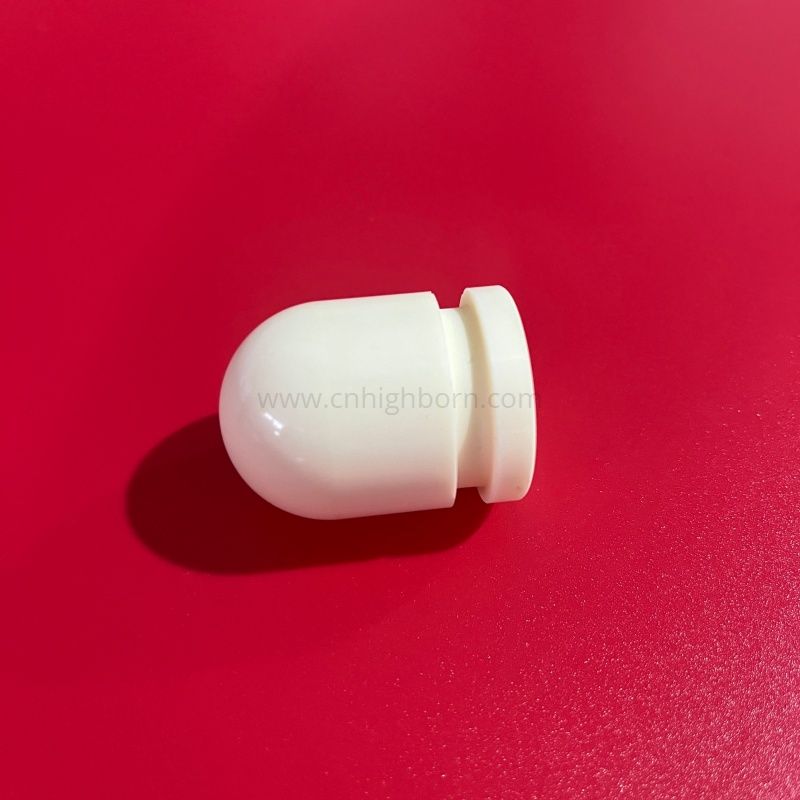

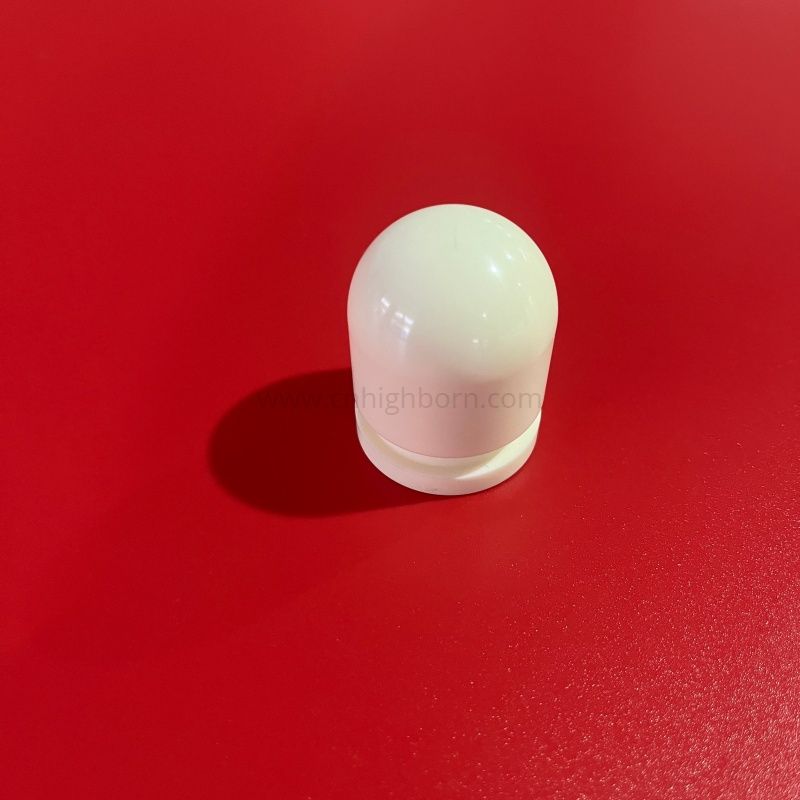

Wear‑resistant Fittings Stepped Cylindrical Zirconia Ceramic Cap


Availability:

Quantity:

Inquire Add to Basket

20 years export experience
8 Trademarks、40 Patents
Design & Research
Cooperated with Global 500 enterprises
Certificates:ISO、ROHS、CE etc.

Density:6.05g/cm³

PRODUCT DETAILS

Product Description

	Yttria Stabilized Zirconia: 3- Yttria Stabilized Zirconia (3YSZ) ceramic substrate is manufactured via dry pressing, high temperature sintering and precision machining,the material presents appearance, excellent electrical insulation performance.
Specification of zro2 ceramic cap: Color: Black Density: ≥6.05 g/cm³ Thermal Conductivity: 2.2~2.6 W/(m·K) Operating Temperature: ≤1000 ℃ Surface Option: As-sintered / Fine Polishing
	Advantages: Reliable electrical insulation characteristic High mechanical strength and fracture toughness Good abrasion and corrosion resistance Stable physical property under medium high temperature
Applicaiton of zro2 cap: Zirconia ceramic (ZrO₂), domed‑head shape. Made of high‑performance stabilized zirconia material. It features extremely high mechanical strength, high fracture toughness, excellent wear resistance and good corrosion resistance. Low thermal conductivity, fine surface finish can be achieved after precision CNC machining. Good thermal‑shock performance. Widely used for industrial structural components, valve parts, plungers and wear‑resistant fittings.

TECHNICAL SPECIFICATION OF ZIRCONIA CERAMIC

项目 Item	单位 Unit	氧化锆 Zirconia (ZrO2)
体积密度 Bulk density	g/cm³	6.05
吸水率 Water absorption	%	0
抗折强度 Flexural strength	Mpa	1000
硬度 Hardness vickers	Gpa	89
模量 Elastic modulus	Gpa	200
线性膨胀系数 Linear expansion coefficient	(20-500℃) 10^-6/℃	10
导热系数 Thermal conductivity	w/(m.k)	2.5
介电常数 Dielectric constant (1MHZ)	-	N.A.
介电强度 Dielectric strength	*10⁶V/m	N.A.
