Magnesium Stabilized Zirconia Irregular Insulator ZrO2 Ceramic Block


Availability:

Quantity:

Inquire Add to Basket

20 years export experience
8 Trademarks 40 Patents
Design & Research
Cooperated with Global 500 enterprises
Certificates:ISO、ROHS、CE etc.
Feature: High Hardness, Good Insulation
Density:6.05g/cm3

PRODUCT DETAILS

Product Description

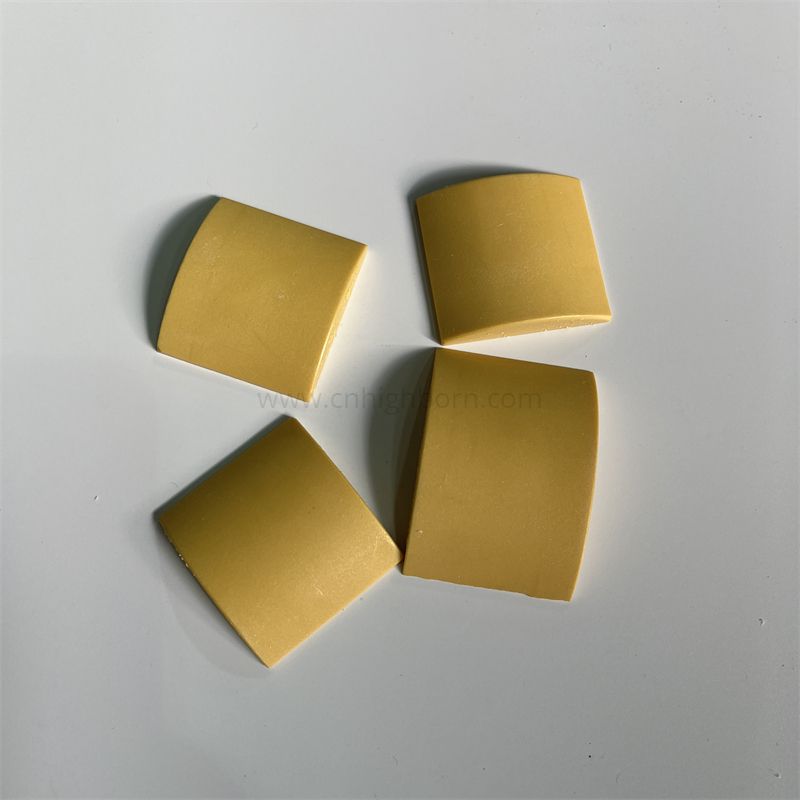

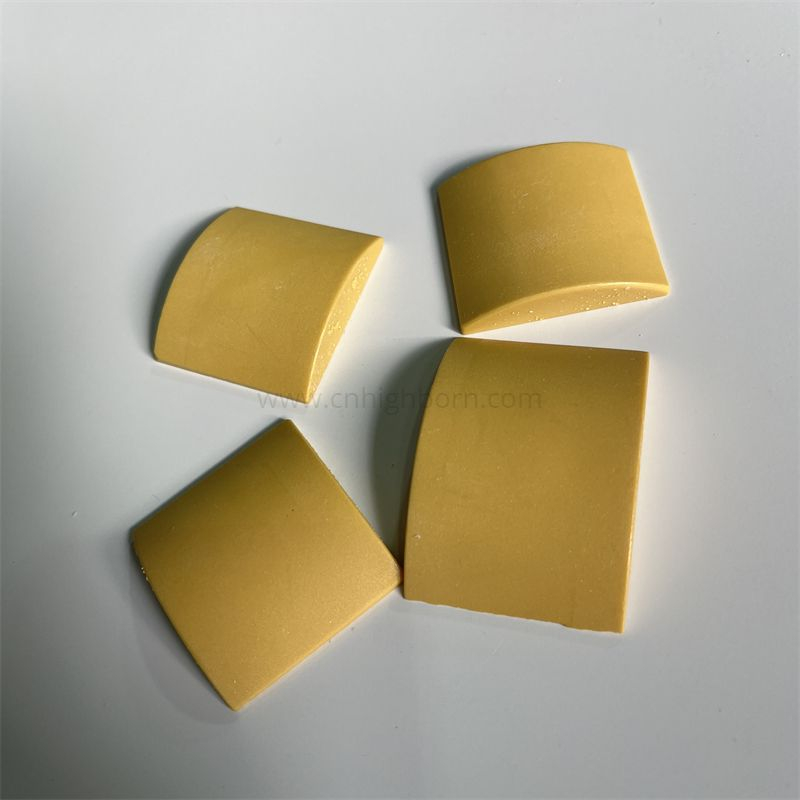

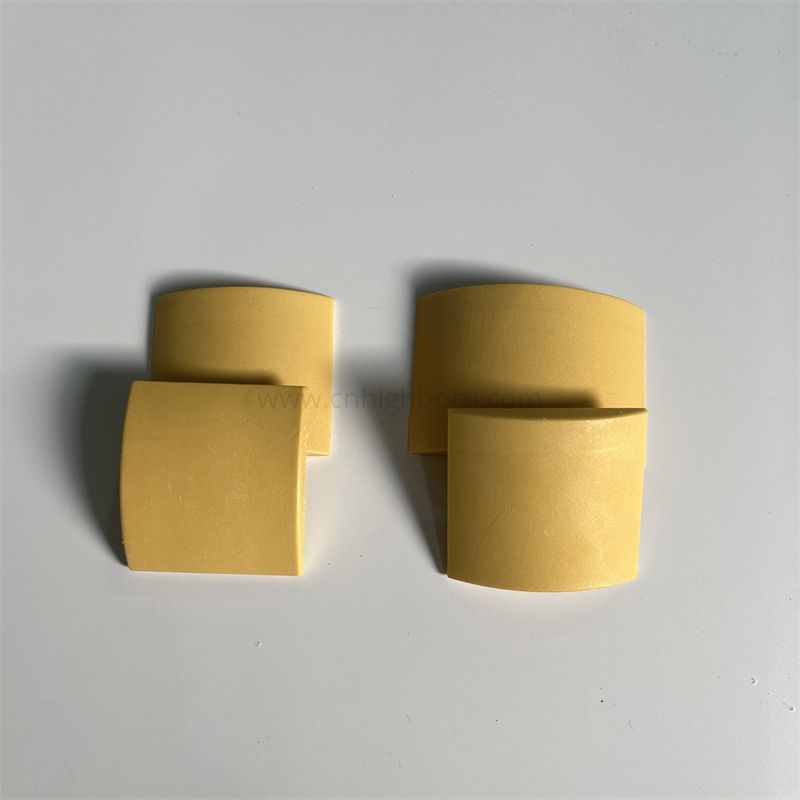

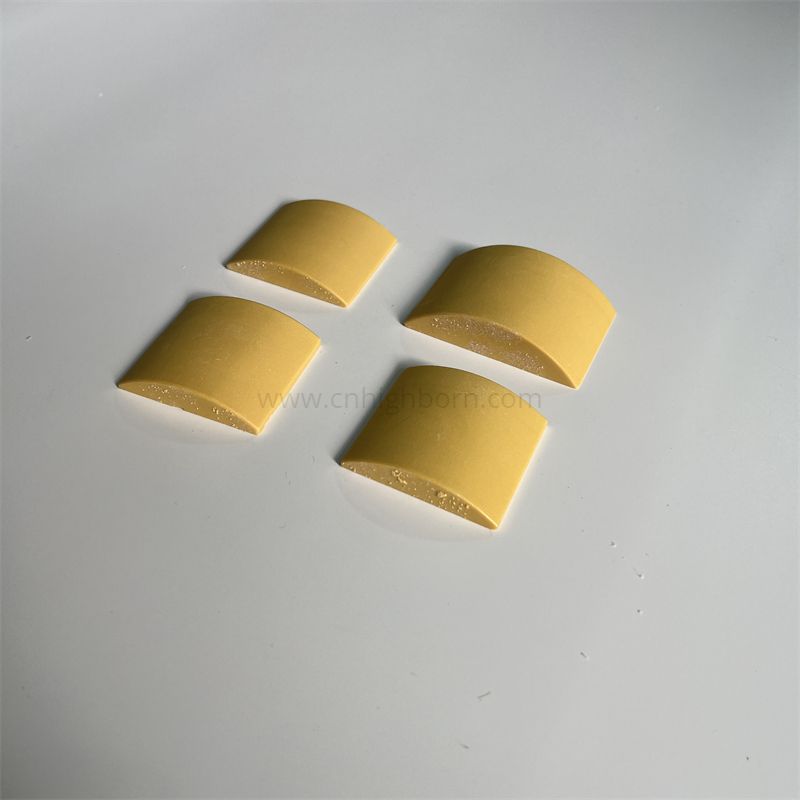

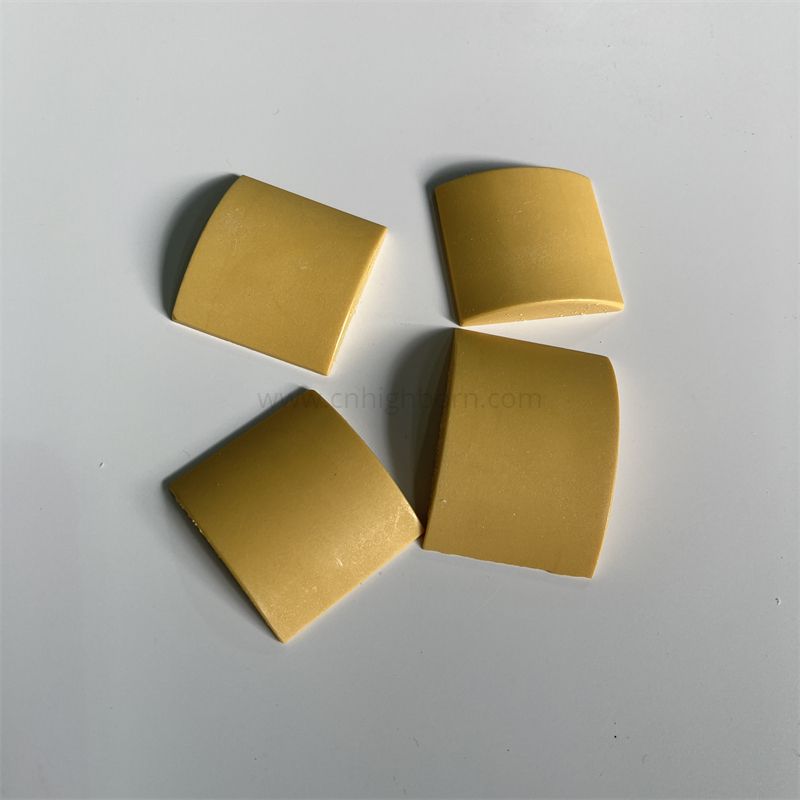

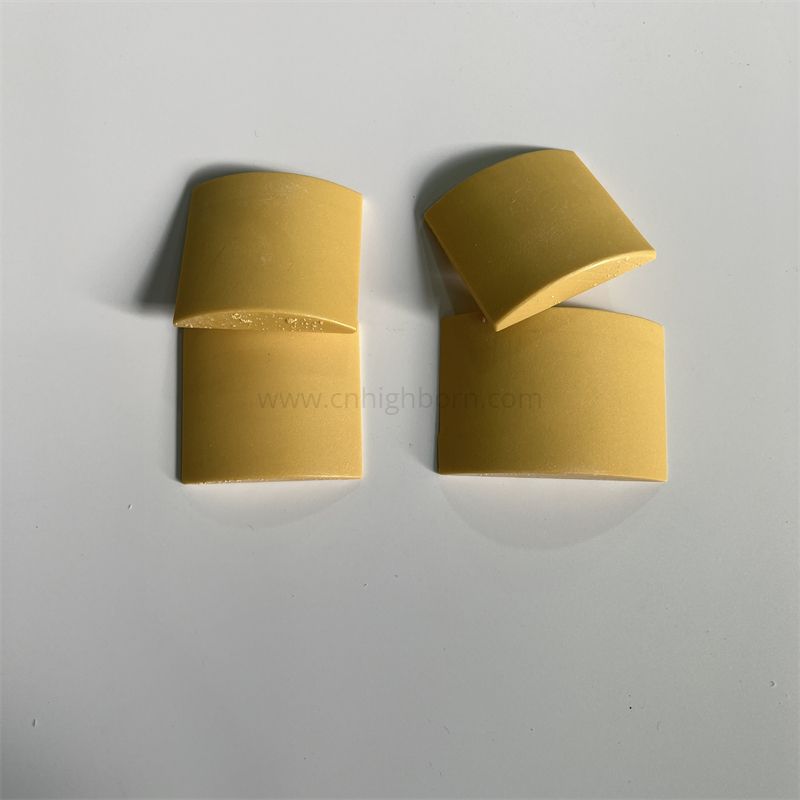

	Magnesia stabilized zirconia: These curved ceramic segments are made of magnesia stabilized zirconia (Mg-ZrO₂) raw material via isostatic pressing and high-temperature sintering.Presenting uniform yellow appearance with dense internal structure.
Feature: High mechanical toughness Low friction coefficient Stable chemical inertness, Dense sintered structure Support customized arc radian
	Zirconia ceramic Mg-ZrO2: The curved arc structure is machined precisely according to drawing requirements. The material features good fracture toughness, bending strength and wear resistance.
Application: Mechanical equipment wear-resistant lining blocks, friction buffer components, textile machinery ceramic accessories, packaging machine wear pads, automation equipment positioning blocks, metallurgical auxiliary wear-resistant ceramic parts.

项目 Item	单位 Unit	氧化锆 Zirconia (ZrO2)
体积密度 Bulk density	g/cm³	6.05
吸水率 Water absorption	%	0
抗折强度 Flexural strength	Mpa	1000
硬度 Hardness vickers	Gpa	89
模量 Elastic modulus	Gpa	200
线性膨胀系数 Linear expansion coefficient	(20-500℃) 10^-6/℃	10
导热系数 Thermal conductivity	w/(m.k)	2.5
介电常数 Dielectric constant (1MHZ)	-	N.A.
介电强度 Dielectric strength	*10⁶V/m	N.A.
