Product Description
 | Alumina Ceramic Introduction Alumina material is widely used in electronics, electrical equipment instrument and apparatus, house hold appliances, electric vacuum device, communication tools,temperature control switch, high-grade ceramic valve, faucet move sliding-vane. |
Alumina Ceramic Advantages -Excellent electrical insulation -Relatively low strength and fracture toughness -Resistance to wear and corrosive -Excellent thermal stability -Good chemical stability and resistance |  |

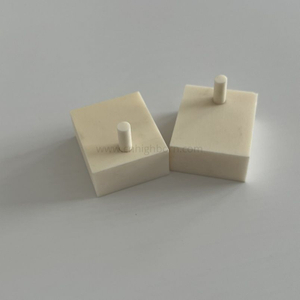

 | Alumina Ceramic Cylinder Block Alumina ceramics have good mechanical strength, high hardness and good wear resistance. Excellent insulation and chemical stability. Good high temperature resistance, excellent dielectric. It has high thermal conductivity and good conductivity. |
| Alumina Ceramic Application It is widely used in electronic, electrical, mechanical, chemical, metallurgical, textile, and other industries, etc. | |
Alumina Purity | 92% | 95% | 96% | 99% | 99.6% |
颜色 Color | White | White | White | Ivory White | White |
体积密度 Volume density(g/cm3) | 3.45 | 3.5 | 3.7 | 3.75 | 3.9 |
吸水率 Water Absorption | 0 | 0 | 0 | 0 | 0 |
抗弯强度 Flexural Strength | 300Mpa | 300Mpa | 320Mpa | 330Mpa | 330Mpa |
维氏硬度 Vickers hardness | 1300 | 1400 | 1400 | 1800 | 1800 |
介电常数 Dielectric Constant (at 1MHZ 25℃) | 10 | 10 | 10 | 10 | 10 |
弹性模量 Modulus of elasticity | 350Gpa | 350Gpa | 350Gpa | 370Gpa | 370Gpa |
热导率 thermal conductivity (30℃) | 18W/M.K | 24W/M.K | 24W/M.K | 25W/M.K | 28W/M.K |
体积电阻率 Volume resistivity | 10^14Ω•cm | 10^14Ω•cm | 10^14Ω•cm | 10^14Ω•cm | 10^15Ω•cm |
介电强度 Dielectric strength | 20KV/mm | 20KV/mm | 20KV/mm | 20KV/mm | 30KV/mm |
Company Profile
Packaging & Shipping
Packing Details | We will packing by professional export packing,safety against breakage, finally into the wooden cases/ carton/pallet or customized package. We have ERP authentication. |
Delivery Details | We can deliver by SEA,air,rail transportation,the China-Europe Railway Express etc. TNT, DHL,UPS, FEDEX, EMS，S.F EXPRESS etc. |
| 1. Sample service | 2. Optimal price | 3. Customized logo |
| 4. Fast feedback | 5. Customized size | 6. Safety package |
| 7. ISO9001 | 8. Aftersale service | 9. Low procurement risk |
