Max.temperature: 1450 degree C
Flexural strength: 358MPa Density: 3.6g/cm3
Surface treatment: glazed polishing etc
PRODUCT DETAILS
Product Description

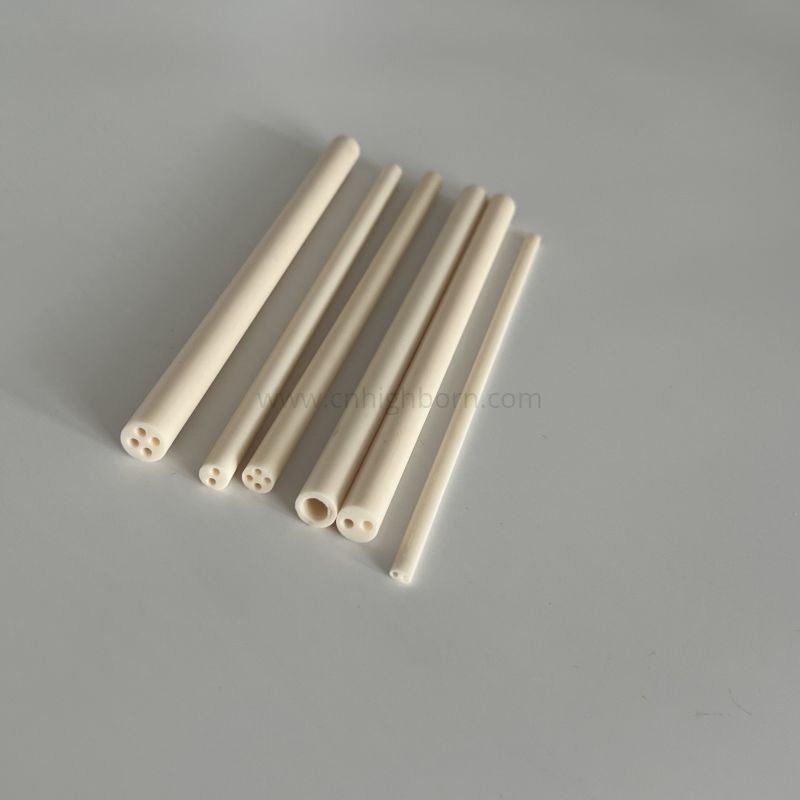

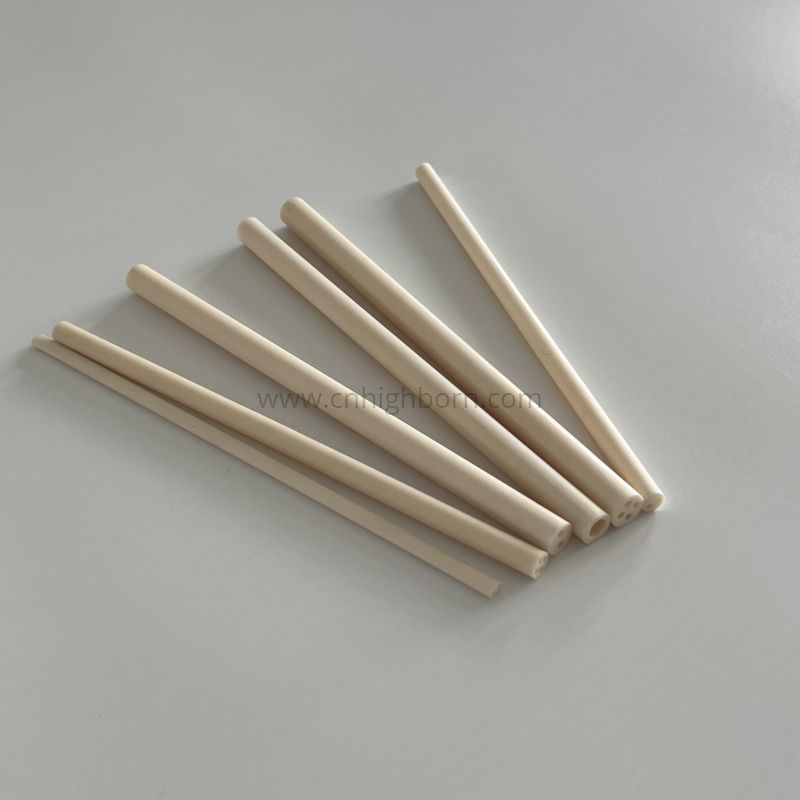

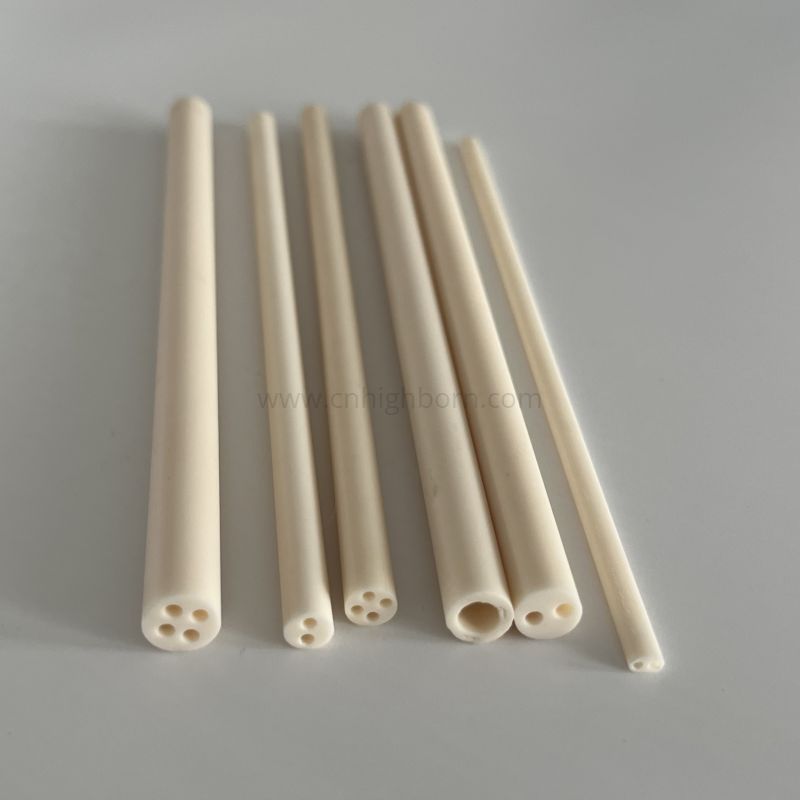

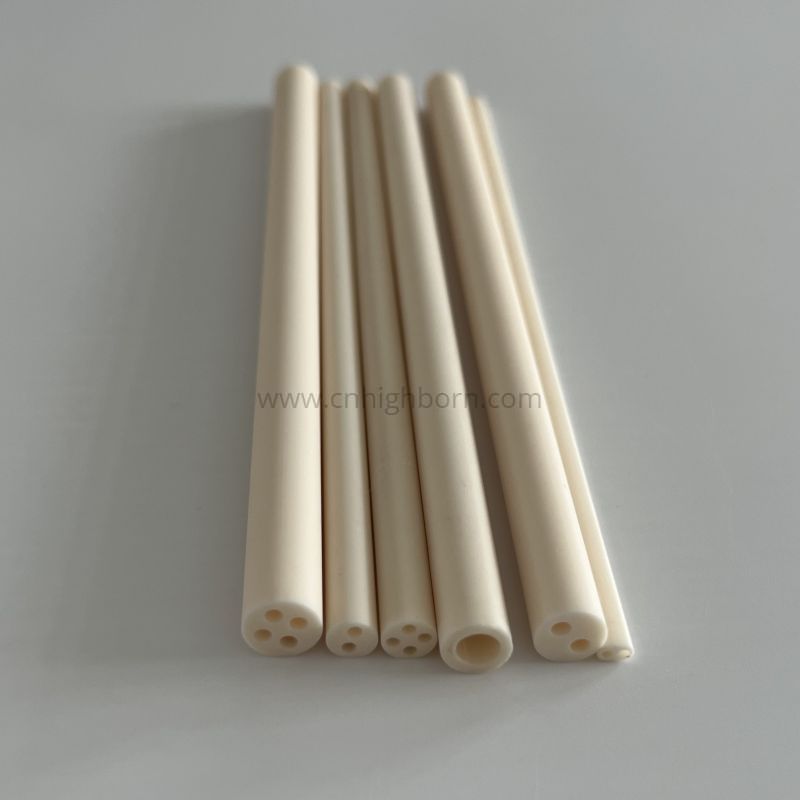

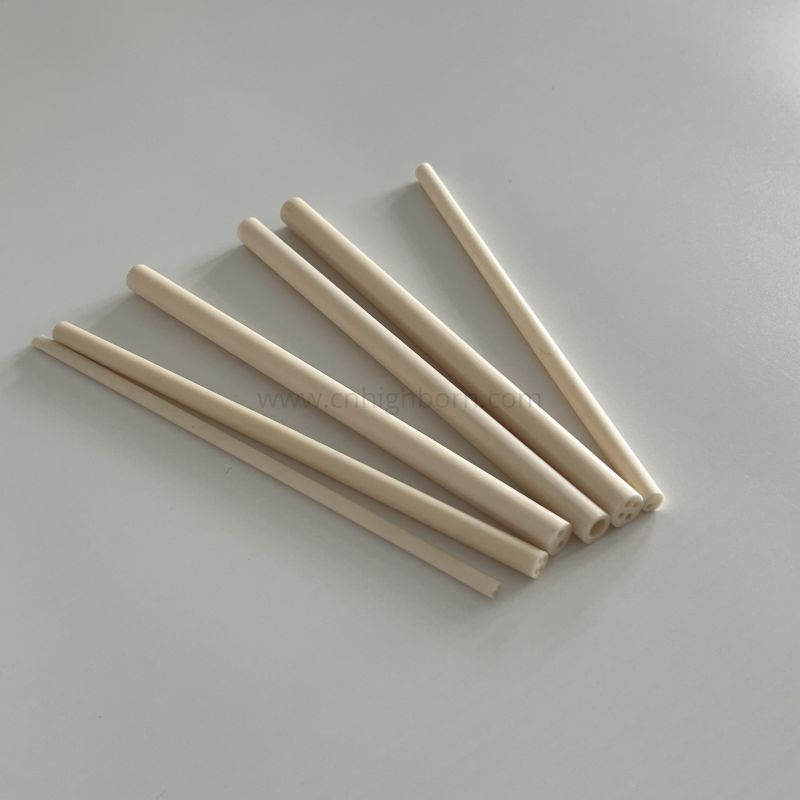

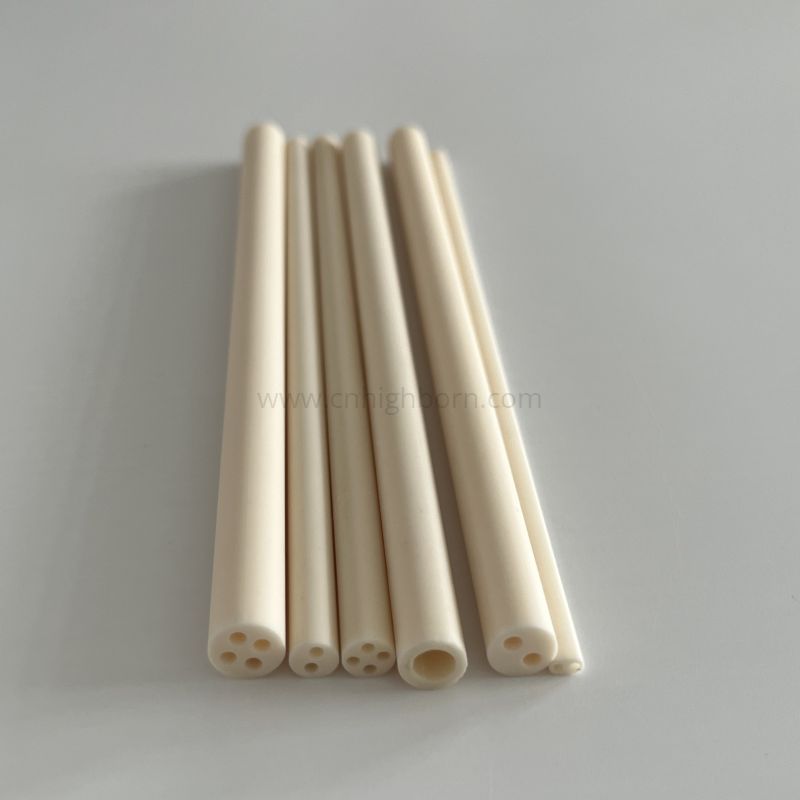

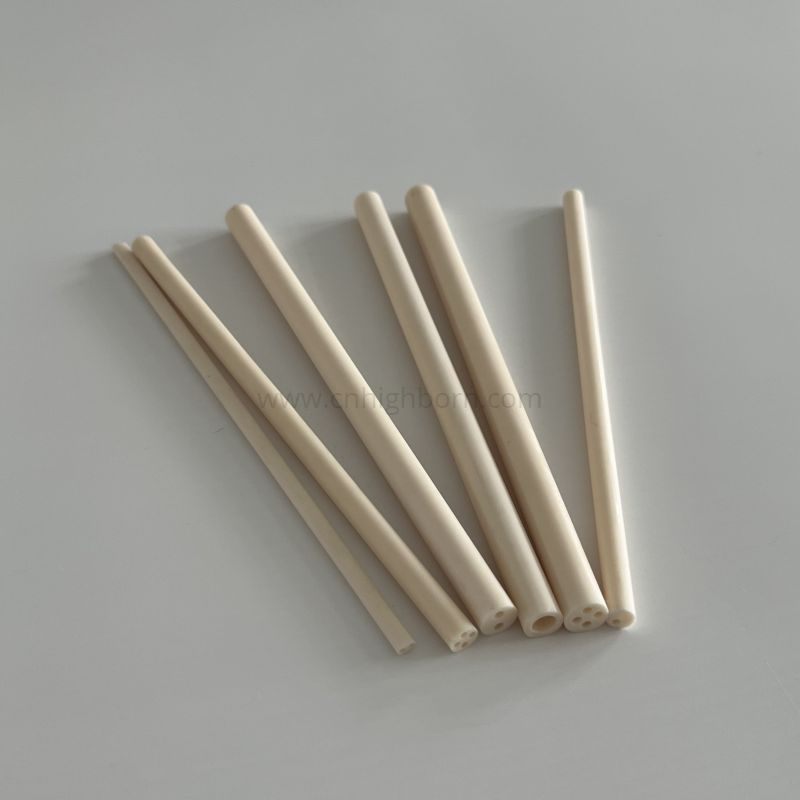

Alumina ceramic Tube:
Alumina ceramics have high hardness, high wear resistance, excellent electrical insulation and chemical stability, good heat resistance ect
Features of ceramic tube:
1). Excellent insulation, security, long working life. 2). High temperature resistance 3). Resistance to electric breakdown 4). Stand wear and tear 5). High strength
Alumina tube:
With an excellent combination of properties and an attractive price, alumina ceramic rod is no surprise that fine grain technical grade alumina has a very wide range of applications.
Alumina ceramic tube:
As the main representative of precision ceramic materials, it is widely used, mainly used in semiconductors, machinery, electrical appliances , petrochemical, textile and other industries.
Alumina Purity
92%
95%
96%
99%
99.6%
Color
White
White
White
Ivory White
White
Volume density(g/cm3)
3.45
3.5
3.7
3.75
3.9
Water Absorption
0
0
0
0
0
Flexural Strength
300MPa
300MPa
320MPa
330MPa
330MPa
Vickers hardness
1300
1400
1400
1800
1800
Dielectric Constant (at 1MHZ 25℃)
10
10
10
10
10
Modulus of elasticity
350GPa
350GPa
350GPa
370GPa
370GPa
thermal conductivity (30℃)
18W/(m·K)
24W/(m·K)
24W/(m·K)
25W/(m·K)
28W/(m·K)
Volume resistivity
1014Ω•cm
1014Ω•cm
1014Ω•cm
1014Ω•cm
1015Ω•cm
Dielectric strength
20KV/mm
20KV/mm
20KV/mm
20KV/mm
30KV/mm
