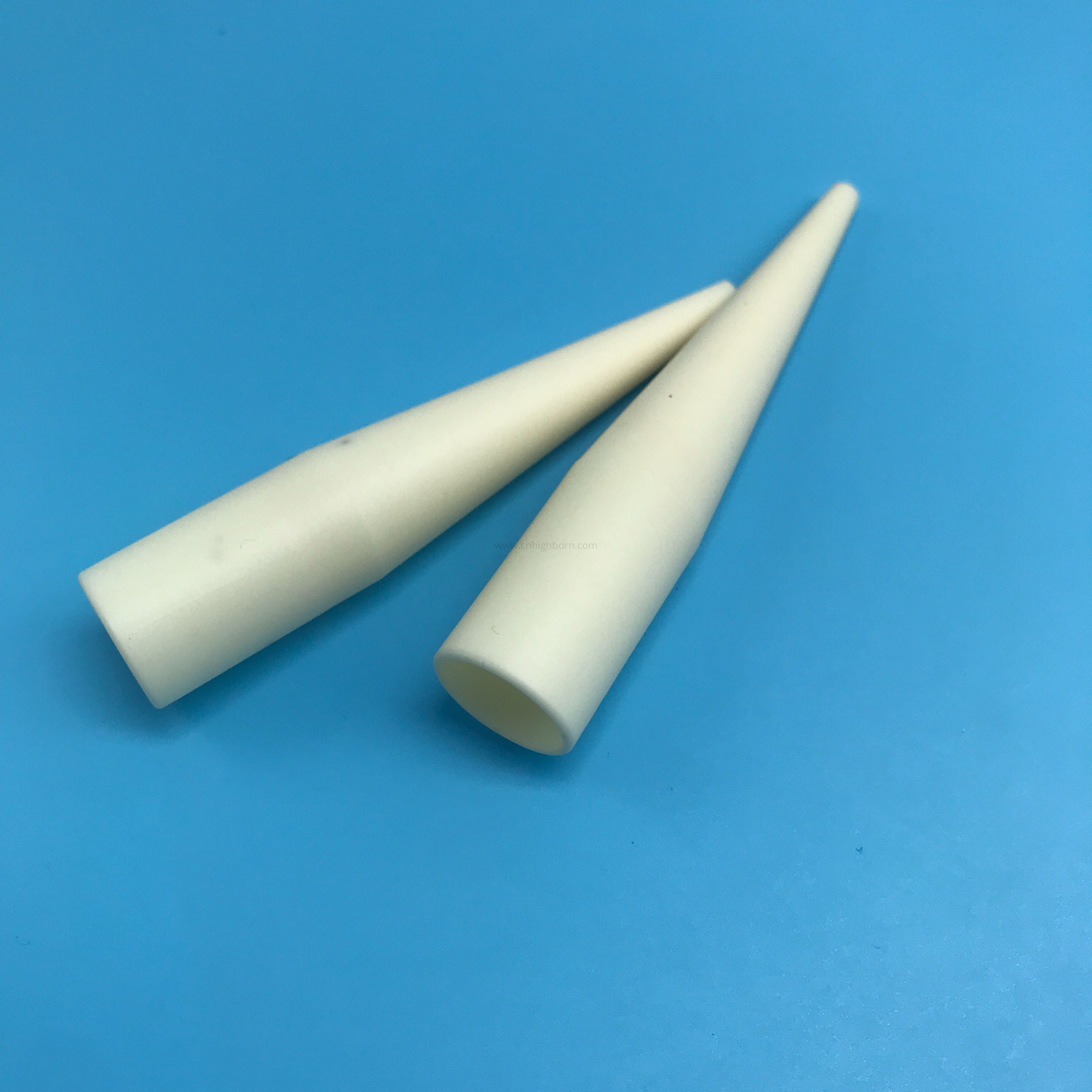

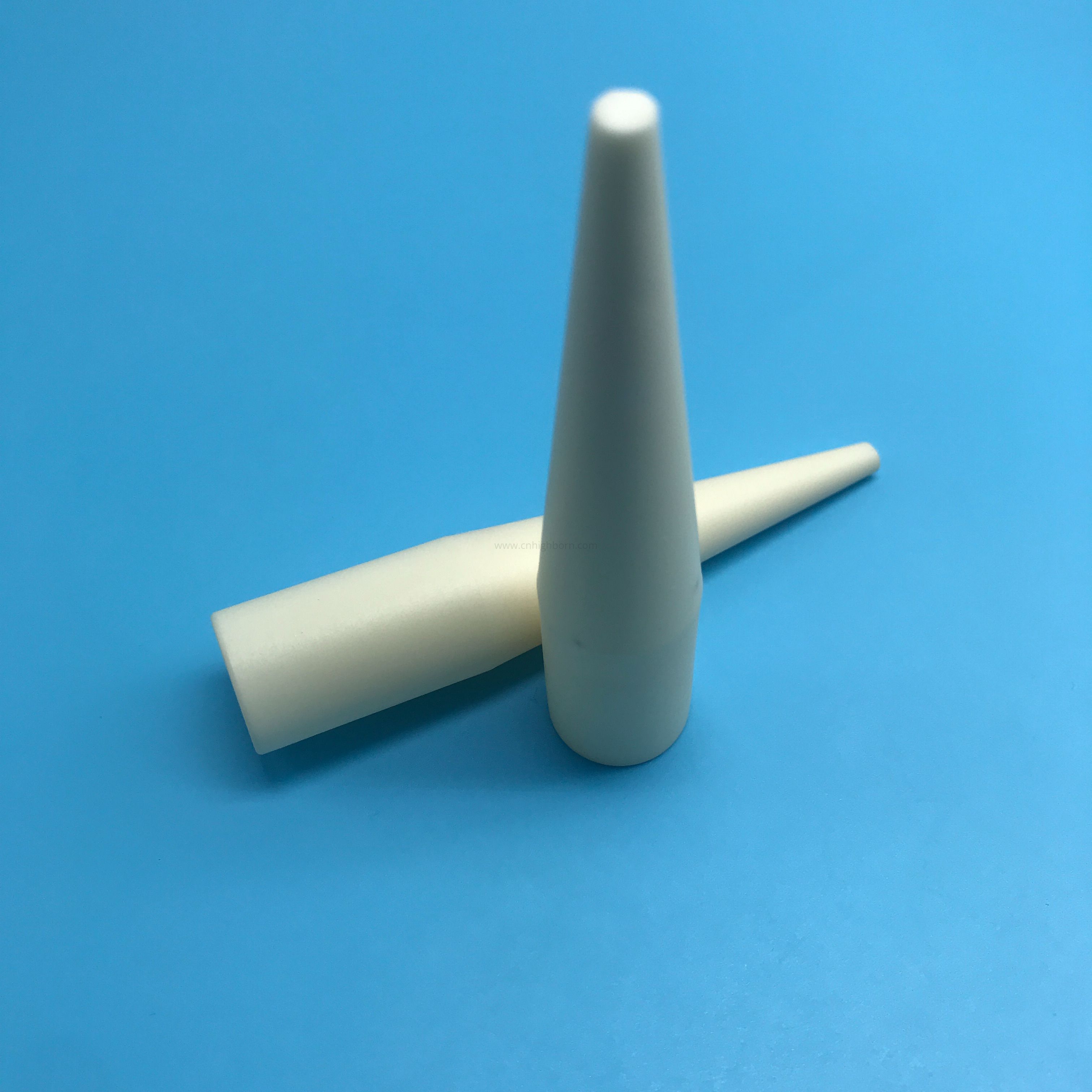

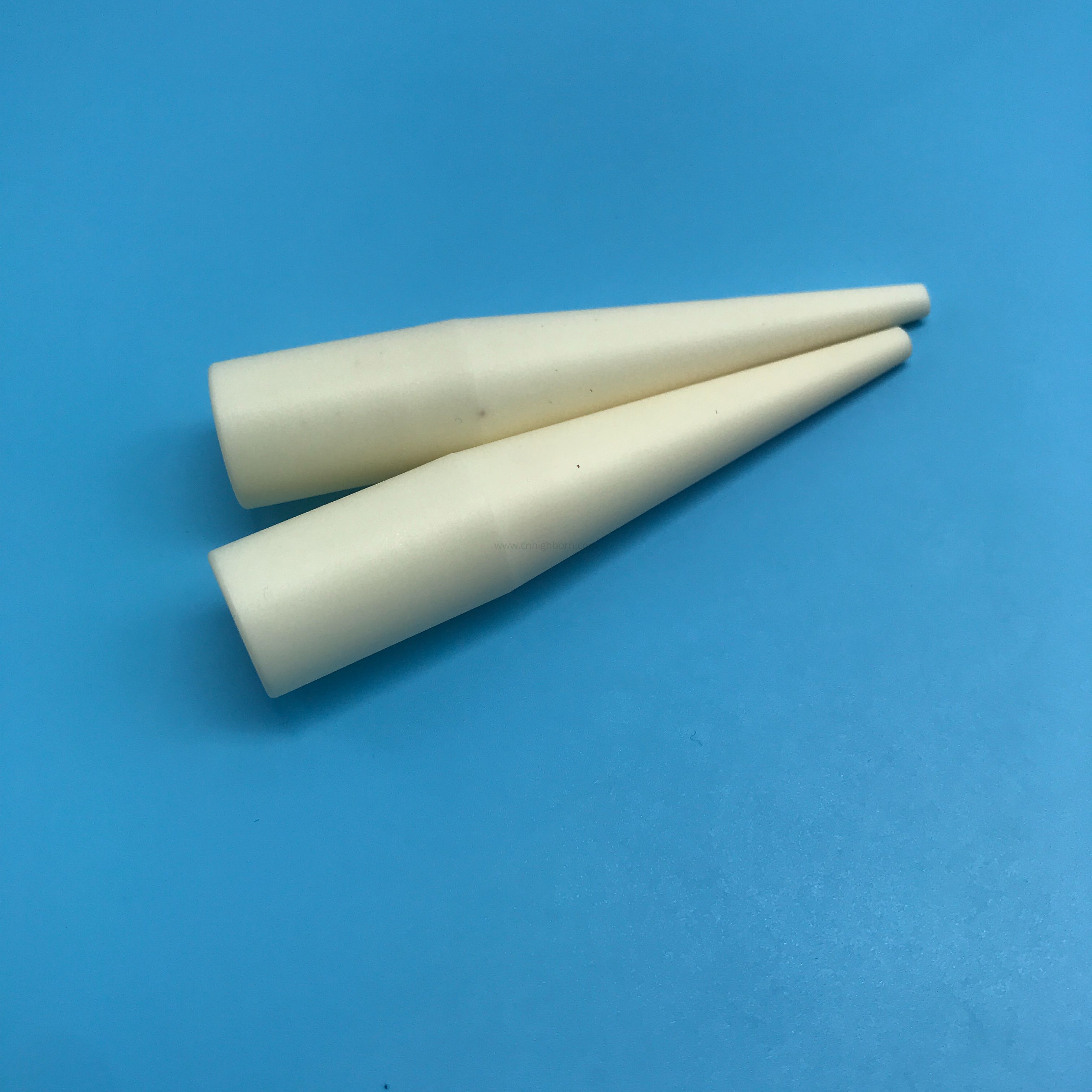

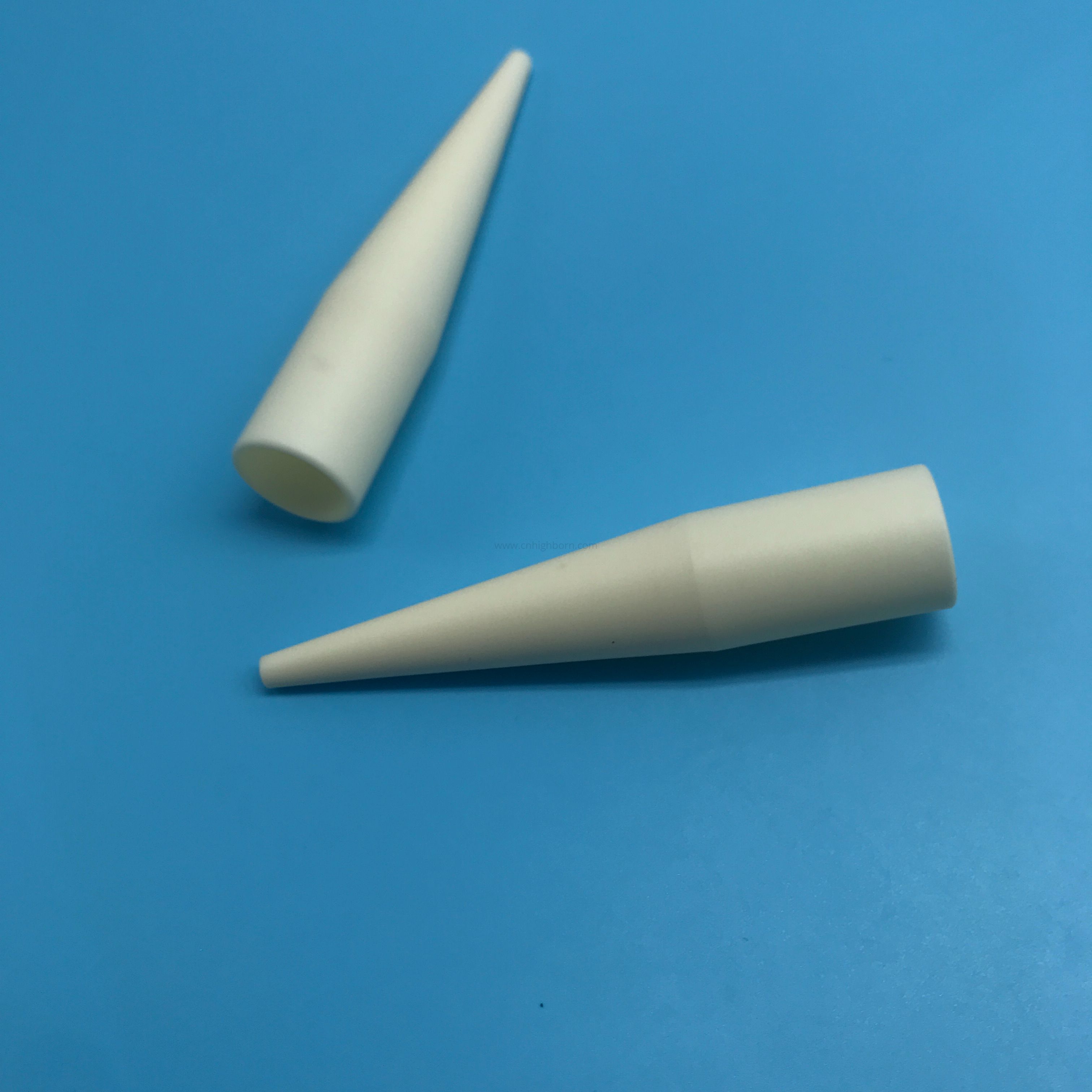

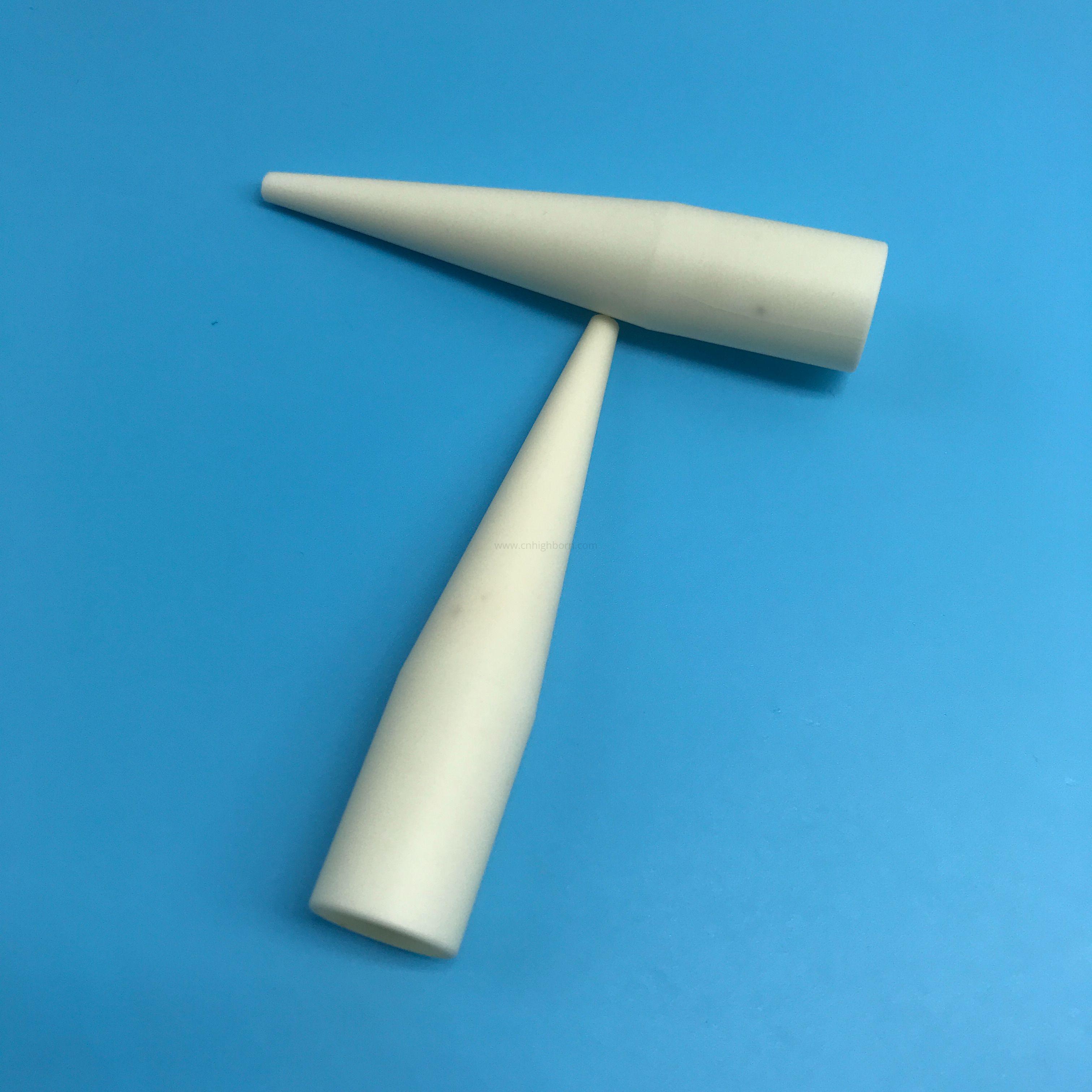

99% Al2O3 Alumina Ceramic Tapered Tube Hydrocyclone Liner


Availability:

Quantity:

Inquire Add to Basket

Al2o3 content:' 95%,99%,99.5%
Excellent electrical insulation
High temperature: 1450-1650C
Surface: polishing,glazed
Corrosion & erosion resistant

20 years export experience
8 Trademarks 40 Patents
Design & Research
Cooperated with Global 500 enterprises
Certificates:ISO、ROHS、CE etc.

PRODUCT DETAILS

Product Description

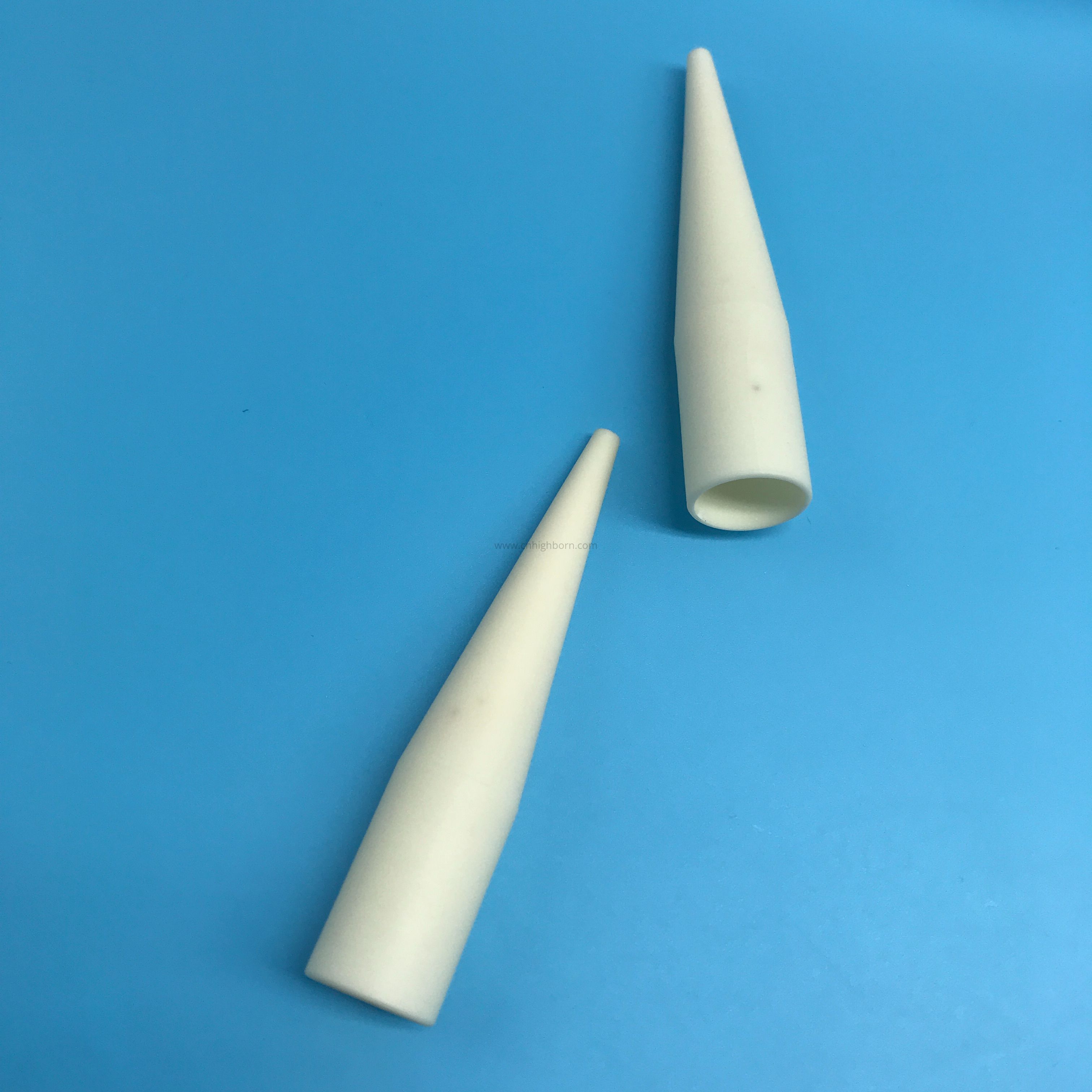

	Alumina Ceramic Tube： 1.Superior Abrasion Resistance 2.Excellent Chemical Corrosion Resistance 3.High Temperature Resistance 4.Precision Taper Geometry
Al2o3 Ceramic Tube： 1.Mining & Mineral Processing: gold ore, iron ore, quartz sand classification 2.Coal Washing / Coal Preparation plant 3.Paper Industry: pulp cleaner, slag removal
	Alumina Ceramic Liner: Custom dimension: ID, OD, total length, wall thickness, cone angle Material option: 95% /99% Alumina OEM & ODM, accept drawing / sample customization Small sample order available for performance test
Alumina ceramic liner: Tapered hollow alumina ceramic hydrocyclone liner, produced by dry pressing & high-temp sintering. Tapered channel accelerates slurry, stabilizes swirl flow for higher solid-liquid classification efficiency.

Alumina Purity	92%	95%	96%	99%	99.6%
颜色 Color	White 白色	White 白色	White 白色	Ivory White 象牙白	White 白色
体积密度 Volume density(g/cm3)	3.45	3.5	3.7	3.75	3.9
吸水率 Water Absorption	0	0	0	0	0
抗弯强度 Flexural Strength	300MPa	300MPa	320MPa	330MPa	330MPa
维氏硬度 Vickers hardness	1300	1400	1400	1800	1800
介电常数 Dielectric Constant (at 1MHZ 25℃)	10	10	10	10	10
弹性模量 Modulus of elasticity	350GPa	350GPa	350GPa	370GPa	370GPa
热导率 thermal conductivity (30℃)	18W/(m·K)	24W/(m·K)	24W/(m·K)	25W/(m·K)	28W/(m·K)
体积电阻率 Volume resistivity	10¹⁴Ω•cm	10¹⁴Ω•cm	10¹⁴Ω•cm	10¹⁴Ω•cm	10¹⁵Ω•cm
介电强度 Dielectric strength	20KV/mm	20KV/mm	20KV/mm	20KV/mm	30KV/mm

Company Profile

Packaging & Shipping

Packing Details

We will packing by professional export packing,safety against breakage, finally into the wooden cases/ carton/pallet or customized package. We have ERP authentication.

Delivery Details

We can deliver by SEA,air,rail transportation,the China-Europe Railway Express etc.

TNT, DHL,UPS, FEDEX, EMS，S.F EXPRESS etc.

Our Services

What we can do for you:

1. Sample service	2. Optimal price	3. Customized logo
4. Fast feedback	5. Customized size	6. Safety package
7. ISO9001	8. Aftersale service	9. Low procurement risk
