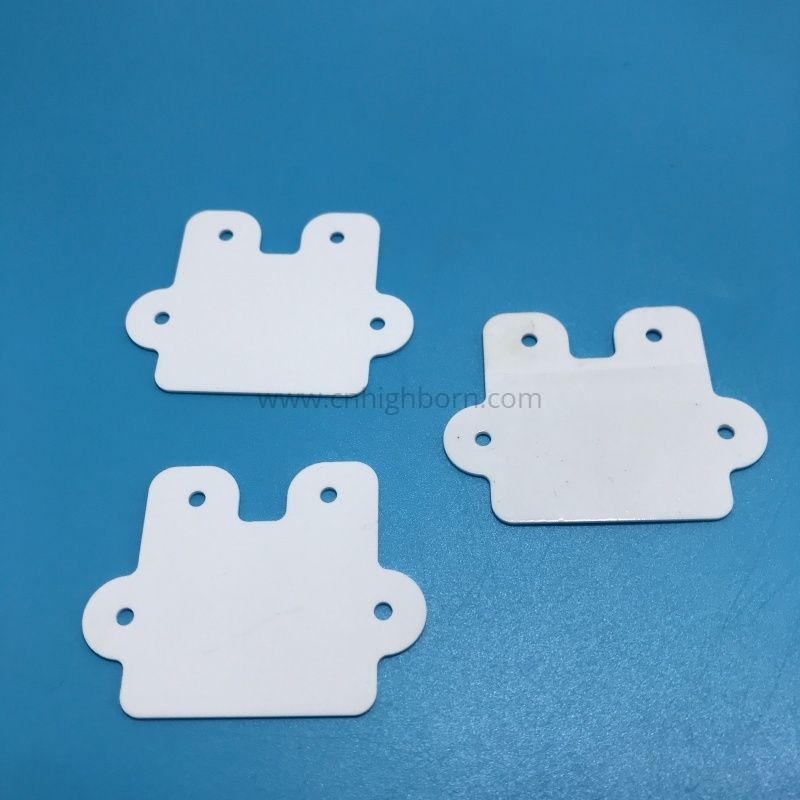

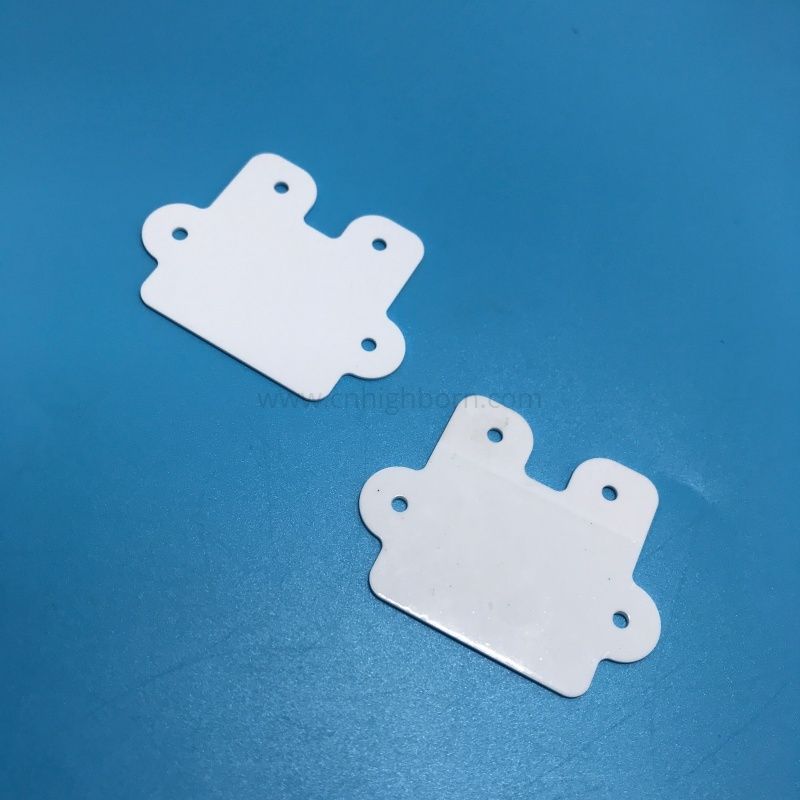

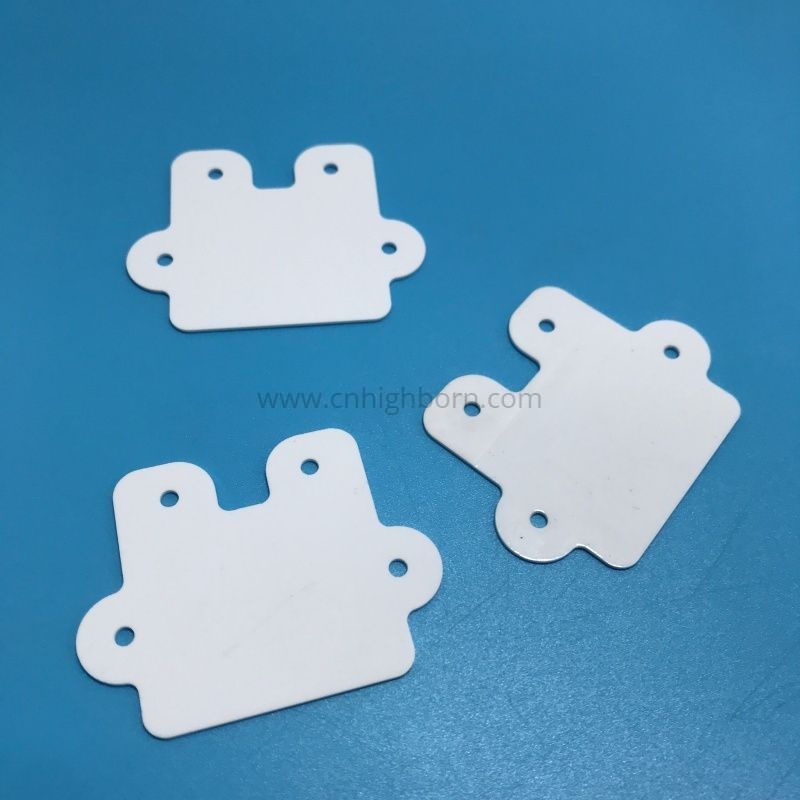

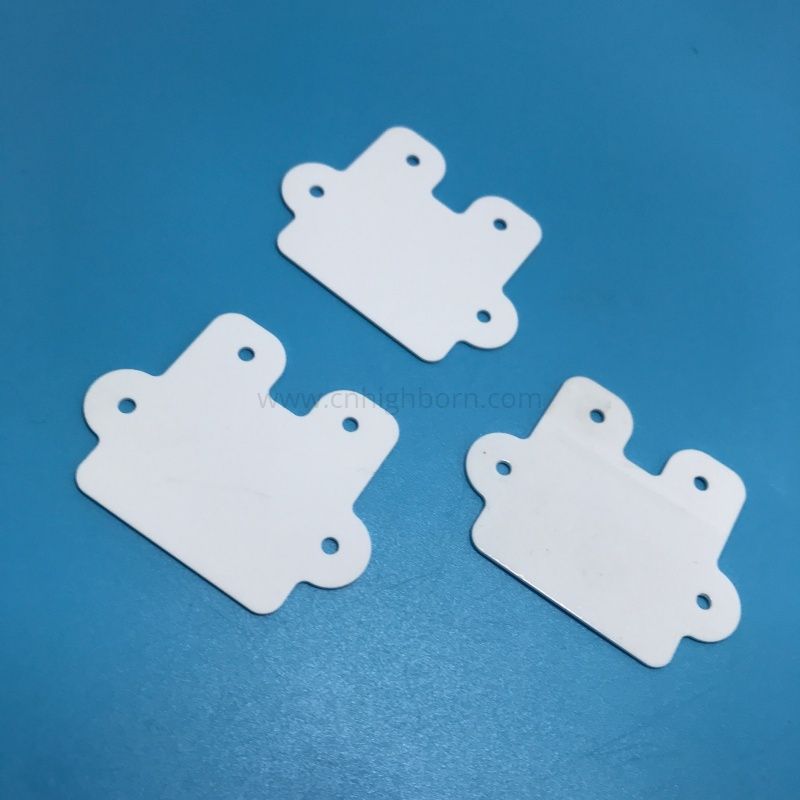

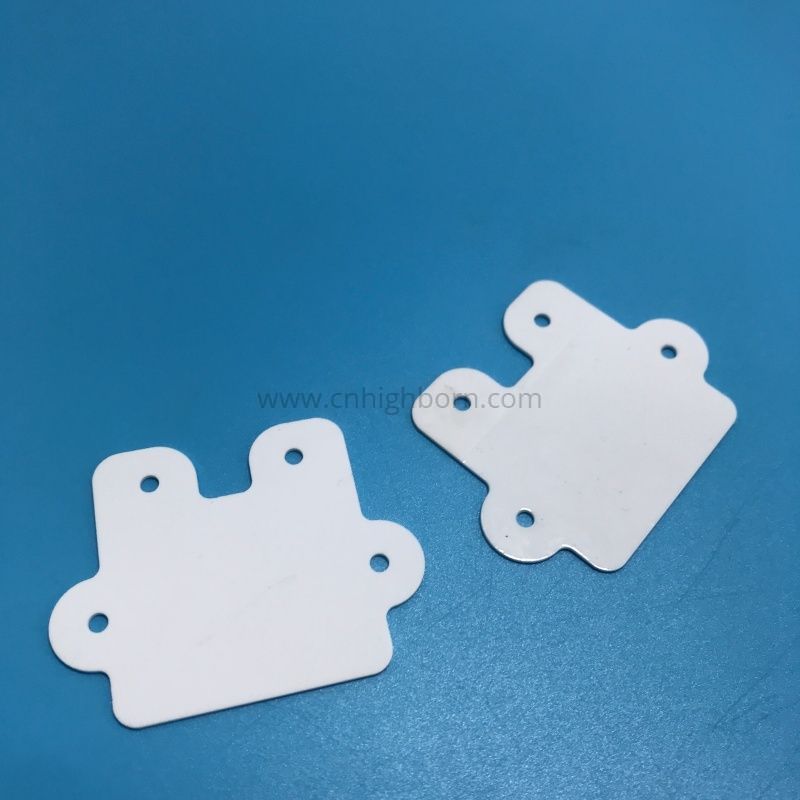

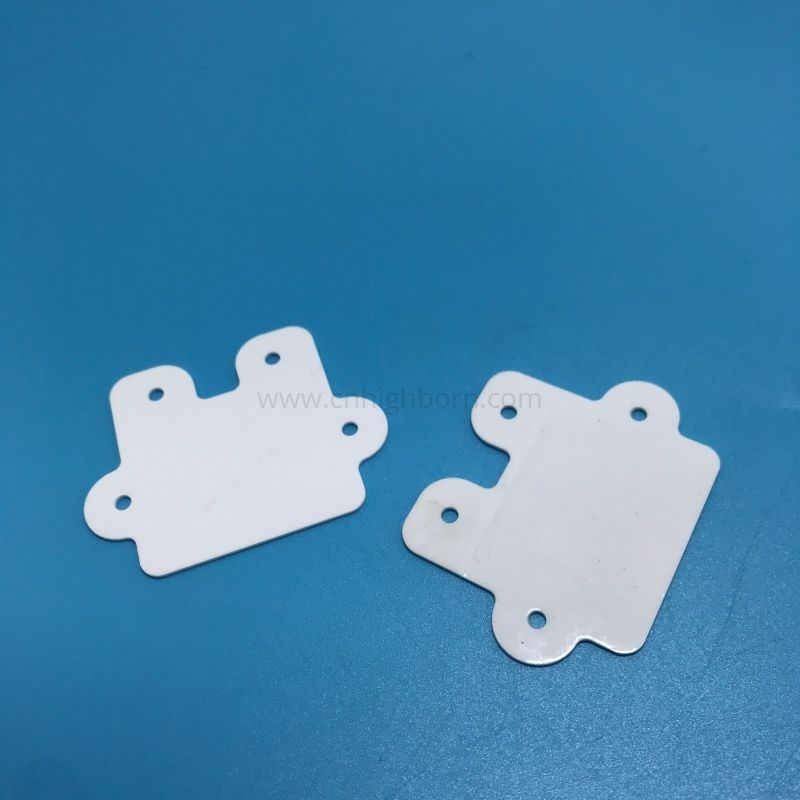

Industrial Customized 0.38mm 0.5mm, 0.635mm Thin Al2O3 Plate Alumina Ceramic Substrate

Industrial Customized 0.38mm 0.5mm, 0.635mm Thin Al2O3 Plate Alumina Ceramic Substrate


Availability:

Quantity:

Inquire Add to Basket

20 years export experience
8 Trademarks、40 Patents
Design & Research
Cooperated with Global 500 enterprises
Certificates:ISO、ROHS、CE etc.
Density: 3.89g/cm3

Max Work Temperature: 1600°C

Water absorption: 0%

PRODUCT DETAILS

Product Description

	96% Al2O3 Alumina Ceramic Substrate： 96% and 99.6% alumina substrates are used in the electronics industry as integrated circuit substrates and high frequency insulating materials. They are generally ceramic substrates manufactured by the tape casting method. Production process: sheet stamping, high temperature sintering into dense ceramics, laser processing, inspection, and delivery. Common specifications: thickness ranges from 0.1 mm to several tens of millimeters.
96% Al2O3 Alumina Ceramic Substrate : Shapes can be customized as round, square, rectangular or special shaped. Surfaces can be processed into smooth finish, matte finish, or slotted holed structures as required. Exact dimensions and performance indicators shall be tailored to the actual application scenarios.
	96% Al2O3 Alumina Ceramic Substrate: Alumina sheets are used in PCB production. We provide laser cutting processing for alumina ceramic sheets and alumina ceramic substrates. Featuring stable performance and high wear resistance, they are widely applied in electrical appliances, electric heating, electronics, automotive, textile and other industries.
96% Al2O3 Alumina Ceramic Substrate We can provide blank substrates or cut them into your required dimensions. Typical applications: thick film chip resistors, LED submounts, power electronic modules, sensors, charging pile components and automotive electronics.

Alumina Purity	92%	95%	96%	99%	99.6%
颜色 Color	White 白色	White 白色	White 白色	Ivory White 象牙白	White 白色
体积密度 Volume density	3.45g/cm³	3.5g/cm³	3.7g/cm³	3.75g/cm³	3.9g/cm³
吸水率 Water Absorption	0	0	0	0	0
抗弯强度 Flexural Strength	300MPa	300MPa	320MPa	330MPa	330MPa
维氏硬度 Vickers hardness	1300	1400	1400	1800	1800
介电常数 Dielectric Constant (at 1MHZ 25℃)	10	10	10	10	10
弹性模量 Modulus of elasticity	350GPa	350GPa	350GPa	370GPa	370GPa
热导率 thermal conductivity (30℃)	18W/(m·K)	24W/(m·K)	24W/(m·K)	25W/(m·K)	28W/(m·K)
体积电阻率 Volume resistivity	10¹⁴Ω•cm	10¹⁴Ω•cm	10¹⁴Ω•cm	10¹⁴Ω•cm	10¹⁵Ω•cm
介电强度 Dielectric strength	20KV/mm	20KV/mm	20KV/mm	20KV/mm	30KV/mm

Company Profile

textile ceramic part

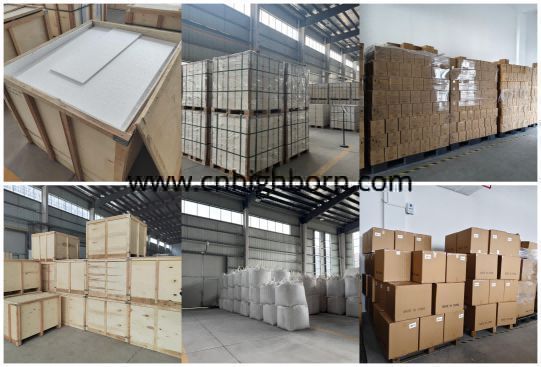

Packaging & Shipping
