Product Description
 | Alumina ceramic tube: The alumina ceramic component delivers good thermal stability under high temperature working environment. It shows reliable insulation performance and low thermal expansion rate during long term furnace running. |
Alumina ceramic pump :
1).Excellent electrical insulation |  |

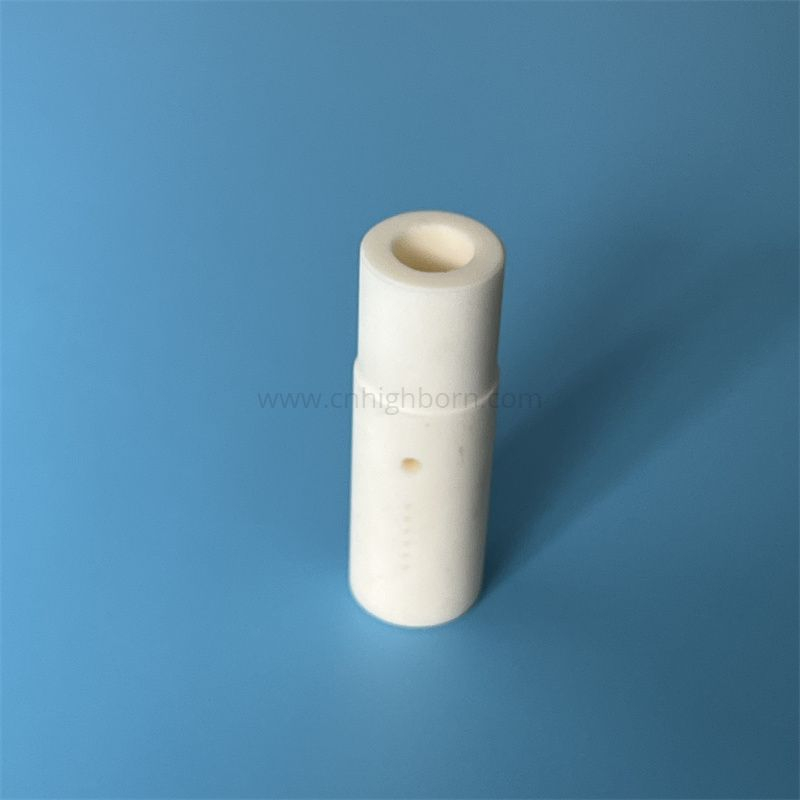

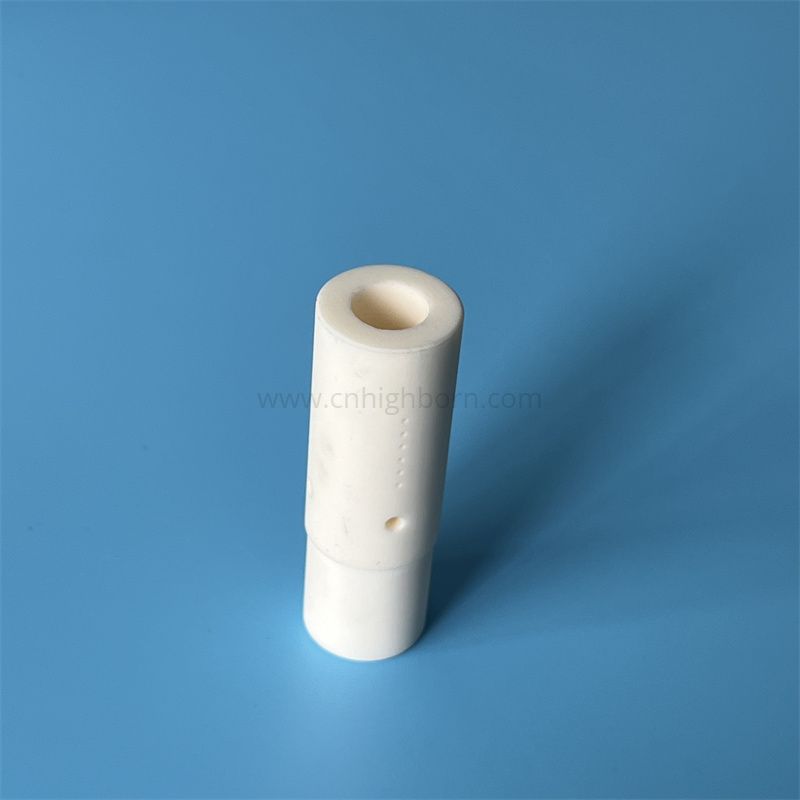

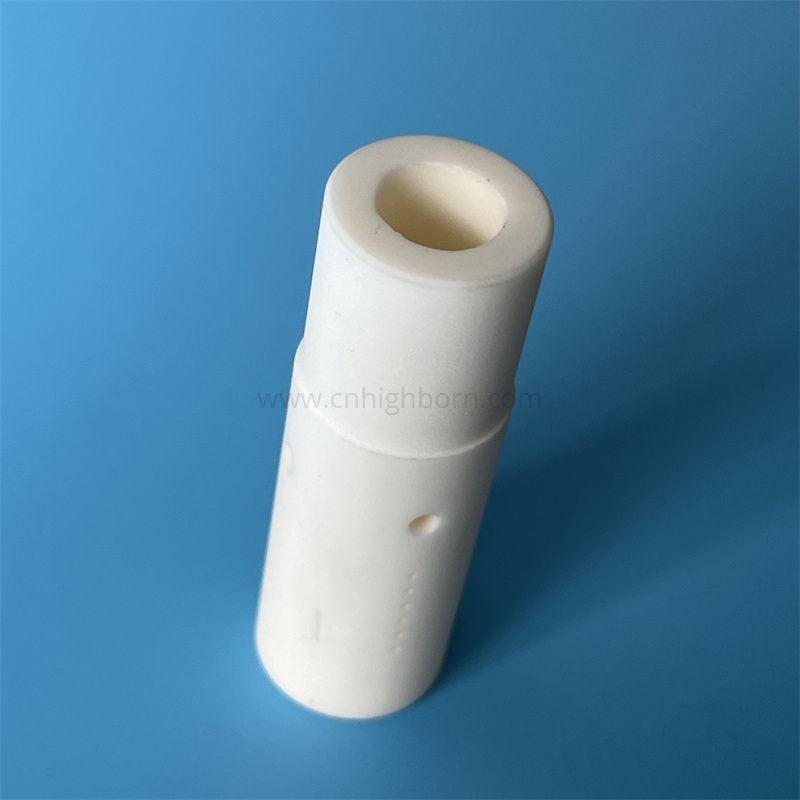

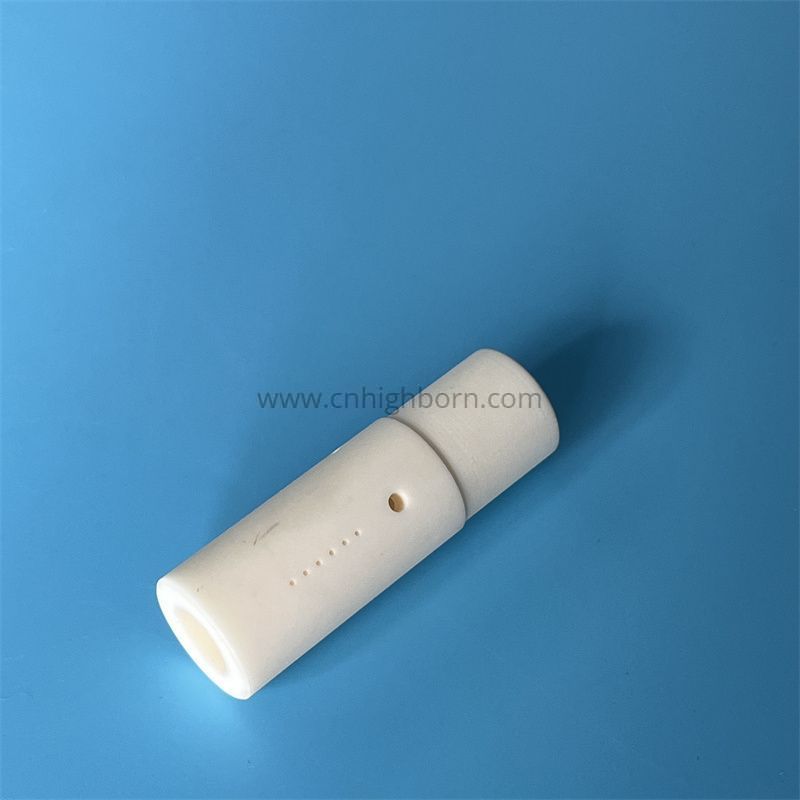

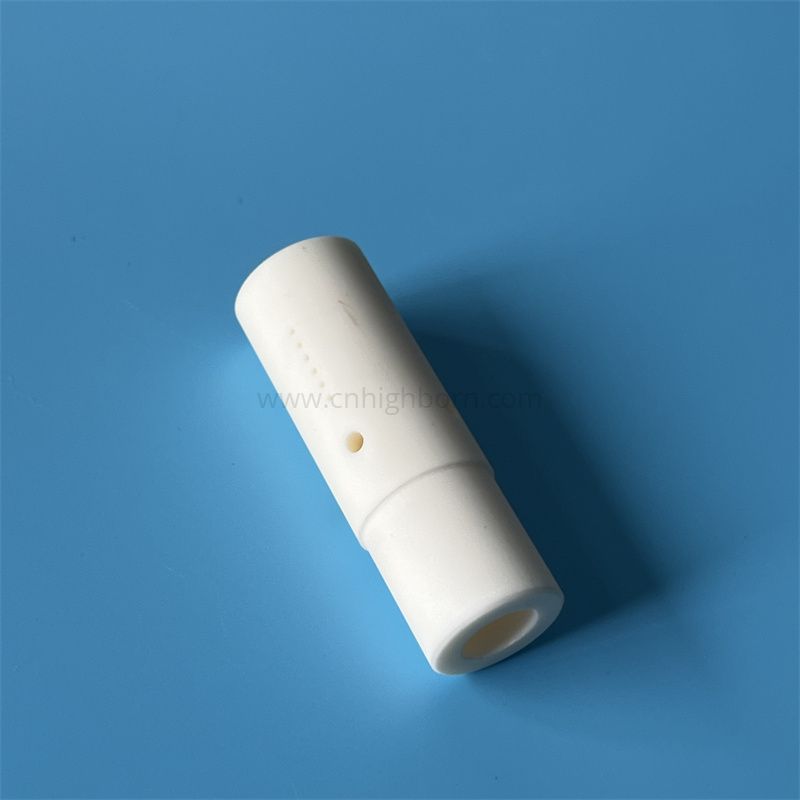

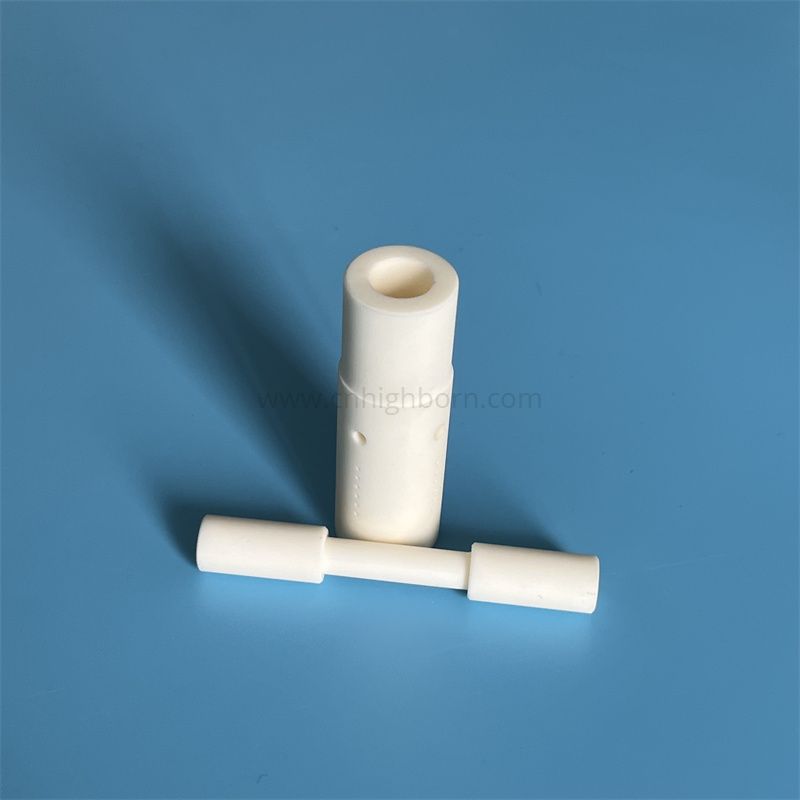

 | Alumina ceramic tube: Alumina ceramic plunger is made from 95 to 99.7 percent Al2O3 through isostatic pressing and high-temperature sintering, giving a dense non-porous body with Mohs hardness 9, excellent dimensional stability and a mirror-polishable surface |
Alumina ceramic pipe: It replaces stainless steel and coated metal plungers in metering pumps, dosing systems and slurry lines where metal parts wear out, rust or contaminate the fluid within months. |  |
Alumina Purity | 92% | 95% | 96% | 99% |
颜色 Color | White 白色 | White 白色 | White 白色 | Ivory White 象牙白 |
体积密度 Volume density(g/cm3) | 3.45 | 3.5 | 3.7 | 3.75 |
吸水率 Water Absorption | 0 | 0 | 0 | 0 |
抗弯强度 Flexural Strength | 300MPa | 300MPa | 320MPa | 330MPa |
维氏硬度 Vickers hardness | 1300 | 1400 | 1400 | 1800 |
介电常数 Dielectric Constant (at 1MHZ 25℃) | 10 | 10 | 10 | 10 |
弹性模量 Modulus of elasticity | 350GPa | 350GPa | 350GPa | 370GPa |
热导率 thermal conductivity (30℃) | 18W/(m·K) | 24W/(m·K) | 24W/(m·K) | 25W/(m·K) |
体积电阻率 Volume resistivity | 1014Ω•cm | 1014Ω•cm | 1014Ω•cm | 1014Ω•cm |
介电强度 Dielectric strength | 20KV/mm | 20KV/mm | 20KV/mm | 20KV/mm |
Company Profile

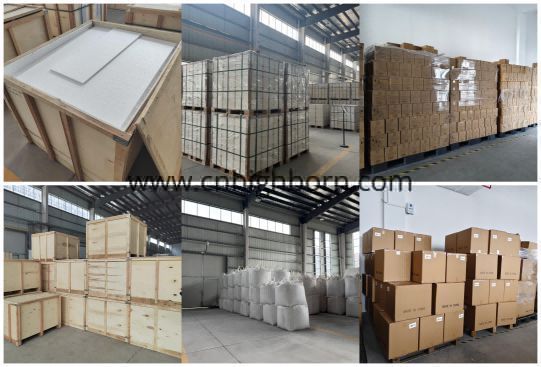

Packaging & Shipping
Packing Details | We will packing by professional export packing,safety against breakage, finally into the wooden cases/ carton/pallet or customized package. We have ERP authentication. |
Delivery Details | We can deliver by SEA,air,rail transportation,the China-Europe Railway Express etc. TNT, DHL,UPS, FEDEX, EMS，S.F EXPRESS etc. |
| 1. Sample service | 2. Optimal price | 3. Customized logo |
| 4. Fast feedback | 5. Customized size | 6. Safety package |
| 7. ISO9001 | 8. Aftersale service | 9. Low procurement risk |
