Product Description
 | Alumina ceramic ignition introduction The 95 % alumina ceramic spark ignition rods are widely used in ignition devise of combustion machine, boiler, etc. The electrode needle length can be produced according to customer requirements |
| Material of alumina ignition choice 1) Ceramic Insulator Body: 95% Alumina, Steatite with glazed or no glazed layer . |  |
 | Alumina cerammic ignition Features 1. High density 2. High hardness 3. Low thermal conductivity 4. High pressure 5. Resistance to molten metals |
| Alumina ceramic ignition Advantage 1. low thermal conductivity 2. excellent thermal shock resistance 3. light weight 4. outstanding electrical resistivity 5. excellent chemical corrosion-resistant performance |  |
Alumina Purity | 92% | 95% | 96% | 99% | 99.6% |
颜色 Color | White | White | White | Ivory White | White |
体积密度 Volume density(g/cm3) | 3.45 | 3.5 | 3.7 | 3.75 | 3.9 |
吸水率 Water Absorption | 0 | 0 | 0 | 0 | 0 |
抗弯强度 Flexural Strength | 300Mpa | 300Mpa | 320Mpa | 330Mpa | 330Mpa |
维氏硬度 Vickers hardness | 1300 | 1400 | 1400 | 1800 | 1800 |
介电常数 Dielectric Constant (at 1MHZ 25℃) | 10 | 10 | 10 | 10 | 10 |
弹性模量 Modulus of elasticity | 350Gpa | 350Gpa | 350Gpa | 370Gpa | 370Gpa |
热导率 thermal conductivity (30℃) | 18W/M.K | 24W/M.K | 24W/M.K | 25W/M.K | 28W/M.K |
体积电阻率 Volume resistivity | 10^14Ω•cm | 10^14Ω•cm | 10^14Ω•cm | 10^14Ω•cm | 10^15Ω•cm |
介电强度 Dielectric strength | 20KV/mm | 20KV/mm | 20KV/mm | 20KV/mm | 30KV/mm |
Company Profile

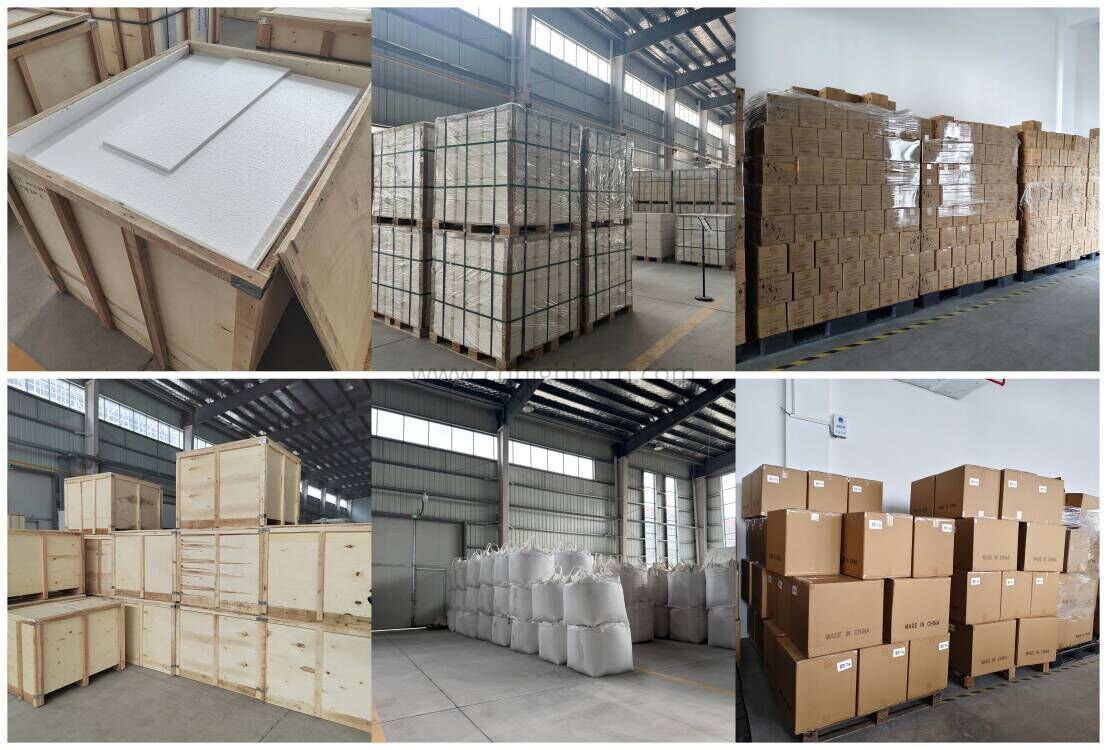

Packaging & Shipping
Packing Details | We will packing by professional export packing,safety against breakage, finally into the wooden cases/ carton/pallet or customized package. We have ERP authentication. |
Delivery Details | We can deliver by SEA,air,rail transportation,the China-Europe Railway Express etc. TNT, DHL,UPS, FEDEX, EMS，S.F EXPRESS etc. |
| 1. Sample service | 2. Optimal price | 3. Customized logo |
| 4. Fast feedback | 5. Customized size | 6. Safety package |
| 7. ISO9001 | 8. Aftersale service | 9. Low procurement risk |
