Alumina Boiler Water Level Probe Liquid Level Control Sensor Probe Electrode

Alumina Water Level Probe Control Sensor Probe Electrode


Availability:

Quantity:

Inquire Add to Basket

20 years export experience

8 Trademarks、40 Patents

Design & Research

Cooperated with Global 500 enterprises

Certificates:ISO、ROHS、CE etc.

Standard joint thread: M14,M18

Metal material: brass ,SUS304

Length: can be cut

Probe dia: 4.5mm

PRODUCT DETAILS

Product Description

	Water lever proble sensor The default delivery length is 400mm in total length (except for G1/2 threaded bipolar) The length of the stainless steel pole can be cut.
boiler water level electrode In boilers and other equipment, water is vaporized at high temperature, and the consumption is large.
	Applications of ceramic ignitor: Widely used in water plants, oil refineries, chemical plants, glass plants, sewage treatment plants, high-rise water supply systems, reservoirs, rivers, oceans, etc.
Features of ceramic electrode: 1.Anti-heat,corrosion resistance, anti-high voltage 2. Desirable surface fineness. 3. corrosion resistant ,light weight, Long performance life.

Alumina Purity	92%	95%	96%	99%	99.6%
颜色 Color	White	White	White	Ivory White	White
体积密度 Volume density	3.45g/cm3	3.5g/cm3	3.7g/cm3	3.75g/cm3	3.9g/cm3
吸水率 Water Absorption	0	0	0	0	0
抗弯强度 Flexural Strength	300MPa	300MPa	320MPa	330MPa	330MPa
维氏硬度 Vickers hardness	1300	1400	1400	1800	1800
介电常数 Dielectric Constant	10at 1MHZ 25℃	10at 1MHZ 25℃	10at 1MHZ 25℃	10at 1MHZ 25℃	10at 1MHZ 25℃
弹性模量 Modulus of elasticity	350GPa	350GPa	350GPa	370GPa	370GPa
热导率 thermal conductivity (30℃)	18W/(m·K)	24W/(m·K)	24W/(m·K)	25W/(m·K)	28W/(m·K)
体积电阻率 Volume resistivity	10¹⁴Ω•cm	10¹⁴Ω•cm	10¹⁴Ω•cm	10¹⁴Ω•cm	10¹⁵Ω•cm
介电强度 Dielectric strength	20KV/mm	20KV/mm	20KV/mm	20KV/mm	30KV/mm

Company Profile

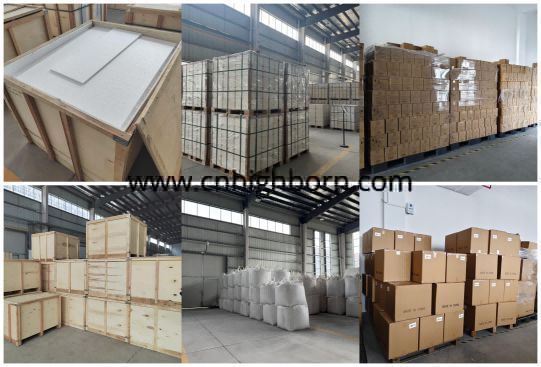

Packaging & Shipping
