Customized Alumina Disc 99% Al2O3 Ceramic Smooth Surface Wafer

Alumina Disc 99% Al2O3 Ceramic Smooth Surface Wafer


Availability:

Quantity:

Inquire Add to Basket

20 years export experience
8 Trademarks、40 Patents
Design & Research
Cooperated with Global 500 enterprises
Certificates:ISO、ROHS、CE etc.

Volume density：3.75g/cm3

Water Absorption：0%

PRODUCT DETAILS

Product Description

	99% Alumina ceramic disc Usage Alumina ceramics can be used for high-temperature and high-voltage insulation parts, circuit substrates, high-temperature devices, mechanical wear-resistant parts, sealing rings, plungers, etc.
Advantages of Al2O3 Ceramic disc Alumina ceramic wafer is light in weight, which can reduce the load on equipment.Al2O3 Ceramic wafer has good insulation and low high frequency loss.
	Al2O3 Ceramic Disc Features: a) Resistant to elevated temperatures b) High hardness c) Good wear resistance d) Excellent chemical stability e) High-thermal conductivity
99% Alumina Ceramic Application It is widely used in semiconductors, precision machinery, electrical appliances, textile, new‑energy equipment and instrumentation, for wear‑resistant structural parts, insulators and high‑temperature furnace components.

Alumina Purity	92%	95%	96%	99%	99.6%
颜色 Color	White 白色	White 白色	White 白色	Ivory White 象牙白	White 白色
体积密度 Volume density(g/cm3)	3.45	3.5	3.7	3.75	3.9
吸水率 Water Absorption	0	0	0	0	0
抗弯强度 Flexural Strength	300MPa	300MPa	320MPa	330MPa	330MPa
维氏硬度 Vickers hardness	1300	1400	1400	1800	1800
介电常数 Dielectric Constant (at 1MHZ 25℃)	10	10	10	10	10
弹性模量 Modulus of elasticity	350GPa	350GPa	350GPa	370GPa	370GPa
热导率 thermal conductivity (30℃)	18W/(m·K)	24W/(m·K)	24W/(m·K)	25W/(m·K)	28W/(m·K)
体积电阻率 Volume resistivity	10¹⁴Ω•cm	10¹⁴Ω•cm	10¹⁴Ω•cm	10¹⁴Ω•cm	10¹⁵Ω•cm
介电强度 Dielectric strength	20KV/mm	20KV/mm	20KV/mm	20KV/mm	30KV/mm

备注：以上数据仅供参考。

Note: The above data is only for your reference.

Company Profile

alumina ceramic disc

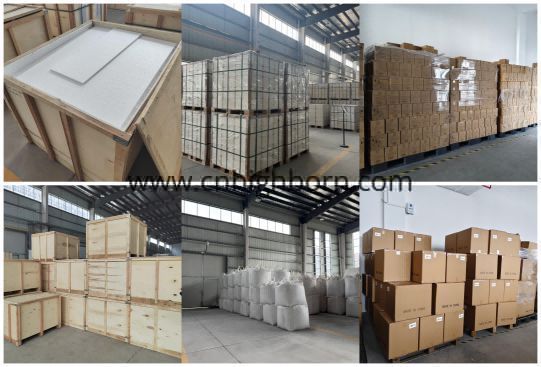

Packaging & Shipping

Packing Details

We will packing by professional export packing,safety against breakage, finally into the wooden cases/ carton/pallet or customized package. We have ERP authentication.

Delivery Details

We can deliver by SEA,air,rail transportation,the China-Europe Railway Express etc.

TNT, DHL,UPS, FEDEX, EMS，S.F EXPRESS etc.

Our Services

What we can do for you:

1. Sample service	2. Optimal price	3. Customized logo
4. Fast feedback	5. Customized size	6. Safety package
7. ISO9001	8. Aftersale service	9. Low procurement risk
