Product Description
 | Alumina Ceramic Aluminium Oxide, Al2O3 is the most widely applied and cost effective technical ceramic material. It offers a combination of superior mechanical strength and electrical properties, wear resistance and corrosion resistance. |

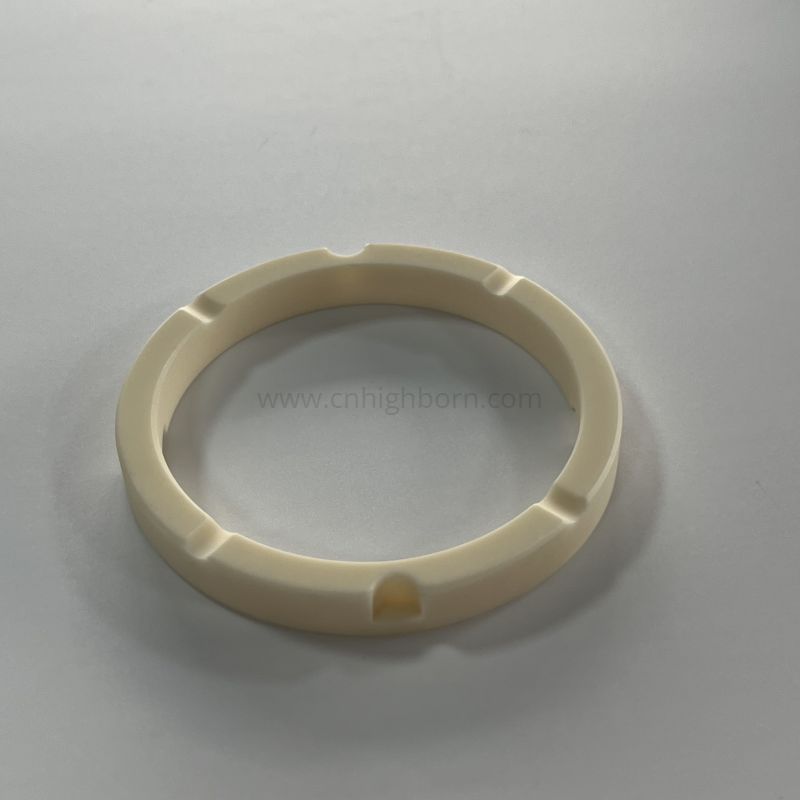

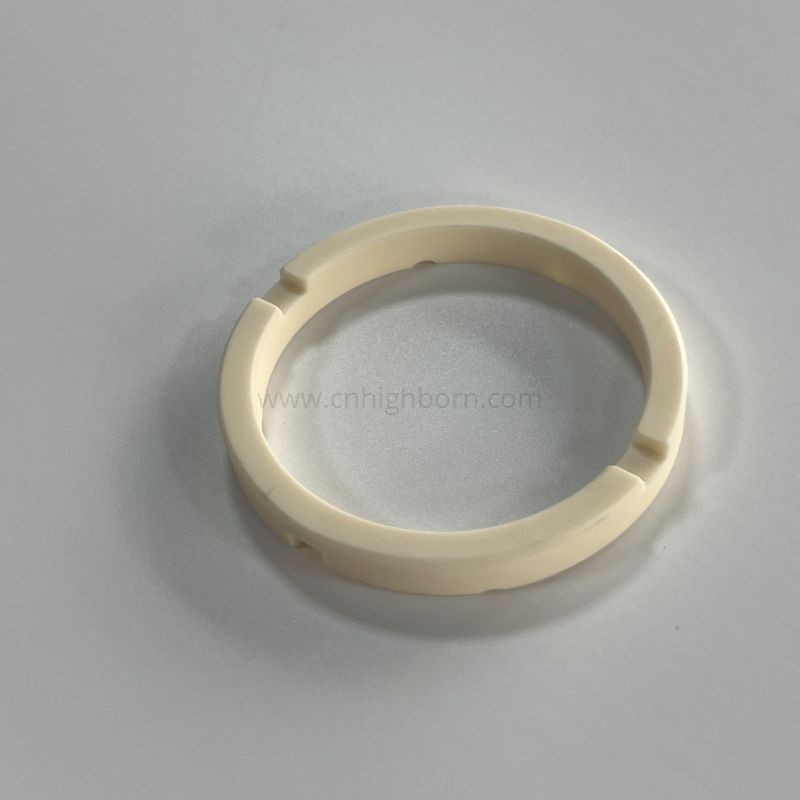

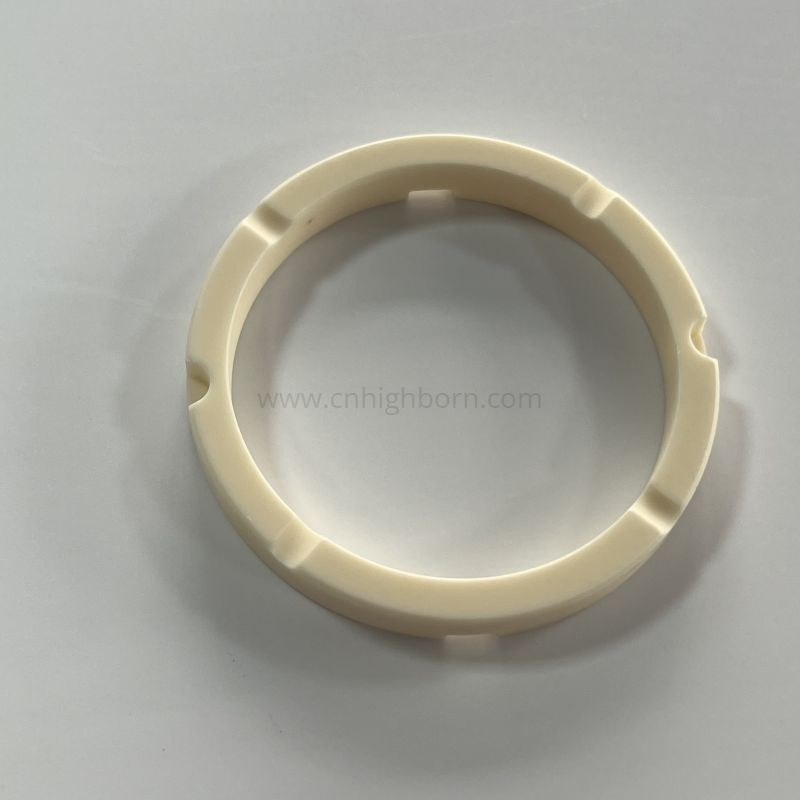

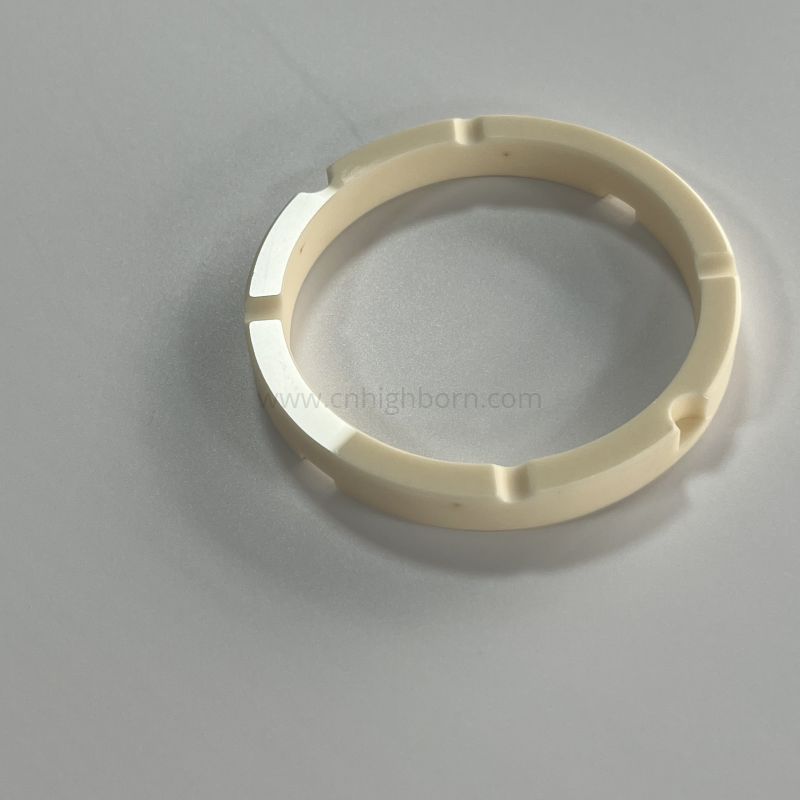

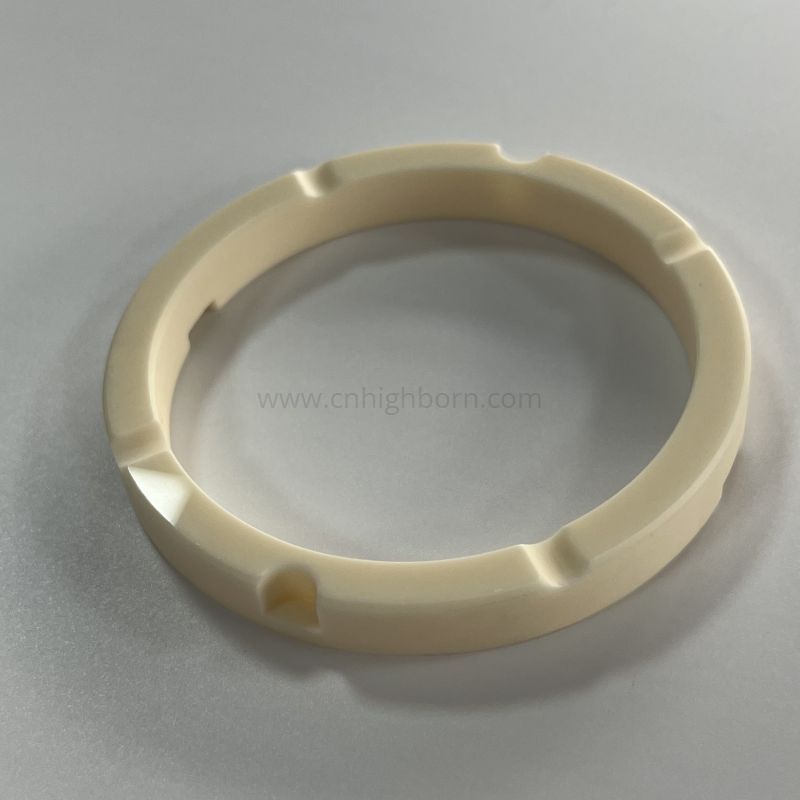

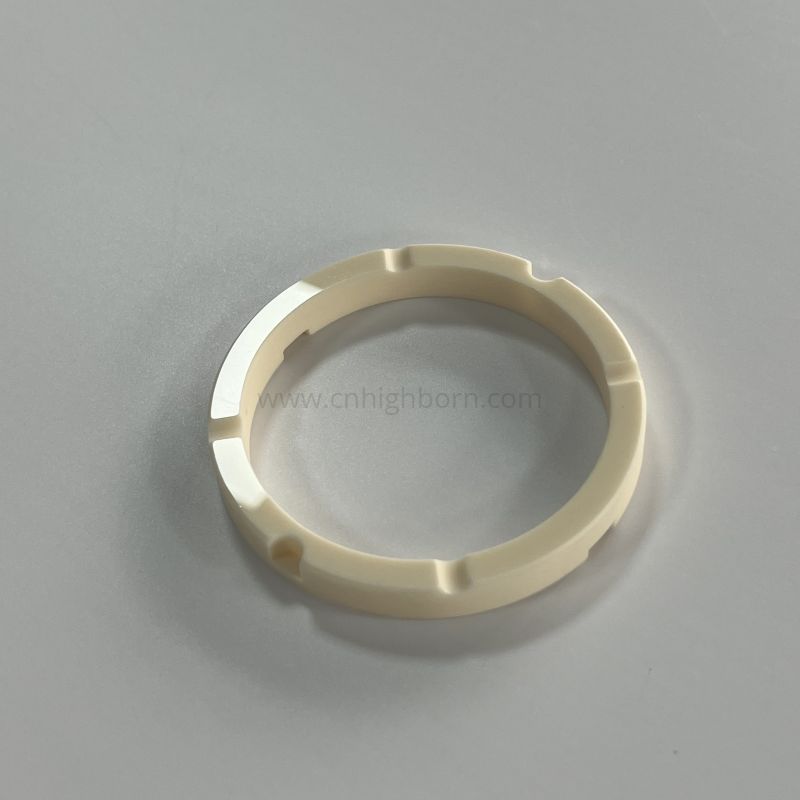

Alumina Ceramic ring 95% alumina ceramic seal ring (Al₂O₃ ≥95%) is a key wear‑resistant sealing component for magnetic pumps. Manufactured by dry‑press forming, high‑temperature sintering and precision grinding. The sealing face is finely lapped for zero‑leakage operation of magnetic drive pumps. It is a good replacement for metal and graphite sealing parts, widely used in chemical anti‑corrosion magnetic pumps. |  |
 | Alunina Ceramic Parts Features The good corrosion resistance makes it insoluble in water and slightly soluble in strong acid and alkaline solution. |
Alumina Ceramics We can make the part by hot injection pressing, dry pressing, 200T isostatic pressing and extrusion productive technology etc. |  |
Alumina Purity | 92% | 95% | 96% | 99% | 99.6% |
颜色 Color | White 白色 | White 白色 | White 白色 | Ivory White 象牙白 | White 白色 |
体积密度 Volume density(g/cm3) | 3.45 | 3.5 | 3.7 | 3.75 | 3.9 |
吸水率 Water Absorption | 0 | 0 | 0 | 0 | 0 |
抗弯强度 Flexural Strength | 300MPa | 300MPa | 320MPa | 330MPa | 330MPa |
维氏硬度 Vickers hardness | 1300 | 1400 | 1400 | 1800 | 1800 |
介电常数 Dielectric Constant (at 1MHZ 25℃) | 10 | 10 | 10 | 10 | 10 |
弹性模量 Modulus of elasticity | 350GPa | 350GPa | 350GPa | 370GPa | 370GPa |
热导率 thermal conductivity (30℃) | 18W/(m·K) | 24W/(m·K) | 24W/(m·K) | 25W/(m·K) | 28W/(m·K) |
体积电阻率 Volume resistivity | 1014Ω•cm | 1014Ω•cm | 1014Ω•cm | 1014Ω•cm | 1015Ω•cm |
介电强度 Dielectric strength | 20KV/mm | 20KV/mm | 20KV/mm | 20KV/mm | 30KV/mm |
Company Profile
Packaging & Shipping

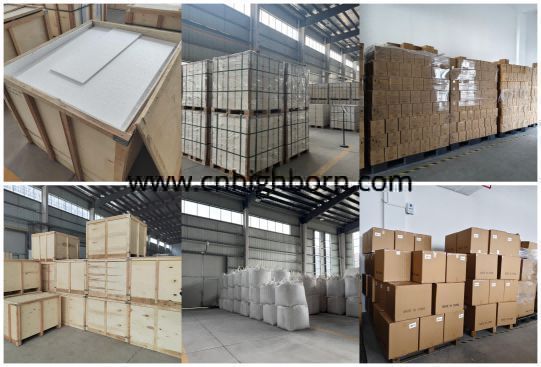

Packing Details | We will packing by professional export packing,safety against breakage, finally into the wooden cases/ carton/pallet or customized package. We have ERP authentication. |
Delivery Details | We can deliver by SEA,air,rail transportation,the China-Europe Railway Express etc. TNT, DHL,UPS, FEDEX, EMS，S.F EXPRESS etc. |
| 1. Sample service | 2. Optimal price | 3. Customized logo |
| 4. Fast feedback | 5. Customized size | 6. Safety package |
| 7. ISO9001 | 8. Aftersale service | 9. Low procurement risk |
