Bulk density: 6.05g/cm³
Customized shape and size
PRODUCT DETAILS
Product Description

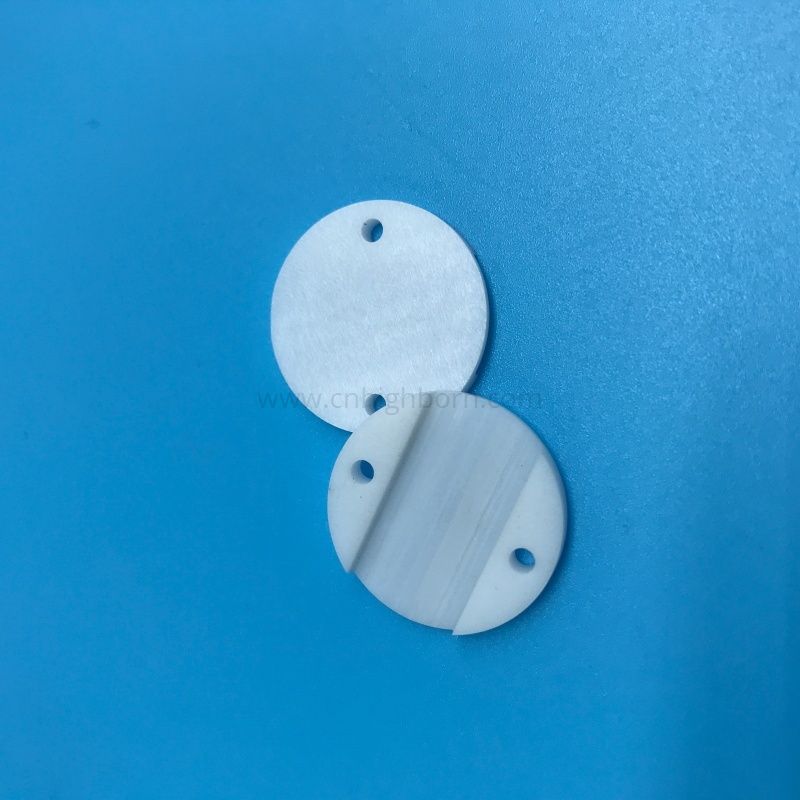

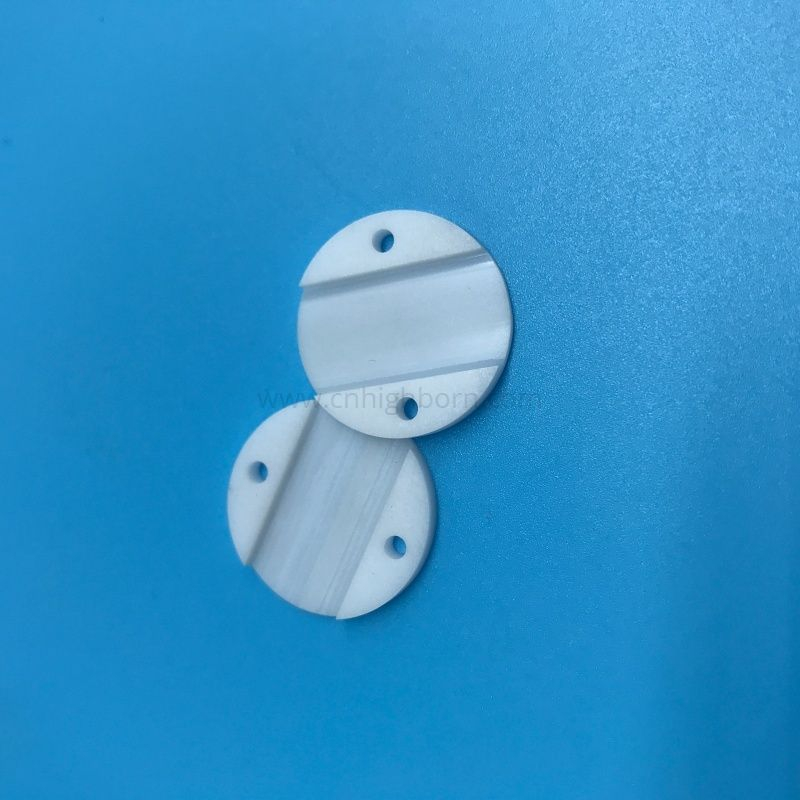

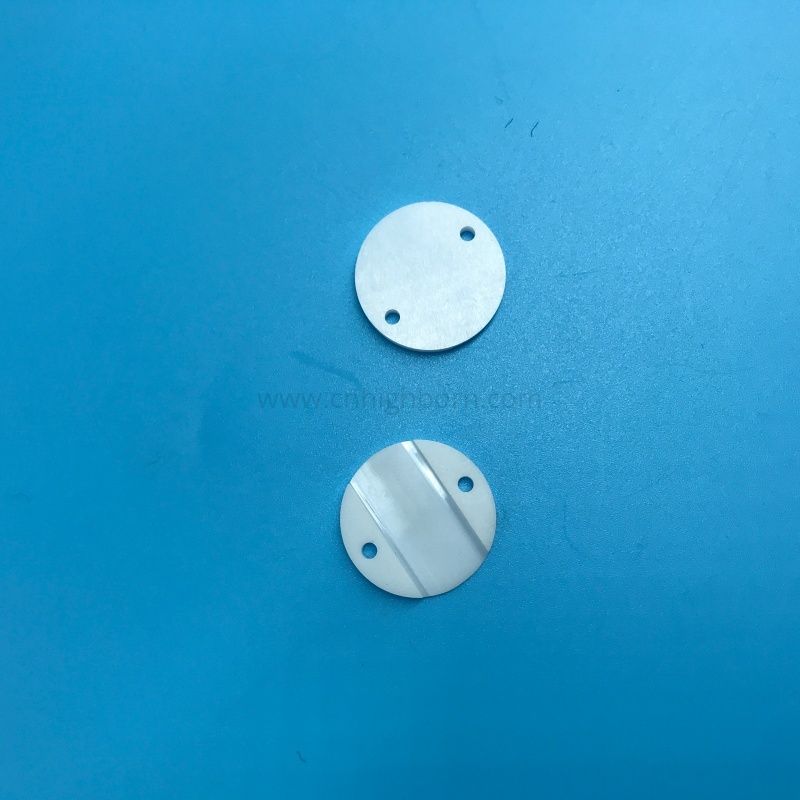

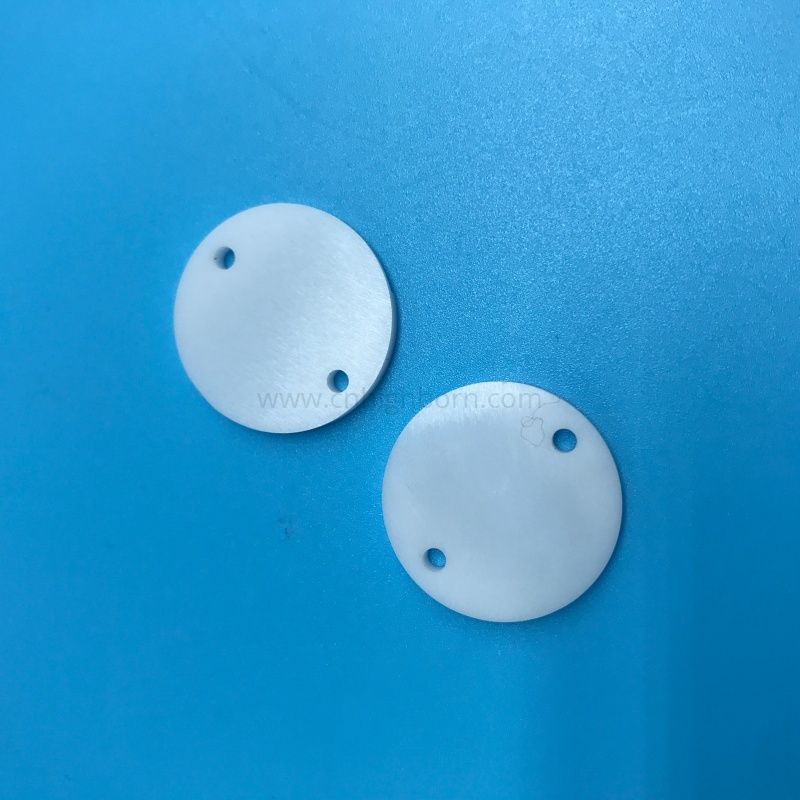

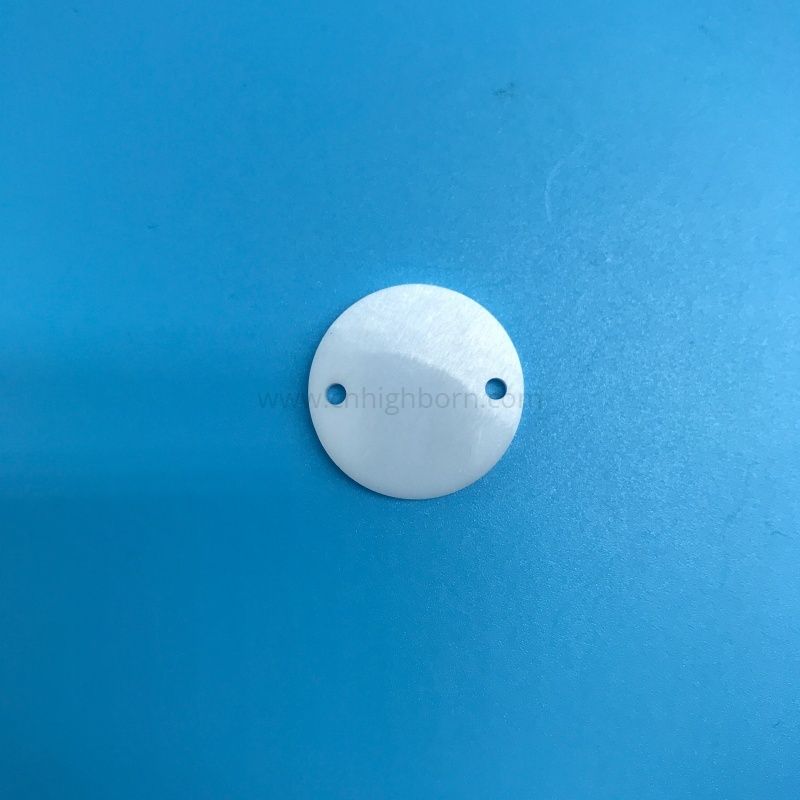

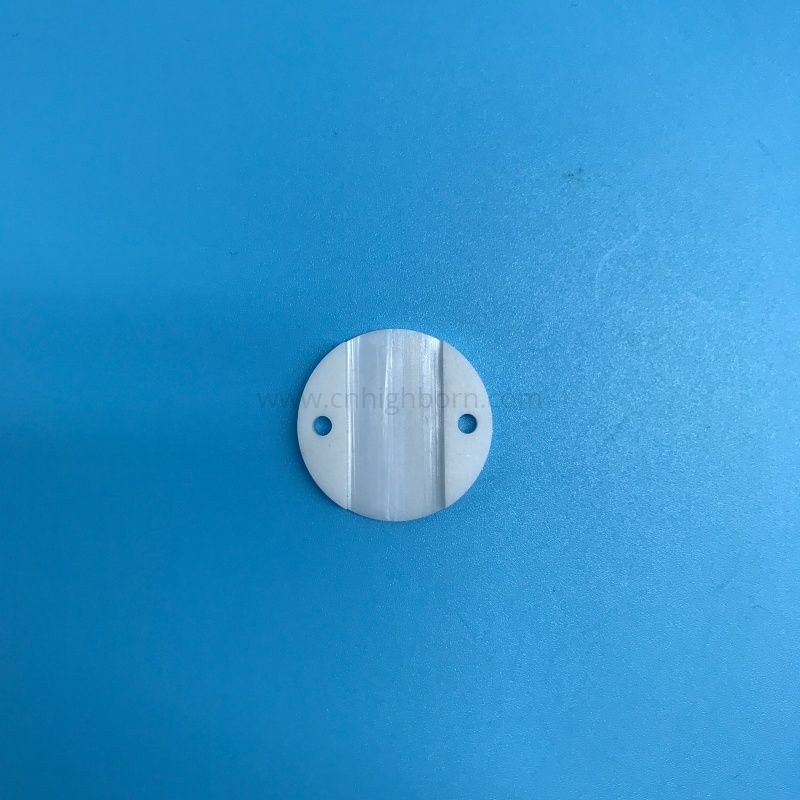

Zirconia ceramic introduction:
Designed for general industrial machinery (non-textile), it offers exceptional mechanical strength, wear resistance, and chemical stability for guiding or sealing applications.
Zirconia ceramic performance:
It offers exceptional fracture toughness (8–12 MPa·m¹/²) and bending strength (900–1,200 MPa). The material also provides good thermal insulation and reliable performance up to 1,000°C.
Zirconia ceramic Key Features:
Premium Zirconia Material
Precision Hole Design
Industrial-Grade Wear Resistance
Corrosion Resistance & Insulation
Zirconia ceramic Typical Applications:
Widely used in precision machinery, fluid control, and electronics. Ideal for mechanical seals, guide plates, insulating spacers, and wear-resistant components.
TECHNICAL SPECIFICATION OF ZIRCONIA CERAMIC
项目
Item
单位
Unit
氧化锆
Zirconia (ZrO2)
体积密度
Bulk density
g/cm3
6.05
吸水率
Water absorption
%
0
抗折强度
Flexural strength
MPa
1000
硬度
Hardness vickers
HV
1300
弹性模量
Elastic modulus
GPa
205
线性膨胀系数
Linear expansion coefficient
(20-500℃) 10-6/K
10
导热系数
Thermal conductivity
W/(m·K)
＜2
