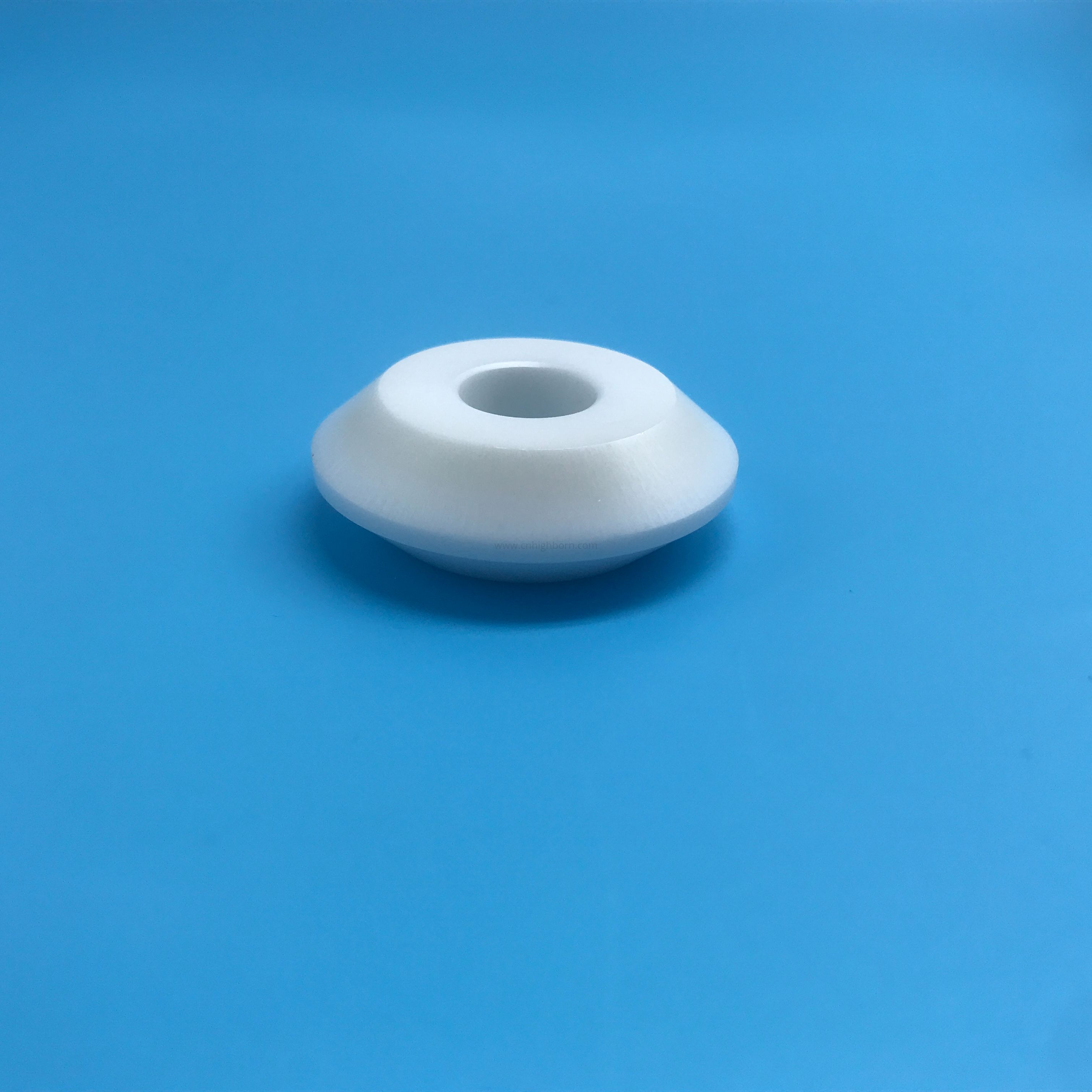

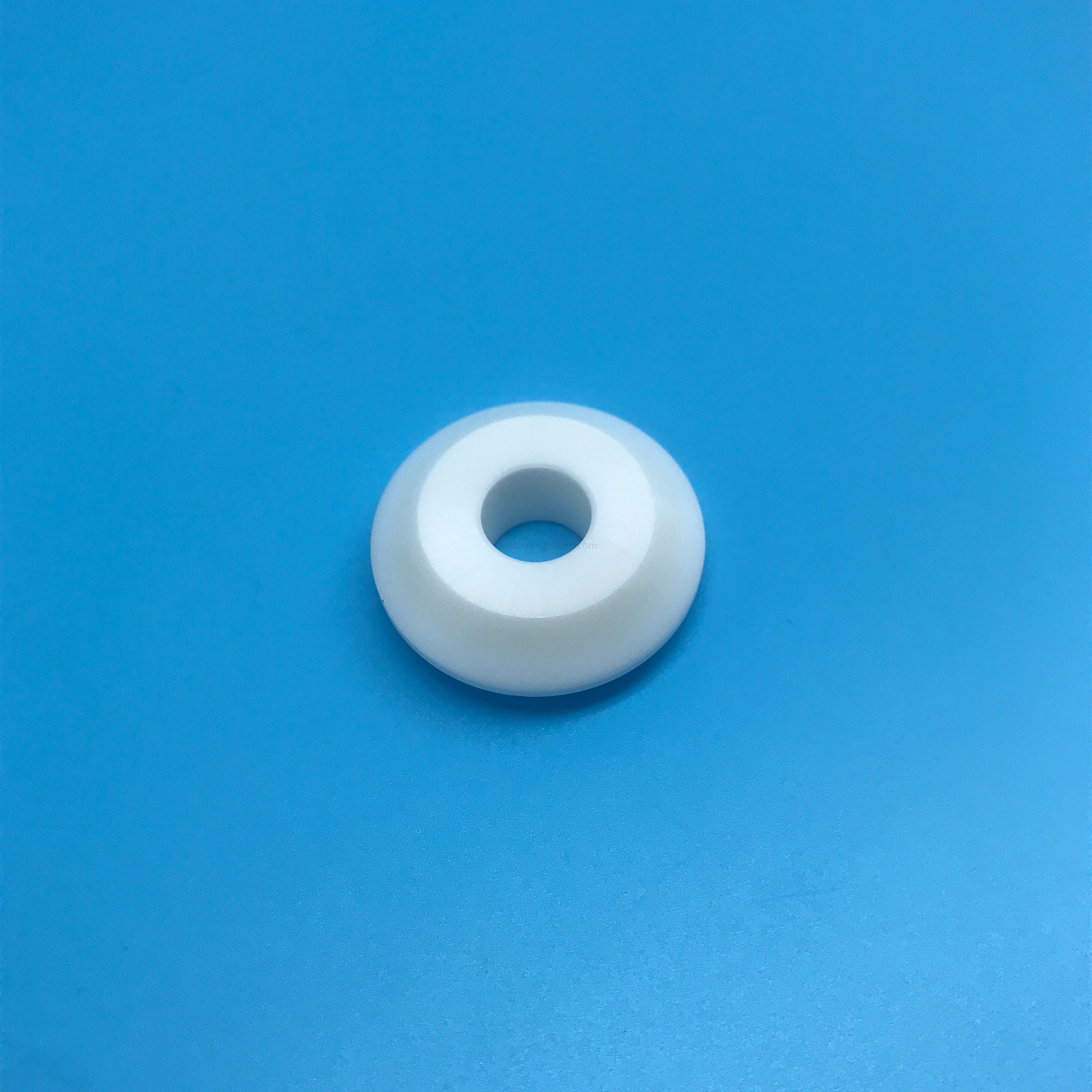

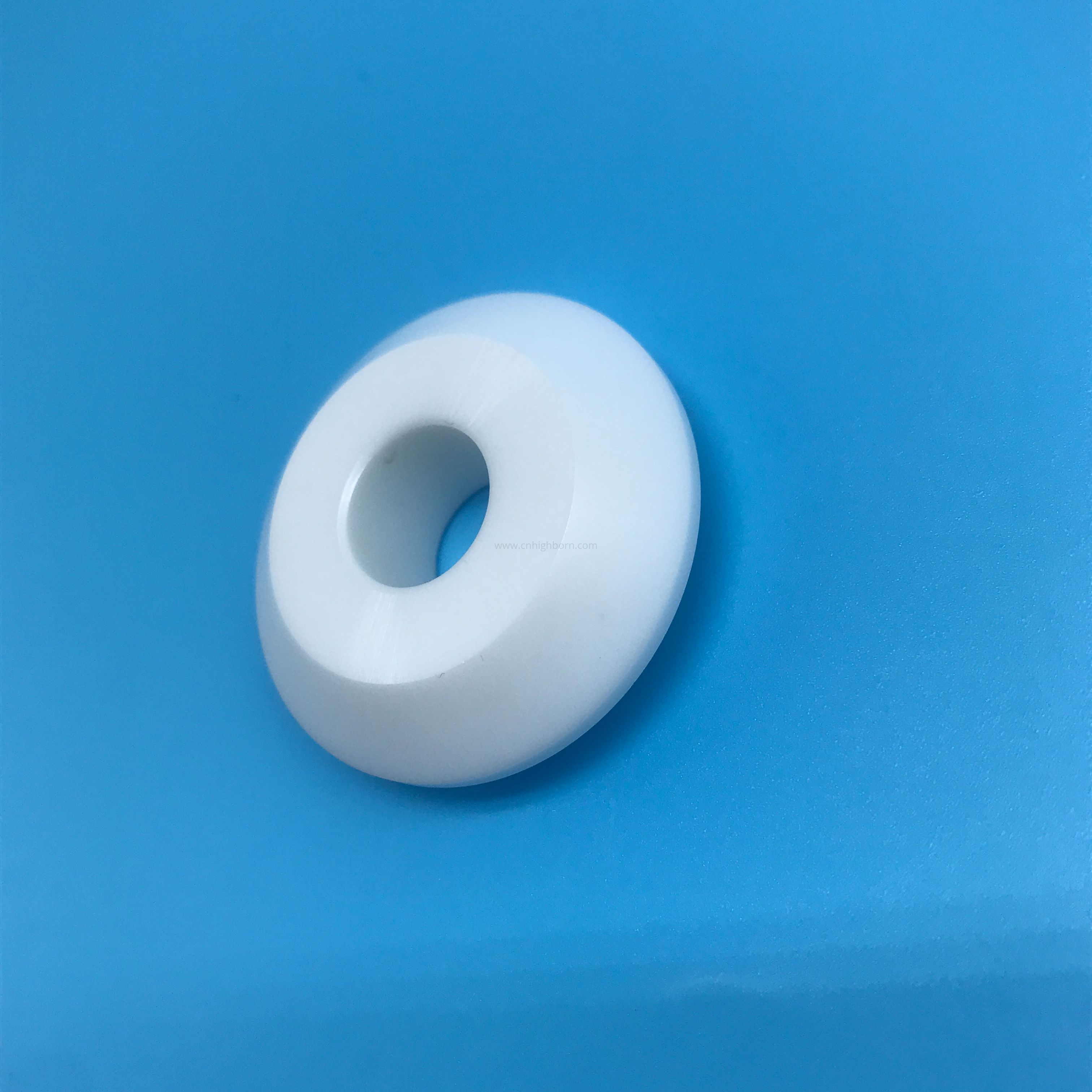

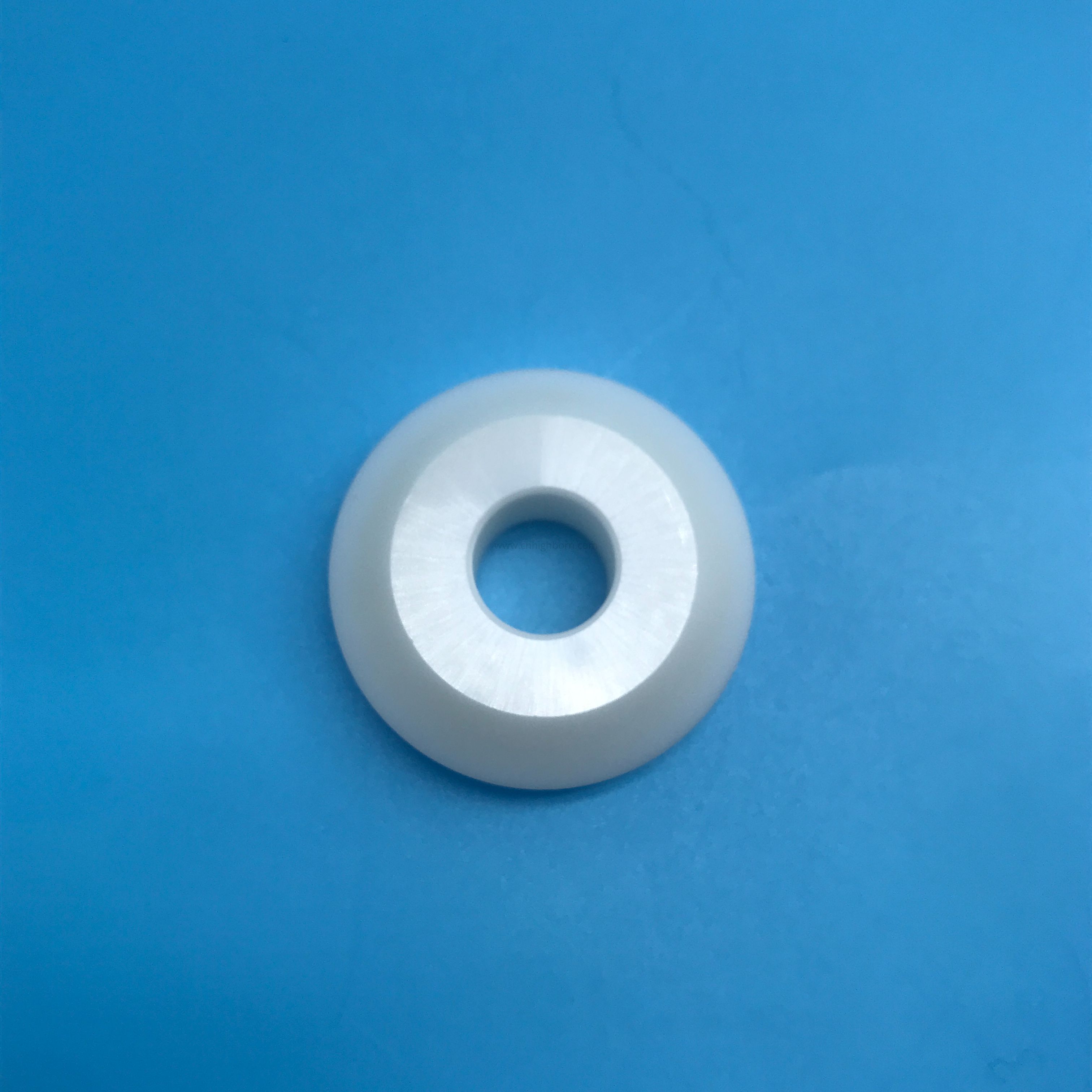

Polished Zirconium Oxide Zro2 Zirconia Ceramic Shoulder Ring

loading

Polished Zirconium Oxide Zro2 Zirconia Ceramic Shoulder Ring Polished Zirconium Oxide Zro2 Zirconia Ceramic Shoulder Ring
Polished Zirconium Oxide Zro2 Zirconia Ceramic Shoulder Ring Polished Zirconium Oxide Zro2 Zirconia Ceramic Shoulder Ring
Polished Zirconium Oxide Zro2 Zirconia Ceramic Shoulder Ring Polished Zirconium Oxide Zro2 Zirconia Ceramic Shoulder Ring
Polished Zirconium Oxide Zro2 Zirconia Ceramic Shoulder Ring Polished Zirconium Oxide Zro2 Zirconia Ceramic Shoulder Ring
Polished Zirconium Oxide Zro2 Zirconia Ceramic Shoulder Ring Polished Zirconium Oxide Zro2 Zirconia Ceramic Shoulder Ring
Polished Zirconium Oxide Zro2 Zirconia Ceramic Shoulder Ring Polished Zirconium Oxide Zro2 Zirconia Ceramic Shoulder Ring

Polished Zirconium Oxide Zro2 Zirconia Ceramic Shoulder Ring

Availability:
Quantity:
20 years export experience
8 Trademarks、40 Patents
Design & Research
Cooperated with Global 500 enterprises
Certificates:ISO、ROHS、CE etc.
Density: 6.05g/cm³
Water absorption: 0%

PRODUCT DETAILS

Product Description

shoulder ring (2)

Zirconia ceramic:

Unlike traditional ceramics that tend to be hard and brittle, Zirconia has high strength, wear resistance, and flexibility far beyond those of most other ceramics.

Ceramic Shoulder Ring:

Precision CNC machining creates accurate mounting holes and special step profiles. Standard machining tolerance can reach plus minus 0.1 mm, ensuring perfect fitting with customer equipment.

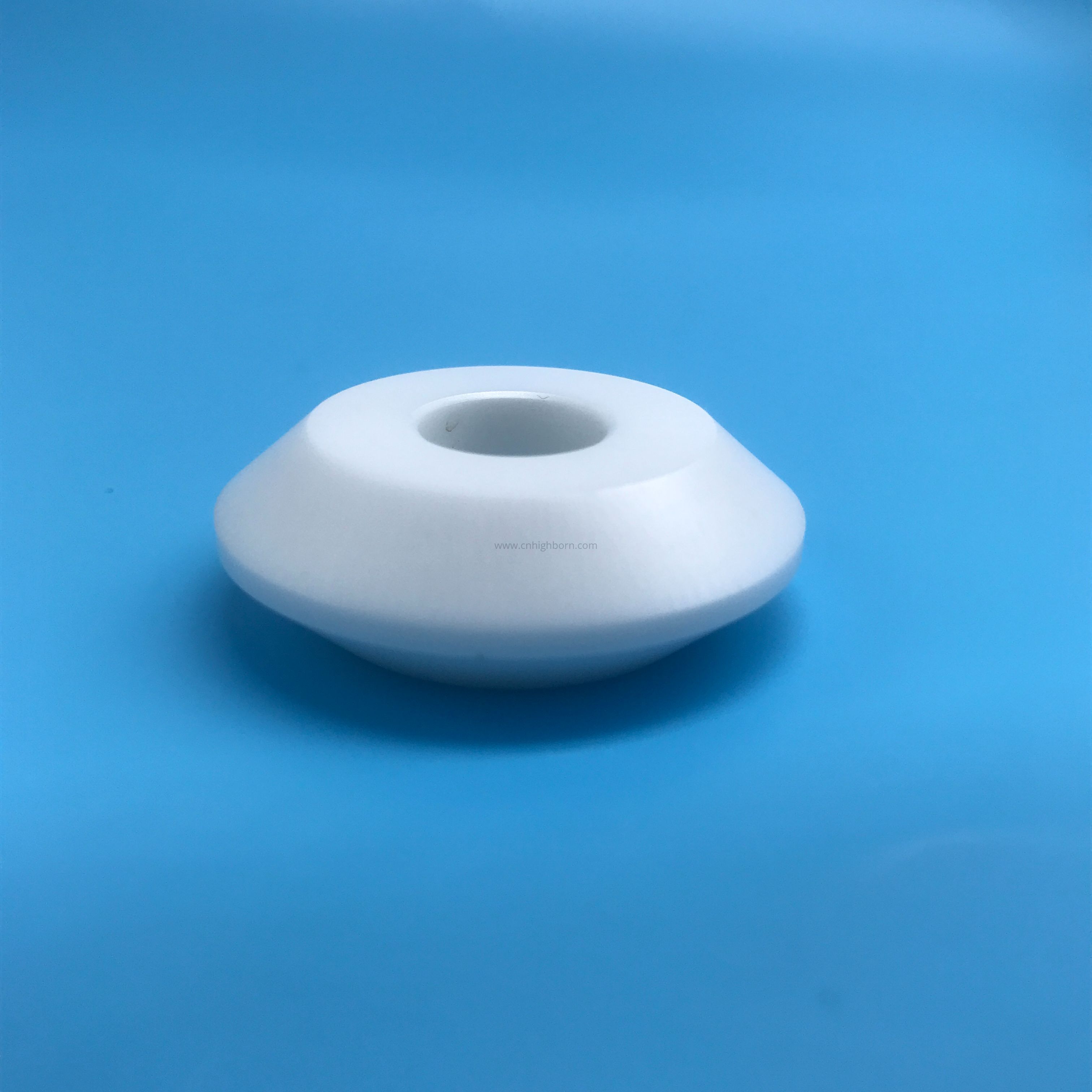

shoulder ring (6)
shoulder ring (7)

Ceramic Ring advantages:

1.High flexural strength and hardness

2.Excellent fracture toughness – impact resistant

3.High maximum use temperature

4.Wear resistant


Ceramic Ring  usages:

it has been widely used in engineering, mechanical seals, electronics, instrumentation, sensing, transport,

communications, and other occasions or areas.

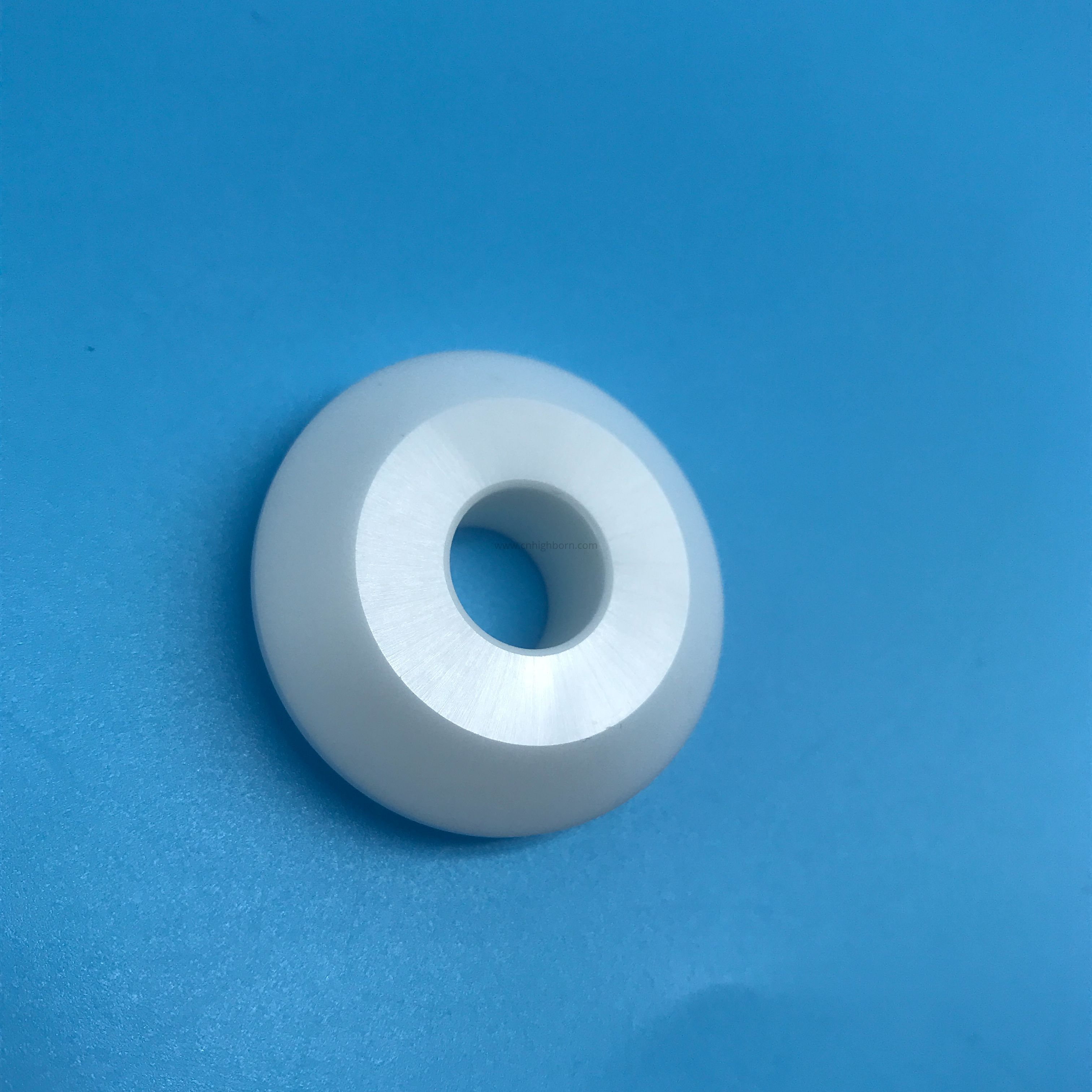

shoulder ring (1)

项目

Item

单位

Unit

氧化锆

Zirconia (ZrO2)

体积密度

Bulk density

g/cm3

6.05

吸水率

Water absorption

%

0

抗折强度

Flexural strength

MPa

1000

硬度

Hardness vickers

HV

1300

模量

Elastic modulus

GPa

200

线性膨胀系数

Linear expansion coefficient

(20-500℃) 10-6/℃

10

导热系数

Thermal conductivity

W/(m·K)

2.5

介电常数

Dielectric constant (1MHZ)

-

N.A.

介电强度

Dielectric strength

*106V/m

N.A.

Company Profile

15

组图

Packaging & Shipping

package(1)

Packing Details
We will packing by professional export packing,safety against breakage, finally into the wooden cases/ carton/pallet or customized package. We have  ERP authentication.

Delivery Details

We can deliver by SEA,air,rail transportation,the China-Europe Railway Express etc.

TNT, DHL,UPS, FEDEX, EMS,S.F EXPRESS etc.

Our Services

downLoadImg
What we can do for you:
1. Sample service 2. Optimal price 3. Customized logo
4. Fast feedback 5. Customized size 6. Safety package
7. ISO9001 8. Aftersale service 9. Low procurement risk
