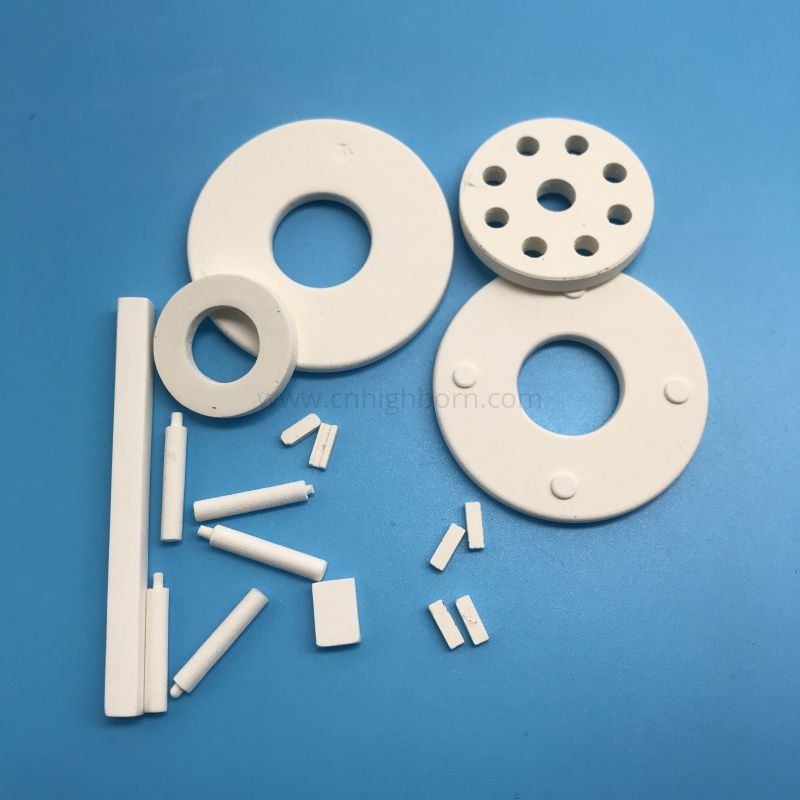

What Determines the Flow Rate of a Diatomite Ceramic Filter?

Views: 0     Author: Site Editor     Publish Time: 2026-08-12      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Microfiltration systems face an inherent engineering tension: achieving absolute micron-level retention without causing unacceptable bottlenecks in system throughput. Facility operators must balance the strict removal of pathogens and particulates with the hydraulic demands of the plant. Miscalculating the flow rate of ceramic media leads to premature system fouling, excessive head loss, increased energy costs for pumping, and unexpected downtime in industrial or municipal water treatment operations. Accurately predicting and maintaining the flow rate of a Diatomite Ceramic Filter requires a rigorous evaluation of its physical properties. You must understand the media's porosity, sintering mechanics, and fluid dynamics. Furthermore, operational maintenance cycles directly dictate long-term permeability. Mastering these variables ensures continuous, efficient filtration without compromising water quality. We will break down the exact mechanics that govern throughput and how to optimize your filtration cycles for maximum operational uptime.

  • Permeability vs. Retention: Flow rate is fundamentally governed by the pore structure of the sintered diatomaceous earth; finer micron ratings exponentially increase resistance to flow compared to standard non-ceramic media.

  • Pressure and Head Loss: Maintaining a constant service flow rate (often baselined around 1.0 USGPM/sq ft for potable water) requires continuous monitoring of differential pressure and head loss to identify filtration cycle limits.

  • Source Fluid Variables: Influent turbidity, suspended solids concentration, and chemical pre-treatment dynamics directly dictate the rate of filter cake formation and subsequent flow degradation.

  • Lifecycle Management: The operational viability of these filters relies on precise backwashing triggers, effluent turbidity tracking, and, where applicable, body feed management to sustain permeability over time.

The Physical Mechanics of a Diatomite Ceramic Filter

Porosity and Permeability in Sintered Media

A porous diatomaceous earth ceramic filter relies on a highly specific structural matrix to function effectively in high-demand environments. The manufacturing process involves calcination and sintering, which fuses microscopic diatom frustules together at extreme temperatures. This thermal bonding creates a rigid, highly porous framework capable of trapping fine particulates while allowing fluid to pass. The sizing and physical classification of the raw diatomaceous earth particles prior to sintering directly dictate the resulting bed permeability and flow characteristics. Engineers select specific grades of raw material to achieve targeted flow dynamics, knowing that tighter particle packing yields lower permeability.

This inherent void volume, often ranging between 60% and 85%, dictates the base permeability before any fluid is introduced into the system. Despite this high void fraction, sintered diatomaceous earth ceramic exhibits high flow resistance against traditional non-ceramic or polymeric media. The microscopic, intricate channel structure forces water through a labyrinth, inherently restricting velocity to ensure absolute particulate retention. When you measure the clean water flux of these elements, the baseline resistance is immediately apparent compared to pleated polymer filters. The ceramic matrix does not flex or expand under pressure, meaning the pore structure remains static, and permeability is a fixed physical constant of the manufactured element.

Pore Size Distribution and Tortuosity

Nominal and absolute micron ratings restrict fluid pathways across the ceramic matrix. An absolute rating guarantees the retention of particles at a specific size, requiring uniformly tight pores throughout the entire depth of the media. This uniformity limits the cross-sectional area available for fluid passage, directly impacting the maximum achievable flow rate. When specifying a filter for pathogen removal, such as Cryptosporidium, the absolute pore size must be strictly controlled, which inherently reduces the permeability of the element.

Tortuosity defines the complexity and length of the fluid path through the ceramic matrix. High tortuosity creates significant baseline resistance to flow, as fluid must navigate sharp turns, dead ends, and narrow passages rather than flowing in a straight line. The ratio of the actual path length to the straight-line thickness of the ceramic wall determines the tortuosity factor. In diatomaceous earth ceramics, this factor is exceptionally high due to the irregular shape of the fused diatoms. This complex internal geometry is what provides excellent depth filtration capabilities, but it requires higher driving pressure to maintain a specific flow rate compared to media with lower tortuosity.

Surface Area to Volume Ratios

The physical geometry of the filter impacts the total available surface area for fluid permeation. Cylindrical elements provide a different flow dynamic compared to flat plates. Maximizing active surface area within a given vessel volume directly increases total volumetric throughput. When designing a filtration skid, engineers must calculate the total required surface area based on the target flow rate and the specific flux capacity of the ceramic media. Packing more surface area into a smaller footprint reduces the overall size of the pressure vessel, saving floor space and material costs.

The mathematical relationship between active surface area and throughput is linear, assuming constant pressure and fluid viscosity. Expanding the surface area distributes the particulate load over a wider region, delaying the onset of terminal head loss. For example, doubling the number of ceramic elements in a housing will halve the flux rate per element if the total system flow remains constant. This reduction in localized flux significantly extends the run time between cleaning cycles, as particulates accumulate more slowly on the media surface. Proper vessel sizing and element spacing are critical to ensuring uniform flow distribution and maximizing the utilization of the available surface area.

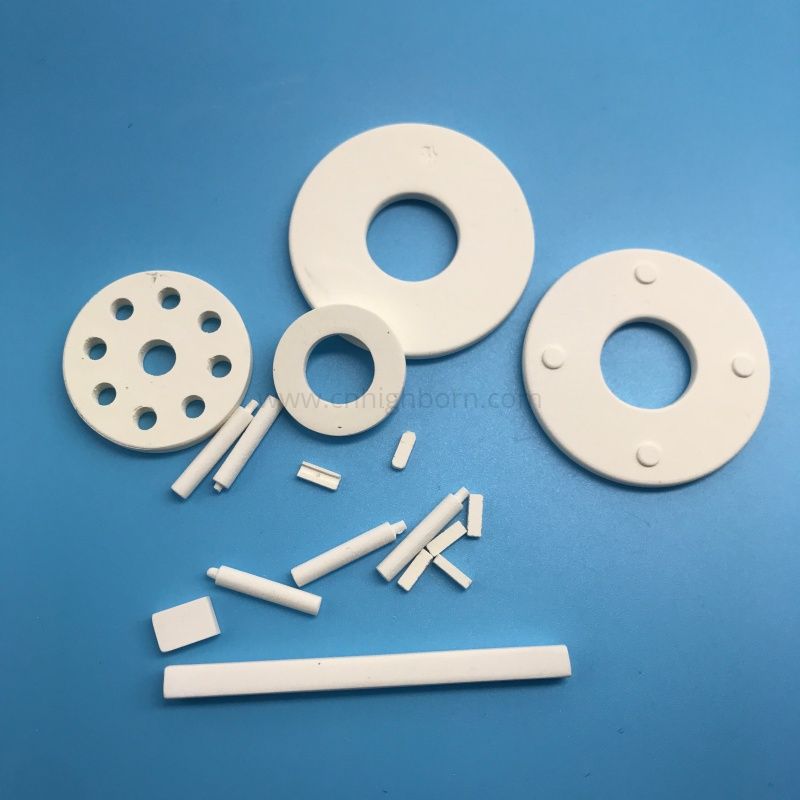

Diatomite Ceramic Filter System

Primary Variables Influencing Flow Rate

Applied Pressure and Head Loss Dynamics

Darcy’s Law governs fluid flow through porous media. It states that flow velocity is directly proportional to the pressure gradient and permeability, and inversely proportional to fluid viscosity. The relationship between feed pump pressure, differential pressure across the ceramic wall, and the resulting flow velocity is foundational to system design. Operators must monitor the pressure differential continuously to understand the hydraulic health of the system. As particulates accumulate, the resistance increases, requiring more pressure to maintain the same flow rate.

Head loss refers to the resistance to flow caused by the accumulation of particulates on and within the filter media. Tracking how head loss accumulation progresses dictates the end of a safe filtration cycle. In a constant rate system, the feed pump utilizes a variable frequency drive to ramp up pressure as head loss increases. Once the pump reaches its maximum operating pressure, or the differential pressure exceeds the structural limits of the ceramic element, the cycle must be terminated. Understanding the rate of head loss development allows operators to predict maintenance intervals and optimize backwash schedules.

Source Water Quality and Turbidity Load

The concentration and particle size distribution of suspended solids in the influent water impact flow severely. High turbidity loads rapidly blind the microscopic pores of a porous diatomaceous earth ceramic element. When source water experiences a sudden spike in suspended solids, perhaps due to heavy rainfall or a process upset, the rate of filter cake formation accelerates dramatically. This rapid accumulation chokes off the fluid pathways, leading to a sharp decline in flow rate or a rapid spike in differential pressure.

Chemical pre-treatments, such as coagulants or flocculants, alter the physical characteristics of these solids. Trace concentration changes in these chemicals can accelerate differential pressure if the resulting floc is too sticky or dense. Filtering high-turbidity fluids without adequate pre-treatment or coagulation causes a rapid reduction of flow rate, forcing premature system shutdowns. Conversely, optimizing the coagulation process creates a porous, easily manageable floc that builds a permeable filter cake, extending the run time and maintaining a stable flow rate over a longer period.

Fluid Viscosity and Temperature

Fluid temperature and viscosity share an inverse relationship. As water temperature drops, its viscosity increases, making it thicker and harder to push through tight ceramic pores. Seasonal temperature variations in source water alter the flow rate through a rigid ceramic matrix. A system designed to operate at a specific flow rate during the summer may struggle to achieve that same throughput during the winter without exceeding pressure limits.

Operators must establish baseline expectations for winter versus summer operations, often requiring pump adjustments or flow rate derating during colder months to prevent exceeding maximum differential pressure limits. Temperature correction factors must be applied when calculating the expected clean water flux of a ceramic element. Failure to account for viscosity changes will result in undersized feed pumps and frequent high-pressure alarms during cold weather operation. Monitoring influent temperature is a standard practice for maintaining consistent hydraulic performance year-round.

Operational Factors and Filter Cake Management

Filter Cake Formation and Resistance

Filtration transitions from depth filtration within the ceramic pores to surface filtration as particulates accumulate. This accumulation forms a filter cake on the media surface. Once established, the permeability of the filter cake itself eventually becomes the primary bottleneck determining the system's flow rate. The ceramic matrix acts merely as a support structure for this cake. Managing the porosity of this layer is critical for sustained throughput. If the cake becomes highly compressible, it will collapse under pressure, blinding the filter and halting flow entirely.

The physical characteristics of the suspended solids dictate the nature of the filter cake. Rigid, granular particles form a highly porous cake that allows water to pass easily, resulting in a slow increase in head loss. Conversely, organic matter, algae, or gelatinous flocs form a dense, impermeable layer that rapidly restricts flow. Operators must analyze the nature of the influent solids to predict how the filter cake will behave under pressure. In many cases, pre-filtration is required to remove compressible solids before they reach the ceramic media.

The Role of Body Feed (Where Applicable)

Continuous DE body feed is utilized to maintain the porosity of the accumulating filter cake. Injecting fresh diatomaceous earth into the influent stream creates a porous matrix alongside the trapped contaminants. This continuous body feed accumulation limits the velocity of head loss development, effectively delaying the terminal pressure drop. The added DE particles act as rigid spacers within the cake, preventing compressible solids from collapsing and sealing off the fluid pathways.

Optimizing the body feed ratio prevents the filter cake from compressing and blinding the ceramic pores, thereby extending the duration of optimal flow. The dosage rate must be carefully calibrated based on the concentration and nature of the incoming suspended solids. Too little body feed will fail to maintain cake porosity, while excessive body feed will unnecessarily consume consumables and rapidly fill the available space within the filter housing. Automated dosing systems tied to influent turbidity meters provide the most accurate control over body feed injection rates.

Constant Rate vs. Constant Pressure Filtration

Operators typically choose between two primary modes: allowing flow to drop as pressure remains constant, or increasing pump pressure to maintain a constant flow rate. The 1.0 USGPM/sq ft industry standard for potable water systems highlights why maintaining a constant service flow rate is preferred. It allows operators to easily track pressure loss progression and predict system behavior accurately. By monitoring the rate of pressure increase, maintenance personnel can schedule backwash cycles before terminal head loss disrupts plant operations.

The operational realities and energy costs associated with forcing a constant flow rate increase significantly as head loss builds toward the end of the cycle. The feed pump must consume more electrical power to overcome the growing resistance of the filter cake. In a constant pressure system, the energy consumption remains relatively flat, but the declining flow rate can cause issues downstream if the process requires a steady supply of filtered water. Selecting the appropriate control strategy depends on the specific hydraulic requirements of the facility and the capabilities of the pumping equipment.

Evaluating a Reusable Ceramic Filtration Plate for High-Yield Systems

Structural Integrity Under High Flow

A reusable ceramic filtration plate must possess high mechanical strength when subjected to elevated differential pressures. Pushing high volumes of water through restricted pores generates significant physical stress on the media. There is a distinct risk of micro-fractures or media degradation if flow rates and pressures exceed the manufacturer's specified tolerances. Structural failure compromises absolute retention, allowing pathogens and particulates to bypass the filtration barrier and contaminate the effluent stream.

The design of the filter housing and the method of securing the ceramic plates play a major role in maintaining structural integrity. Uneven pressure distribution or mechanical vibration can induce stress concentrations that lead to cracking. Proper installation procedures, including the use of appropriate gaskets and torque specifications, are mandatory to prevent mechanical damage. Routine visual inspections and integrity testing, such as pressure decay tests, verify that the ceramic media remains intact and capable of delivering the required filtration performance.

Trade-offs: Flow Rate vs. Filtration Efficiency

Balancing high throughput against strict pathogen removal requires a clear decision framework. Achieving Cryptosporidium and Giardia log reduction mandates tight pore structures, which inherently limit flow velocity. You cannot maximize both variables simultaneously; a compromise must be reached based on the specific regulatory requirements and production goals of the facility.

Media Type Initial Flow Rate Pathogen Retention (Log Reduction) Lifecycle & Maintenance
Disposable Polymeric High Variable based on rating Single-use, frequent replacement
Reusable Ceramic Plate Moderate High (Absolute micron rating) Cleanable, multi-year lifespan
Sand Filtration Very High Low (Requires secondary treatment) Backwashable, long lifespan
Membrane Bioreactor Low Very High Intensive chemical cleaning

The long-term operational stability of utilizing cleanable, reusable ceramic media often outweighs disposable polymeric alternatives in high-flow environments, provided the system is engineered to handle the specific head loss characteristics of the ceramic. While the initial capital expenditure for ceramic plates may be higher, the elimination of consumable filter cartridges and the associated labor costs for replacement yield significant savings over the lifespan of the equipment.

Implementation Risks and Flow Rate Mitigation Strategies

Predicting and Managing Premature Fouling

Sudden flow rate drops usually stem from organic fouling, scaling, or oil and grease blinding the ceramic pores. These contaminants create an impermeable film over the media surface, rendering standard backwashing ineffective. Implementing pre-filtration strategies protects the ceramic media and stabilizes flow. Utilizing coarse strainers, sand filters, or dissolved air flotation units removes bulk solids and organics before they reach the sensitive microfiltration stage.

Monitoring influent water chemistry is critical for predicting scaling events. High concentrations of calcium, magnesium, or silica can precipitate out of solution and permanently block the ceramic pores. Adjusting the pH or injecting antiscalant chemicals mitigates this risk. When organic fouling is suspected, operators must analyze the source water for biological activity or hydrocarbon contamination. Identifying the specific foulant allows for the development of targeted chemical cleaning protocols to restore permeability.

Backwashing Triggers and Maintenance Cycles

Establishing strict criteria for initiating a cleaning cycle is mandatory to maintain consistent flow rates. Operators must integrate continuous effluent turbidity monitoring with head loss tracking to identify breakthrough or cake blinding. Absolute operational shutdown protocols must be enforced when maximum terminal head loss is achieved and flow must be suspended. Restoring the ceramic filter to its baseline permeability requires precise mechanics, utilizing reverse-flow backwashing or targeted chemical cleaning to dissolve trapped scale and organics.

  1. Monitor differential pressure continuously and set automated alarms for 80% of terminal head loss.

  2. Initiate reverse-flow backwashing using clean effluent water at a velocity sufficient to dislodge the filter cake.

  3. Inject compressed air during the backwash cycle to create turbulence and scour the ceramic surface.

  4. Perform a chemical clean-in-place procedure using sodium hypochlorite for organic fouling or citric acid for mineral scaling.

  5. Conduct a clean water flux test after maintenance to verify that baseline permeability has been restored.

Conclusion

  • Initiate pilot testing with a slipstream of the actual source water to empirically determine fouling rates and optimal flux.

  • Establish baseline operational parameters for both summer and winter temperature variations to prevent pressure faults.

  • Integrate automated differential pressure sensors to trigger backwash cycles before terminal head loss occurs.

  • Optimize pre-filtration stages to remove bulk organics and oils that cause irreversible ceramic blinding.

FAQ

Q: What is the standard service flow rate for a diatomite ceramic filter?

A: The industry standard service flow rate for potable water applications is typically baselined around 1.0 USGPM/sq ft. This constant rate allows operators to monitor pressure loss accurately and predict when backwashing is required.

Q: How does head loss affect the flow rate in ceramic filtration?

A: Head loss is the resistance to flow caused by trapped particulates. In a constant pressure system, increasing head loss directly reduces the flow rate. In a constant rate system, pumps must work harder to overcome head loss until terminal pressure is reached.

Q: Can temperature changes impact the throughput of porous diatomaceous earth ceramic?

A: Yes. Fluid viscosity is inversely related to temperature. Colder water is more viscous and harder to push through microscopic ceramic pores, resulting in higher differential pressure and reduced flow rates during winter months.

Q: What causes a sudden drop in flow rate in a ceramic filter system?

A: Sudden drops are typically caused by premature fouling. This includes high turbidity spikes in source water, organic fouling, mineral scaling, or the introduction of oils and greases that rapidly blind the ceramic surface.

Q: How do you restore the flow rate of a reusable ceramic filtration plate?

A: Flow rate is restored through mechanical reverse-flow backwashing to dislodge the filter cake. If organic fouling or scaling has occurred, targeted chemical cleaning using acids or oxidants is required to clear the internal pore structure.

Q: What is the difference between constant rate and constant pressure filtration?

A: Constant rate filtration uses variable pump pressure to maintain a steady flow as the filter fouls. Constant pressure filtration applies a steady force, causing the flow rate to gradually decline as the filter cake builds and resistance increases.
