Product Description
| Alumina ceramic Introduction: Ordinary alumina ceramics are classified into 99 porcelain, 95 porcelain, 90 porcelain, 85 porcelain, etc. according to the content of Al2O3. Sometimes the content of Al2O3 is 80% or 75%, which is also classified into ordinary alumina ceramic series. |
Alumina ceramic Feature: 1.Very good electrical insulation (1x1014 to 1x1015 Ωcm) | |
| Alumina Ceramic Materials: We can customize to your requirements. Using our core strengths of custom-engineering & designing,material expertise, operational excellence and rapid execution. |
Alumina Ceramic advantages： -Excellent electrical insulation | |
Alumina Purity | 92% | 95% | 96% | 99% | 99.6% |
Color | White | White | White | Ivory White | White |
Volume density(g/cm3) | 3.45 | 3.5 | 3.7 | 3.75 | 3.9 |
Water Absorption | 0 | 0 | 0 | 0 | 0 |
Flexural Strength | 300Mpa | 300Mpa | 320Mpa | 330Mpa | 330Mpa |
Vickers hardness | 1300 | 1400 | 1400 | 1800 | 1800 |
Dielectric Constant (at 1MHZ 25℃) | 10 | 10 | 10 | 10 | 10 |
Modulus of elasticity | 350Gpa | 350Gpa | 350Gpa | 370Gpa | 370Gpa |
thermal conductivity (30℃) | 18W/M.K | 24W/M.K | 24W/M.K | 25W/M.K | 28W/M.K |
Volume resistivity | 10^14Ω•cm | 10^14Ω•cm | 10^14Ω•cm | 10^14Ω•cm | 10^15Ω•cm |
Dielectric strength | 20KV/mm | 20KV/mm | 20KV/mm | 20KV/mm | 30KV/mm |
Company Profile

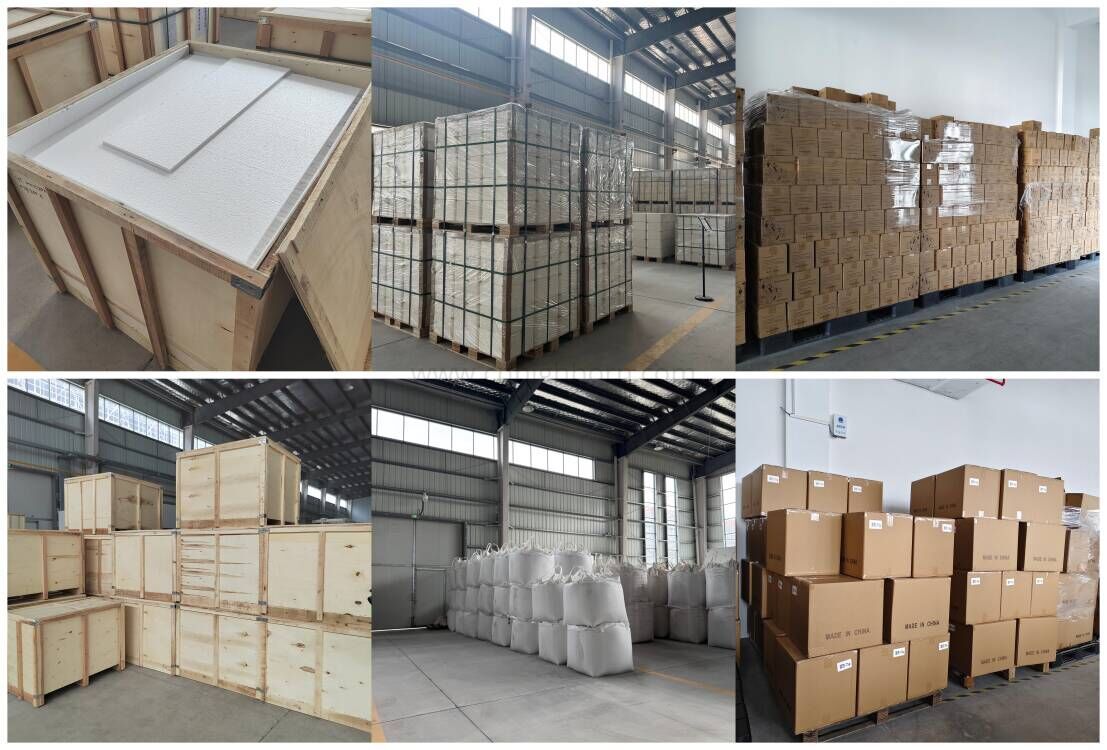

Packaging & Shipping
Packing Details | We will packing by professional export packing,safety against breakage, finally into the wooden cases/ carton/pallet or customized package. We have ERP authentication. |
Delivery Details | We can deliver by SEA,air,rail transportation,the China-Europe Railway Express etc. TNT, DHL,UPS, FEDEX, EMS，S.F EXPRESS etc. |
| 1. Sample service | 2. Optimal price | 3. Customized logo |
| 4. Fast feedback | 5. Customized size | 6. Safety package |
| 7. ISO9001 | 8. Aftersale service | 9. Low procurement risk |
