Product Description

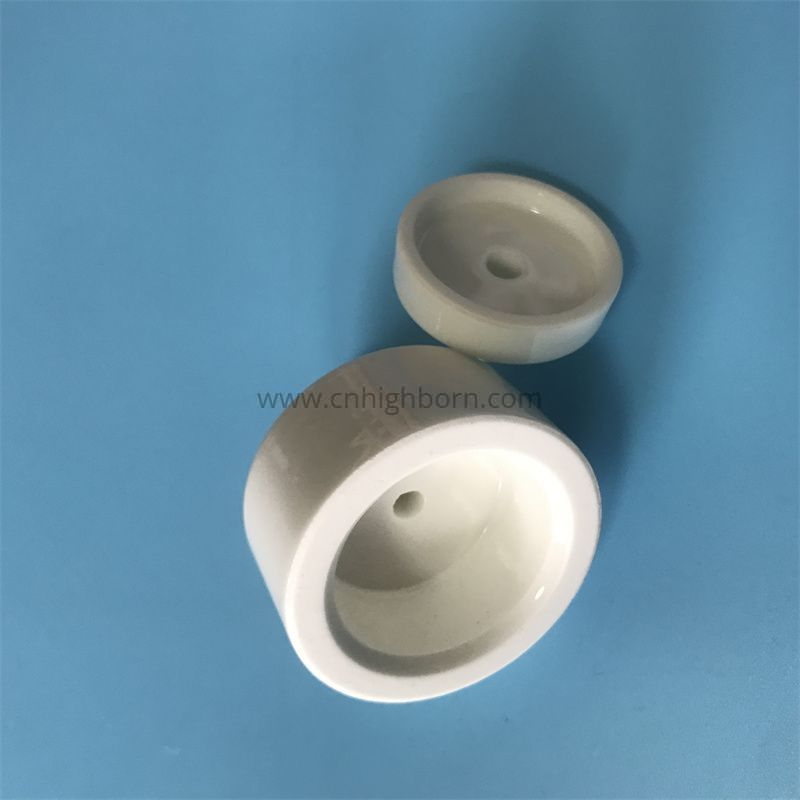

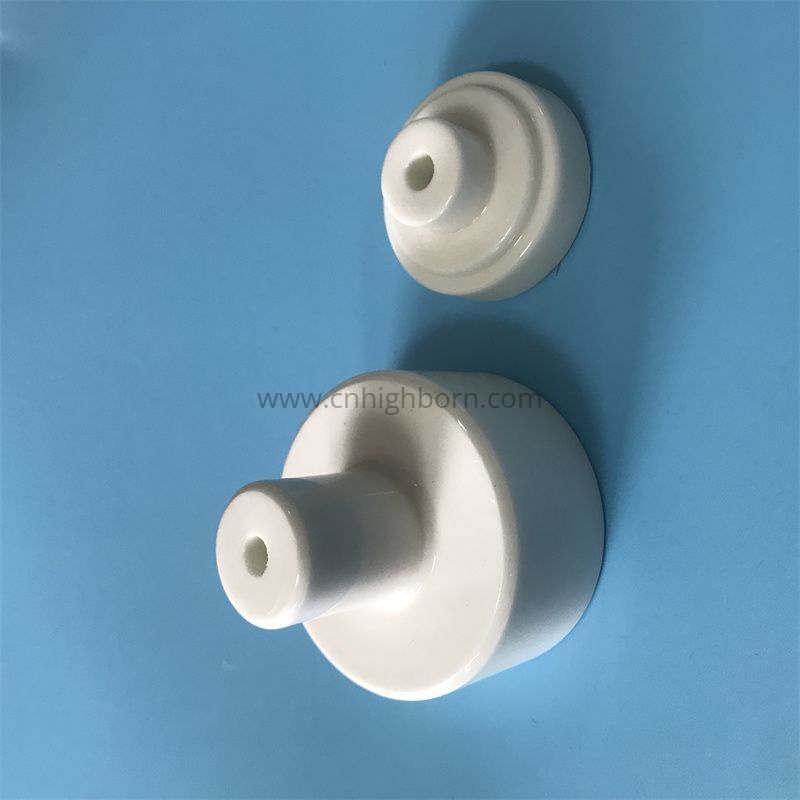

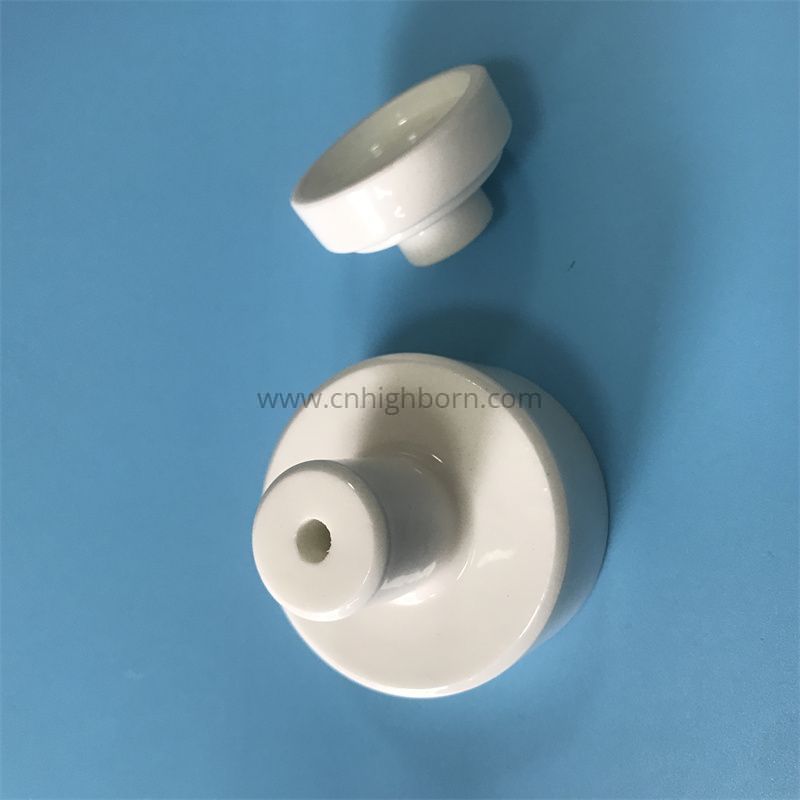

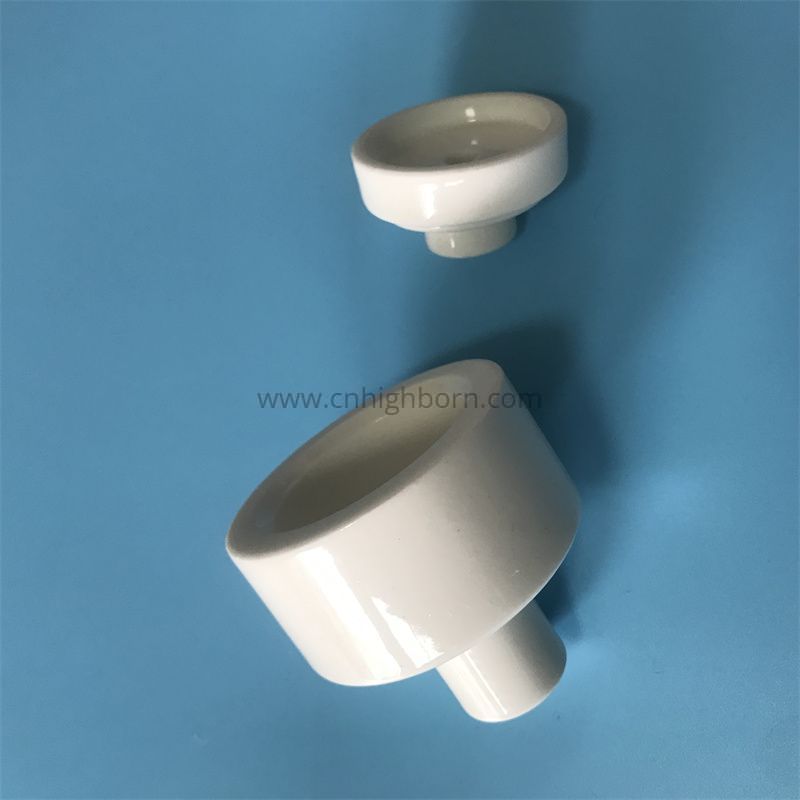

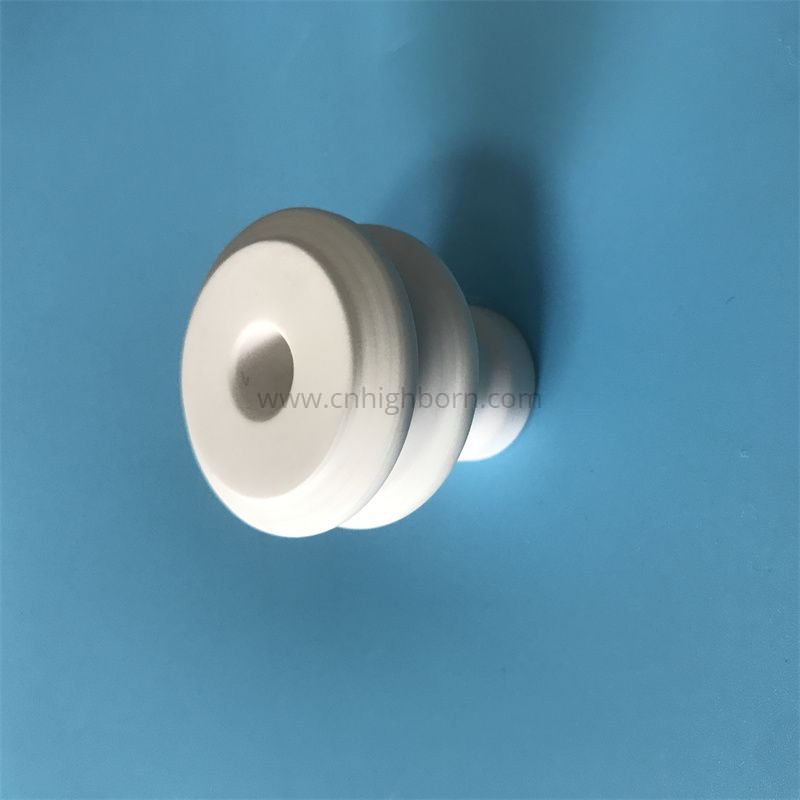

 | Alumina Ceramic part: Our (Al₂O₃) structural parts are precision custom-machined advanced ceramic components, manufactured with high-purity alumina raw material and high-temperature sintering technology. |
Alumina ceramic : It is specifically used for high temperature and high pressure insulation parts, circuit substrates, high temperature devices,mechanical wear-resistant parts, sealing rings, plungers ect. |  |
 | Alumina ceramic al2o3: With volume resistivity up to 10¹⁴ Ω·cm and dielectric strength of 20KV/mm, our 99 alumina ceramic products can block current effectively, perfectly act as insulating spacers and insulation supports for electronic and high-voltage electrical equipment. |
Alumina ceramics: Thermal conductivity of 25W/M·K realizes fast heat dissipation; dense zero water absorption structure will not deform or crack under continuous high temperature working environment. |  |
Alumina Purity | 92% | 95% | 96% | 99% | 99.6% |
颜色 Color | White | White | White | Ivory White | White |
体积密度 Volume density(g/cm3) | 3.45 | 3.5 | 3.7 | 3.75 | 3.9 |
吸水率 Water Absorption | 0 | 0 | 0 | 0 | 0 |
抗弯强度 Flexural Strength | 300Mpa | 300Mpa | 320Mpa | 330Mpa | 330Mpa |
维氏硬度 Vickers hardness | 1300 | 1400 | 1400 | 1800 | 1800 |
介电常数 Dielectric Constant (at 1MHZ 25℃) | 10 | 10 | 10 | 10 | 10 |
弹性模量 Modulus of elasticity | 350Gpa | 350Gpa | 350Gpa | 370Gpa | 370Gpa |
热导率 thermal conductivity (30℃) | 18W/M.K | 24W/M.K | 24W/M.K | 25W/M.K | 28W/M.K |
体积电阻率 Volume resistivity | 10^14Ω•cm | 10^14Ω•cm | 10^14Ω•cm | 10^14Ω•cm | 10^15Ω•cm |
介电强度 Dielectric strength | 20KV/mm | 20KV/mm | 20KV/mm | 20KV/mm | 30KV/mm |
备注：以上数据仅供参考。
Note: The above data is only for your reference.
