Product Description

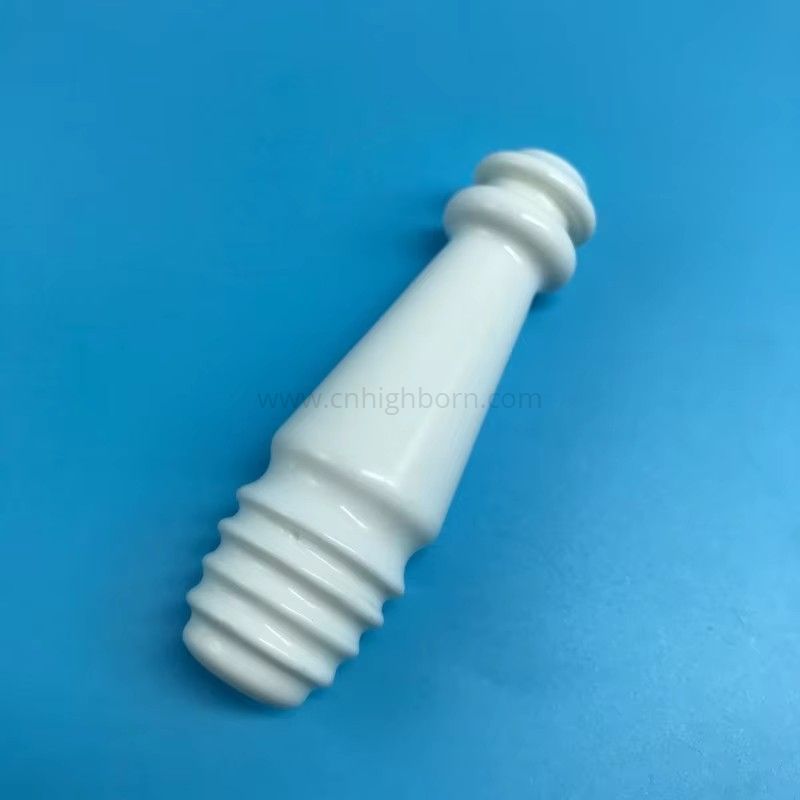

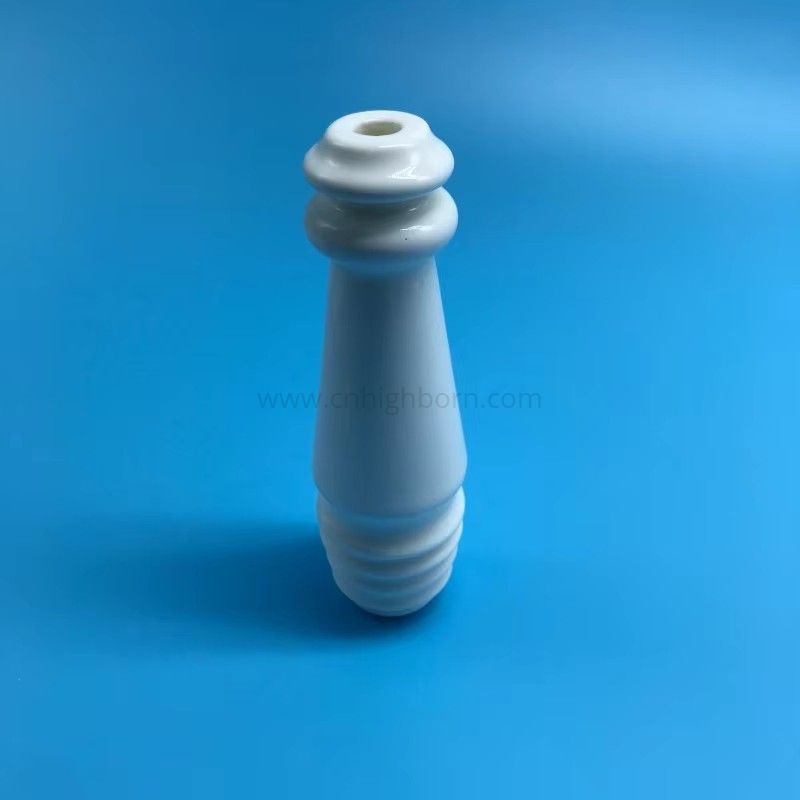

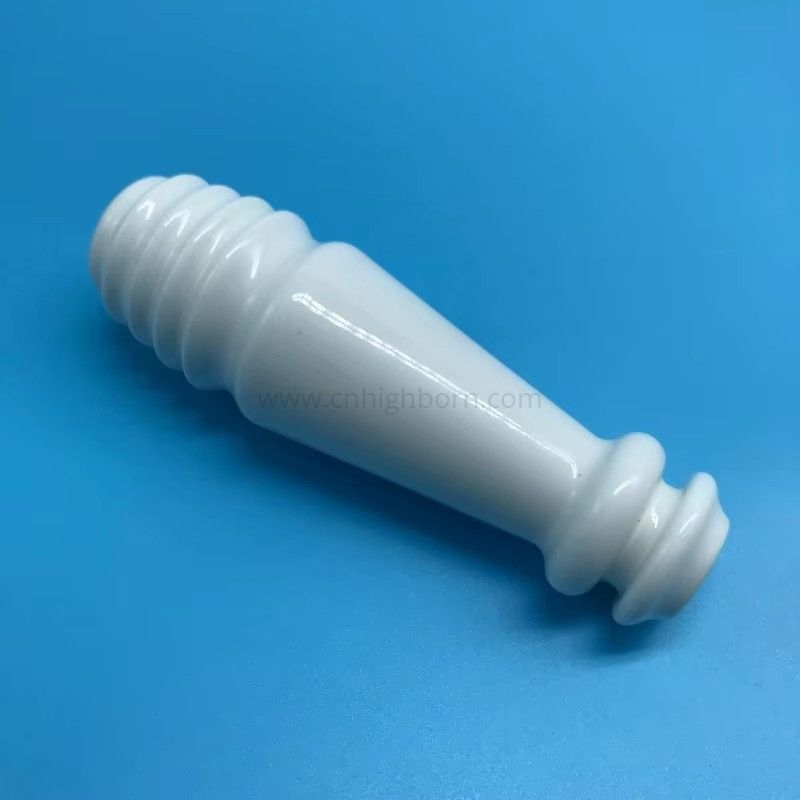

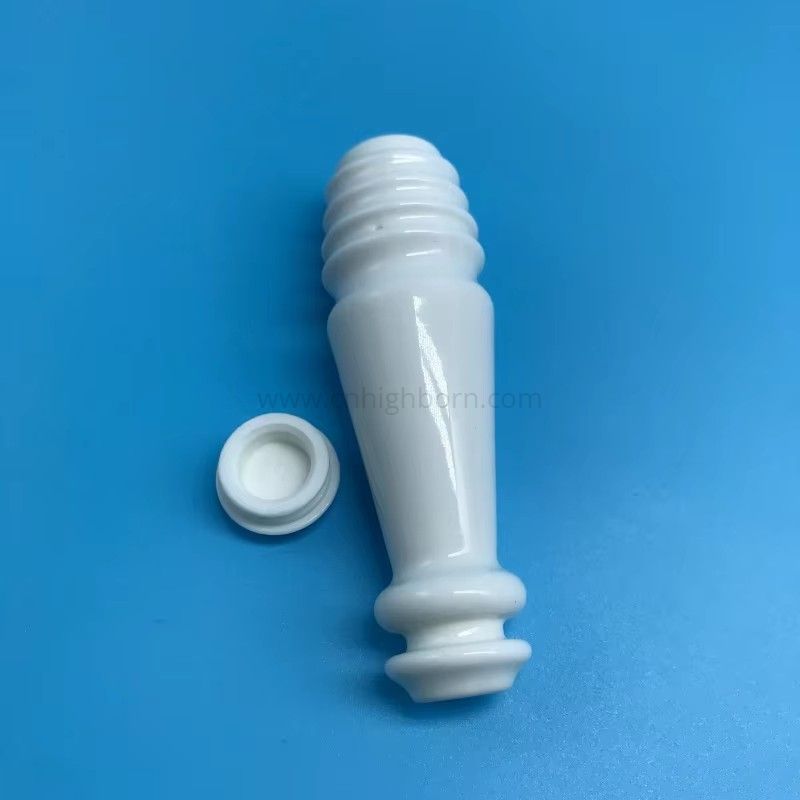

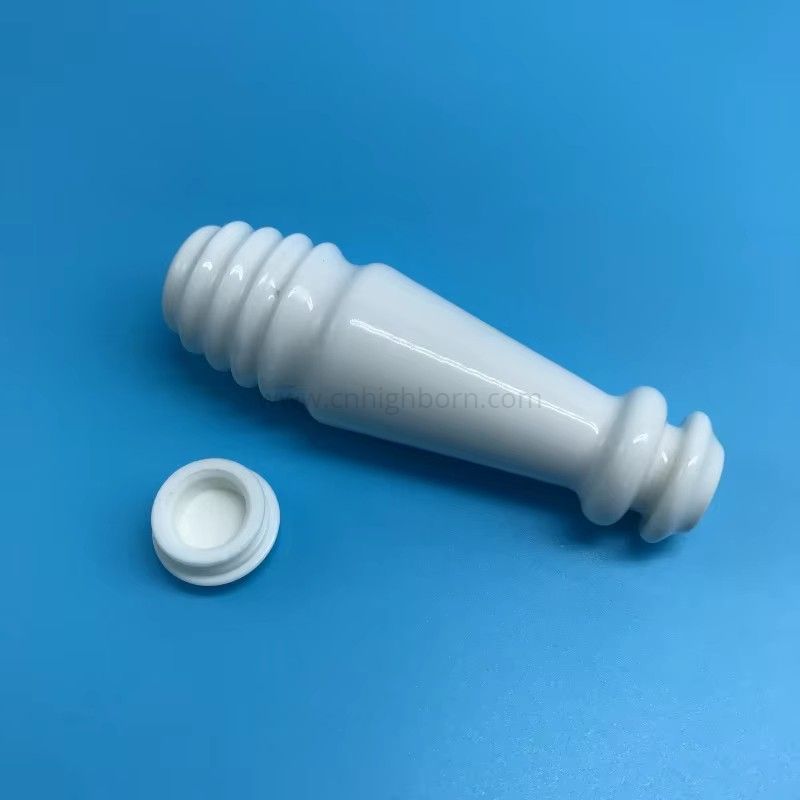

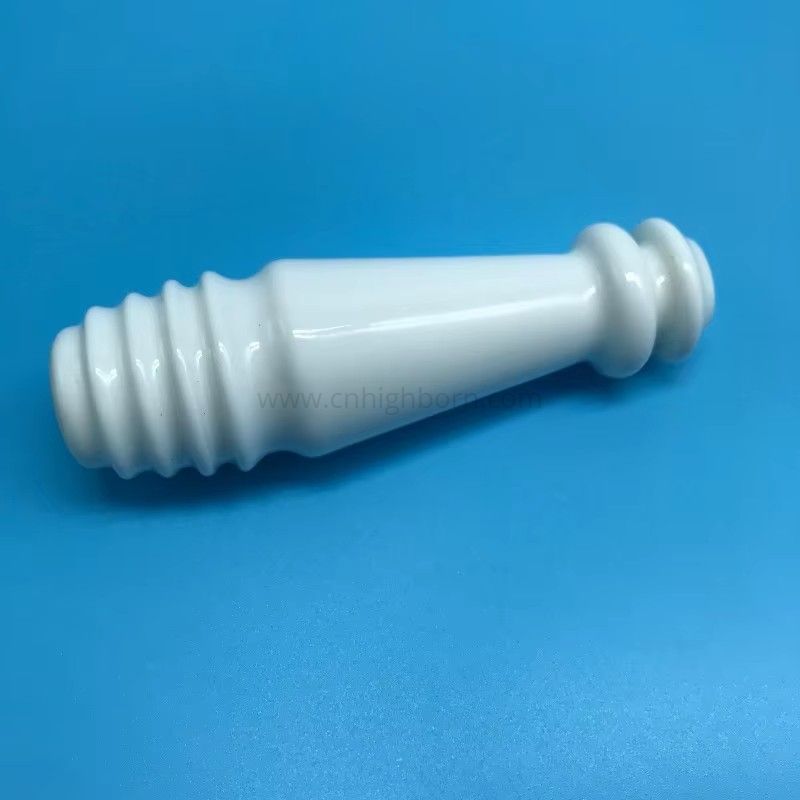

| Steatite Ceramic Part Talc porcelain is made from mineral talc (3MgO.4SiO2. H2O) as the main raw material, with the addition of appropriate amounts of clay and BaTiO3 ingredients, through processes such as mixing, grinding, forming, and high-temperature sintering. |
Advantages of Steatite Ceramic Irregular PartSteatite porcelain has high mechanical strength and dielectric properties, low dielectric constant, low dielectric loss, high insulation strength, and high volume resistance.It has low dielectric loss and is widely used in the field of electrical engineering. | |

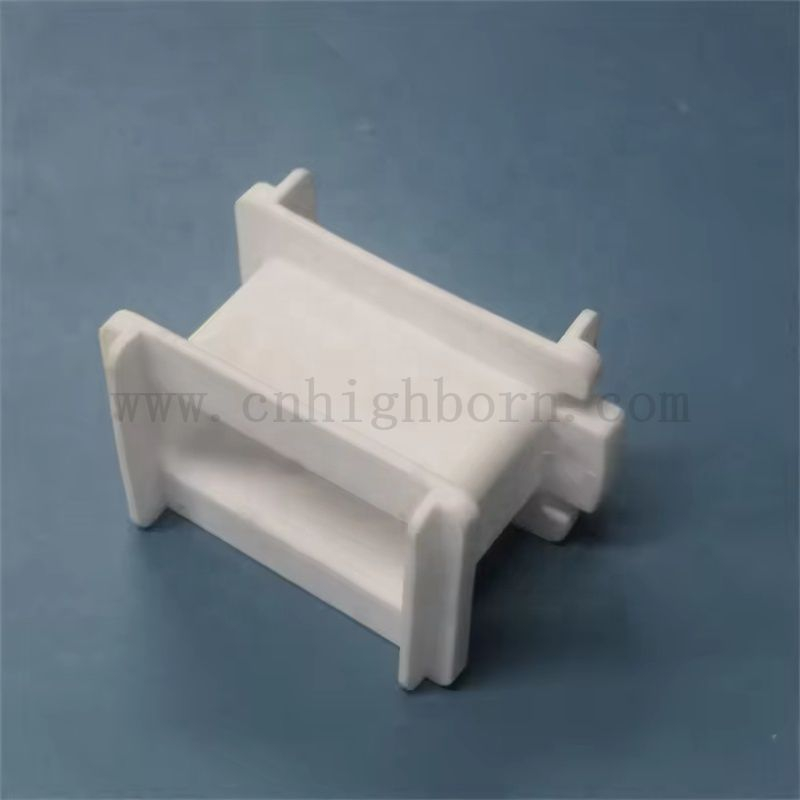

| Steatite Ceramic Irregular Block Ceramic components with mechanical and electrical properties between alumina ceramics and ordinary electrical ceramics, suitable for conventional high-frequency radio equipment such as device ceramics, insulation tubes, etc. |
Ceramic Irregular block Steatite porcelain can be used as a platinum metal wire outer sleeve for low-temperature sensors, sensors for thermocouples in thermal instruments, etc. It is a high-frequency structural ceramic with excellent electrical performance and low cost. | |
滑石瓷 Steatite Ceramic | 项目 Item | 指标 Index |
物理性质 physical properties | 洛氏硬度 Rockwell hardness (HRA) | ≥75 |
体积密度 volume density(g/cm3) | 2.6 | |
介电常数 Dielectric constant (εr20℃, 1MHZ) | 5.5 | |
电阻率 electric volume resistivity(Ω·cm) | 1012 | |
断裂强度 Breaking strength (MPa) | ≥120 | |
弹性模量 Elastic modulus (GPa) | 80 | |
热膨胀系数 thermal expansivity (10-6/K) | 6.9 | |
抗拉强度 Tensile Strength (MPa) | ≥70 | |
工作温度 working temperature (℃) | 1000 |
