Product Description

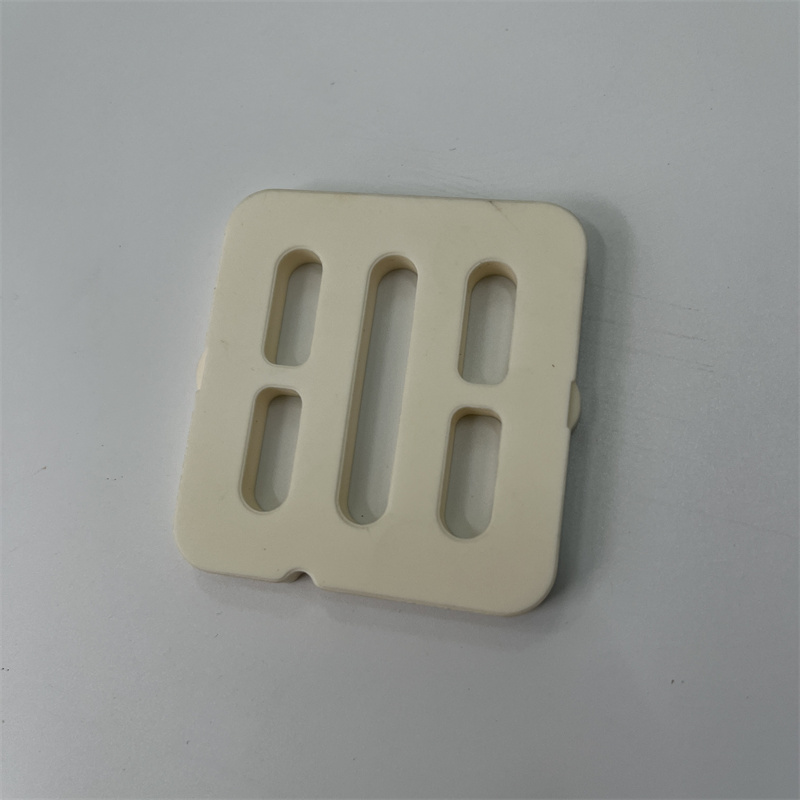

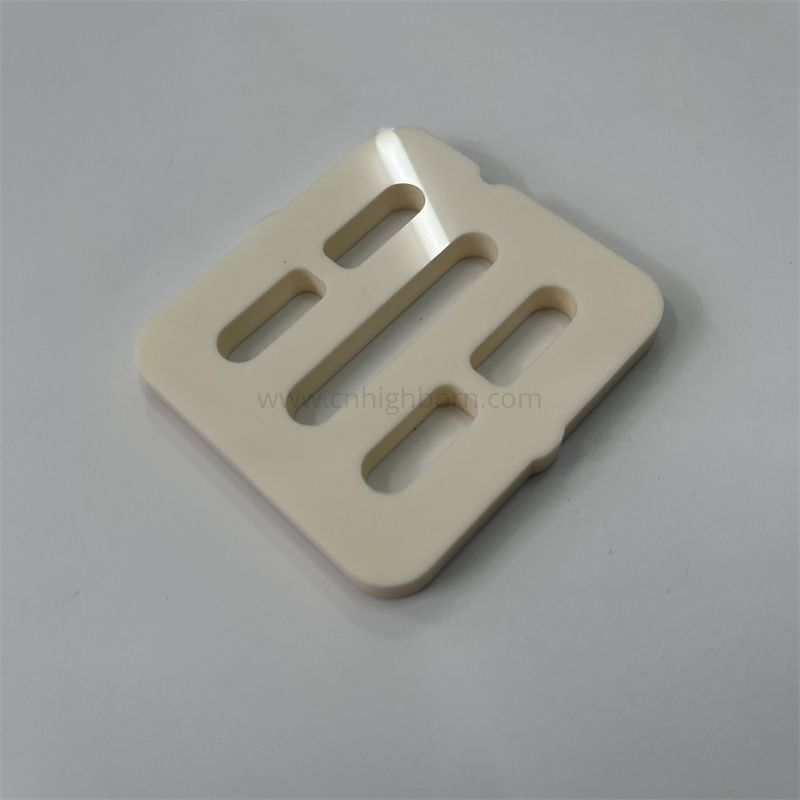

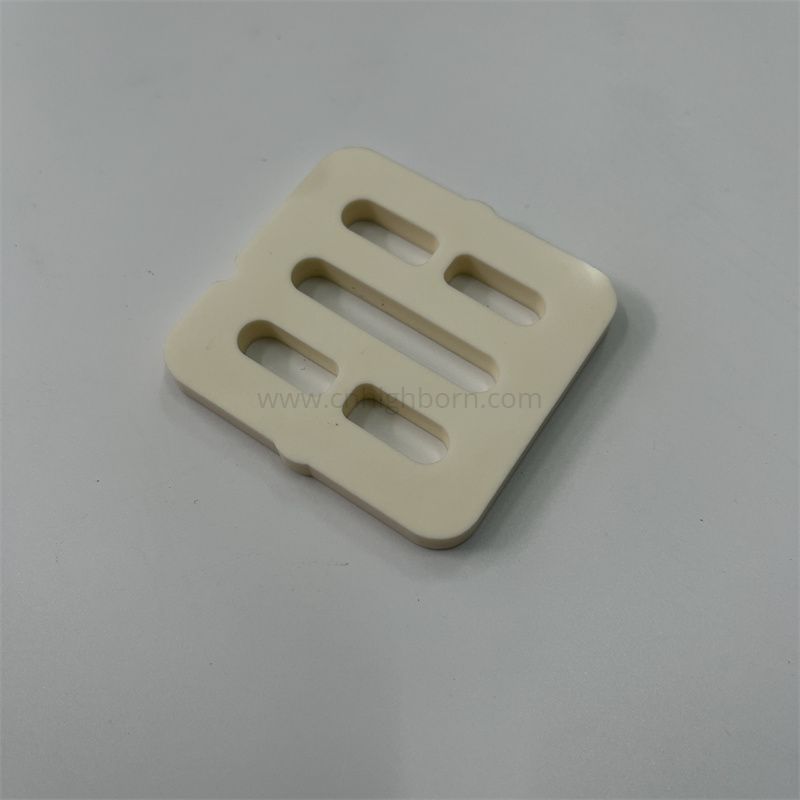

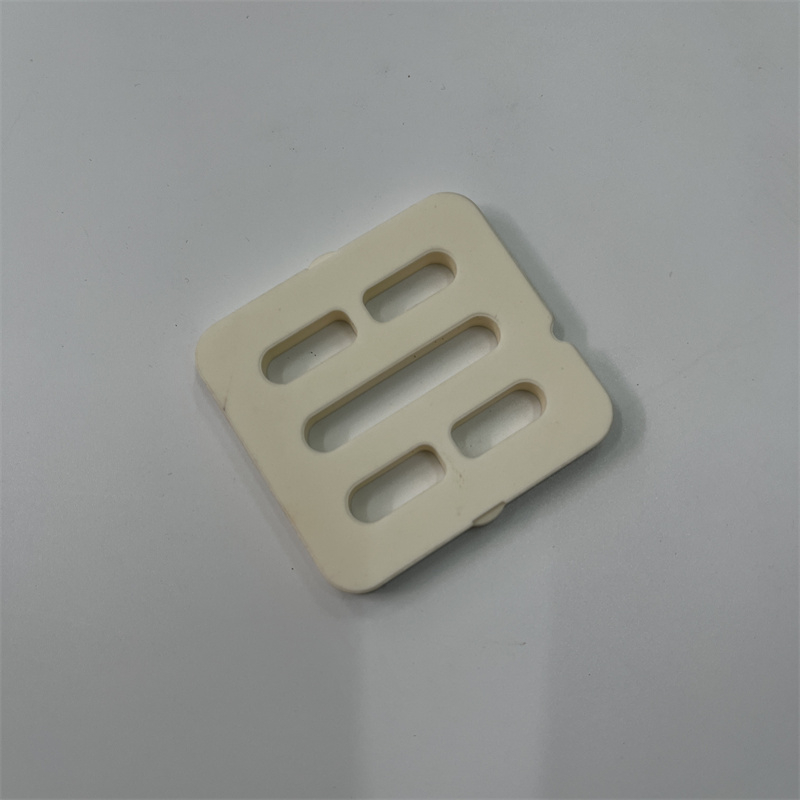

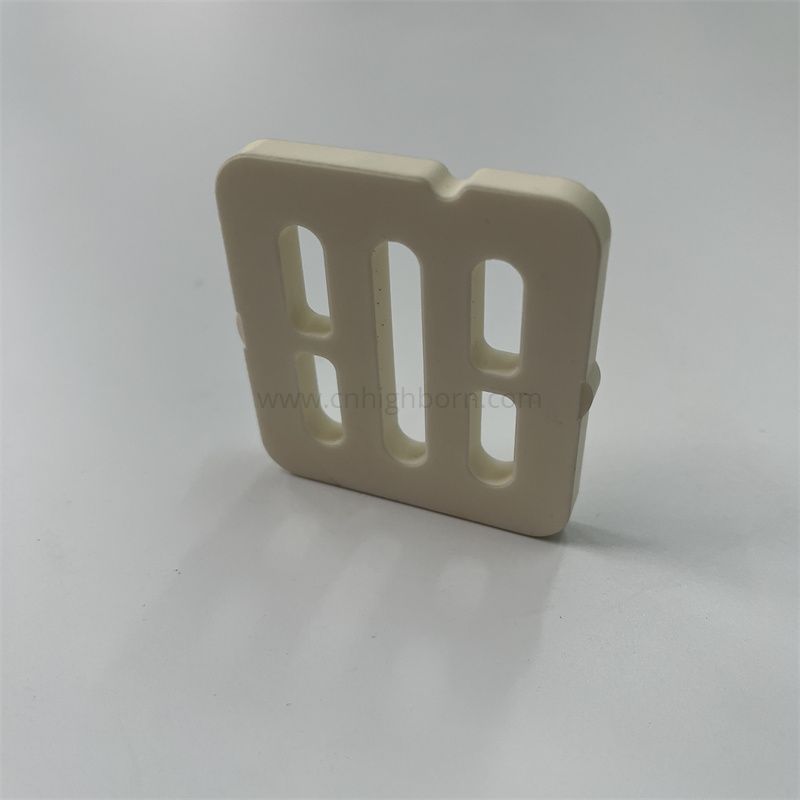

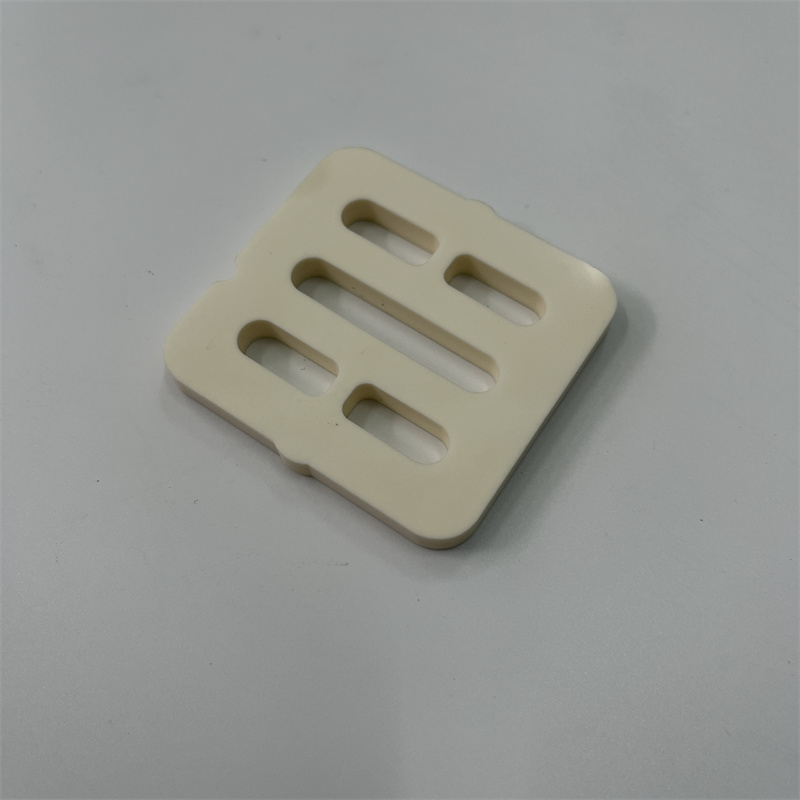

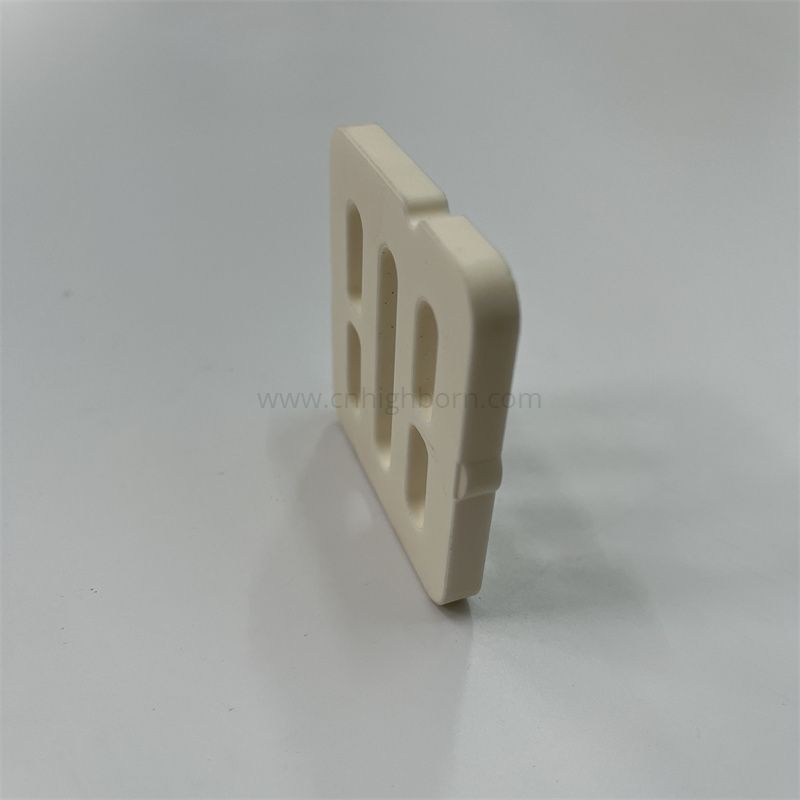

 | Alumina ceramic plate
Dielectric strength reaches 20KV/mm, volume resistivity up to 10¹⁴ Ω·cm, effectively isolate high-frequency and high-voltage current, prevent electric breakdown, ideal for power module insulation substrates. |
Main Applications of alumina Ceramic Part |  |
 | Feature of alumina :
1. It offers a combination of superior mechanical strength and electrical properties, wear resistance and corrosion resistance. 2. The maximum working temperature is up to 1700 °C with relatively high thermal conductivity. |
Q:Can you custom make holes, grooves and chamfers on alumina ceramic? |  |
| Alumina Purity | 92% | 95% | 96% | 99% | 99.6% |
| Color | White | White | White | Ivory White | White |
| Volume density | 3.45 g/cm3 | 3.5 g/cm3 | 3.7 g/cm3 | 3.75 g/cm3 | 3.9 g/cm3 |
| Water Absorption | 0 % | 0 % | 0 % | 0 % | 0 % |
| Flexural Strength | 300Mpa | 300Mpa | 320Mpa | 330Mpa | 330Mpa |
| Vickers hardness | 1300 HV | 1400 HV | 1400 HV | 1800 HV | 1800 HV |
| Dielectric Constant | 10 (at 1MHZ 25℃) | 10 (at 1MHZ 25℃) | 10 (at 1MHZ 25℃) | 10 (at 1MHZ 25℃) | 10 (at 1MHZ 25℃) |
| Modulus of elasticity | 350Gpa | 350Gpa | 350Gpa | 370Gpa | 370Gpa |
| thermal conductivity (30℃) | 18W/M.K | 24W/M.K | 24W/M.K | 25W/M.K | 28W/M.K |
| Volume resistivity | 10^14Ω•cm | 10^14Ω•cm | 10^14Ω•cm | 10^14Ω•cm | 10^15Ω•cm |
| Dielectric strength | 20KV/mm | 20KV/mm | 20KV/mm | 20KV/mm | 30KV/mm |
