Product Description
 | Insulating Ceramic Part Hot-pressed Si₃N₄: higher thermal conductivity but limited to simple shapes Reaction-bonded Si₃N₄: porous, low toughness, only for low-load corrosion service |
Silicon Nitride Ceramic ring Applications: wear flanges for bead mills, insulating support for semiconductor high-temperature chamber, pump sealing rings, thermal treatment fixtures, metallurgical locating components. |
|
 | Si3N4 Ceramic Flange: High fracture toughness: 6–9 MPa·m¹ᐟ², resistant to impact and sudden crack failure; maintains high strength up to 1200℃ |

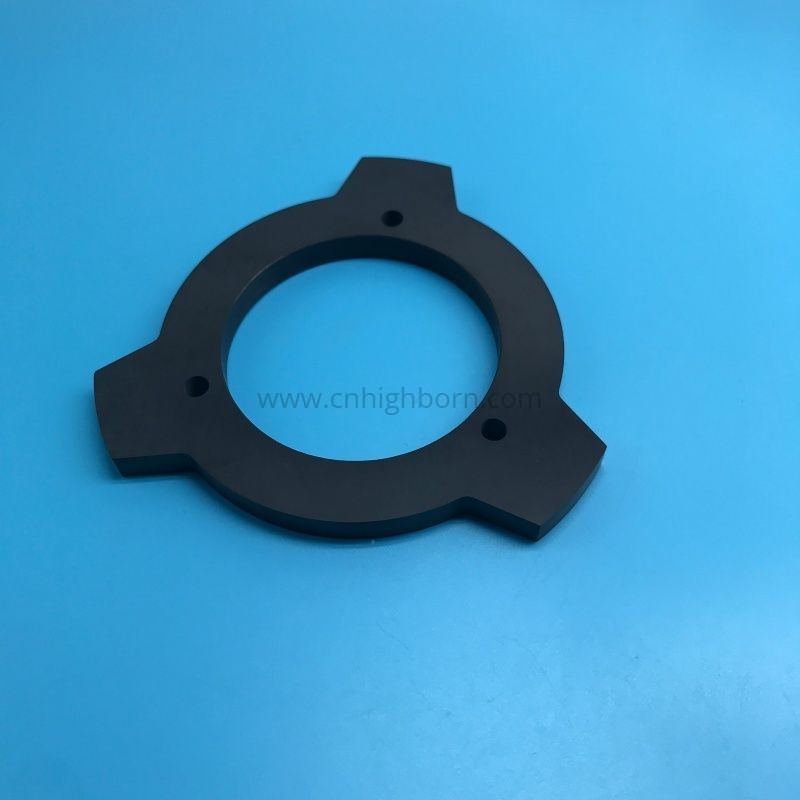

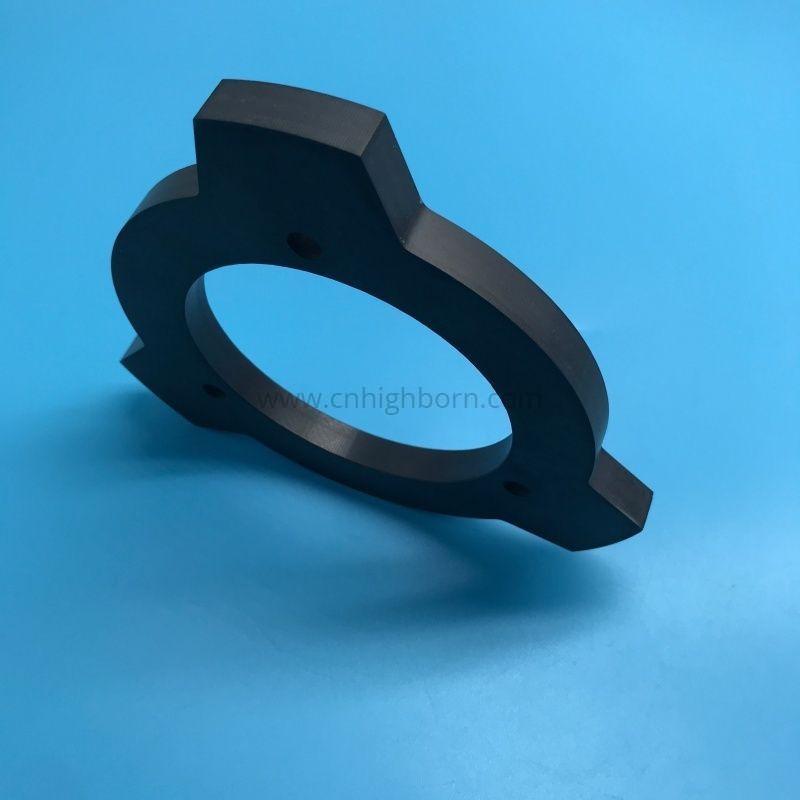

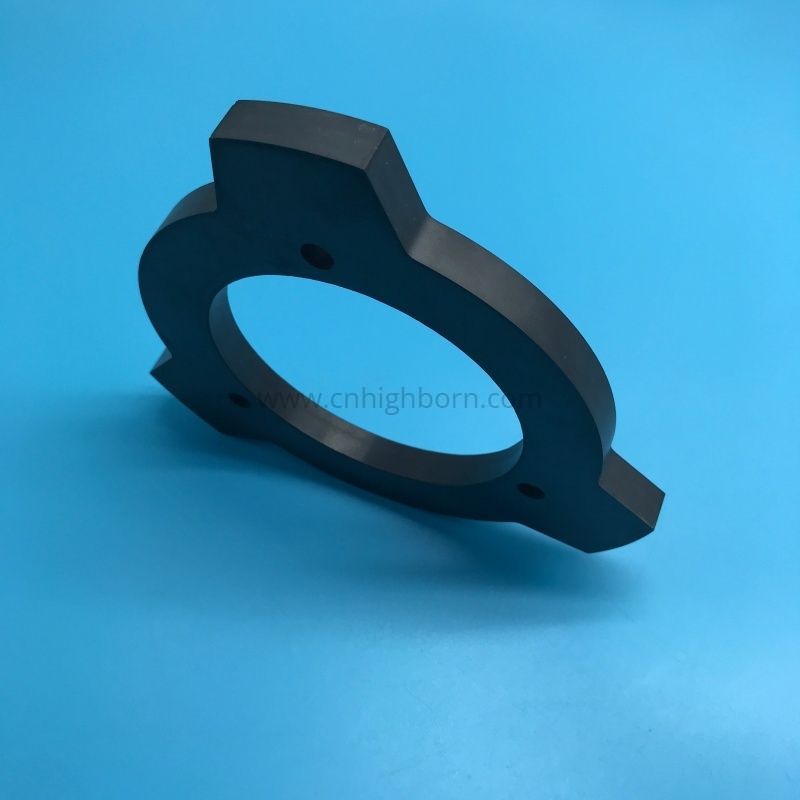

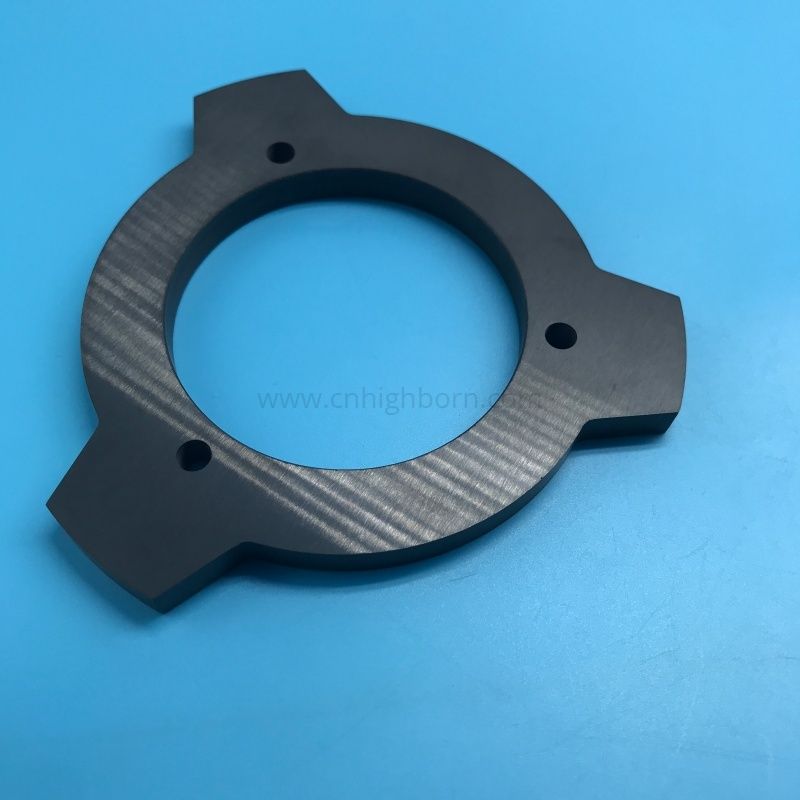

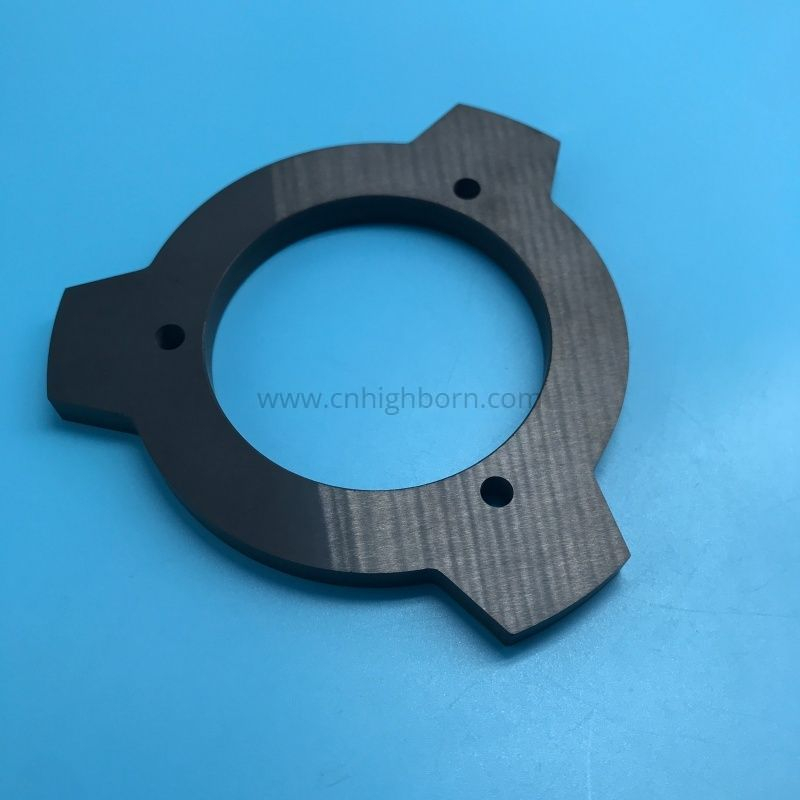

Si3N4 Ceramic Flange Ring With 3 Mounting Lugs: It features a 3-lug structure with mounting holes, used for equipment positioning, sealing, wear resistance, heat insulation and insulating support. It is a custom structural ceramic part. |  |
TECHNICAL SPECIFICATION OF Silicon Nitride
项目 Item | 气压烧结 gas pressure sintering | 热压烧结 hot pressing sintering | 反应烧结 reactive sintering | 无压烧结 pressureless sintering |
洛氏硬度 Rockwell hardness (HRA) | ≥75 | - | >80 | 91-92 |
体积密度 Volume density(g/cm3) | 3.25 | >3.25 | 1.8-2.7 | 3.0-3.2 |
介电常数 Dielectric constant (εr20℃,1MHZ） | - | 8.0(1MHz) | - | - |
电阻率 Electric volume resistivity (Ω·cm) | 1014 | 108 | - | - |
断裂韧性 Fracture toughness (MPa·m1/2) | 6-9 | 6-8 | 2.8 | 5-6 |
弹性模量 Elasticity modulus(GPa) | 300-320 | 300-320 | 160-200 | 290-320 |
热膨胀系数 Thermal expansivity (10-6/K) | 3.1-3.3 | 3.4 | 2.53 | 3.0-3.3 |
热导率 Thermal conductivity W/(m·K) | 15-20 | 34 | 15 | - |
韦伯模数 Weibull modulus | 12-15 | 15-20 | 15-20 | 10-18 |
