In the realm of materials science, Thermal Analysis Crucibles are essential tools used to understand the thermal behavior of materials under controlled conditions. These tiny containers may seem insignificant at first glance, but they play a pivotal role in accurately measuring thermal transitions such as melting, crystallization, decomposition, and other temperature-dependent phenomena. This article delves into the importance of thermal analysis crucibles, their materials, use cases, and how different crucible types compare, all while keeping pace with the latest scientific and industrial trends.
A thermal analysis crucible is a small cup or container designed to hold samples for testing in thermal analysis instruments such as Differential Scanning Calorimetry (DSC), Thermogravimetric Analysis (TGA), and Simultaneous Thermal Analysis (STA). These devices measure how physical properties of a substance change with temperature.
Thermal Analysis Crucibles are engineered to withstand extreme conditions—high temperatures, reactive atmospheres, and corrosive environments—without interfering with test results. They ensure that the only variable changing during the test is the sample’s response to temperature, not any interaction with the container.
The selection of a crucible affects the accuracy and reliability of thermal analysis results. For instance, a crucible with high thermal conductivity can ensure uniform heating of the sample, while an inert crucible material prevents chemical reactions with the sample.
Key benefits of using specialized thermal analysis crucibles:
Improved sample containment
Minimized contamination
High thermal stability
Controlled sample reactivity
Enhanced measurement accuracy
The choice of crucible material is determined by the nature of the sample and the type of thermal analysis. Below is a table comparing common materials used in thermal analysis crucibles:
| Crucible Material | Temperature Resistance (°C) | Chemical Reactivity | Common Applications |
|---|---|---|---|
| Aluminum | Up to 600°C | Low with organic compounds | General DSC analysis, low-temp samples |
| Platinum | Up to 1700°C | Inert with most materials | High-precision DSC and TGA |

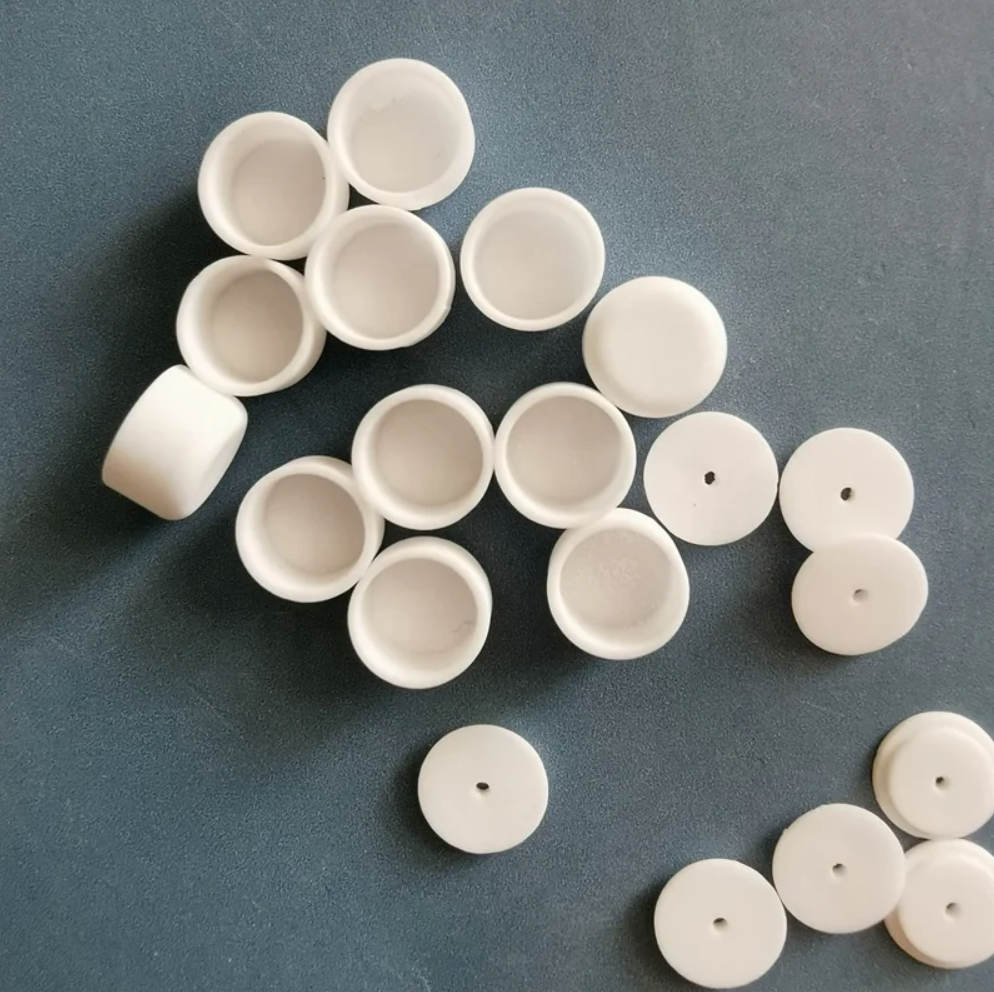

| Ceramic (Alumina) | Up to 1600°C | Low with inorganic materials | TGA and STA for oxides and ceramics |
| Graphite | Up to 3000°C | Reactive in oxidizing atmospheres | TGA in inert atmospheres |
| Quartz | Up to 1200°C | Inert but fragile | Optical measurements, transparency needed |
| Stainless Steel | Up to 800°C | Reactive with some chemicals | Used in some STA devices |
Each material brings distinct advantages and trade-offs. For example, aluminum crucibles are ideal for everyday thermal analysis, while platinum crucibles are reserved for high-precision or chemically reactive samples.
Understanding the types of crucibles available for thermal analysis is vital for ensuring measurement accuracy and reliability. Here are common types used across industries:
Open Crucibles: Allow sample interaction with the atmosphere—ideal for oxidation or evaporation studies.
Sealed Crucibles: Prevent gas exchange; useful for volatile or air-sensitive samples.
High-Pressure Crucibles: Withstand internal pressure build-up; perfect for decomposition or volatile component studies.
Crimped Crucibles: Secure lids to prevent spillage and control sample atmosphere.
Perforated Crucibles: Enable controlled gas flow, suitable for kinetic studies.
Thermal Analysis Crucibles are indispensable across various sectors:
Pharmaceuticals: Studying melting points, polymorph transitions, and purity.
Polymers: Investigating glass transition temperature, curing, and thermal degradation.
Metals and Alloys: Analyzing phase transitions and oxidation behavior.
Ceramics: Understanding sintering, decomposition, and thermal expansion.
Food Industry: Measuring melting, crystallization, and water loss.
Energy Sector: Battery material analysis, including lithium ion degradation and thermal stability.
The material and type of thermal analysis crucible can significantly influence test results. Here's a simplified comparison:
| Crucible Type | Heat Transfer | Atmosphere Control | Accuracy in TGA | Accuracy in DSC |
|---|---|---|---|---|
| Open Aluminum | High | None | Moderate | High |
| Sealed Aluminum | High | Good | High | Very High |
| Platinum | Excellent | Excellent | Very High | Very High |
| Ceramic | Good | Moderate | High | Moderate |
| Graphite | Variable | Inert only | High | Low |
Using the wrong crucible can lead to inaccurate readings or even instrument damage. For instance, using graphite crucibles in oxidative environments may result in combustion, skewing the thermal profile or destroying the crucible.
As industries advance toward miniaturization, sustainability, and automation, thermal analysis crucibles are evolving to meet new demands.
Modern labs are moving toward using ultra-small samples to reduce material waste. This trend has led to the development of micro crucibles, compatible with micromachined thermal sensors, which allow high-sensitivity thermal analysis with samples as small as a few micrograms.
With increased environmental awareness, manufacturers are exploring sustainable crucible materials that can be recycled or reused without compromising thermal stability or purity.
A groundbreaking innovation involves crucibles integrated with thermal and gas sensors. These smart thermal analysis crucibles provide real-time feedback on conditions within the crucible, offering unprecedented control and precision.
In line with Industry 4.0 trends, laboratories are now demanding robot-compatible crucibles that can be easily handled, loaded, and tracked by automated systems. These are typically standardized in shape and size for compatibility with automated thermal analysis instruments.
The choice of crucible depends on several factors:
Temperature range: Choose a material that withstands the maximum temperature of your analysis.
Chemical reactivity: Avoid materials that will react with your sample.
Sample type: Volatile, corrosive, or inert samples require different crucible types.
Instrument compatibility: Not all crucibles fit every instrument—check manufacturer specifications.
Pre-clean crucibles before reuse to avoid contamination.
Avoid overfilling; samples should cover the bottom without overflowing.
Use appropriate lids for sealed or volatile analysis.
Label crucibles clearly in multi-sample experiments.
Regularly calibrate instruments when changing crucible types.
A thermal analysis crucible holds the sample securely during thermal testing, ensuring consistent heat transfer and preventing contamination or unwanted reactions.
Yes, depending on the material and type of test. Platinum and ceramic crucibles are often reused after proper cleaning, while aluminum crucibles are typically single-use due to deformation or contamination.
Consider the sample type, temperature range, chemical reactivity, and instrument compatibility. For precise results, thermal analysis crucibles must be matched correctly to the experiment’s parameters.
No. Crucibles vary in size, shape, and material compatibility. Always refer to your thermal analyzer's user manual or contact the manufacturer to ensure proper fit and function.
Sealed crucibles are ideal for analyzing volatile or air-sensitive materials, preventing sample loss or oxidation during heating.
The crucible material affects how heat is transferred to the sample and whether any chemical interaction might skew the results. Choosing the right material ensures accurate and reproducible thermal analysis.
In conclusion, Thermal Analysis Crucibles are fundamental to achieving accurate and reliable results in temperature-based material testing. From pharmaceuticals to polymers, the role of these crucibles continues to grow in complexity and importance. With advances in material science and laboratory automation, crucible design and functionality are evolving rapidly. Selecting the right crucible—based on sample type, thermal conditions, and analytical goals—is essential for generating trustworthy data and ensuring the success of your thermal analysis process.
