Product Description

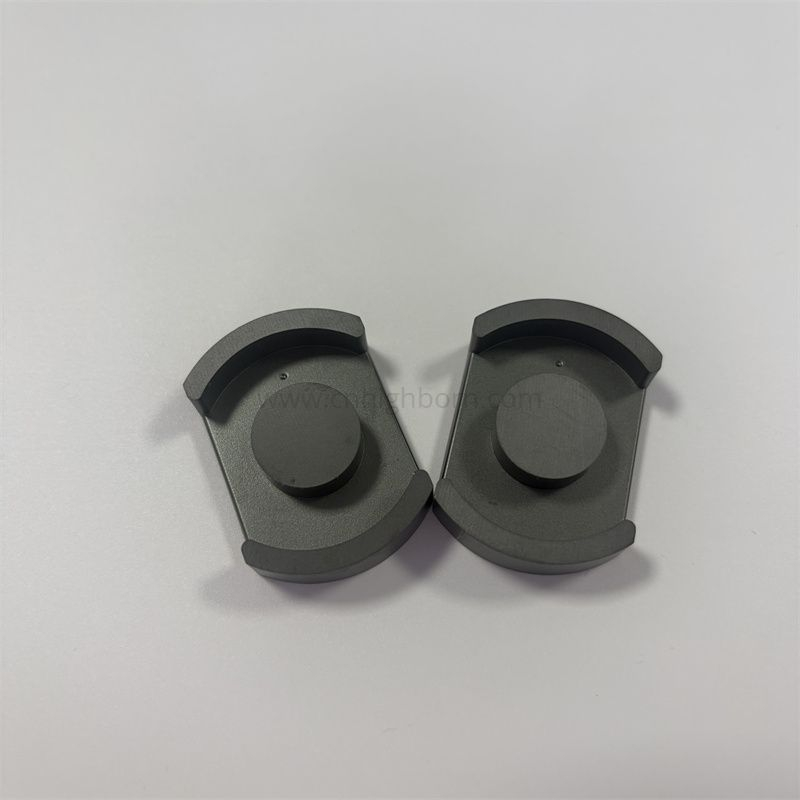

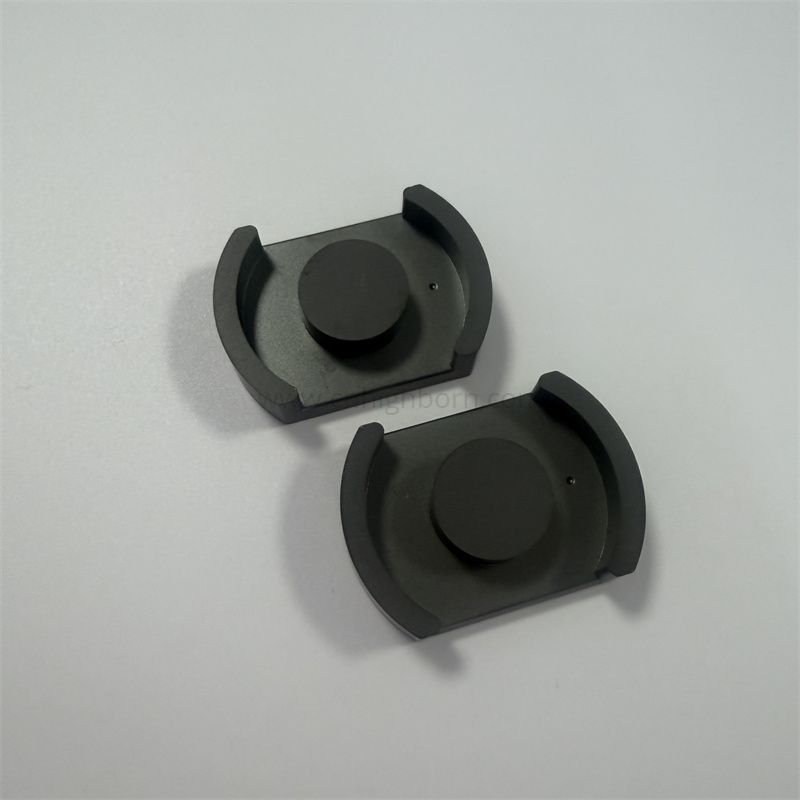

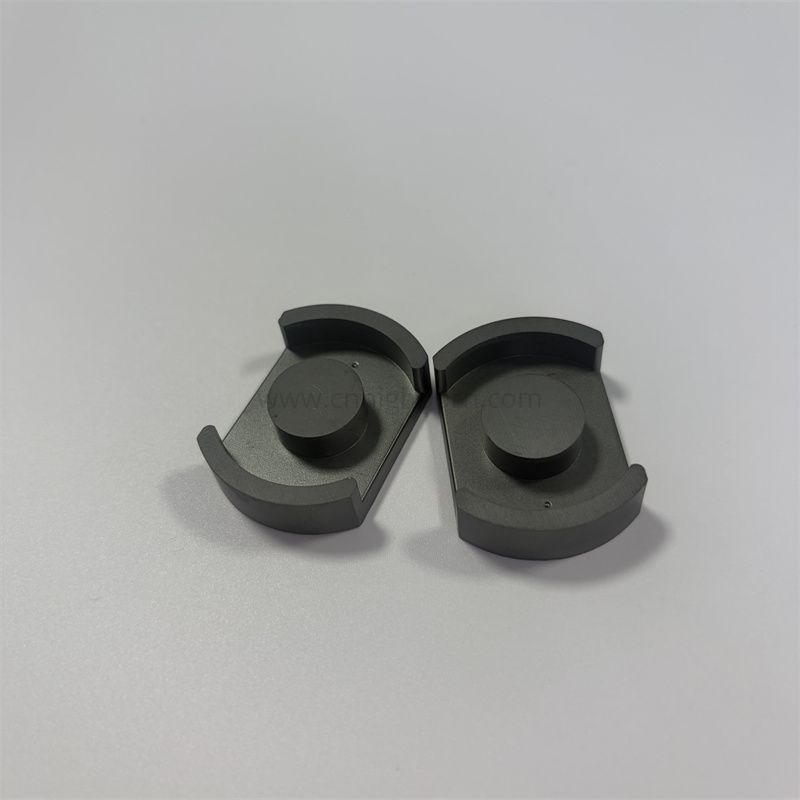

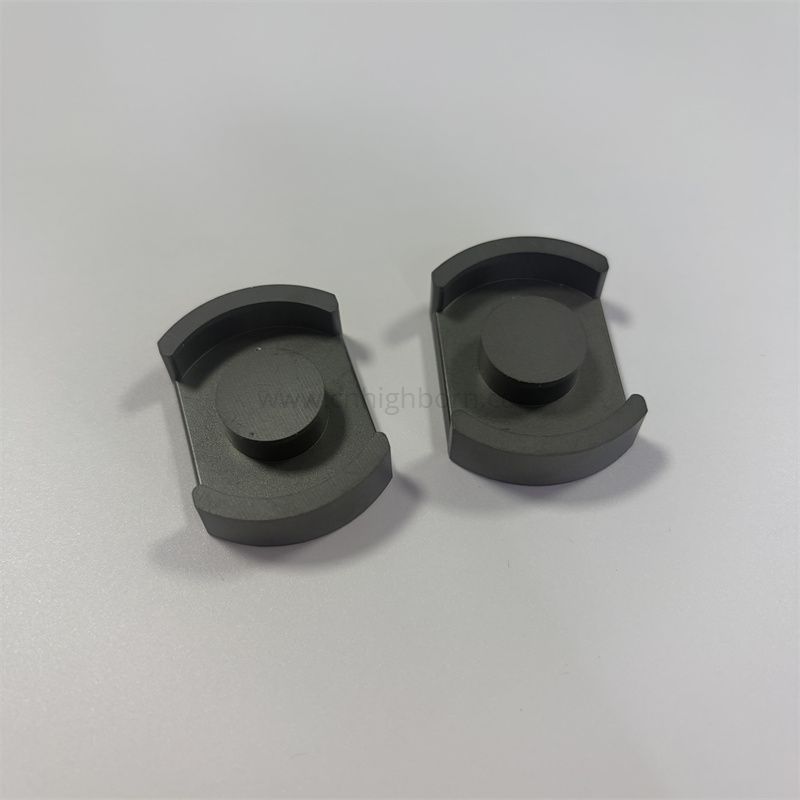

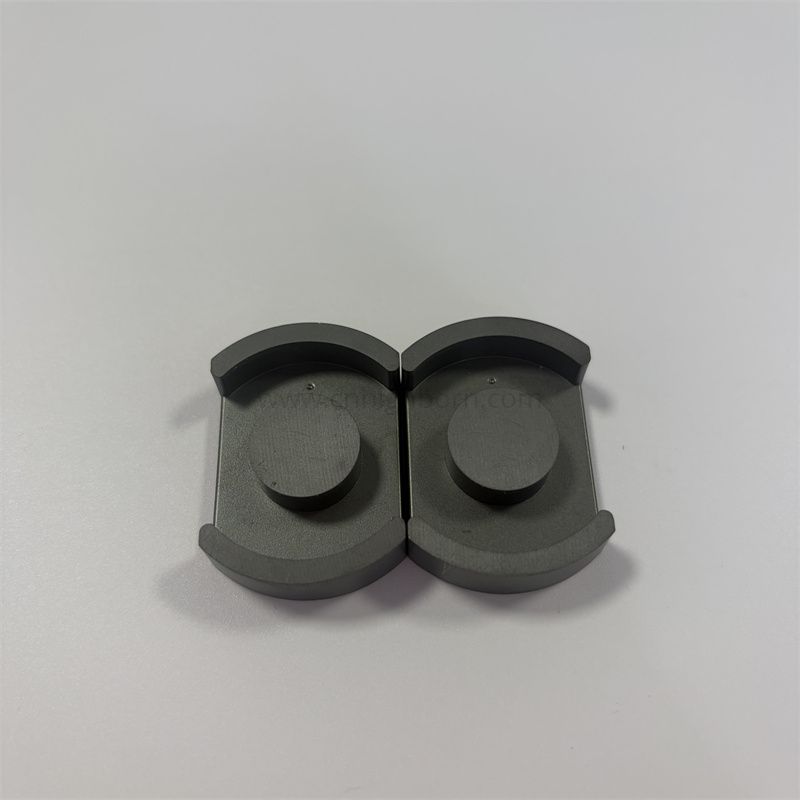

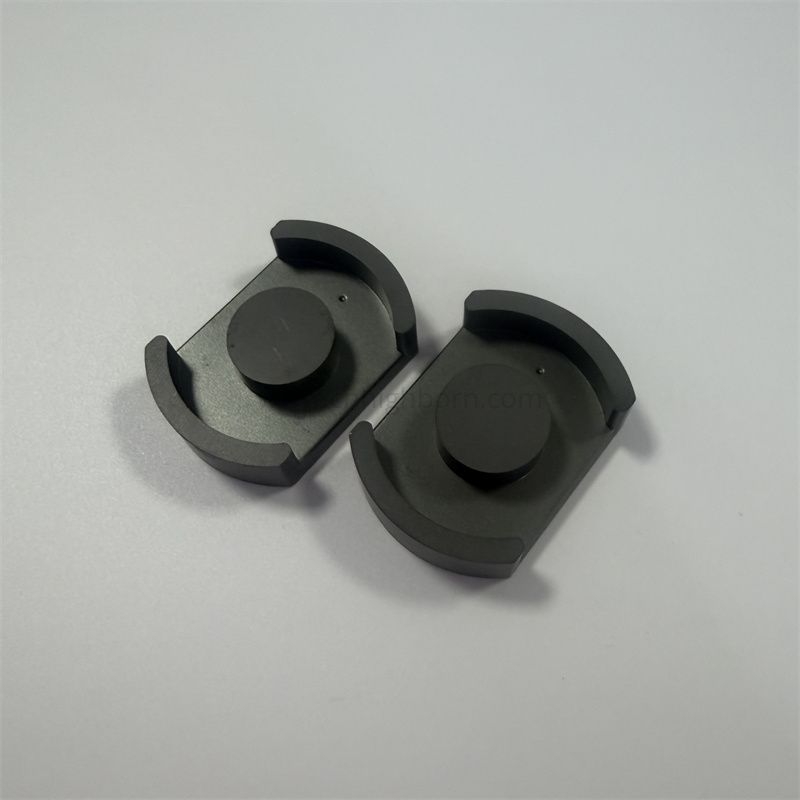

| Soft Ferrite Magnetic Core Introduction Our soft ferrite cores are manganese‑zinc (Mn‑Zn) power ferrite components, Representative Materials: 40, 44, 95, 97 |
Soft Ferrite Magnetic Core Advantages: 1. Low Loss 2. High Magnetic Permeability 3. Good Power Loss Temperature Curve 4. High Curie Temperature |  |
 | Application of Soft Ferrite Core: high frequency transformer core, switching power supply core, SMPS transformer core, power adapter core, pulse transformer core, industrial power module core, automotive power ferrite core |
FAQ of Power Soft Magnetic Ferrite Q1: What is the main material of this product? A1: It is made of soft magnetic ferrite with excellent magnetic conductivity. Q2: Can you provide custom sizes and shapes? A2: Custom size shape and technical parameters are supported. |  |
对比项目 Item | 40 | 44 | 95 | 97 |
初始磁导率 Initial Permeability μi | 2300 ±25% | 2400 ±25% | 3300 ±25% | 3300 ±25% |
最佳损耗温度 Optimal Loss Temperature | 80～100℃ | 90～110℃ | 70～90℃ | 100～120℃ |
居里温度 Curie Temperature Tc | ≥200℃ | ≥205℃ | ≥215℃ | ≥240℃ |
饱和磁通密度 Saturation Flux Density Bs (25℃) | 510 mT | 510 mT | 530 mT | 540 mT |
剩余磁通密度 Remanent Flux Density Br | 95 mT | 110 mT | 120 mT | 130 mT |
矫顽力 Coercive Force Hc | 14 A/m | 13 A/m | 10 A/m | 9 A/m |
适用频率范围 Operating Frequency Range | 20kHz～150kHz | 80kHz～300kHz | 60kHz～250kHz | 60kHz～250kHz |
典型磁芯外形 Typical Core Shapes | EE、EI、EFD、小功率PQ | PQ、RM、ETD、EER | 大尺寸PQ、ETD、ER | 车载专用磁芯、大尺寸功率磁芯 |
