Porous Ceramic Materials And Their Vacuum Suction Cups in Semiconductor Manufacturing: Function And Application

I. Overview of Characteristics of Porous Ceramic Materials

Porous ceramics are inorganic non-metallic materials prepared through special processes. They contain a large number of regular or irregular pores within their structure, and these pores can be interconnected or independently closed. The porosity of this material typically ranges from 20% to 90%, and the pore size can extend from the nanometer scale to the millimeter scale. The reason why porous ceramics are highly valued in semiconductor manufacturing is mainly due to their unique pore structure and the excellent thermal resistance, chemical resistance, and electrical insulation properties of the material itself. These characteristics enable it to play a significant role in various stages of semiconductor production, helping to improve process control accuracy, ensure product yield, and also contribute to enhancing the long-term operational stability of equipment.

II. Vacuum Suction Cups - A Typical Application of Porous Ceramics in Semiconductor Equipment

Porous ceramics have diverse applications in semiconductor equipment. Vacuum suction cups are one of the most representative types. These suction cups use porous ceramics as the key load-bearing component and play an indispensable role in processes such as wafer handling, positioning, and fixation.

III. Structure and Working Principle of Porous Ceramic Vacuum Suction Cups

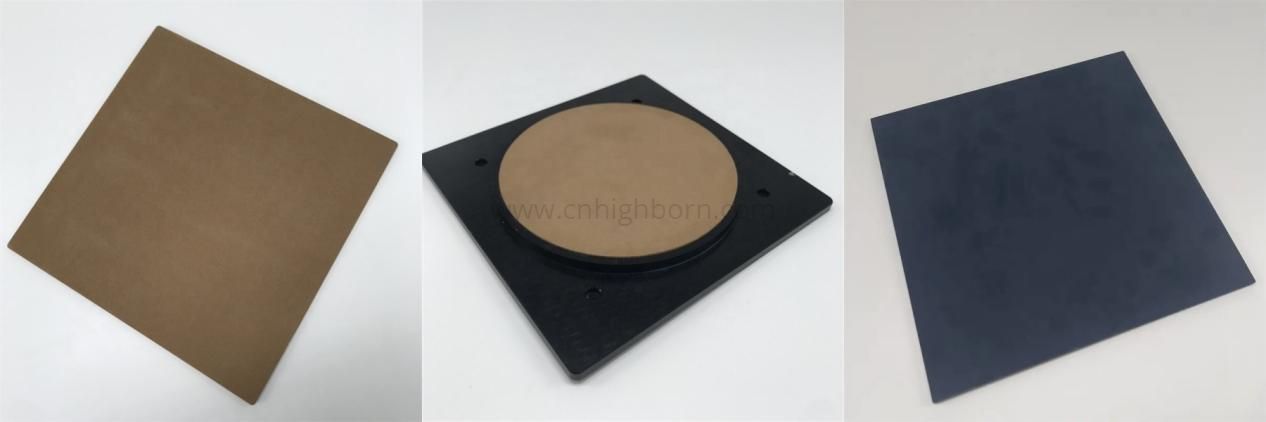

In the semiconductor manufacturing process, the fixation and support of workpieces often require the use of vacuum suction devices. The porous ceramic vacuum suction cup is a typical representative of such equipment. This suction cup uses a porous ceramic plate as the vacuum conducting medium. The plate is embedded in the recesses of the base, and its periphery is sealed and tightly combined with the base. The base is precisely machined from ceramic or metal materials. In terms of practical usage effect, traditional suction cups, when adsorbing film-type workpieces, due to the large size of the surface holes, the film material is easily trapped in the holes during vacuum pumping, thereby causing wrinkles, collapse or stress deformation and other defects. However, the suction cup made of porous ceramics has a surface with fine and uniform micro-pore structures. It can ensure sufficient adhesion while forming uniform support on the workpiece surface, thereby effectively suppressing quality problems caused by local stress or deformation. In addition, the porous ceramic vacuum suction cup also has the characteristics of no static electricity generation, no dust emission, and wear resistance. It has obvious advantages in the semiconductor manufacturing environment with extremely high cleanliness requirements.

IV. Key technical parameters of microporous ceramic vacuum suction cups

From the technical parameters, the pore diameter of the microporous ceramic vacuum suction cup can usually be adjusted within the range of 5 to 200 μm, the porosity is approximately 30% to 50%, the uniformity of adsorption can reach the level of a pressure difference of ±3 kPa within a 10×10 mm area, and the flatness and parallelism can all be controlled at the micron-level accuracy. These suction cups can be adapted to mainstream wafer sizes ranging from 2 inches to 12 inches, and the processing objects cover semiconductor materials such as silicon-based wafers, sapphire substrates, and gallium arsenide wafers. Some products also adopt a zone vacuum control design, dividing the suction cup into multiple independent adsorption areas. Users can flexibly choose to activate the air path of the corresponding area according to the size of the workpiece. This zone adsorption technology greatly improves the line change efficiency in multi-variety and small-batch production. Additionally, the multi-pore ceramic suction cup has the feature of bidirectional use: through vacuum extraction, it can achieve workpiece adsorption; conversely, by introducing positive pressure, it can achieve non-contact suspended transmission, avoiding damage to the workpiece surface due to direct contact. In scenarios involving lithography processes, using black-colored multi-pore ceramic suction cups has the same positive significance for reducing light reflection on the equipment surface and minimizing the negative impact of stray light on the exposure effect. Black multi-pore aluminum oxide ceramics are usually composed mainly of Al₂O₃, and by adding transition metal oxides (such as Fe₂O₃, CoO, NiO, MnO₂, etc.) as coloring agents, they are sintered at high temperatures to ensure the color effect while also meeting the requirements of mechanical strength and porosity.

V. Comparative Advantages of Porous Ceramic Vacuum Suction Cups and Metal Vacuum Suction Cups

Compared with traditional metal vacuum suction cups, the advantages of porous ceramic vacuum suction cups are more prominent. The adsorption holes of traditional metal suction cups are usually larger than 200 μm, and the adsorption force is concentrated near the hole positions. Thin workpieces are prone to local deformation or indentation during processing. However, the pore diameters of micro-porous ceramic suction cups are only at the micrometer level, and the pores are three-dimensionally interconnected, enabling uniform adsorption on the entire surface, fundamentally eliminating the problem of stress concentration. In terms of anti-static properties, porous ceramics themselves are insulating materials, which can effectively prevent damage to chips caused by static electricity; metal suction cups do not have this characteristic. In addition, ceramic materials have high hardness, good shape retention, and significantly better wear resistance than metals. Their fully sintered structure also ensures no dust generation during use, meeting the cleanliness requirements of semiconductor manufacturing. With these numerous performance advantages, porous ceramic vacuum suction cups have become an indispensable key tool in high-end semiconductor manufacturing.

VI. Specific Applications of Ceramic Vacuum Suction Cups in Wafer Manufacturing

The ceramic vacuum suction cup plays a crucial role in the wafer manufacturing process by holding and supporting the wafer. Its main material is porous ceramic, with uniform and continuous pore structure inside. After surface grinding, it has excellent flatness and surface finish. Based on the characteristics of this material, the suction cup exhibits excellent flatness and parallelism in application, with a dense structure and reliable strength. It also has good air permeability and uniform adhesion, and the surface is convenient for repair and maintenance. These advantages enable it to be suitable for various wafer processing procedures such as thinning, cutting, grinding, cleaning, and surface treatment. It has significant effects in preventing wafer surface scratches, preventing static electricity from damaging the chips, and controlling particulate pollution, thereby ensuring high surface quality and processing consistency in wafer processing. Under normal usage conditions, the porous ceramic vacuum suction cup has a long service life due to its high material hardness, good shape retention, long repair cycle, and small repair volume. It will not crack, break into pieces, or fall apart, and can be reused to a certain extent after repair. Currently, this type of suction cup has been widely used in the manufacturing processes of semiconductor materials such as silicon-based wafers, sapphire substrates, and gallium arsenide wafers.

FAQ:

Question 1: What are the key structural features and general property advantages of porous ceramic materials that make them suitable for semiconductor manufacturing?

Answer: Porous ceramics are inorganic non-metallic materials with a porosity typically ranging from 20% to 90% and pore sizes from nanometers to millimeters. Their key advantages include excellent thermal resistance, chemical resistance, and electrical insulation. These properties, combined with their unique pore structure, allow for improved process control, higher product yield, and enhanced long-term operational stability in semiconductor production.

Question 2: How does the structure of a porous ceramic vacuum suction cup differ from that of traditional suction cups, and what practical benefits does this bring?

Answer: A porous ceramic suction cup uses a micro-porous ceramic plate as the vacuum-conducting medium, with fine and uniform pores on its surface. In contrast, traditional suction cups have larger surface holes. This fine pore structure prevents thin film materials from being trapped, wrinkled, or deformed during vacuum pumping. It provides uniform support and adhesion across the workpiece surface, effectively suppressing defects caused by local stress or deformation.

Question 3: What is the "bidirectional use" feature of porous ceramic suction cups, and why is it beneficial?

Answer: Through vacuum extraction, the suction cup can achieve workpiece adsorption (contact mode). Conversely, by introducing positive pressure, it can achieve non-contact suspended transmission. This non-contact mode avoids direct contact with the workpiece surface, thereby preventing potential damage, which is especially critical for fragile or high-value semiconductor wafers.

Question 4: What is the "zone vacuum control" or zone adsorption technology mentioned in the article, and what is its advantage?

Answer: This design divides the suction cup into multiple independent adsorption areas. Users can flexibly activate only the air path corresponding to the workpiece size. This greatly improves line-change efficiency in multi-variety, small-batch production, as it allows the same suction cup to accommodate different sized workpieces without changing the entire setup.

Question 5: In which specific wafer manufacturing processes are ceramic vacuum suction cups used, and what quality aspects do they help ensure?

Answer: They are used in processes such as thinning, cutting, grinding, cleaning, and surface treatment. Their advantages help prevent wafer surface scratches, prevent static electricity from damaging chips, and control particulate pollution. This ensures high surface quality and processing consistency. Due to their high hardness and good shape retention, they also have a long service life and can be repaired and reused to some extent.
