Many people may wonder, why is there such a big price difference for the same quartz material? Today, we will provide a detailed analysis for you to understand the differences between optical quartz materials and semiconductor quartz materials, helping you clearly distinguish these two easily-confused types of quartz materials.
Quartz material is an inorganic non-metallic material with silicon dioxide (SiO2) as its core component. It possesses excellent properties such as high temperature resistance, corrosion resistance, low expansion, high light transmittance, and high insulation. It is an indispensable key basic material in high-end manufacturing fields such as optoelectronics, semiconductors, optical instruments, and aerospace. According to application scenarios, it can be classified into optical-grade quartz, semiconductor-grade quartz, photovoltaic-grade quartz, and industrial-grade quartz, among others. Among them, the technologies for optical and semiconductor-grade quartz have the highest technical barriers and the highest added value.
Optical quartz materials and semiconductor quartz materials are essentially both materials with silica (silicon dioxide) as the main component. The raw materials for both are mainly natural quartz sand or chemically synthesized silicon sources. However, due to different downstream application scenarios, there is a significant differentiation in purity indicators, performance emphasis, and processing standards.
Natural quartz is derived from the purification of quartz mines and has a moderate cost, meeting the requirements of conventional optics and industrial applications. Synthetic quartz is produced through processes such as chemical vapor deposition, with higher purity and better uniformity. It is the preferred material for high-end optics and advanced semiconductors.

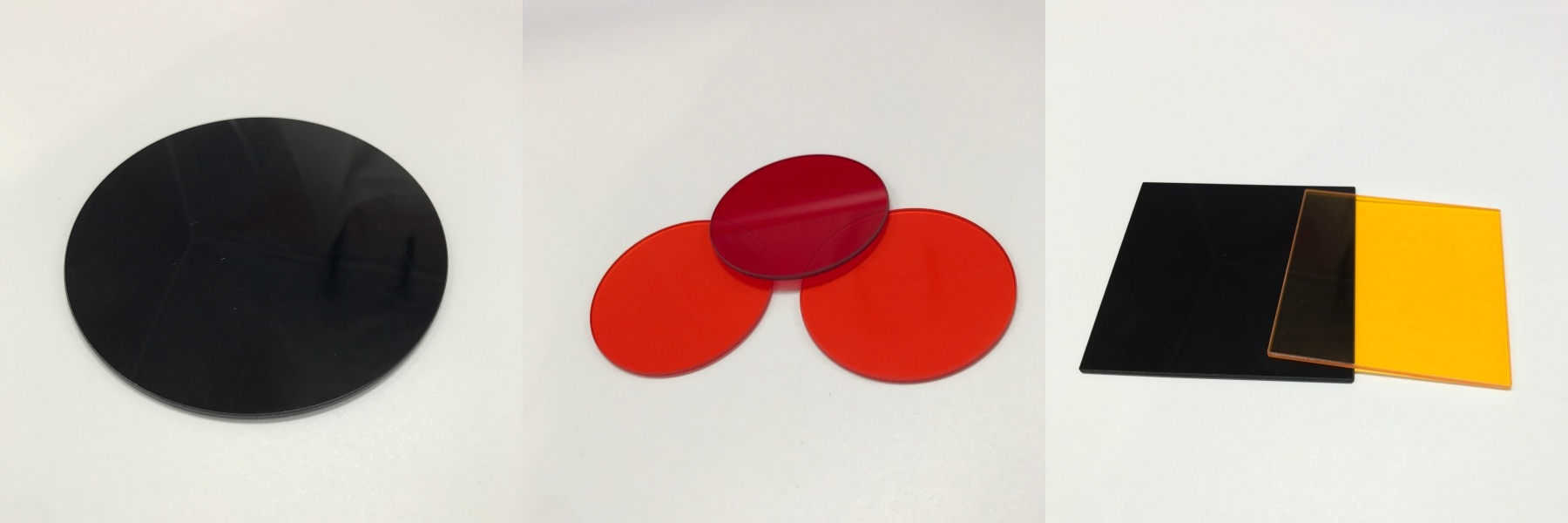

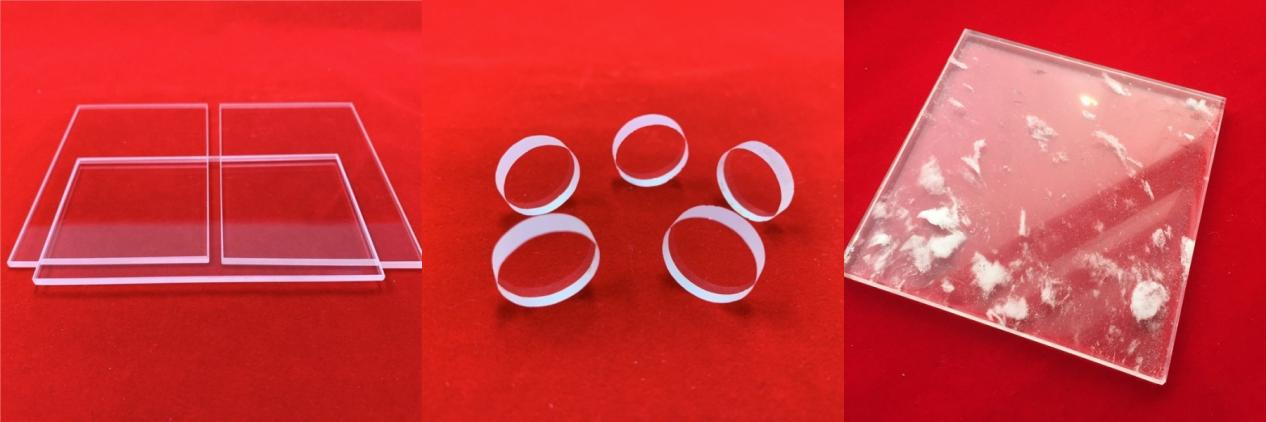

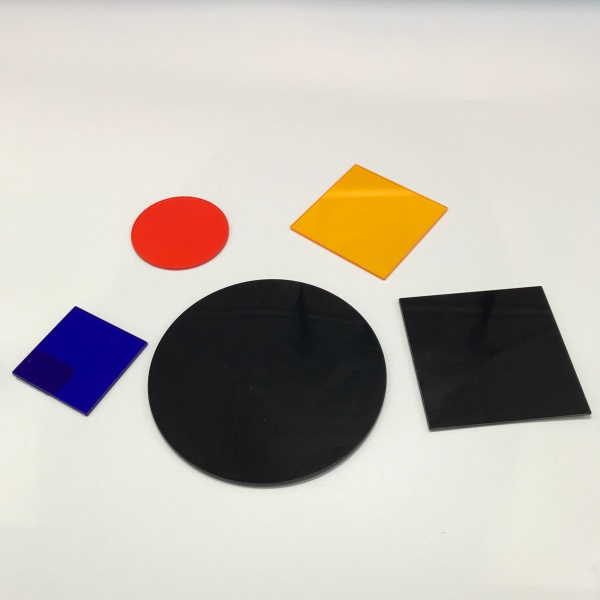

Optical quartz material:
It is mainly used in optical systems, such as optical instruments, laser equipment, infrared detectors, optical lenses, etc., and is used to manufacture optical components like lenses, prisms, reflectors, window plates, etc., to achieve functions such as focusing, refraction, reflection, and transmission of light.
Semiconductor quartz material:
It is mainly used in the high-temperature and high-purity environments during semiconductor manufacturing processes. For example, in the crystal pulling process of silicon wafer manufacturing, a quartz crucible is required; in the grinding, polishing, and cleaning processes, quartz cleaning tanks and quartz boats are needed; in the wafer manufacturing process, diffusion, oxidation, lithography, and etching processes require quartz diffusion tubes, quartz bell jars, and photomask substrates, etc.
Optical quartz material:
The optical performance is extremely demanding, such as high transmittance, low absorption, low scattering, and low birefringence in specific wavelength bands (ultraviolet, visible light, infrared), to ensure the quality of light transmission and imaging effect. At the same time, strict requirements are also imposed on the optical uniformity of the material, surface flatness, absence of bubbles, impurities, and stress.
Summary: Optical quartz places the greatest emphasis on the optical quality within the material.
Semiconductor quartz material:
In addition to certain requirements for optical performance, more emphasis is placed on ultra-high purity, extremely low impurities, ultra-low alkali metal content, low thermal expansion coefficient, high thermal stability, high mechanical strength, excellent resistance to acid and alkali corrosion, in order to meet the process requirements of semiconductor manufacturing for high temperature, high precision, high cleanliness, and no metal contamination.
Summary: Semiconductor quartz is more concerned about purity and high-temperature stability.
Optical quartz material:
The production process mainly involves melting, drawing, cutting, grinding, and polishing, in order to achieve the desired optical shape and surface accuracy. High-performance optical quartz is preferably made from synthetic quartz to ensure band transmission and internal uniformity.
Semiconductor quartz material:
In addition to the basic melting and drawing processes, the production process also needs to include additional steps such as deep purification, high-temperature dehydroxylation, vacuum treatment, ultra-precision processing, and clean detection, to strictly control the hydroxyl content and the precipitation of metal impurities. A typical example is the semiconductor quartz crucible, which is made by using high-purity quartz sand through multiple purification and forming processes.
Silicon dioxide, high-purity quartz, synthetic quartz, natural quartz, quartz crucible, optical transmission, low birefringence, low thermal expansion, high-temperature stability, semiconductor consumables, optical components, dehydroxy treatment, ultra-pure purification.
Question 1: Are optical quartz materials and semiconductor quartz materials the same?
Answer: No. They are both mainly composed of high-purity silicon dioxide, but they differ in application fields, performance requirements, and production processes.
Question 2: What are the main application areas of optical quartz materials?
Answer: Optical quartz materials are mainly used in optical systems, such as optical instruments, laser equipment, infrared detectors, and optical lenses, to make lenses, prisms, reflectors, windows, and other optical components.
Question 3: What are the main application areas of semiconductor quartz materials?
Answer: Semiconductor quartz materials are mainly used in high-temperature and high-purity environments in semiconductor manufacturing, such as quartz crucibles for crystal pulling, quartz boats, quartz diffusion tubes, and photomask substrates.
Question 4: What are the key performance requirements for optical quartz materials?
Answer: Optical quartz materials require extremely high optical performance, including high transmittance, low absorption, low scattering, low birefringence, good optical uniformity, flat surface, and no bubbles or impurities.
Question 5: What are the key performance requirements for semiconductor quartz materials?
Answer: Semiconductor quartz materials focus more on high purity, low impurity content, low thermal expansion coefficient, high thermal stability, high mechanical strength, and good chemical stability.
Question 6: What is the difference in production processes between optical and semiconductor quartz materials?
Answer: Optical quartz materials focus on melting, drawing, cutting, grinding, and polishing. Semiconductor quartz materials also require strict purification, dehydroxylation, and precision processing to meet high purity and precision requirements.
