Honeycomb ceramic is a widely used functional porous structural ceramic material in modern industry. It has regular honeycomb-shaped through-hole channels. Different from dense ceramics and ordinary porous ceramics, it has many advantages: light weight, high specific surface area, good thermal stability and structural stability. It is a key basic material for industrial energy-saving heat exchange, air pollution control and exhaust gas purification. Thanks to its special structure and material properties, it can work under tough conditions such as high temperature, repeated temperature changes, acid-alkali corrosion and high-speed gas flow washing. It has long service life and stable performance.
With different material formulas and channel structures, honeycomb ceramics can be made into different functional products for heat recovery, infrared radiation, exhaust gas purification and other working conditions. Honeycomb ceramic heat regenerators and far-infrared honeycomb ceramics are two main types widely used in industrial thermal processes. Catalytic filter products are designed for tough working conditions of vehicle exhaust after-treatment.

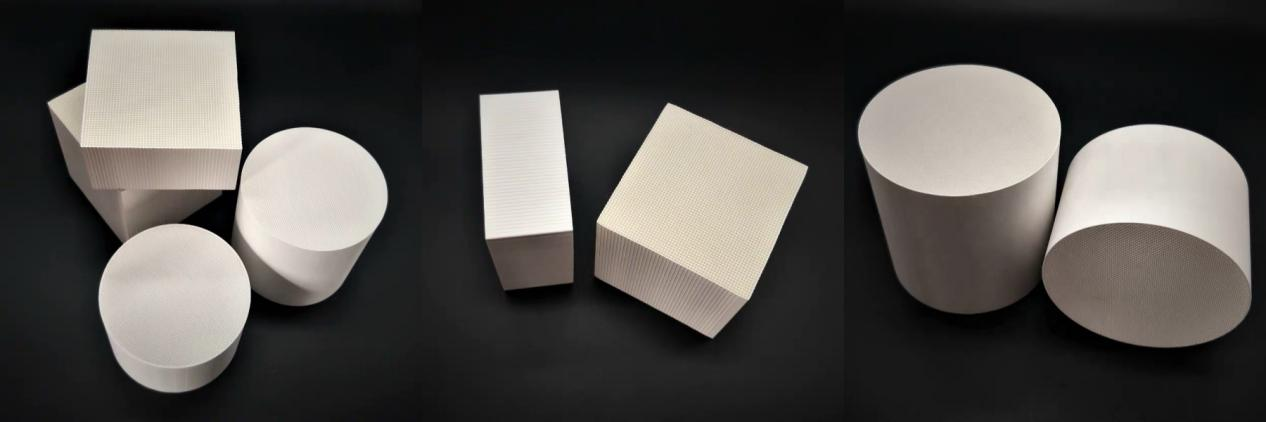

(1) Honeycomb Ceramic Heat Regenerator
This product is mainly used for high-temperature heat storage and heat exchange. Its honeycomb porous structure can store and release heat quickly. It needs good thermal shock resistance and high heat capacity. It must stand repeated high-speed gas washing and frequent hot-cold cycles.
In industrial energy saving, honeycomb ceramic heat regenerators are installed in heat storage chambers of large thermal equipment. Examples include steel rolling heating furnaces, glass melting furnaces and non-ferrous metal smelting furnaces. They recover waste heat from production, improve heat efficiency and cut energy consumption. For waste gas treatment, they work as core heat storage media in Regenerative Thermal Oxidizers (RTO). They handle VOCs waste gas from chemical, coating, electronics manufacturing and printing industries. They keep stable reaction temperature for waste gas decomposition and support long-term continuous equipment operation.

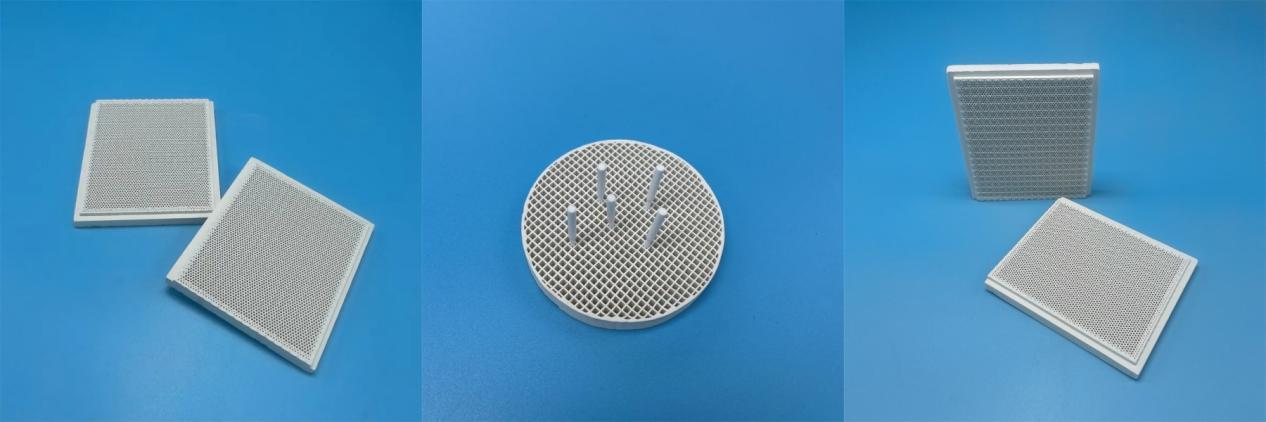

(2) Far-Infrared Honeycomb Ceramic
Far-infrared honeycomb ceramic is made for thermal radiation heating. Far-infrared functional components are added into the ceramic base material. It keeps the advantages of honeycomb structure: high temperature resistance and large specific surface area. When heated, it produces strong far-infrared radiation energy. Besides resistance to temperature change, it requires good radiation performance and stable functional components at high temperature.
These products are widely used in gas combustion devices, industrial drying and curing equipment and hot air heaters. Far-infrared radiation improves heat transfer and shortens drying and curing time for materials. In some cases, infrared radiation activates gas molecules and raises reaction efficiency. The products can run continuously at high temperature for a long time. They fit gas heating, industrial material drying and other practical uses.

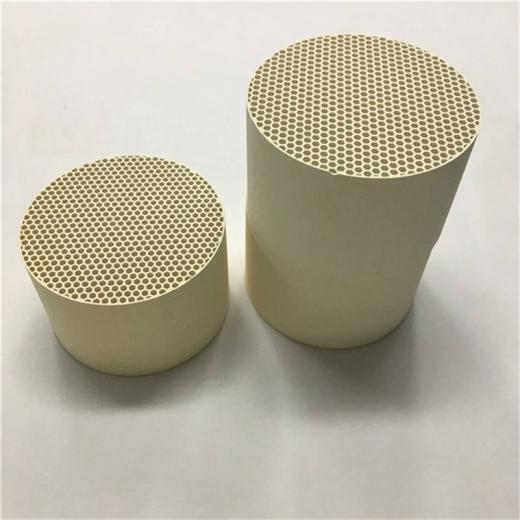

(3) Catalytic Filter-Type Honeycomb Ceramic
This type is developed for vehicle exhaust treatment. It faces high-speed gas flow, pollutant washing and regular high-temperature regeneration. It is a key part of internal-combustion engine exhaust after-treatment systems. There are two structures: straight-through type and wall-flow type. Straight-through products purify exhaust gas through catalysis. Wall-flow products filter particulate matter. It mainly acts as a carrier for catalyst coating. It provides enough positions for catalytic active materials. Harmful substances in exhaust gas complete chemical reactions and become harmless.
Base materials determine real performance of honeycomb ceramics. According to temperature, chemical media and force in different working conditions, several mature ceramic material systems have been developed. Different materials have different strengths and suitable application scenarios.
Cordierite is the most widely used base material in mass production. Its main strengths are low thermal expansion coefficient, good thermal shock resistance, abundant raw materials, low cost and mature production process. It fits common vehicle exhaust purification conditions. It is the mainstream carrier for vehicle catalysts and holds a large market share.
Silicon carbide has high strength and good thermal conductivity at high temperature. It responds fast to heat and keeps stable structure under high temperature. It fits working conditions with frequent high-temperature regeneration and heavy load. It is mostly used for high-end particulate capture parts and can bear repeated high-temperature regeneration.
Aluminum titanate has excellent resistance to hot-cold shock. It can stand repeated large-temperature-difference cycles. It plays an irreplaceable role in industrial equipment with abrupt and frequent temperature changes.
In addition, alumina ceramic and mullite ceramic show good acid-alkali corrosion resistance. They can be used in corrosive environments for special waste gas treatment and chemical components. Special ceramic base materials such as spodumene, zircon and sodium zirconium phosphate have unique physical and chemical properties. They serve niche high-end fields with extremely tough working conditions.
With stricter industrial energy-saving requirements and exhaust emission standards, the honeycomb ceramic industry keeps developing toward better overall performance and wider application range. Manufacturers improve composite formulas to upgrade thermal expansion, thermal shock resistance, corrosion resistance and mechanical strength at the same time. This helps products adapt to various harsh conditions. On the structural side, high-cell-density thin-wall design is being promoted. While keeping mechanical strength and open-cell rate, it increases effective contact area and reduces gas resistance. It balances heat exchange, filtering performance and product reliability. Meanwhile, high-precision molds and automatic testing tools improve production control. They make product size and hole channels more uniform and raise batch-to-batch stability. This supports large-scale application of high-performance honeycomb ceramics.
Question 1: What key merits make honeycomb ceramics suitable for harsh high-temperature industrial conditions?
Answer: Honeycomb ceramics own light weight, high specific surface area, good thermal and structural stability. It can resist high temperature, cyclic temperature change, acid-alkali corrosion and high-speed gas washing, delivering stable performance and long service life.
Question 2: What main applications does honeycomb ceramic heat regenerator have in industry?
Answer: It recovers waste heat for large thermal furnaces such as steel rolling furnaces and glass melting furnaces to save energy. Besides, it acts as core heat-storage medium in RTO equipment to treat VOCs waste gas from chemical, coating and printing industries.
Question 3: What is the working principle of far-infrared honeycomb ceramic?
Answer: Far-infrared functional components are added into ceramic substrate. Under heating, it generates strong far-infrared radiation energy. Such radiation accelerates heat transfer and shortens drying and curing time of industrial materials.
Question 4: What are the differences between cordierite and silicon carbide as honeycomb ceramic base materials?
Answer: Cordierite has low thermal expansion, good thermal shock resistance and low cost, widely used for vehicle exhaust carriers. Silicon carbide has high-temperature strength and thermal conductivity, fit for heavy-duty conditions requiring frequent high-temperature regeneration for particulate capture.
Question 5: What are the two structural designs of catalytic filter-type honeycomb ceramic and their respective functions?
Answer: It has straight-through type and wall-flow type. The straight-through type purifies exhaust gas via catalytic reaction. The wall-flow type is mainly responsible for filtering particulate matter, and both serve as carrier for catalytic coating materials.
