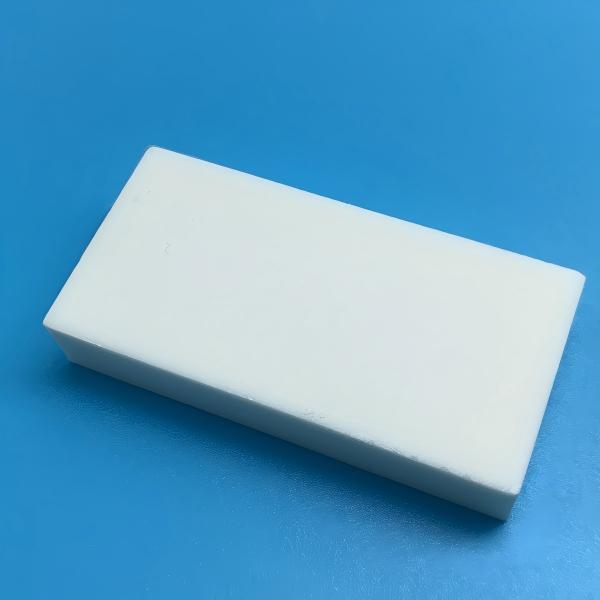

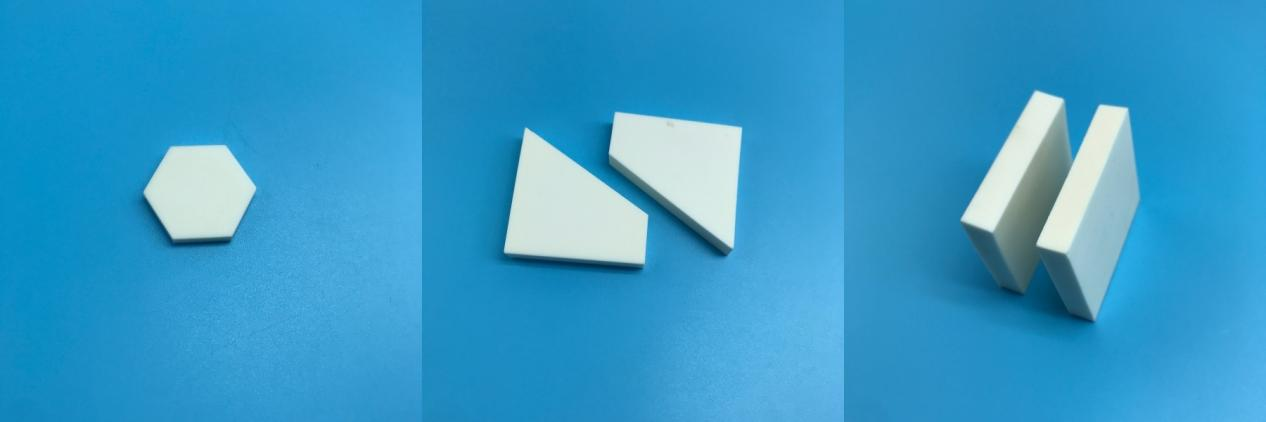

High-precision alumina ceramic substrates are key inorganic base materials widely used in microelectronics and power electronics. They have excellent overall physical and chemical properties and can work reliably in harsh operating conditions of high-end electronic devices.
These substrates have stable mechanical support performance. Ordinary products reach a flexural strength of 300-400 MPa, with good structural rigidity, bending resistance and impact resistance. They also provide outstanding insulation, with volume resistivity above 10¹⁴ Ω·cm. This prevents unintended circuit conduction and electric leakage. Together with good light-blocking performance, they help circuits work stably and safely. Thanks to these advantages, alumina ceramic substrates are widely used in high-density multi-layer wiring, high-precision semiconductor packaging, radio-frequency microwave circuits and high-power power-electronic modules. They serve as an important basic material for electronic devices to become smaller, more integrated and more reliable.
Compared with other special ceramic substrates such as aluminum nitride and zirconia, alumina ceramic shows clear competitive strengths in industrial production. Its raw materials are easy to obtain, abundant in supply, stable in supply chain and low in cost. It also has good corrosion resistance, thermal shock resistance, insulation stability and mechanical performance. It fits many complex working environments. Balanced properties, mature processes and good cost-performance make alumina ceramic substrates the mainstream choice in the industry. They take up over 80 % of the market and are the most fully industrialized and widely-used electronic ceramic substrates today.
Based on alumina purity, the industry divides these substrates into common grades: 90 %, 95 %, 96 % and 99 % alumina ceramics. The main difference among these grades lies in the amount of additives used during production. Less added material means higher alumina purity and better overall product quality. Purity directly changes electrical and mechanical performance. Higher-purity substrates deliver more stable dielectric properties, lower dielectric loss, better surface smoothness and higher flatness. They can meet different requirements for high-end precision packaging, high-frequency circuits and high-power components.
Even so, alumina ceramic has clear process limits. It needs high sintering temperature and is hard to achieve full densification. During high*temperature sintering, alumina grains tend to regrow. Some grains may become unusually large. This creates uneven microstructures inside substrates. As a result, finished products show scattered mechanical strength and poor performance consistency.
To solve this common industrial problem, domestic manufacturers usually add special sintering additives to lower sintering temperature. For mass-produced 95 % alumina ceramics, three-component or four-component additive systems are widely used. These additives form liquid phases at high temperature. They speed up particle rearrangement and mass transfer, increase the density of green bodies and improve performance uniformity of substrates.
Tape casting is the main mass-production process for high-precision alumina ceramic substrates. Technical improvements focus on three goals: high-precision forming, dense green bodies and good process adaptability.
In this process, fine alumina powder is mixed with solvents, binders, dispersants and other auxiliary materials to make ceramic slurry with stable flow behavior. The slurry is spread evenly onto flexible carrier films by high-precision doctor blades to form thin wet sheets. After step-by-step drying, binder removal and high-temperature sintering, dense and dimension-accurate ceramic substrates are obtained.
Tape casting fits well for making ultra-thin, uniform and high-precision ceramic sheets. It matches the trend toward smaller size and higher integration of modern electronics. It supports continuous large-scale production and also works for other ceramic materials such as aluminum nitride. Its main disadvantage is strict requirements on raw-material quality, including powder purity and particle-size uniformity.
Current research on tape casting aims for stable large-batch production with high precision, few defects and low cost. This is also a key technical bottleneck holding back high-end alumina substrate quality. Three major factors affect production quality.
First, slurry dispersion and flow performance form the basis of forming. Only powder with narrow particle-size distribution and good dispersion can avoid defects such as uneven thickness, pinholes and cracks.
Second, shrinkage control during sintering determines final dimensional accuracy. Irregular-shaped powder or high impurity levels cause inconsistent sintering shrinkage. Substrates may warp, deform or crack, which badly harms later steps such as packaging and film coating.
Third, re-flat heat treatment greatly improves quality for high-end substrates. Special re-flat furnaces release residual internal stress left by sintering and fix micro-deformation. Substrates gain much better flatness to satisfy strict standards for semiconductor precision packaging.
In short, the quality of alumina ceramic substrates comes from combined effects of raw-material selection, slurry preparation, forming, sintering and post-treatment. Full-process control directly decides product yield and performance grade.
Industry-wide technical upgrades now focus on finer powder screening, more stable slurry systems, precise adjustment of sintering profiles and improved stress-relief flattening processes. Systematic process improvements help reduce common mass-production problems including insufficient precision, poor consistency and high defect rates.
In the future, driven by advances in semiconductors, new-energy industries and radio-frequency communications, electronic devices will become more high-frequency, compact and highly integrated. The market will demand alumina substrates with higher precision, lower loss, better flatness and higher reliability. Therefore, large-scale manufacturing technology with low cost, few defects, high precision and good consistency will remain a core research focus and industrial breakthrough direction for electronic ceramics.
Answer: High‑precision alumina ceramic substrate is a key inorganic base material for microelectronics and power electronics. It has high mechanical strength, excellent insulation and stable physical‑chemical properties. It can withstand harsh working conditions of high‑end electronics, and serves as an essential material for miniaturized, highly‑integrated and highly‑reliable electronic devices.
Answer: They are widely used in high‑precision semiconductor packaging, high‑density multi‑layer wiring, RF microwave communication circuits and high‑power electronic modules. They support semiconductor, new‑energy and high‑end communication industries.
Answer: It features abundant raw‑material supply, stable supply chain and good cost‑performance with mature mass‑production processes. It also has good mechanical properties, corrosion resistance, thermal‑shock resistance and insulation stability. It takes more than 80 % of the market share and shows better industrial adaptability than many other special ceramic substrates.
Answer: The difference comes from alumina content and additive dosage. Higher purity brings lower dielectric loss, more stable dielectric performance, better surface smoothness and higher dimensional accuracy, meeting high‑end requirements for high‑frequency, high‑power and precision semiconductor packaging.
Answer: High sintering temperature and difficult densification are the main challenges. Abnormal grain growth may happen at high temperature and cause uneven microstructure. This leads to scattered strength, poor flatness, as well as defects including warpage, deformation and cracking.
Answer: Tape casting is the mainstream process. Stable ceramic slurry is prepared first, followed by tape casting coating, drying, binder removal, high‑temperature sintering and post‑treatment. It fits ultra‑thin high‑precision sheets and supports continuous large‑scale production.
