Transmission of visible light>90% Working temperature: 1100°C=2012°F
Strength of Quartz crucible：570KHN100
Features Of Clear Quartz Crucible：
Strong Hardness;
High temperature resistance;
Quartz crucible is Excellent electrical insulator;
High Temperature Resistanceof the quartz crucible:
The softening point temperature of quartz glass is about 1730ºC, which can be used at 1200ºC for a long time. The short time use temperature can reach 1450ºC.
Good Thermal Stability of the quartz crucible: Quartz glass coefficient of thermal expansion is small, can withstand drastic temperature changes, the quartz glass heated to about 1200 ºC, put room temperature water will not blow up.
Property Content
Property Index
Density
2.2g/cm3
Strength
570KHN100
Tensile Strength
4.8×107Pa (N/m2)
Compression Strength
>1.1×109Pa
Coefficient of Thermal Expansion(20℃–300℃)
5.5×10-7cm/(cm·℃)
Thermal Conductivity(20℃)
1.4W/(m·℃)
Specific Heat(20℃)
660J/(kg·℃)
Softening Point
1630℃
Annealing Point
1180℃
Company Profile

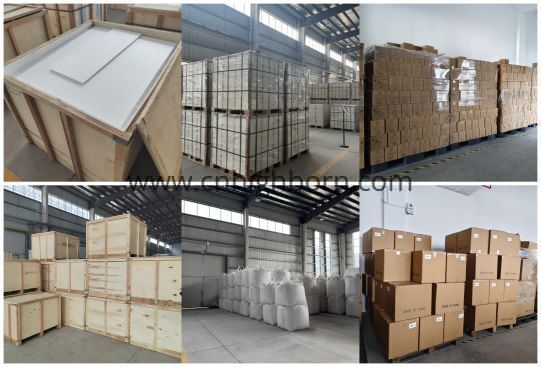

Packaging & Shipping
Packing Details
We will packing by professional export packing,safety against breakage, finally into the wooden cases/ carton/pallet or customized package. We have ERPauthentication.
Delivery Details
We can deliver by SEA,air,rail transportation,the China-Europe Railway Express etc.
We are mainly supplying quartz glass, cuvette, precise ceramics, porous ceramics, thick film resistor, ozone generator, metal fiber felt and we have been offering our products and services to our clients from more than 107 countries or regions.
