Product Description
 | Alumina ceramic :

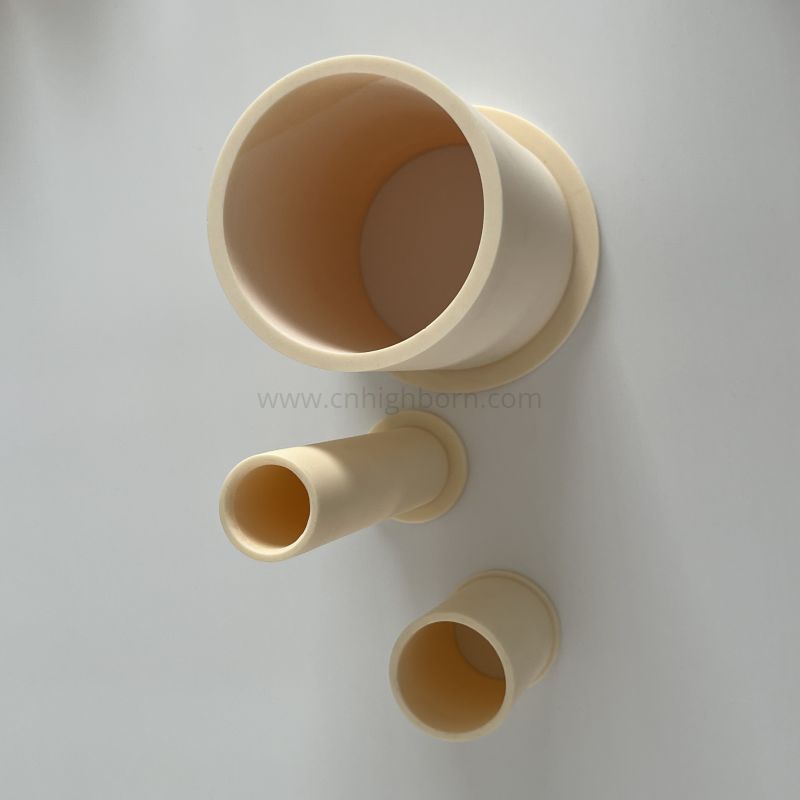

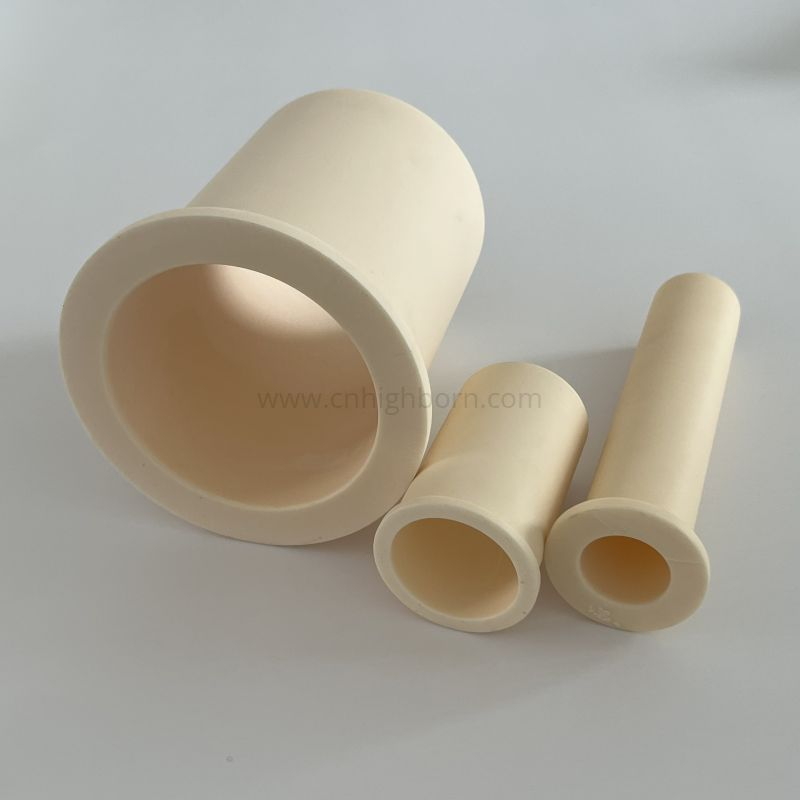

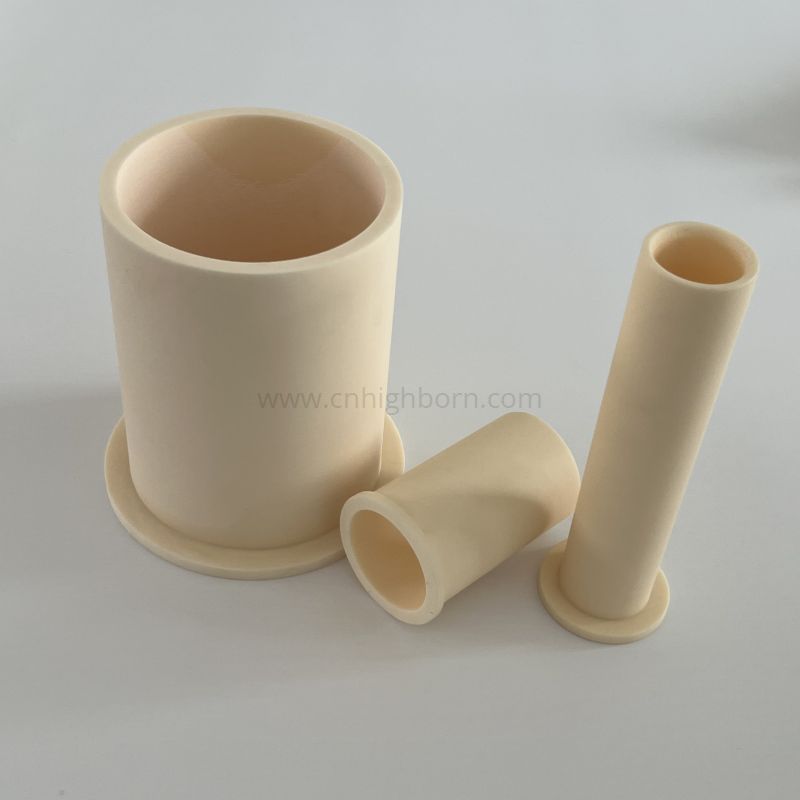

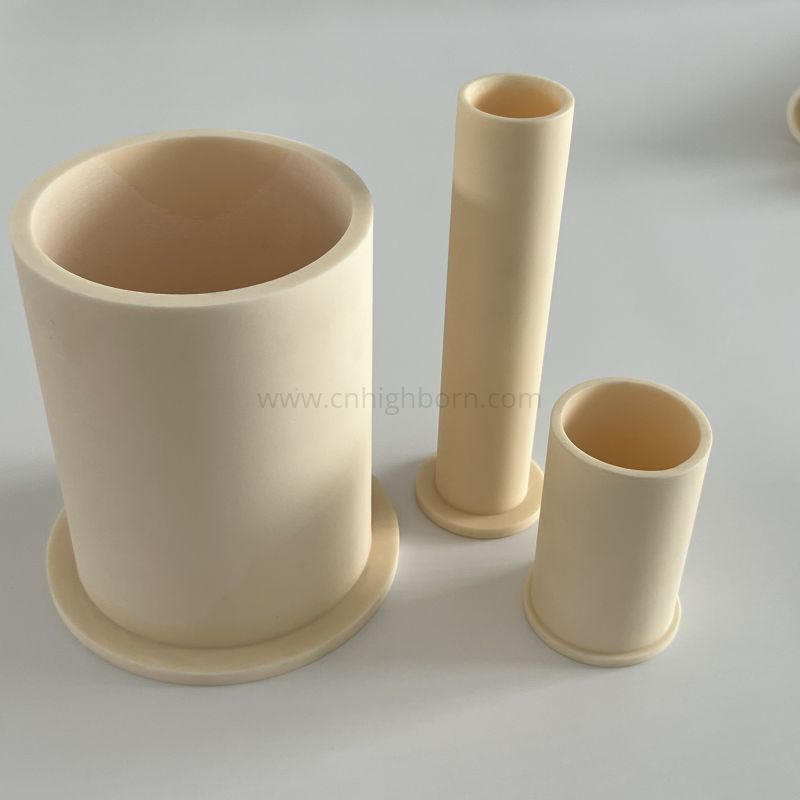

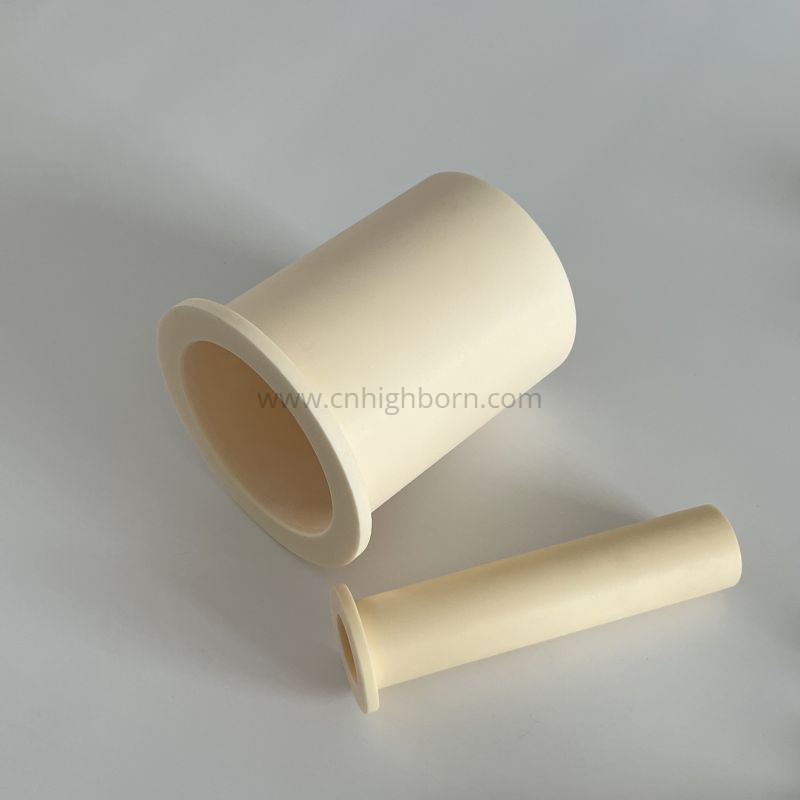

Alumina Ceramic bushing is produced from 99% alumina raw material. It is shaped by isostatic pressing, high temperature sintering, then inner and outer diameter are processed by precision grinding. |
Ceramic bush: Advantages Good electrical insulation performance, works stably under high temperature environments. High mechanical hardness and wear resistant property for continuous friction working condition. |  |
 | Ceramic parts: Compact ceramic body with low water absorption. Customizable inner diameter, outer diameter, height and dimensional tolerance; secondary operations such as chamfering are supported. Samples and small lot orders are acceptable. |
Ceramcic sleeve: Applications Applied as wear resistant bushing, insulating sleeve, positioning liner for pump assemblies, mechanical equipment, sensor units, high temperature fixtures and electronic devices. |  |
Alumina Purity | 92% | 95% | 96% | 99% |
颜色 Color | White 白色 | White 白色 | White 白色 | Ivory White 象牙白 |
体积密度 Volume density(g/cm3) | 3.45 | 3.5 | 3.7 | 3.75 |
吸水率 Water Absorption | 0 | 0 | 0 | 0 |
抗弯强度 Flexural Strength | 300MPa | 300MPa | 320MPa | 330MPa |
维氏硬度 Vickers hardness | 1300 | 1400 | 1400 | 1800 |
介电常数 Dielectric Constant (at 1MHZ 25℃) | 10 | 10 | 10 | 10 |
弹性模量 Modulus of elasticity | 350GPa | 350GPa | 350GPa | 370GPa |
热导率 thermal conductivity (30℃) | 18W/(m·K) | 24W/(m·K) | 24W/(m·K) | 25W/(m·K) |
体积电阻率 Volume resistivity | 1014Ω•cm | 1014Ω•cm | 1014Ω•cm | 1014Ω•cm |
介电强度 Dielectric strength | 20KV/mm | 20KV/mm | 20KV/mm | 20KV/mm |
Company Profile
Packaging & Shipping
Packing Details | We will packing by professional export packing,safety against breakage, finally into the wooden cases/ carton/pallet or customized package. We have ERP authentication. |
Delivery Details | We can deliver by SEA,air,rail transportation,the China-Europe Railway Express etc. TNT, DHL,UPS, FEDEX, EMS，S.F EXPRESS etc. |
| 1. Sample service | 2. Optimal price | 3. Customized logo |
| 4. Fast feedback | 5. Customized size | 6. Safety package |
| 7. ISO9001 | 8. Aftersale service | 9. Low procurement risk |
