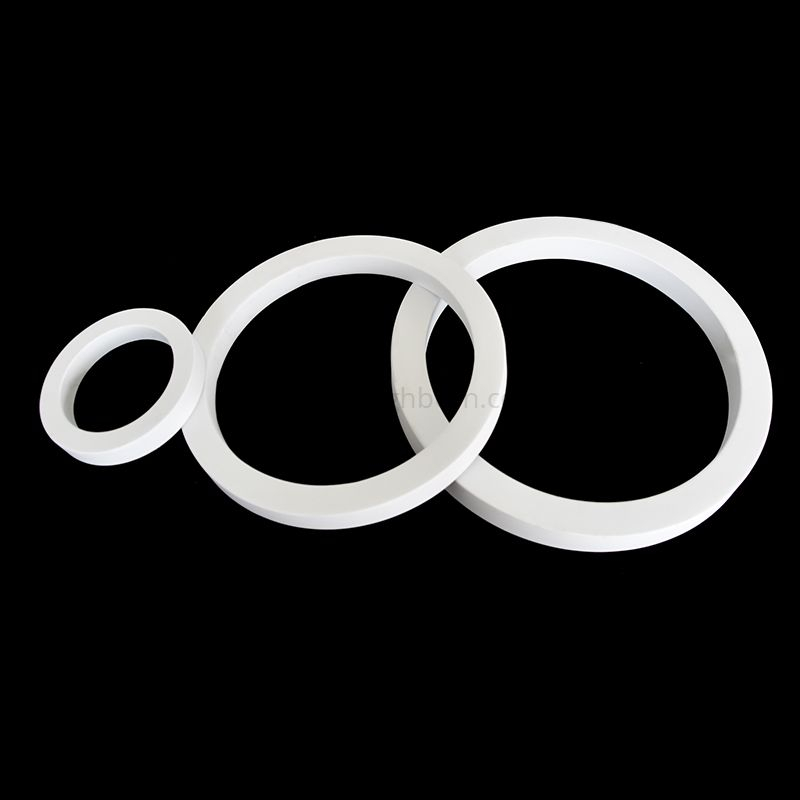

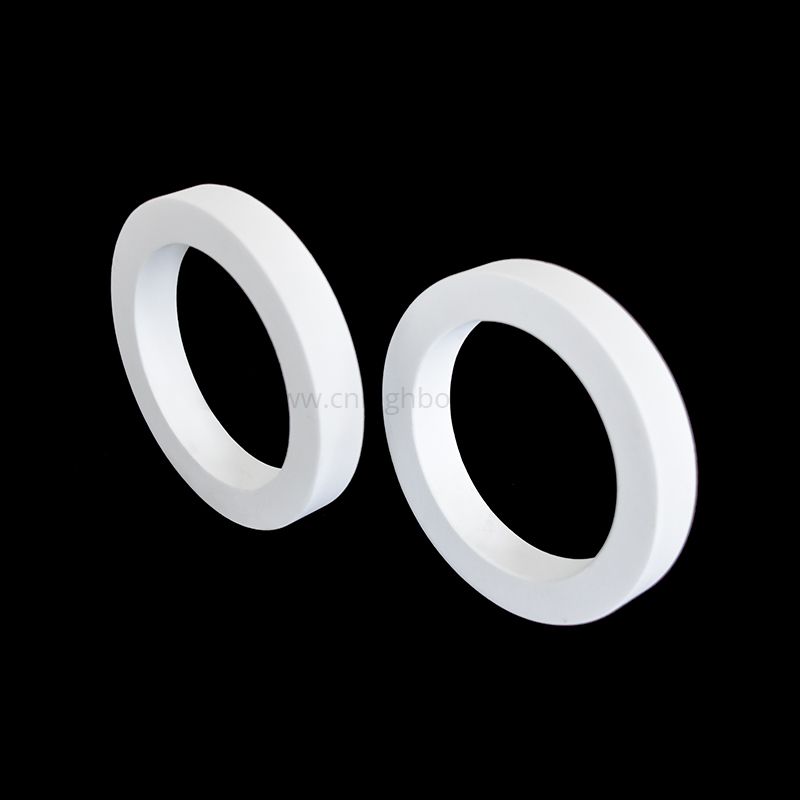

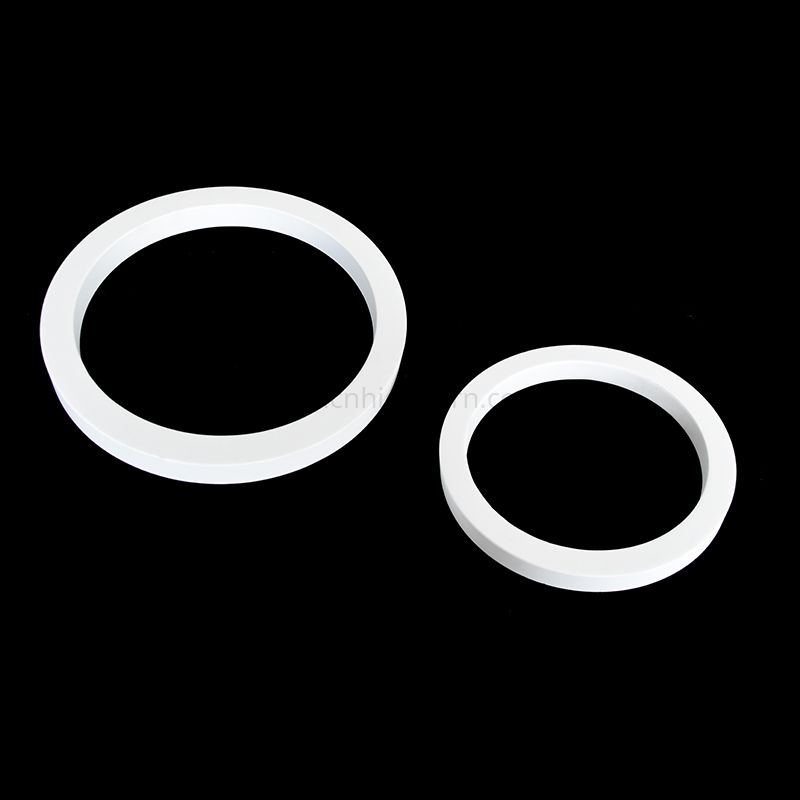

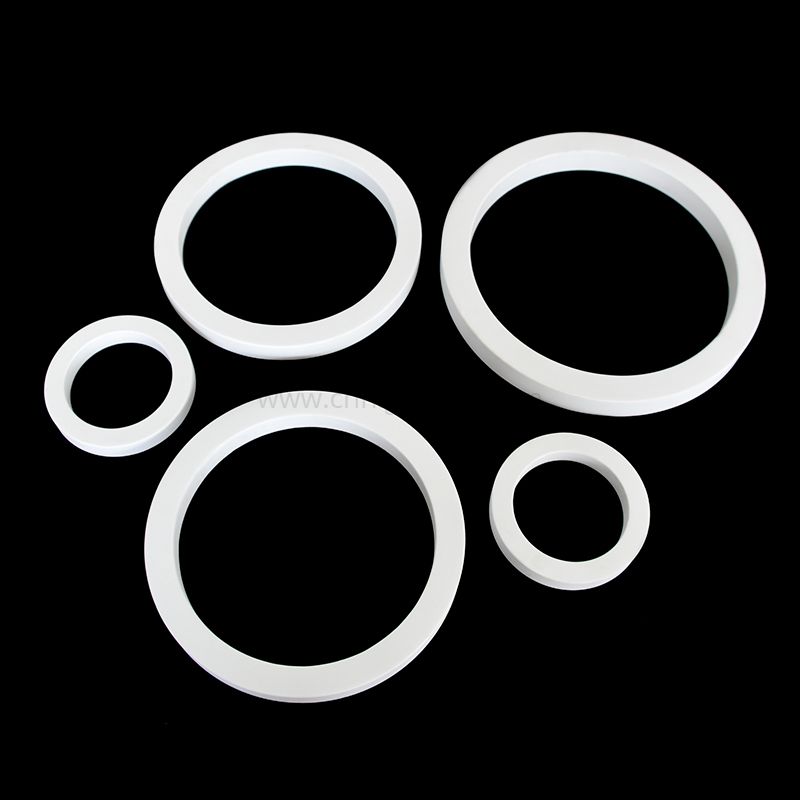

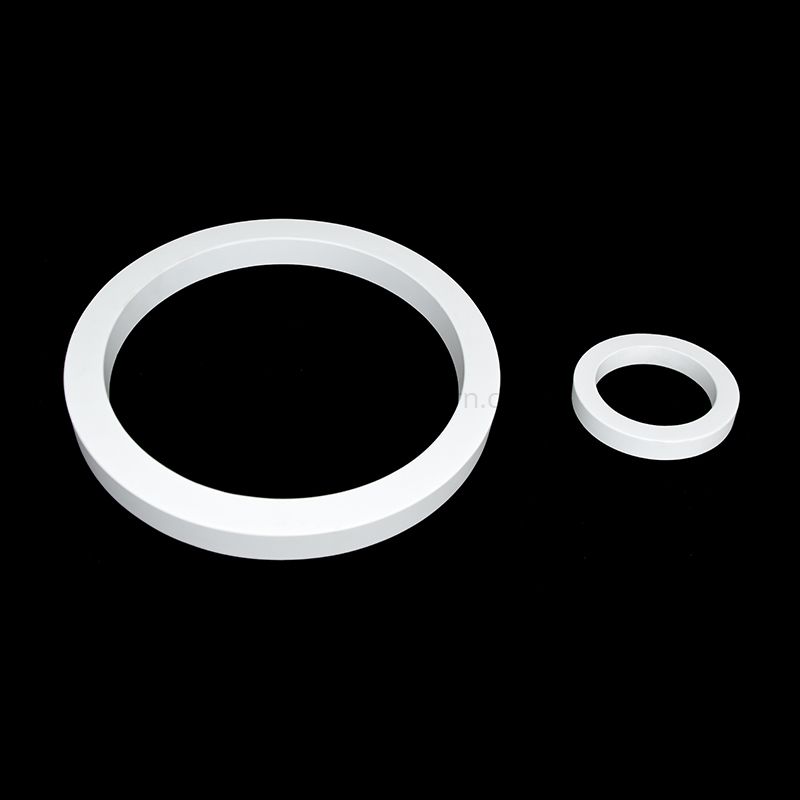

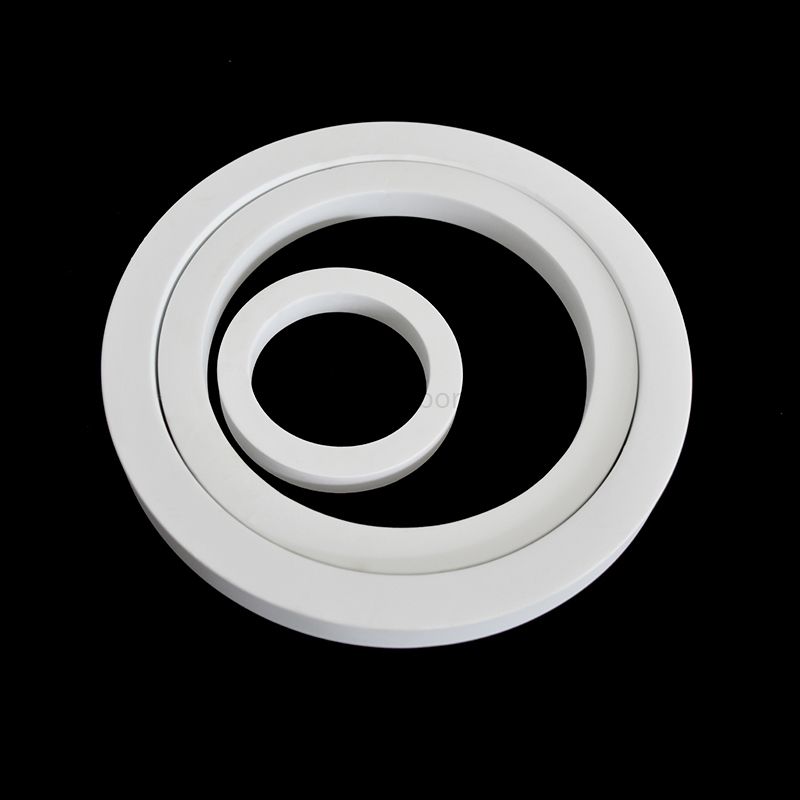

Customized 95% al2o3 ceramic ring alumina gasket


Availability:

Quantity:

Inquire Add to Basket

20 years export experience
8 Trademarks、40 Patents
Design & Research
Cooperated with Global 500 enterprises
Certificates:ISO、ROHS、CE etc.

Max using temperature:1380°C

Density:＞3.68g/cm3

PRODUCT DETAILS

Product Description

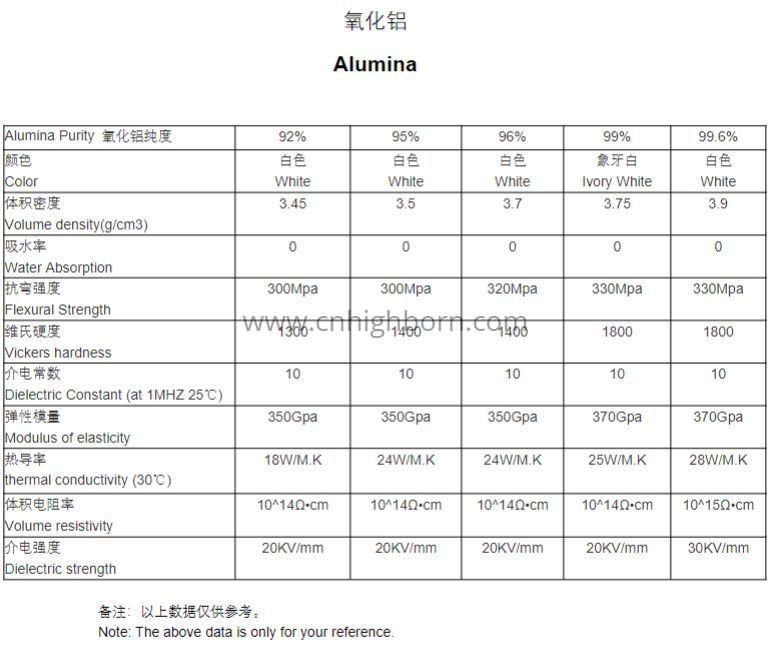

	Al2o3 ceramic features We supply 5 grades of alumina ceramic: 92%, 95%, 96%, 99%, 99.6%. Most are white, while 99% grade is ivory white. 0% water absorption for all series.
Alumina Ceramic Specifications : Outstanding insulation: Stable dielectric constant 10, volume resistivity 10¹⁴~10¹⁵Ω·cm, max dielectric strength 30KV/mm. No electric leakage under high voltage to avoid short-circuit risks.
	Alumina Ceramic : Superior mechanical property: Flexural strength 300–330MPa, Vickers hardness 1300–1800, elastic modulus 350–370GPa. Excellent wear & impact resistance cuts replacement frequency and extends equipment service life.
Alumina ceramic： Alumina material is widely used in electronics, electrical equipment instrument and apparatus, house hold appliances, electric vacuum device, communication tools,temperature control switch ,high-grade ceramic valve,faucet move sliding-vane and other industries

alumina ceramic

Company Profile

Packaging & Shipping

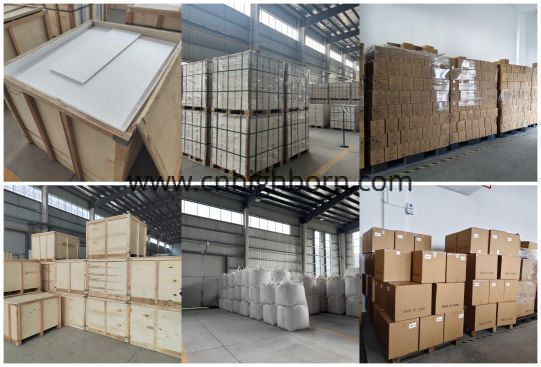

Packing Details

We will packing by professional export packing,safety against breakage, finally into the wooden cases/ carton/pallet or customized package. We have ERP authentication.

Delivery Details

We can deliver by SEA,air,rail transportation,the China-Europe Railway Express etc.

TNT, DHL,UPS, FEDEX, EMS，S.F EXPRESS etc.

Our Services

What we can do for you:

1. Sample service	2. Optimal price	3. Customized logo
4. Fast feedback	5. Customized size	6. Safety package
7. ISO9001	8. Aftersale service	9. Low procurement risk
