Product Description
 | Introduction to Sic ceramic: Common molding methods include dry pressing and isostatic pressing. Dry pressing is suitable for simple shaped products, where pressure is applied through a mold to densify the powder; Isostatic pressing can produce complex shaped parts with better pressure uniformity |
SiC Advantage: Full-Chain Manufacturing: From forming, sintering to precision processing, one-stop solution for all your SiC ceramic needs After-Sales Support: Technical guidance, performance testing and after-sales service to ensure optimal product application | |
 | Silicon Carbide Feature: Featuring uniform through holes with chamfered edges, it delivers exceptional thermal conductivity, and wear resistance,making it the ideal choice for gas distribution, molten metal filtration, and high-temperature heat exchange applications. |
SiC ceramic Application: 1.High Temperature Furnaces: Gas distribution plates for roller kilns to ensure uniform gas flow and temperature distribution 2.Metal Casting & Foundry: Filter discs for molten aluminum and other non-ferrous metals to remove inclusions and improve casting quality |
|
| Parameter | Measurements | RB SiC | SSiC |
| Density | g/cm3 | ≥3.03 | 3.08~3.15 |
| Indicated Porosity | % | ≤1% | ≤1% |
| Crystal Size | µm | ≤10 | ≤10 |
| Hardness | Rockwell | ≥90 | ≥92 |
| Compressive Strength | MPa | 3000 | 3000 |
| Transverse Strength | MPa | ≥350 | 400 |
| Maximum Temperature | ºC | 1200 | 1600 |
| Elastic Modulus | GPa | 350 | 400 |
| Thermal Conductivity | W/m*k | 30~130 | 30~130 |
| Coefficient of Thermal Expansion | 1 x 10-6 / ºC | 4~5 | 4~5 |
Company Profile

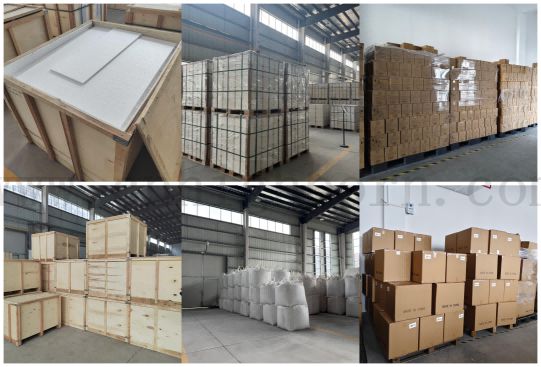

Packaging & Shipping
Packing Details | We will packing by professional export packing,safety against breakage, finally into the wooden cases/ carton/pallet or customized package. We have ERP authentication. |
Delivery Details | We can deliver by SEA,air,rail transportation,the China-Europe Railway Express etc. TNT, DHL,UPS, FEDEX, EMS，S.F EXPRESS etc. |
| 1. Sample service | 2. Optimal price | 3. Customized logo |
| 4. Fast feedback | 5. Customized size | 6. Safety package |
| 7. ISO9001 | 8. Aftersale service | 9. Low procurement risk |
