Product Description
 | Boron nitride ceramic High temperature insulating support block: insulation support for vacuum furnaces, heat treatment equipment and resistance heating stations. |
| Hexagonal Boron Nitride BN Ceramic Parts |  |

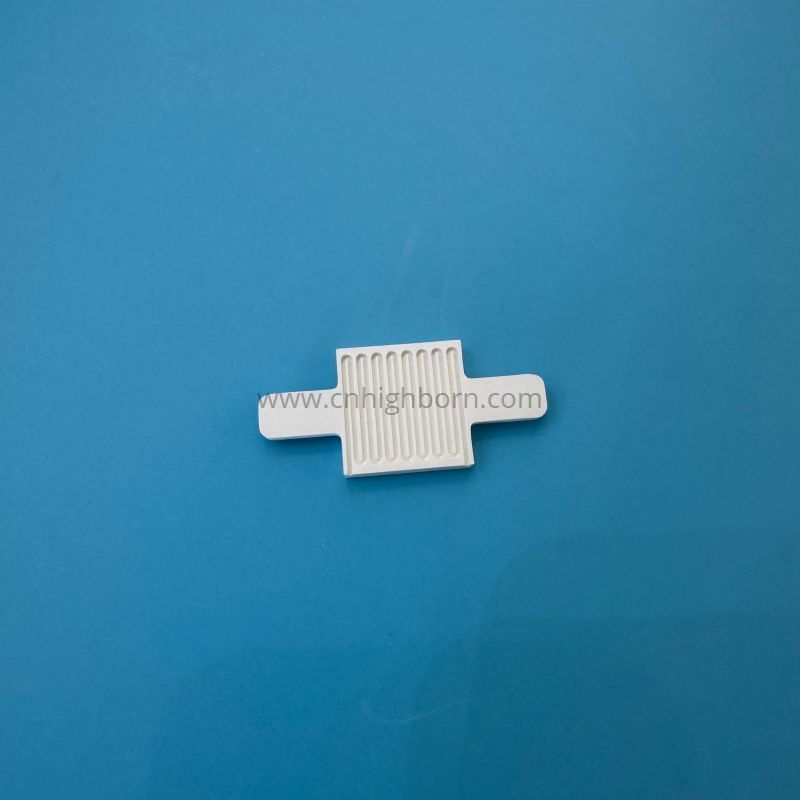

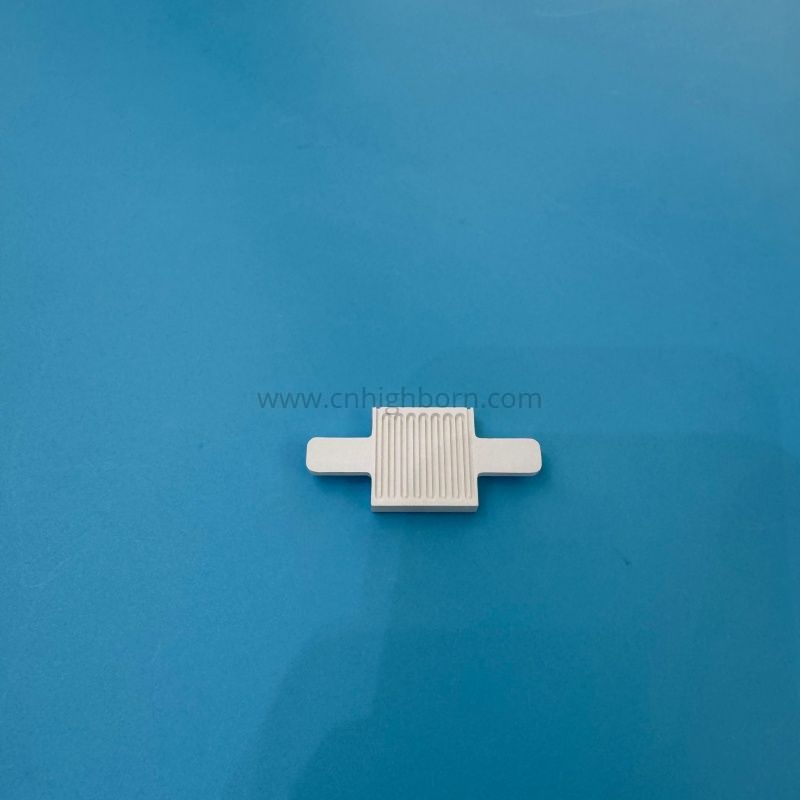

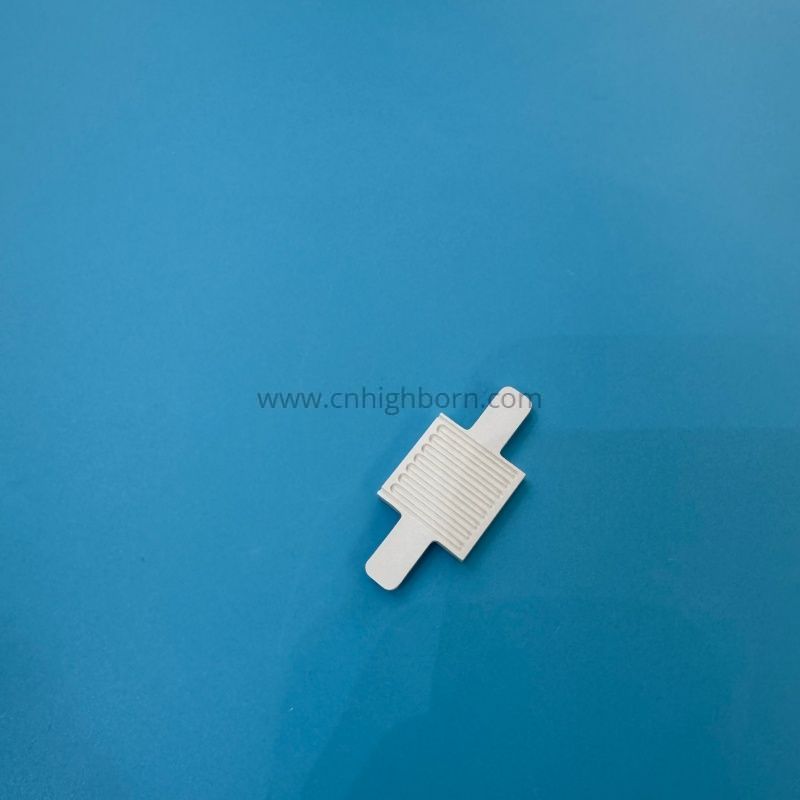

 | Grooved Boron Nitride Ceramic Heating Plate |

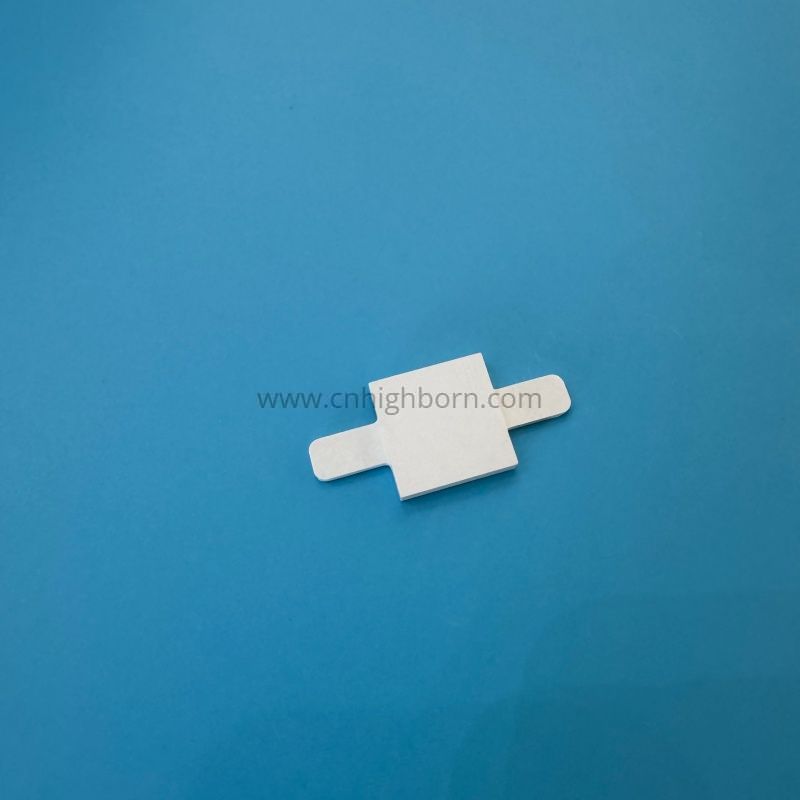

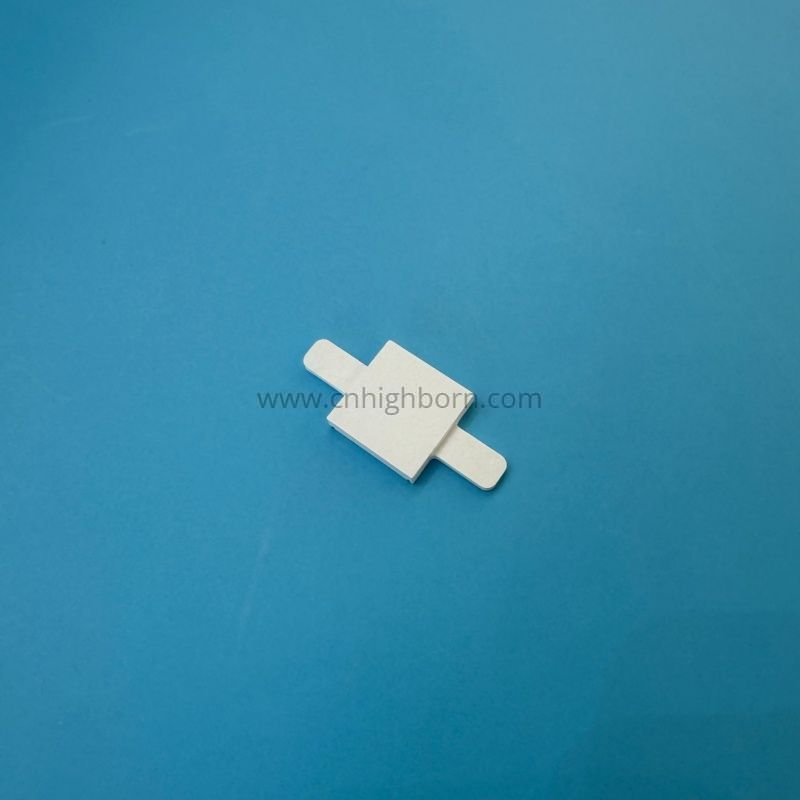

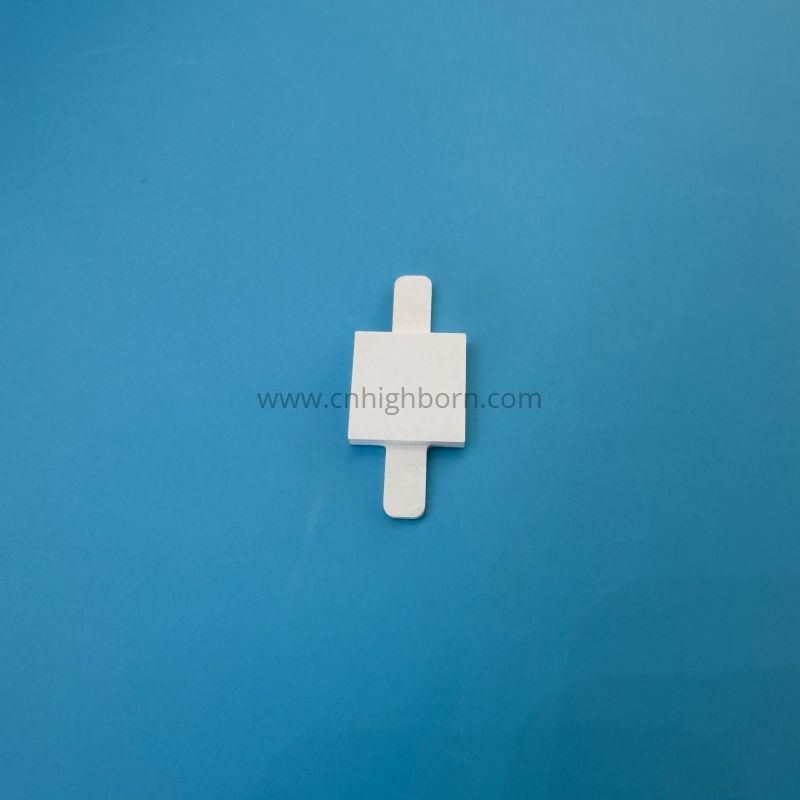

| High Temp BN Ceramic Heater Base With Machined Channels We can customize to your requirements. Using our core strengths of custom-engineering & designing,material expertise, operational excellence and rapid execution. |  |
Parameter | Value |
Thermal Conductivity (RT) | 45-50 W/(m·K) |
Thermal expansion coefficient (25-700℃) | 6.5-7.5 ×10 -⁶/℃ |
Resistivity (RT) | ＞10¹² Ω·cm |
Breakdown voltage | 2.5-4.0 ×10⁶/kV·m |
Mohs' hardness | 2 |
Dielectric constant | 3.8-4.3 |
Bending strength (RT) | ＞35 MPa |
Compression strength (RT) | ＞200 MPa |
Density | 1.9-2.2 g/cm³ |
B+N Content | 99.5 % |
Oxygen Content | ＜0.4 % |
Carbon Content | ＜0.05 % |
Max. Temperature-Oxidizing Atmosphere | 900 ℃ |
Max. Temperature-Vacuum | ≥2200 ℃ |
Max. Temperature-Inert Atmosphere | ≥2200 ℃ |
