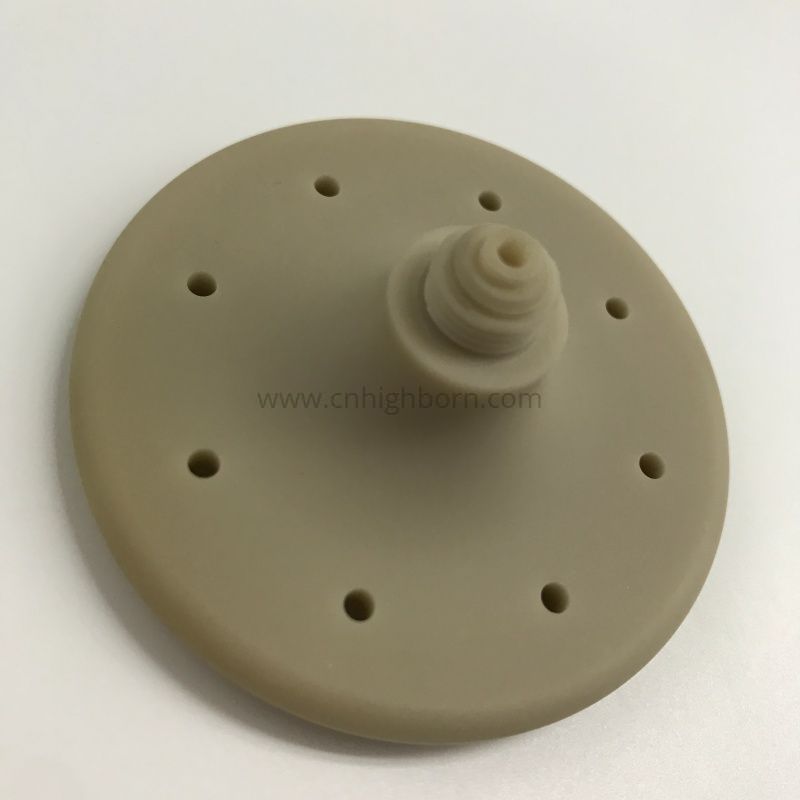

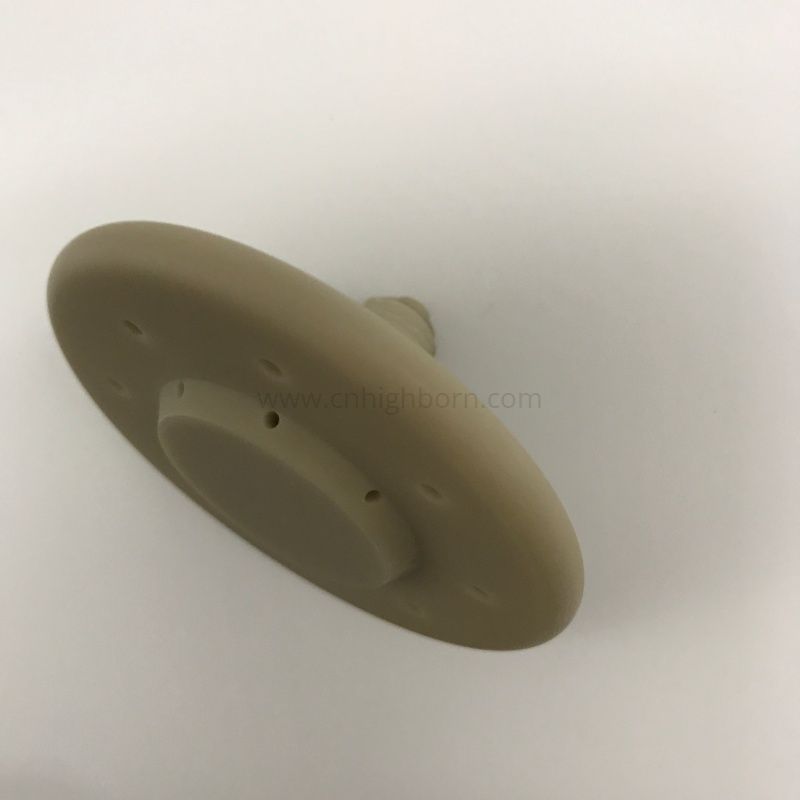

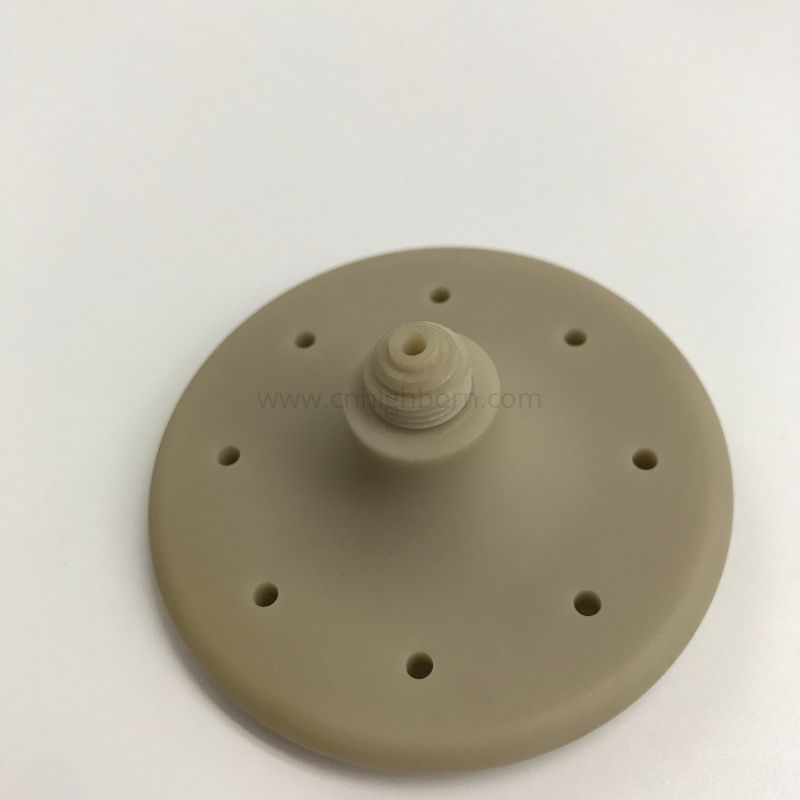

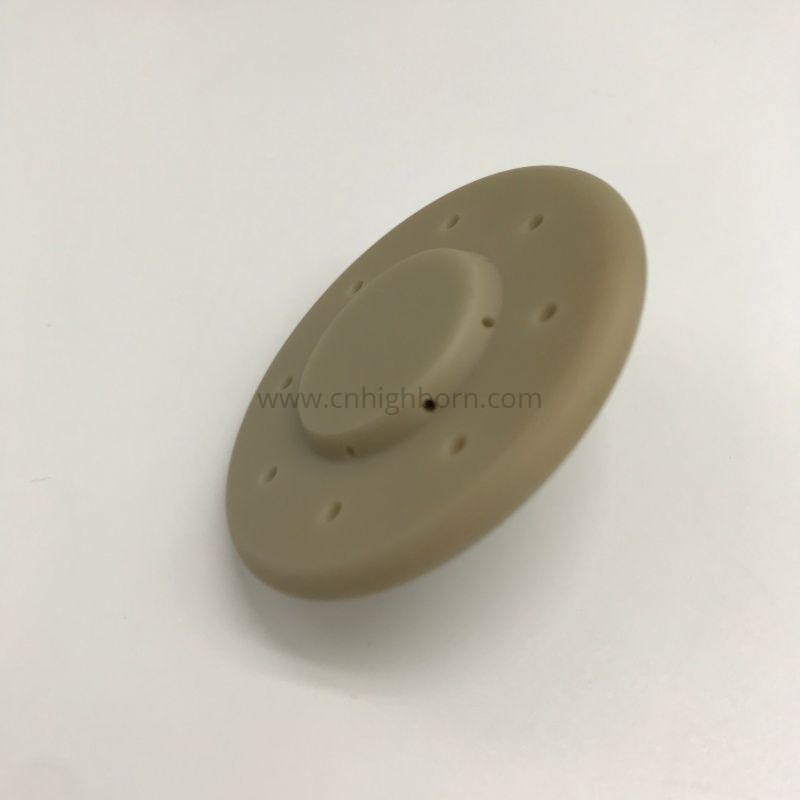

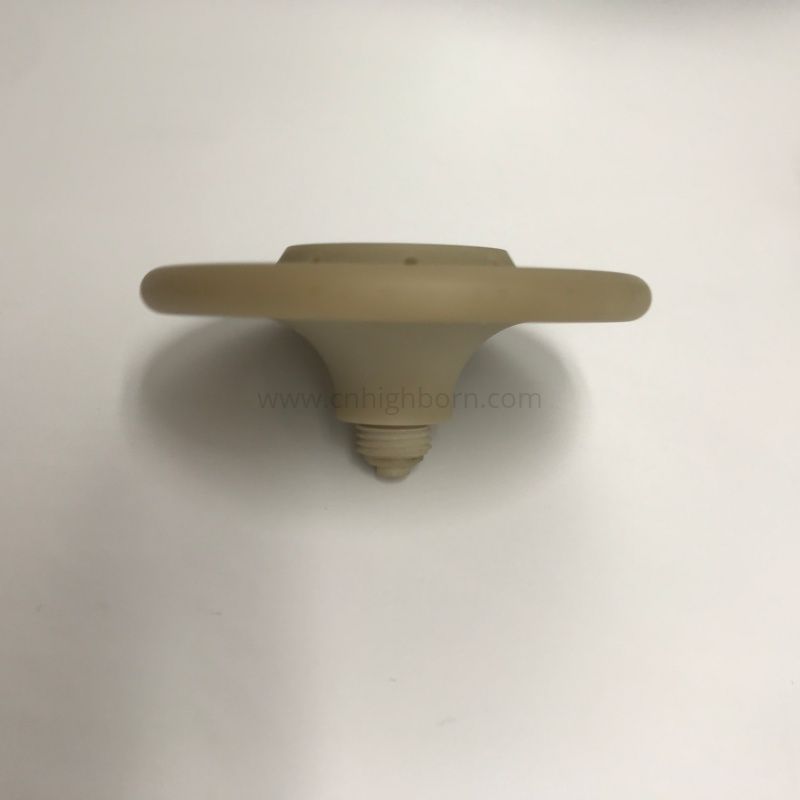

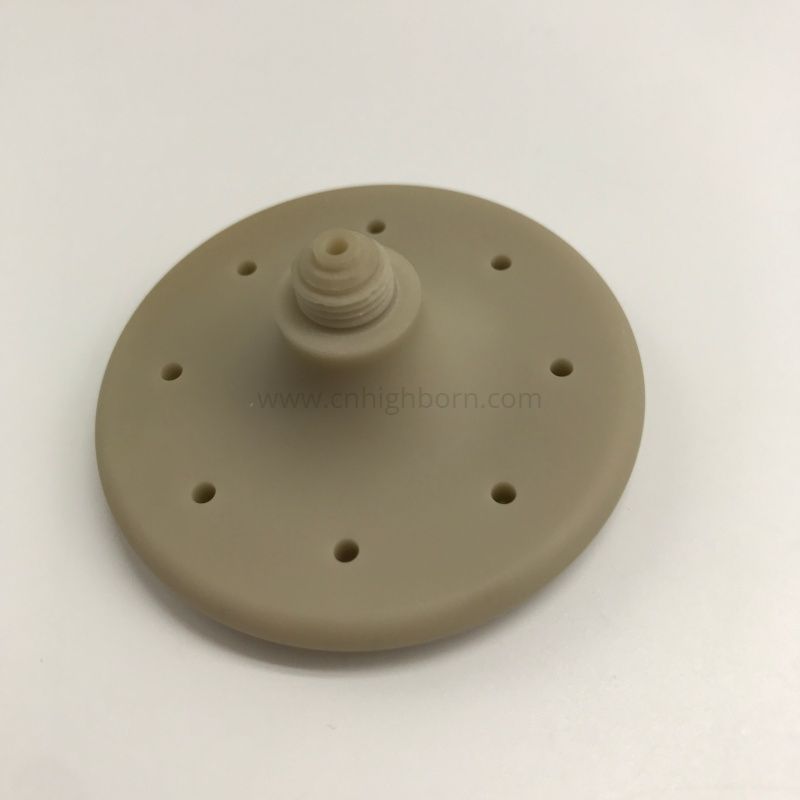

AlN Disc Aluminum Nitride Ceramic Gyro Rotation Nozzle

1)High thermal conductivity of more than 170W/m. K,
2)High resistivity,
3)Low dielectric loss,
4)Good insulation,
5)Some other excellent properties

Application of aln ceramic

1. Metal & Alloy Processing
- Used in molten metal dispensing (e.g., aluminum, copper) due to non-wettability.

2. D Printing (Additive Manufacturing)
- Used in high-temperature powder deposition systems

Aln ceramics application

3.Semiconductor & LED Manufacturing

- Used in MOCVD reactors for GaN and LED production.
- Resists corrosive gases (e.g., NH3, TMGa).

  Density

≥3.30g/cm3

Water absorption

0 %

Thermal conductivity

≥170W/(m·K) (20 ℃)

Linear expansion coefficient

4.4 ×10⁻⁶/℃ (RT~400℃)

Flexural strength

≥330 Mpa

Volume Resistivity

≥10¹⁴ Ω .cm

Dielectric constant

9.0 (1 MHz)

Dissipation factor

3 × 10⁻⁴ (1 MHz)

Dielectric strength

≥15 KV/mm

Surface roughness

0.3~0.5 Ra(μm)

  Camber

0.03~0.05 mm / 25.4mm length

Appearance

Dense
