Customized Al2O3 Alumina Textile Ceramic Wire Yarn Hook Guide

Al2O3 Alumina Textile Ceramic Wire Yarn Hook Guide


Availability:

Quantity:

Inquire Add to Basket

20 years export experience
8 Trademarks、40 Patents
Design & Research
Cooperated with Global 500 enterprises
Certificates:ISO、ROHS、CE etc.

Density: 3.90g/cm³

PRODUCT DETAILS

Product Description

	Alumina Ceramic guide Alumina ceramic is the most mature of the engineering ceramics, offering excellent electrical insulation properties together with high hardness,but relatively low strength and fracture toughness. Alumina ceramics are generally white but may also be pink or ivory.
Alumina ceramic yarn guide 1. High density 2. High hardness 3. Low thermal conductivity 4. High pressure 5. Resistance to molten metals 6. Good Wear resistance 7. High fracture toughness
	Textile ceramic hook guide advantages: 1. low thermal conductivity 2. excellent thermal shock resistance 3. light weight 4. outstanding electrical resistivity 5. excellent chemical corrosion-resistant performance 6. low heat storage 7. asbestos-free
Textile wire yarn guide Ordinary alumina ceramics are divided into 99 porcelain, 95 porcelain, 90 porcelain, 85 porcelain and other varieties according to different Al2O3 content, among which 95 alumina porcelain is mainly used as corrosion-resistant and wear-resistant components.

海博号 HB No	材质 Material	密度Density (g/cm³)	维氏硬度 Vickers Hardness (HV)	体积电阻 Volume Resistivity (Ω·cm)	呈色 Color	主要用途 Main Application
SA-100	单晶 Sapphire	4.0	2300	>10¹⁴	透明 Transparent	光学、高档导丝器 Optics,high quality guides
SA-101	99.9%氧化铝 Al₂O₃ 99.9%	3.93	2100	>10¹⁴	象牙色/粉红 Ivory/Pink	高档导丝器 High quality guides
SA-102	99.7%氧化铝 Al₂O₃ 99.7%	3.90	1700-2100	>10¹⁴	象牙色/粉红 Ivory/Pink	导丝器 Thread guides
SA-103	95%-98%氧化铝 Al₂O₃ 95-98%	3.60-3.80	1200-1650	>10¹⁴	各种颜色 Free	导丝器 Thread guides
SZ-200	氧化锆 ZrO₂	6.0	1400	＞10¹²	白色/黄色 White/Yellow	泵阀、刀具等 Pump parts,Knives etc.
SZA-201	氧化铝/氧化锆 Al₂O₃/ZrO₂	4.3	1450	>10¹²	白色 White	工程陶瓷 Engineering Ceramics
SYT-301	氧化钛 TiO₂	4.0	950	>10¹²	黄色 Yellow	导丝器 Thread guides
SBT-302	氧化钛 TiO₂	4.0	950	>10²	黑色 Black	导丝器 Thread guides

Company Profile

textile ceramic

Packaging & Shipping

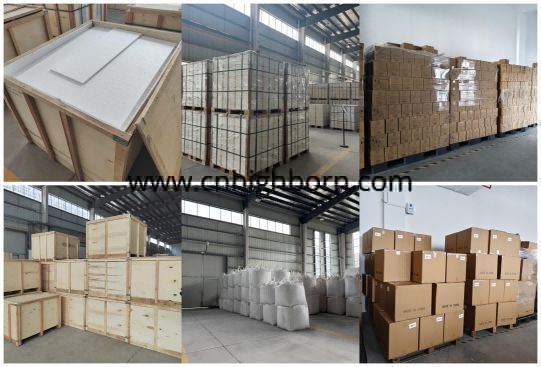

Packing Details

We will packing by professional export packing,safety against breakage, finally into the wooden cases/ carton/pallet or customized package. We have ERP authentication.

Delivery Details

We can deliver by SEA,air,rail transportation,the China-Europe Railway Express etc.

TNT, DHL,UPS, FEDEX, EMS，S.F EXPRESS etc.

Our Services

What we can do for you:

1. Sample service	2. Optimal price	3. Customized logo
4. Fast feedback	5. Customized size	6. Safety package
7. ISO9001	8. Aftersale service	9. Low procurement risk
